Features

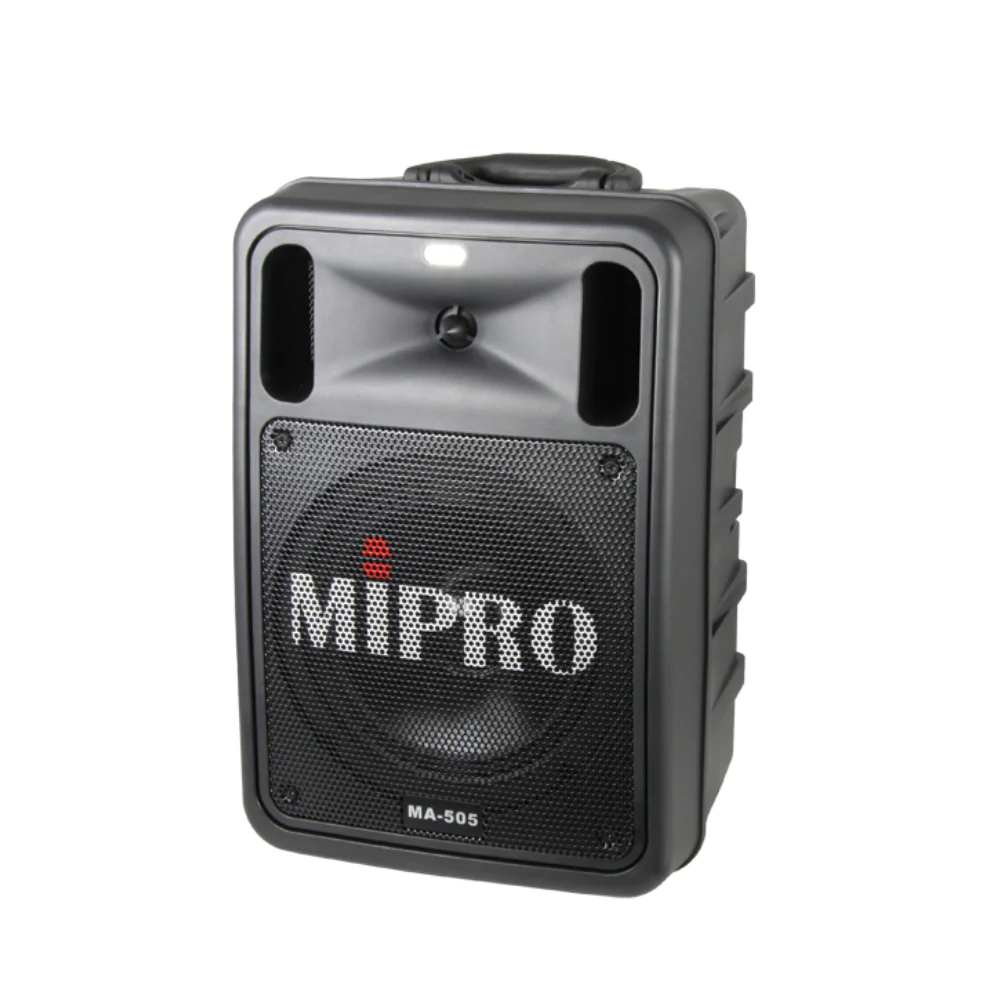

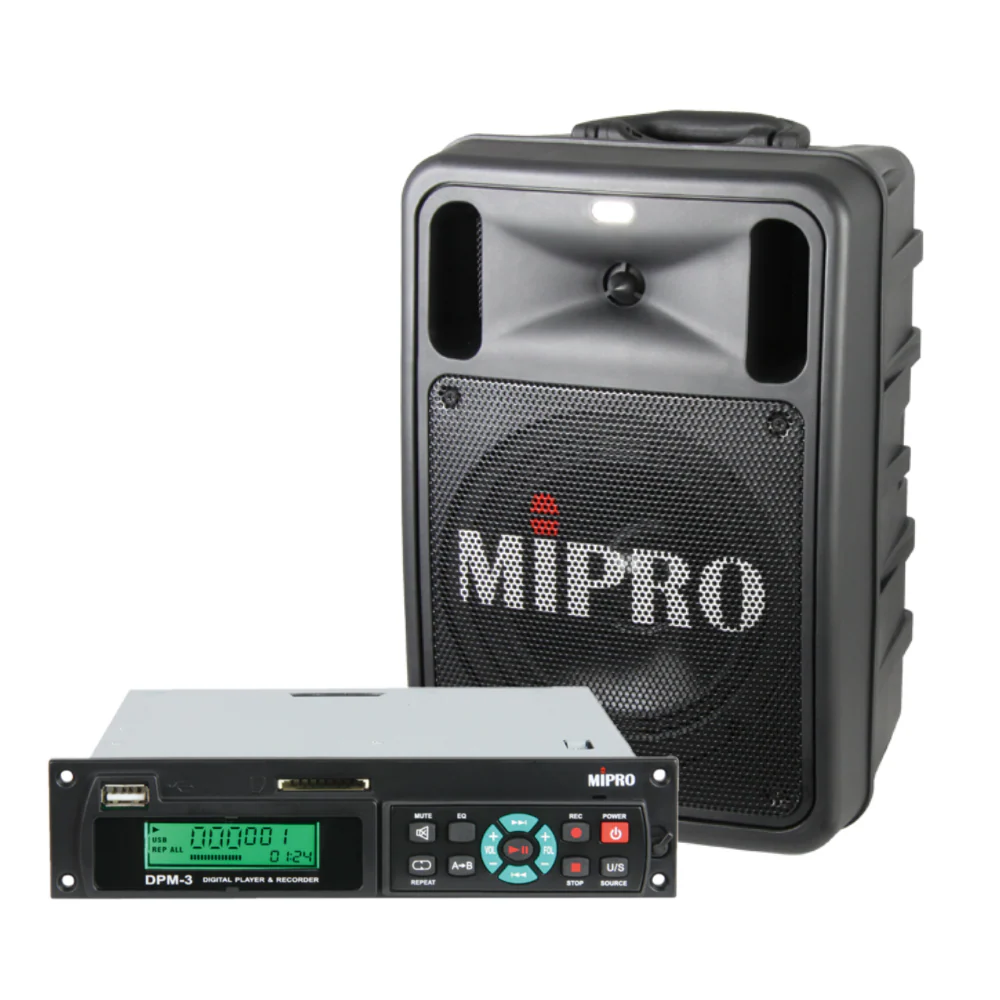

MA505 PA system

• One-piece molded cabinet with high efficiency amplifier system to drive the two-way speaker system for powerful and clear sound.
• Robust, rugged enclosure, and lightweight makes it easy for hand carry. Also can be installed on a tripod stand.
• VOP (voice-over-priority) and TONE control.
• Mixed input amplification of wired mic, wireless mic, and audio players.
• Extension speaker socket can be used with MA-505EXP passive speaker.
• Industry’s only wireless interlinking transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage.
• Industry’s first built-in active dual antennas for long distance and stable receiving.
• Built-in AC switching power supply and rechargeable battery.
• Storage compartment for AC power cable.

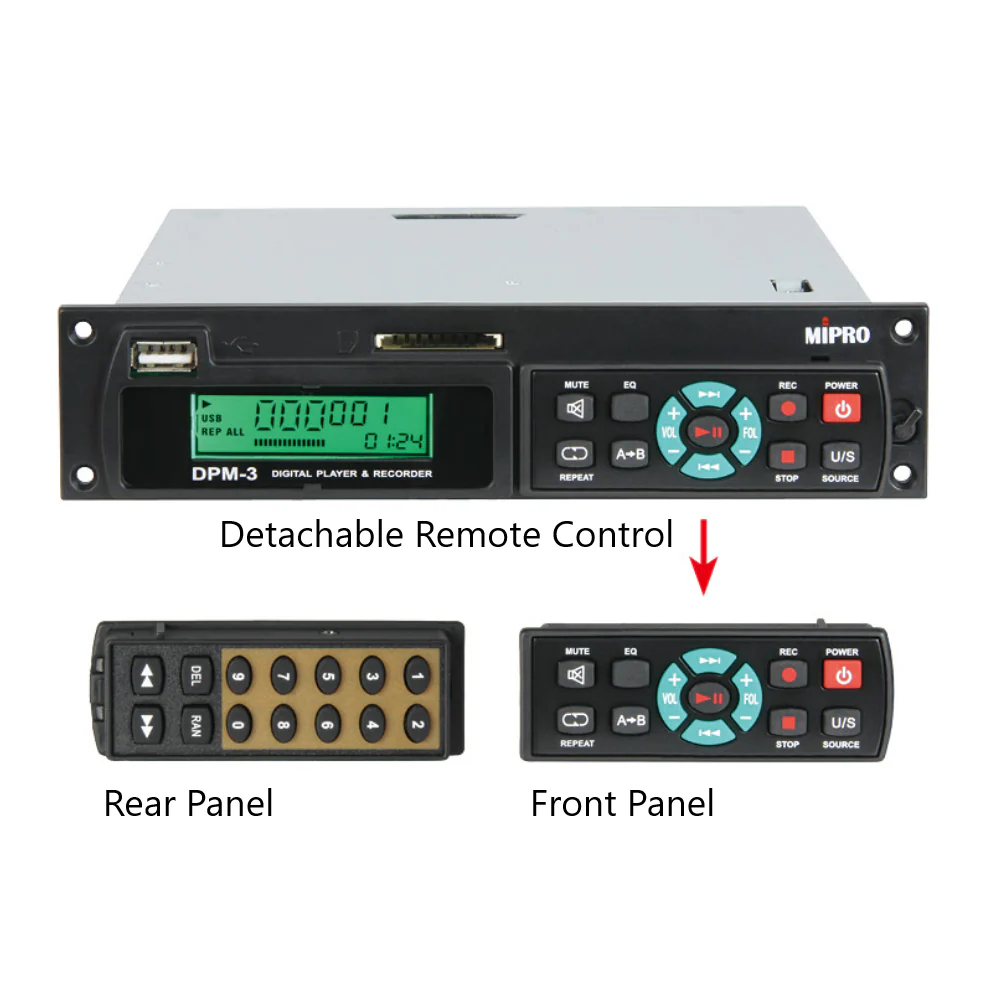

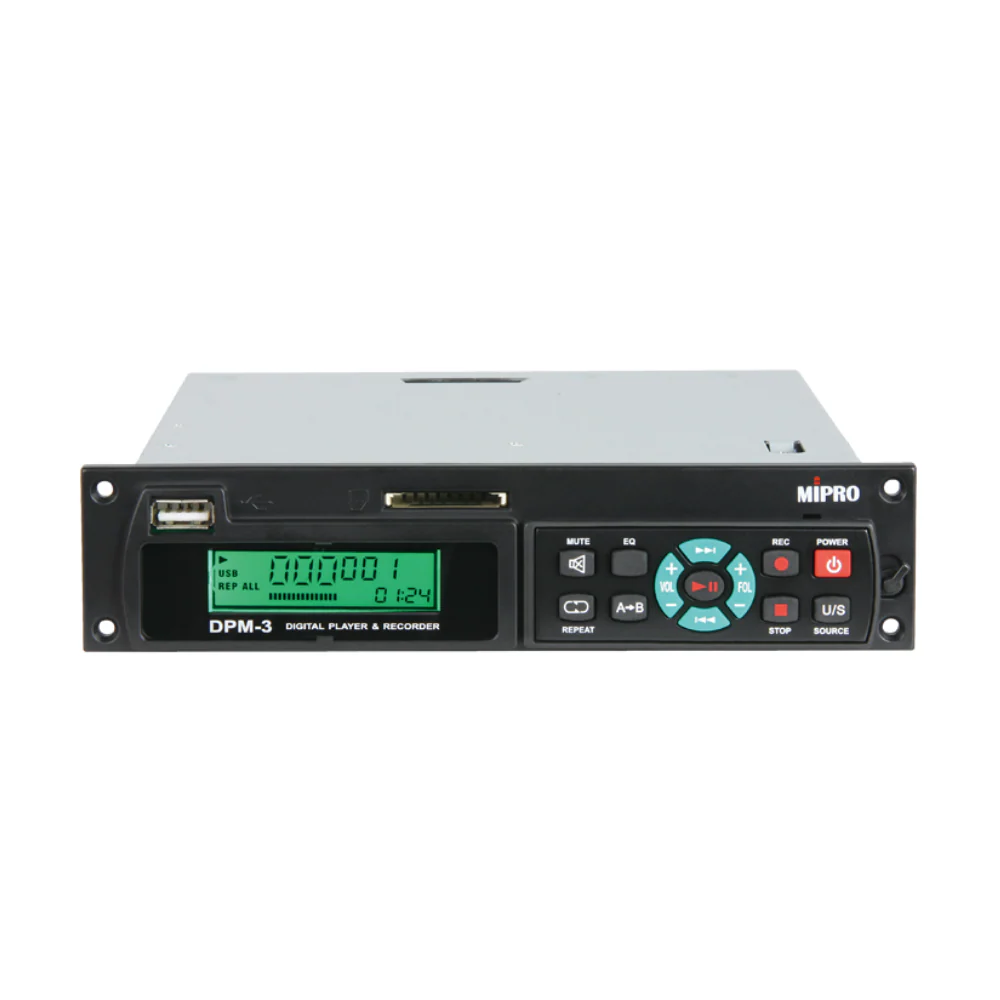

DPM3 MiPro USB/SD Player & Recorder Features

• Can record Line in input audio source to SD or USB.
• It has language learning function and can play the specified range repeatedly.
• Provides direct deletion function during single playback.
• Switch directories directly, making it easy to manage songs.
• Equalizer function allows you to choose different sound fields.
• Multiple repeat playback options, fast forward and backward search.
• With digital song selection function, you can quickly select the desired track.
• Random playback function, full-featured remote control operation.
• Suitable for installation on MA-505/708/808.

MA-505 Portable Wireless PA System from MIPRO 嘉強電子 on Vimeo.

Specifications

• • Name: Portable Wireless PA System
  • Max. SPL: 105 dB

• Drivers: 1" Tweeter & 8" Woofer
• Frequency Range: 70 Hz – 14 kHz
• Audio Inputs: MIC IN: 1 × XLR, 1 × 1/4" (6.3 mm)
• LINE IN: 1 × 1/8" (3.5 mm)
• Audio Output LINE OUT: 1 × 1/8" (3.5 mm)
• Amplifier Class: D
• Output Power: 145 W RMS, 248 W peak
• Receiver Modules: Up to 4
• Audio Players: Bluetooth, CD/USB/SD player & recorder (optional)
• Transmitter Modules: MTM-91, MTM-24, MTM-58 (optional)
• Extension Speaker: 1 × 1/4" (6.3 mm)
• Other Functions: VOP, TONE control, siren sound effect
• Power Supply: AC 100 – 240 V or DC 24 – 28 V
• Battery: Built-in Li-ion battery
• Battery Indicator: 4-segment indicators (25/50/75/100%)
• Standby Time Up to 8 hours
