Features

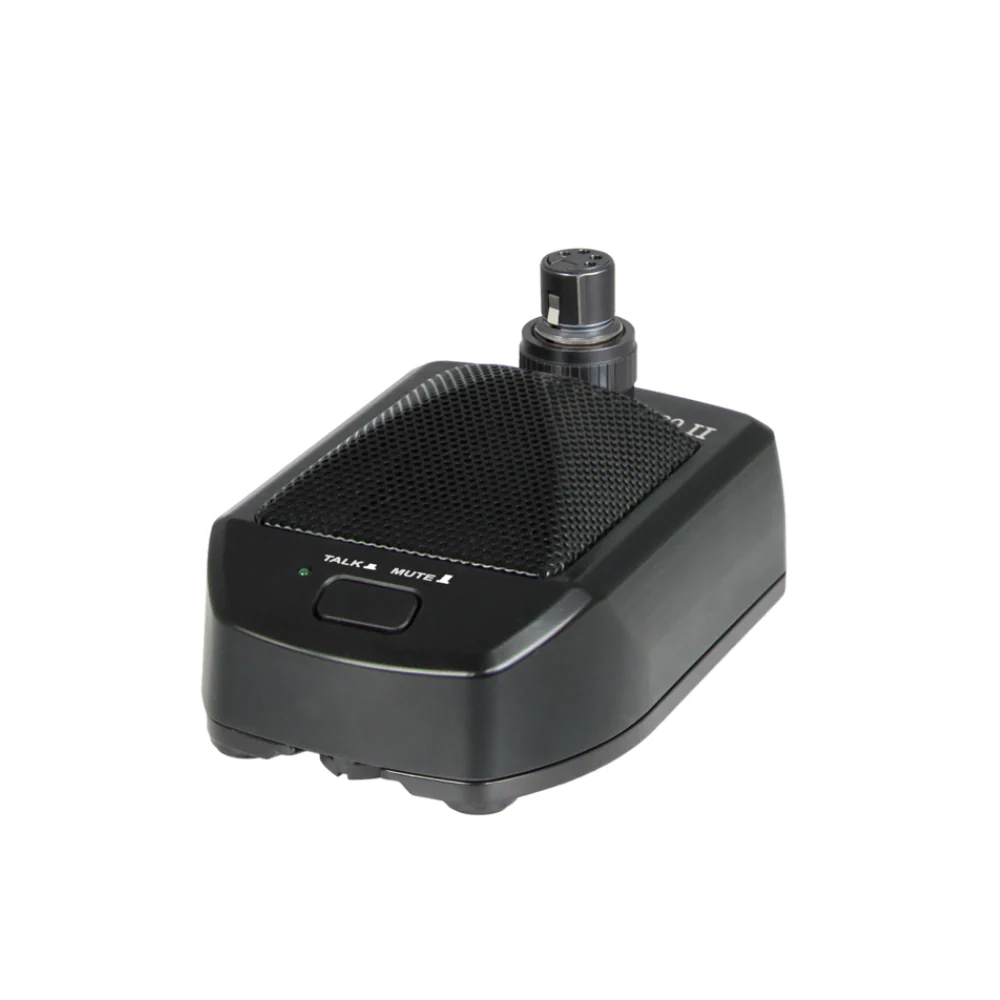

BC-100 Base

• The BC-100 can be used as boundary microphone or connected with the gooseneck microphone to be a desktop conference microphone. Insert a MIPRO ACT Series bodypack transmitter into the BC-100 base as a wireless conference microphone.
• The back panel has a balanced XLR connector with a switch to select the audio source from either the inner boundary microphone or the optional gooseneck microphone.
• The housing is made of metal with a thicker bottom and anti-slip pad to give added stability.
• TALK / MUTE button provides easy speaking or mute option; A LED indicates status.

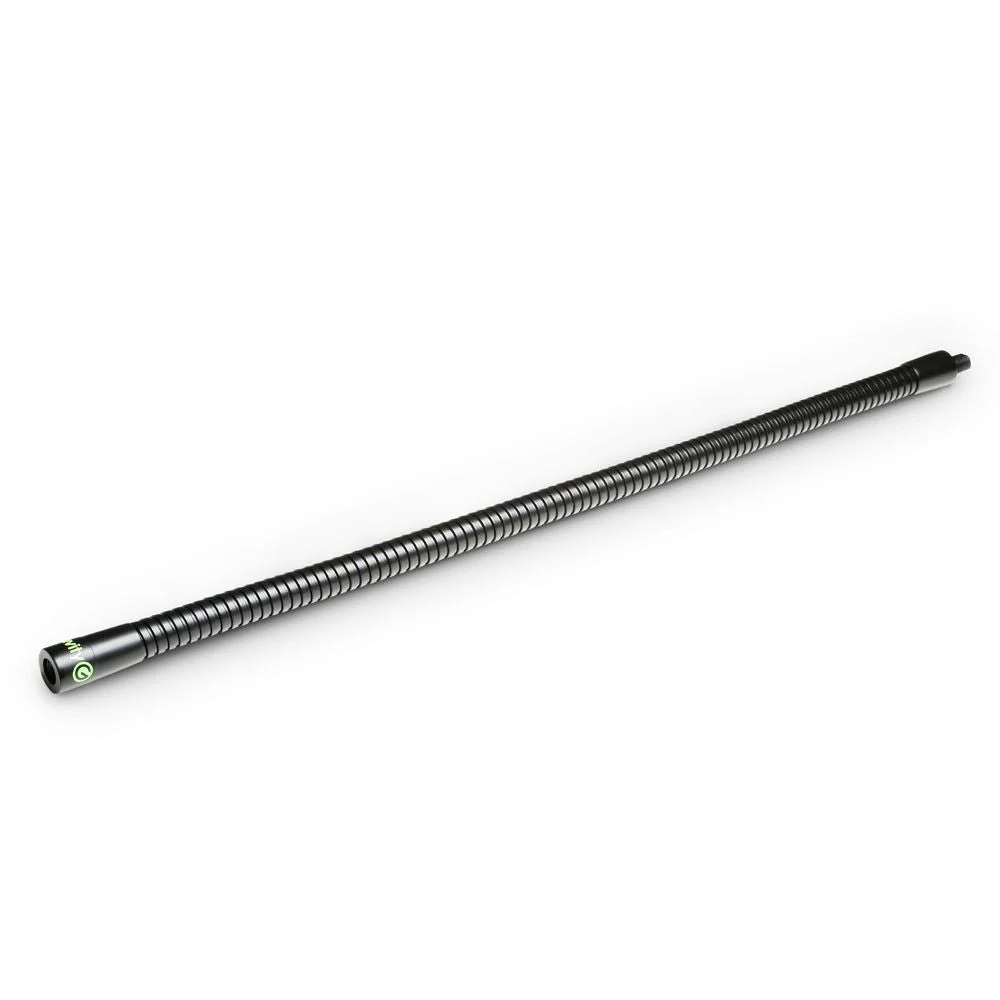

MM-205L 500 Gooseneck Microphone

• MM-2 Series gooseneck microphones can be bent at wide angles and are ideal for conference room and church applications.
• Multi-layered microphone grille effectively eliminates pop noise.
• MM-206L / 205L / 204L microphone, which has 4 pin XLR plug, fits wired BC-100 and wireless BC-T Series conference microphone bases. Combined with LED ring indicator, the speaking status can be identified.

Specifications

BC-100 Base

• Built-in Boundary Microphone 10 mm cardioid condenser microphone
• Input Connector: 4-pin XLR female
• Output Connector: Balanced XLR male
• TALK / MUTE Button Mechanical PUSH-HOLD switch, with LED status indicator
• Power Supply: 12 – 48 V DC phantom power is required (external cable)
• Color: Black

MM-205L 500 Gooseneck Microphone

• Name: 500 mm Gooseneck Microphone
• Colour: Black, with LED ring indicator
• Indicator: Red LED ring indicator
• Capsule: 10 Ø mm unidirectional condenser microphone
• Frequency Response: 50 Hz – 18 kHz
• Sensitivity: -46 ± 3 dBV / Pa (0 dB = 1 V / Pa)
• Max. SPL: 142 dB
• Output Jack: 4-Pin XLR male (DC 5 V)
• Phantom Power: DC 5 – 9 V
