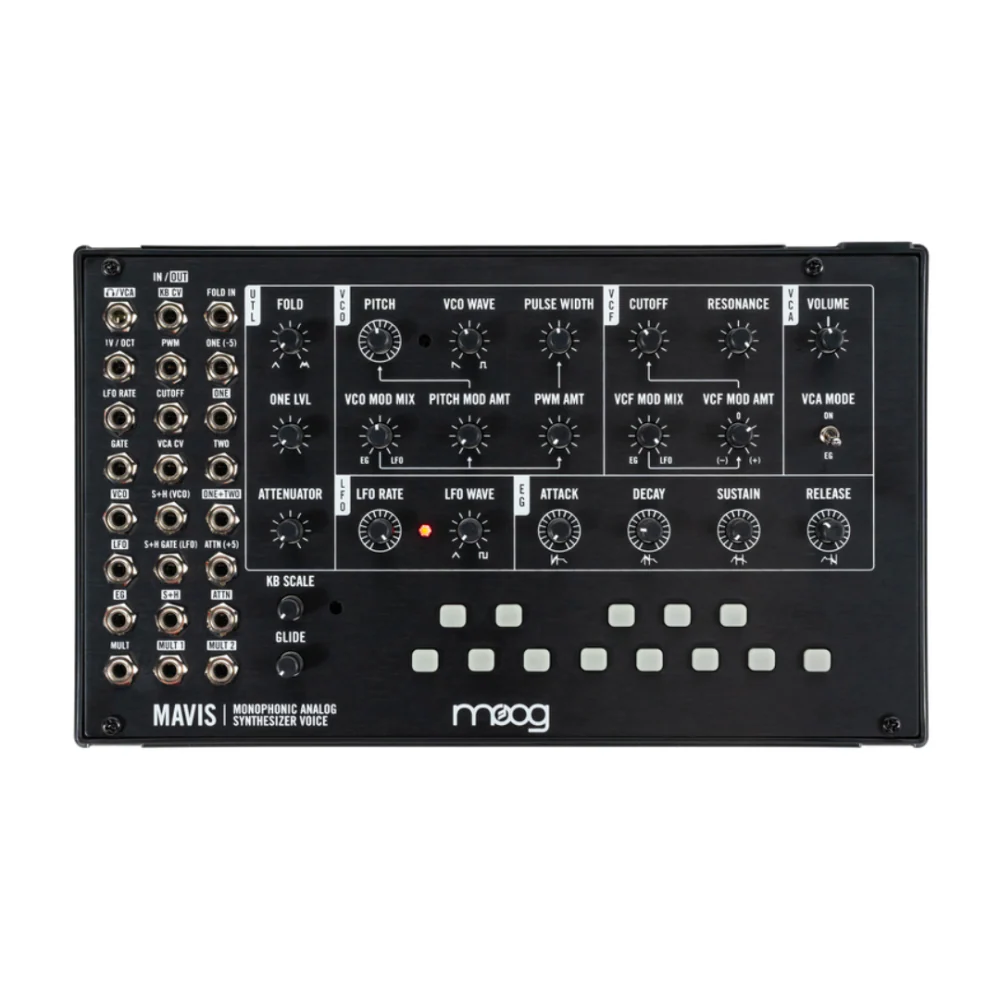

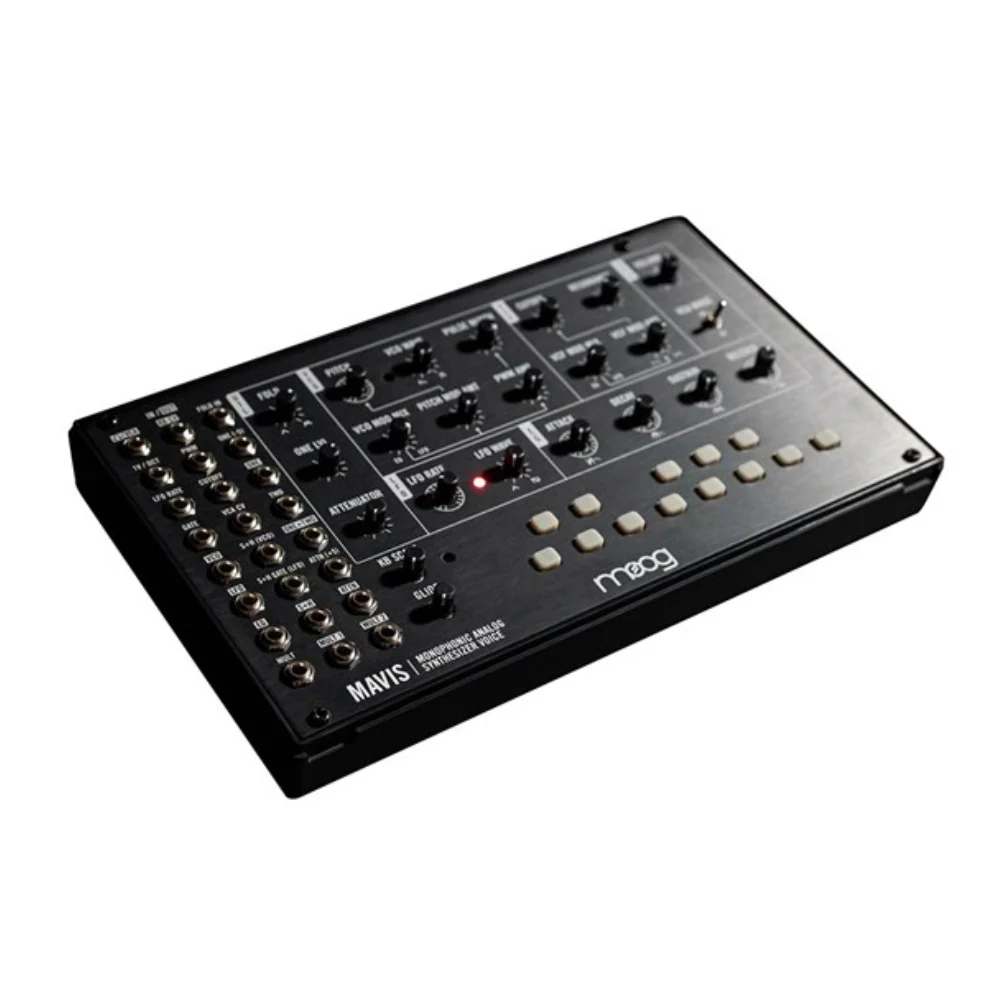

Mavis is a DIY analog synthesiser kit that delivers the incredible depth of sound Moog is known for in a compact, feature-rich instrument. It's incredibly easy to assemble, allowing users of all skill levels to quickly put together their own analog synthesiser with minimal tools and experience. Perfect for beginners and experienced synthesizer players alike, Mavis' semi-modular design and one-octave keyboard allow you to start creating sounds right away, without the need for any additional equipment (other than speakers and headphones). As a standalone instrument, Mavis is an easy analog synthesiser with patchable modular utilities and Moog's distinctive sound and quality. Simply take Mavis out of the case and it becomes a 24-point CV controllable module (44 HP) that can be installed in a Eurorack system or alongside other semi-modular Moog equipment. Blending the familiar and the exotic, Mavis features Moog's legendary oscillator and filter circuits, as well as the Diode Wavefolder, the first analog wavefolder used in Moog equipment. Combining traditional subtractive synthesis with additive wavefolding and full individuality, Mavis's masterful presentation of synthesis modules and utilities ensures deep creative synergy and musical connection. Mavis is a powerful, fun, and affordable Moog that will enable anyone who wants to explore classic analog sounds in new ways to learn synthesis or expand an already advanced studio setup. Built-in keyboard with Glide and KB scaling As a standalone instrument or as a 44HP Eurorack module, Mavis adds an expressive 1 v/o controller to any setup with the flexibility to dial in experimental new pitch relationships via the KB scale knob and explore musical intervals that go beyond the established standards. Full Range Analog Oscillator A Voltage Controllable Oscillator with PWM (Pulse Width Modulation), Waveform mixing, and Mod Source mixing, delivers rich harmonic character and motion. Voltage Controlled Filter Sculpt your sound with the -24-dB Moog Low Pass Ladder Filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads. Audio Rate LFO and 4-Stage Envelope Generator Mavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual modulation contours. Wavefolding and Modular Utilities Mavis features Moog’s first-ever wavefolding circuit, allowing for additive synthesis to sit alongside traditional subtractive synthesis, and features a broad modular utilities section complete with attenuators, offsets, mults, and a flexible DC-coupled mixer. Patchable Sample and Hold (S+H) circuit: Generates a random CV pattern that can be patched to modulate other parameters, including setting Mavis into a random sequencing mode of performance. 24-Point Patch Bay Mavis is eager to play along with other voltage-controlled devices (especially with Moog’s other semi-modular instruments), and its useful collection of utilities and flexible control voltage routing allow for intricate dialogue between them. Protective Cover Build one yourself. Get closer to the circuits at the heart of Mavis and come away with a Moog analog synthesizer that is uniquely “yours”. No soldering is required and can be completed by any skill level in an afternoon.

Features

• Compact and Powerful
• Legendary Moog Sound From a Build-It-Yourself Kit
• Powerful Patch Bay Toolbox
• Plays Well With Others

Tech Specs

• Type:Semi-modular Analog Synthesizer Kit
• Analog/Digital:Analog
• Type of Keys:13 x Key Buttons
• Polyphony:Monophonic
• Oscillators:1 x Analog VCO
• Waveforms:Sawtooth, Square (continuously variable) ; Wavefolding
• Envelope Generator:1 x ADSR
• LFO:1 x LFO (triangle, square)
• Filter:4-pole Lowpass Ladder Filter
• Sample and Hold:Yes
• Analog Outputs:1 x 1/8" (output/headphones)
• Other I/O:23 Point patch bay
• Features:Glide, Keyboard Scaling
• Power Supply:12V DC power supply (included)
• HP Size:44HP
• Height:1.53"
• Width:8.93"
• Depth:5.23"
• Weight:0.94 lbs.
• Manufacturer Part Number:MOD-WK-MAVIS-U
