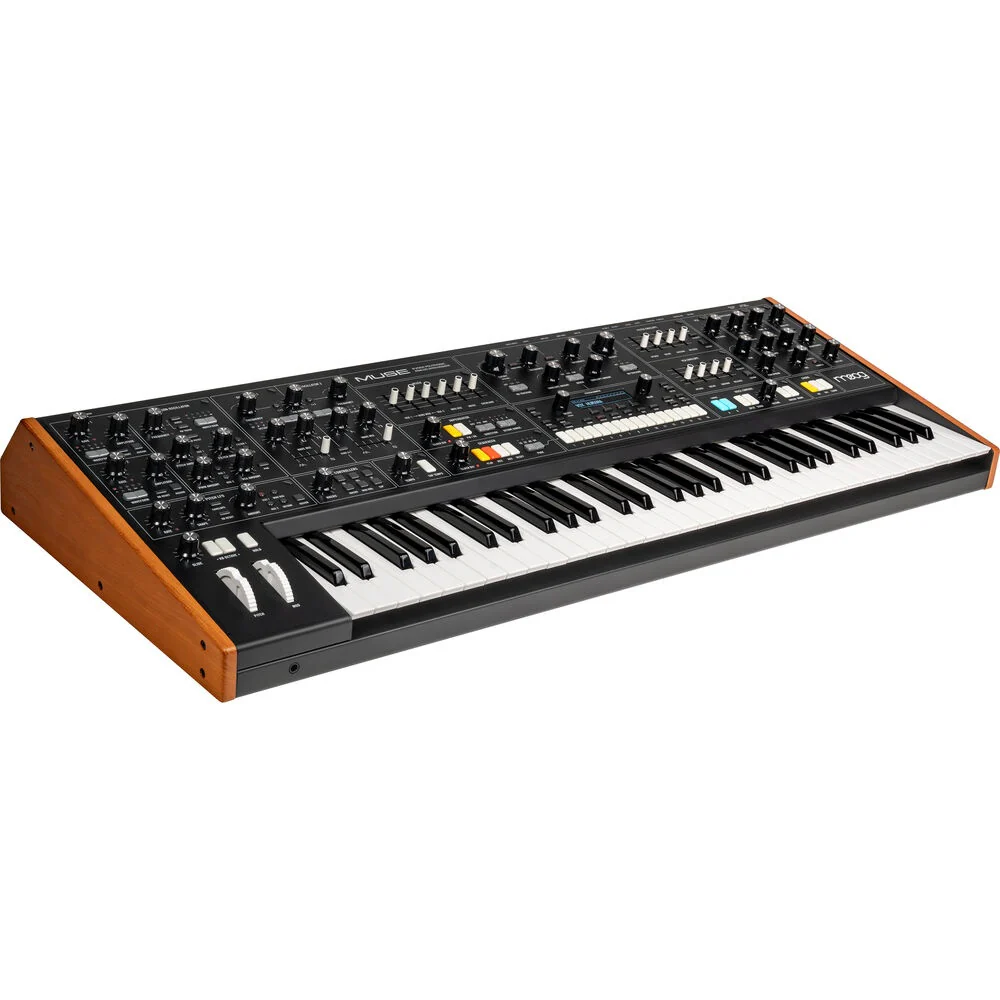

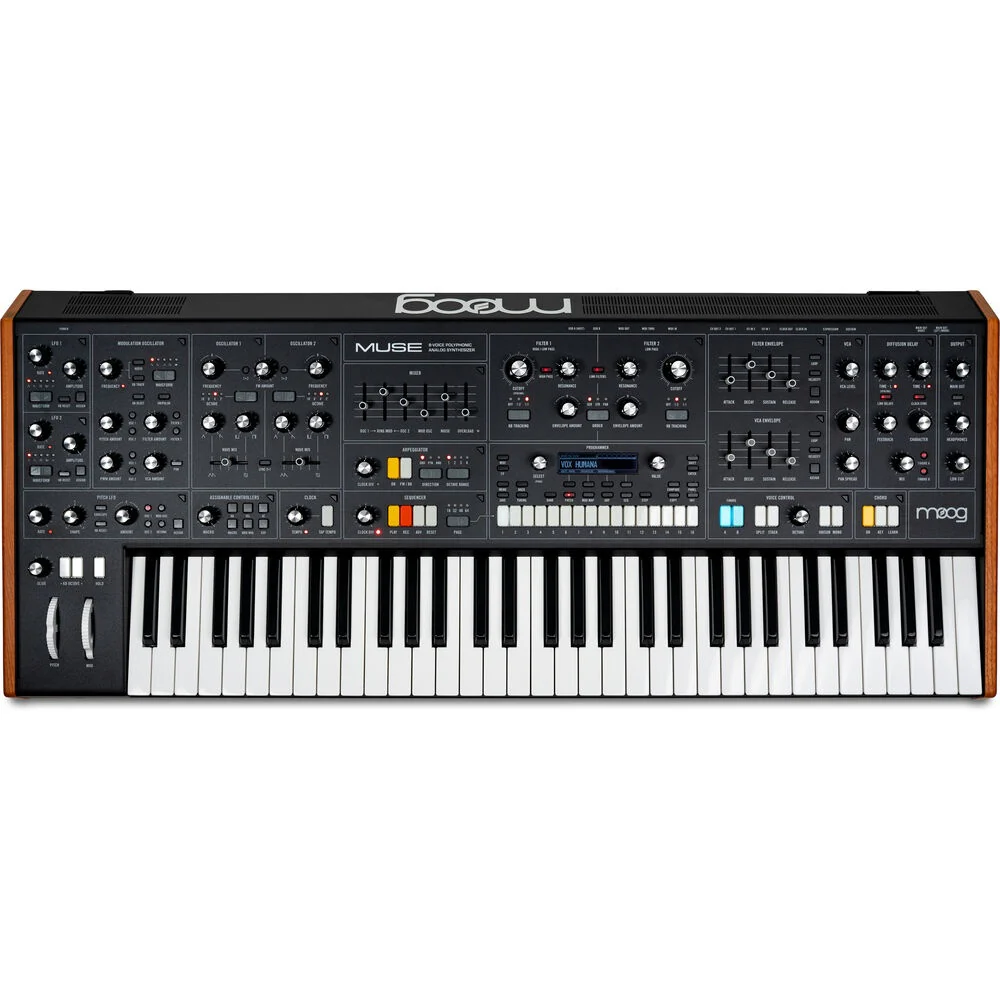

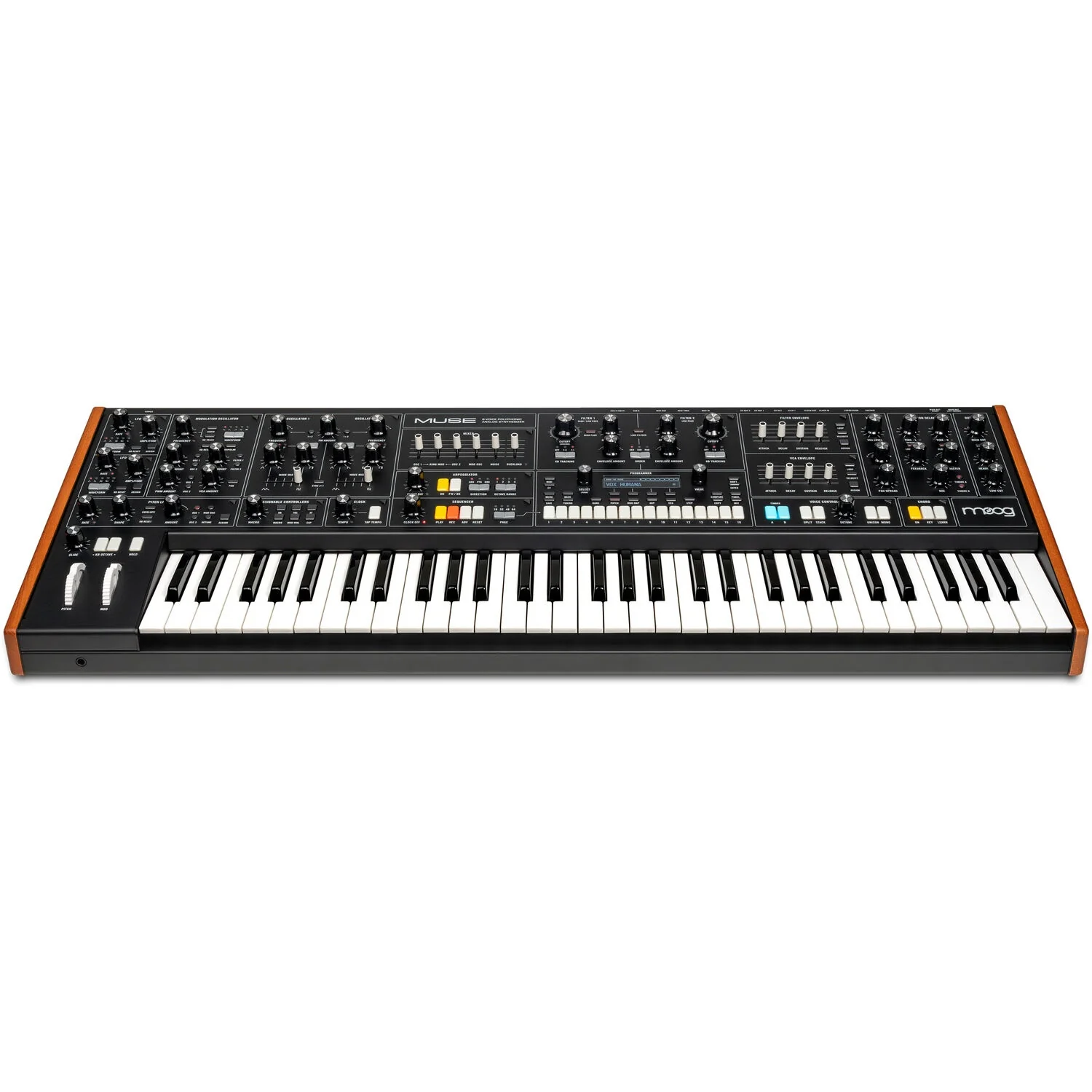

The Moog Muse is a powerful, performance-driven analog synthesizer that brings classic Moog design and modern playability into one expressive instrument. With rich, multi-layered voices, intuitive controls, and a dynamic keyboard interface, it inspires creativity on stage and in the studio alike. From lush pads and soaring leads to deep, resonant basses, Muse offers an expansive sonic palette, seamlessly blending analog warmth with cutting-edge modulation and sequencing capabilities for limitless musical exploration.

Features

• 61 Semiweighted Keys with Vel and AT

• Dual Analog VCOs Inspired by Voyager

• Per-Voice Analog Modulation Oscillator

• CP4-Style Saturating Mixer with Ring Mod

• 2 Ladder VCF (Stereo, Series, Parallel)

• Stereo VCA Per Voice

• Dual ADSR Envelope Generators

• Two LFOs with Sample & Hold

• 64 Step Sequencer + Arpeggiator

• 256 Patch Memory with OLED Display

Specifications

General
Synth Type: Keyboard Synth
Sound Generation: Analog
Keyboard: 61 Full-Size Keys with Semi-Weighted Action
Aftertouch: Channel/Mono Aftertouch
Expression Controls: 1x Pitch Bend, 1x Modulation
Transport Controls: Record, Play
Display: OLED

Sounds
Number of Sounds, Kits, or Samples: 224x Factory Sound Preset, 32x User Sound Preset
Number of Song Presets: No
Maximum Polyphony: 8 Voice (Stereo)
Multitimbrality: 2-Part
Built-In Effects: Digital Delay (Vintage)
Performance Functions: Arpeggiator, Dual Zone, Layer, Octave Shift, Sequencer, Split, Split/Layer, Transpose
Built-In Speaker: No

Synthesis
Oscillators: 2x Variable (FM, PWM, Sawtooth, Square, Triangle), 1x Variable (Noise, Sawtooth, Sine, Square)
Mixer: Oscillator, Oscillator 2, Oscillator 3, Noise, Ring Modulation (Level)
Amplifiers: 1x VCA per Voice
Envelopes: 1x Filter Envelope Generator per Voice (Attack, Decay, Sustain, Release, Loopable), 1x VCA Envelope Generator per Voice (Attack, Decay, Sustain, Release, Loopable)
Filters: 2 per Voice, Analog Ladder (Classic), Low-Pass & High-Pass, 4-Pole/24 dB (HPF/LPF), Key Tracking (Off, Half, Full), Controls: Cutoff, Resonance, Envelope Amount
LFOs: 3 per Voice, Waveforms: Sawtooth, Square, Triangle, Sample & Hold
Modulation Matrix: 16-Slot
Glide/Portamento: Yes

Sequencing & Recording
Sequencer: 64-Step
Number of Step Buttons: 16
Number of Sequencer Patterns: 224x Factory, 32x User
Pattern Chaining: Yes

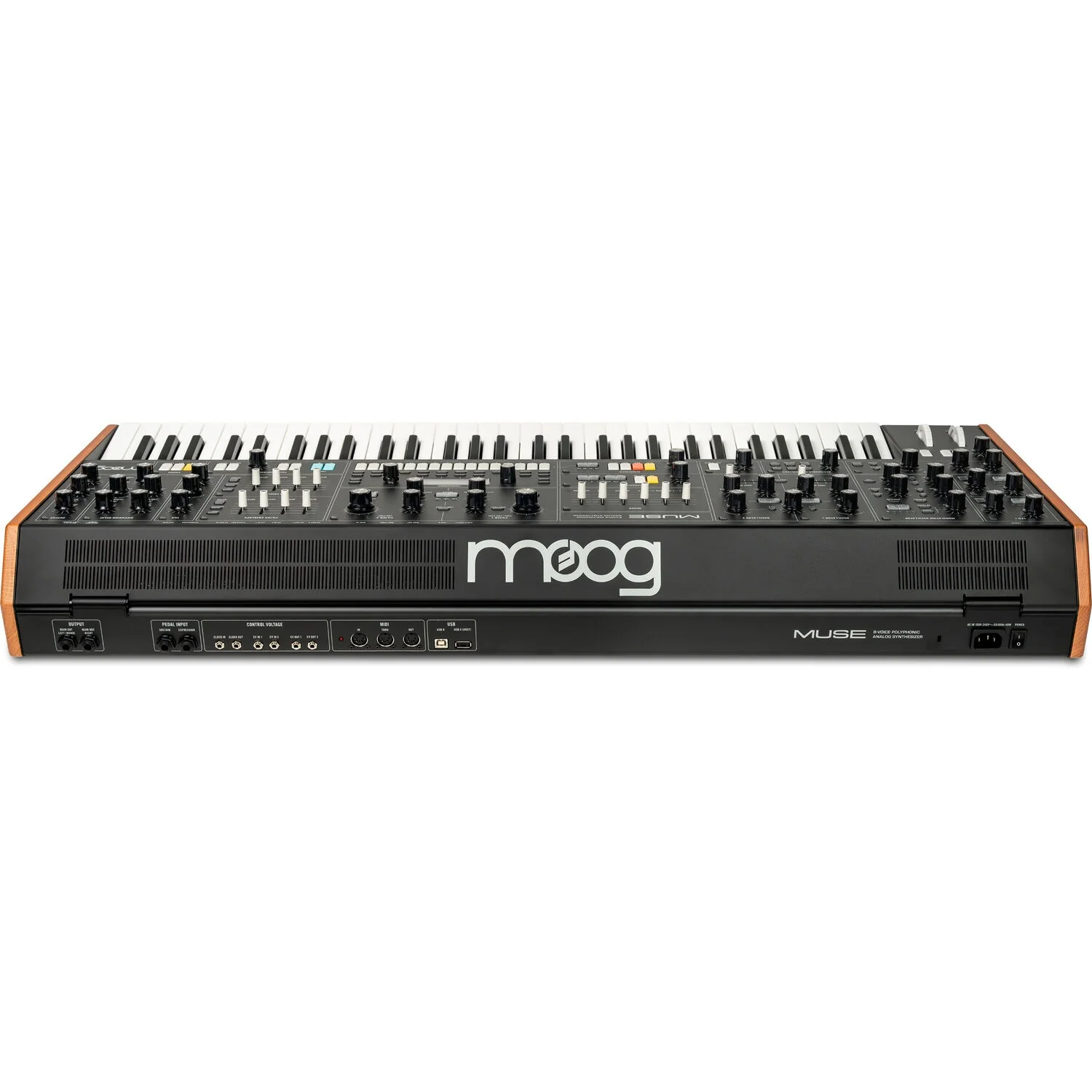

Connectivity
Audio I/O: 2x 1/4" TRS Balanced Stereo Main Output (1 Stereo Pair), 1x 1/4" TRS Unbalanced Headphone Output
Pedal Support: 2x 1/4" TRS Expression/Sustain
MIDI I/O: 1x DIN 5-Pin Input, 1x DIN 5-Pin Output, 1x DIN 5-Pin Thru
CV/Gate I/O: 2x 1/8" / 3.5 mm TS CV Input, 2x 1/8" / 3.5 mm TS CV Output
Patch Points: No
Sync I/O: 1x 1/8" / 3.5 mm TS Clock Input, 1x 1/8" / 3.5 mm TS Clock Output
Network I/O: No
USB I/O: 1x USB-A (Device/Controller Connection), 1x USB-B (Host Connection)
Media/Memory Card Slot: No
Bluetooth: No

Compatibility
Included Software: No
Mobile App Compatible: No

Power
Power Requirements: AC Input
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
