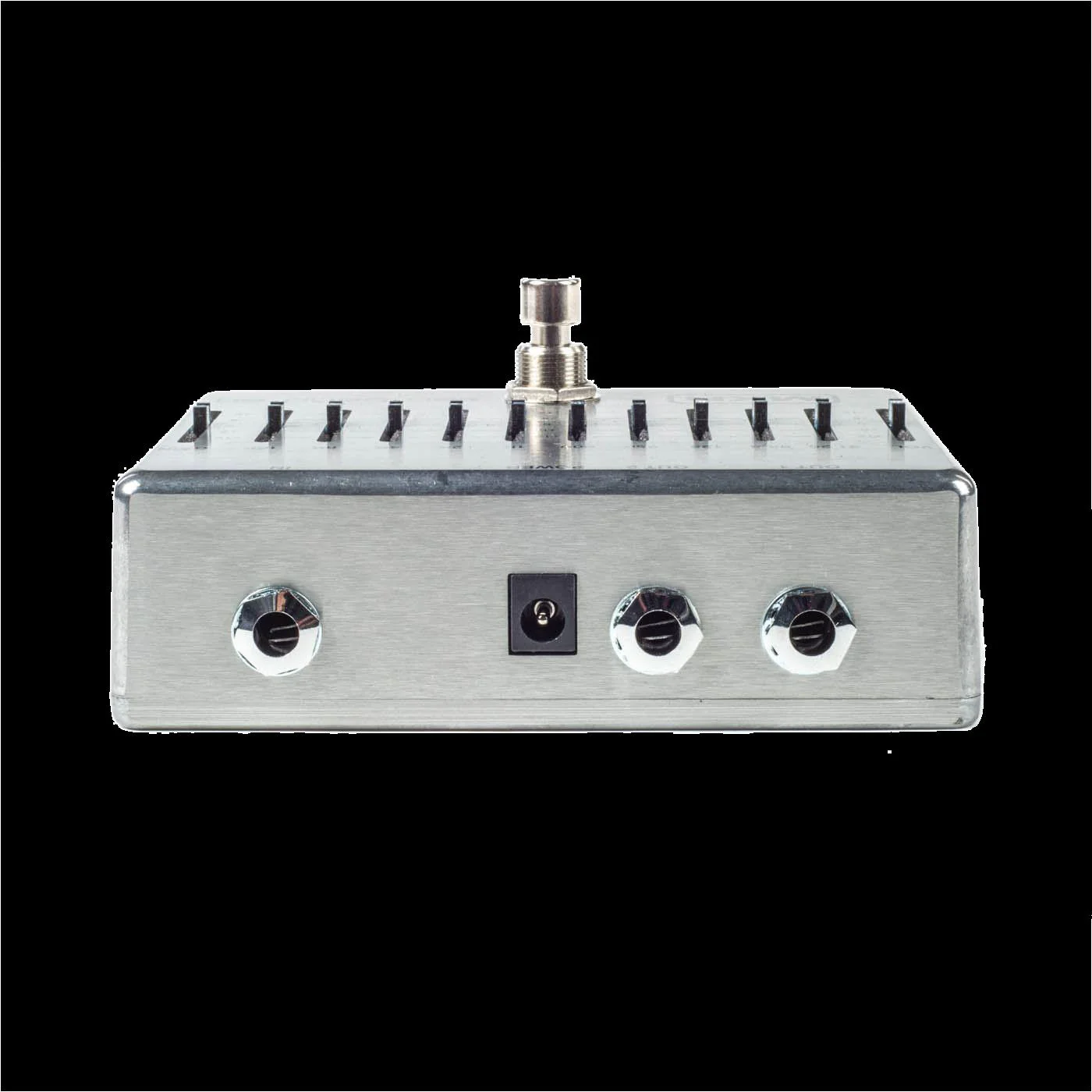

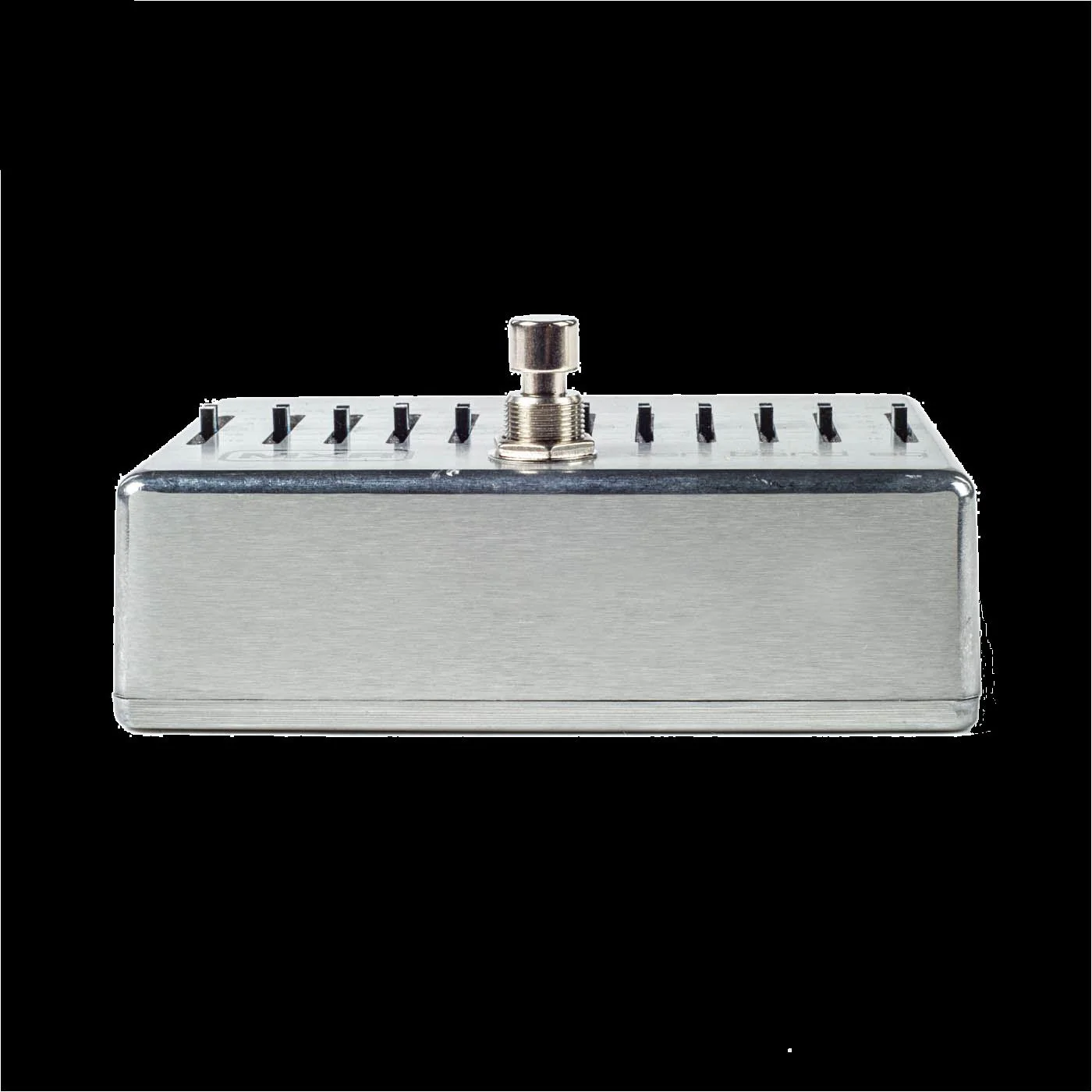

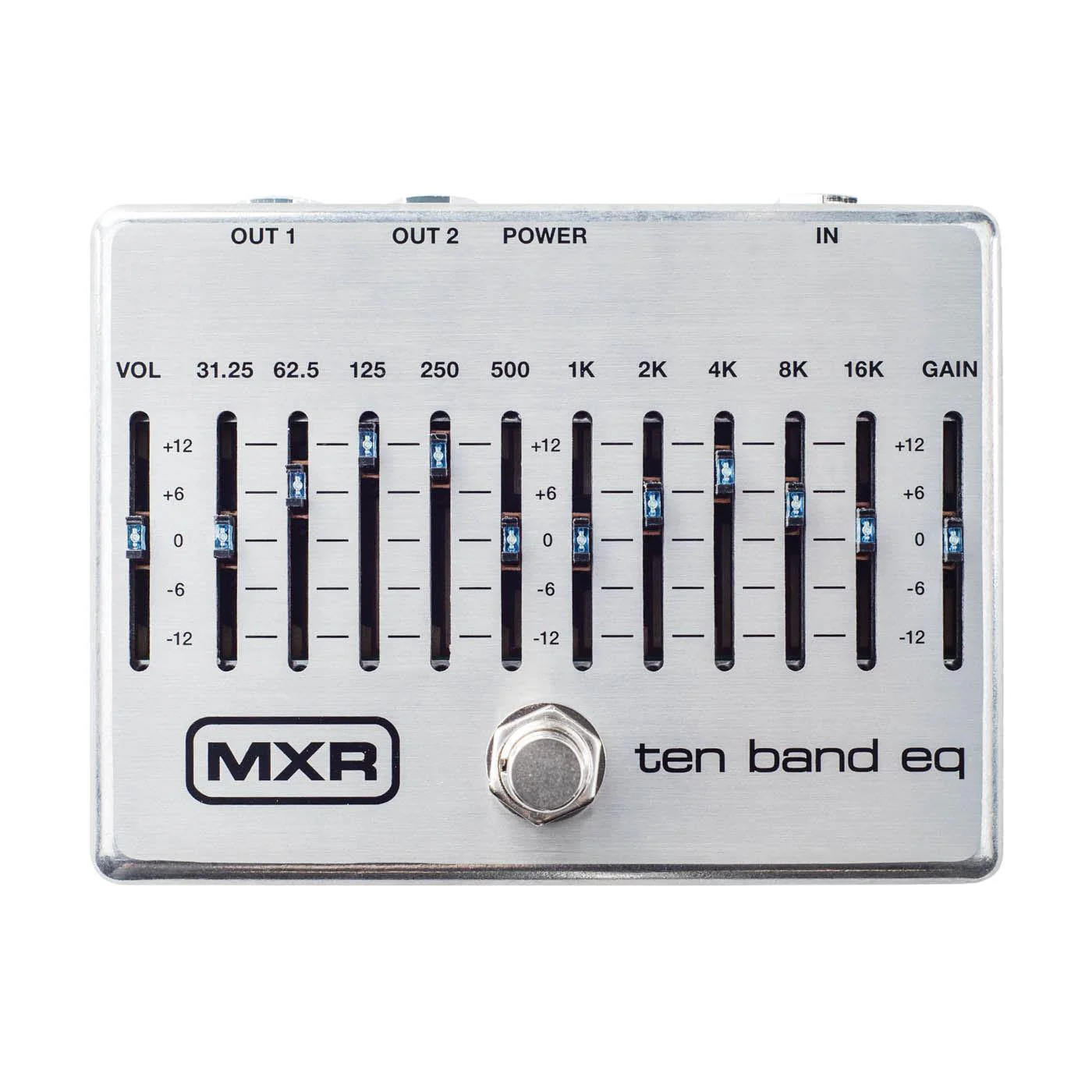

The MXR Ten Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs for increased visibility, and a second output so you can run two separate signal chains.

With ten carefully chosen frequencies and both input and output level controls, the Ten Band EQ will let you tune your bass or guitar rig to any room in seconds-create earthshaking low-end; restore punch, level, and treble response to a crowded pedalboard; warm up an amplified acoustic; and much, much more. For ultimate tone-sculpting ability in a bullet-proof enclosure, put the Ten Band EQ on your pedalboard.

---

Specifications

Input Impedance: 470 kΩ
Output Impedance: 5 kΩ
Max Input Level: +14 dBV
All Sliders at 0 dB: at 1 kHz
Max Output Level: +14 dBV
All Sliders at 0 dB: at 1 kHz
Frequency: ±1 dB, 20 Hz
Response: to 20 kHz
Noise Floor*: -101.4dBv
Filtering ±12db at: ±12dB shelf
31.25, 62.5, 125, at 16kHz
50, 500, 1k, 2k,
4k, 8kHz
Bypass: True Hardwire
Power Supply: 18 Volts DC
Current Draw: 48 mA

---
