MXR 6 Band Graphic EQ Guitar Effects Pedal
The MXR Six Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, brighter LEDs for increased visibility, and a lightweight aluminum housing.

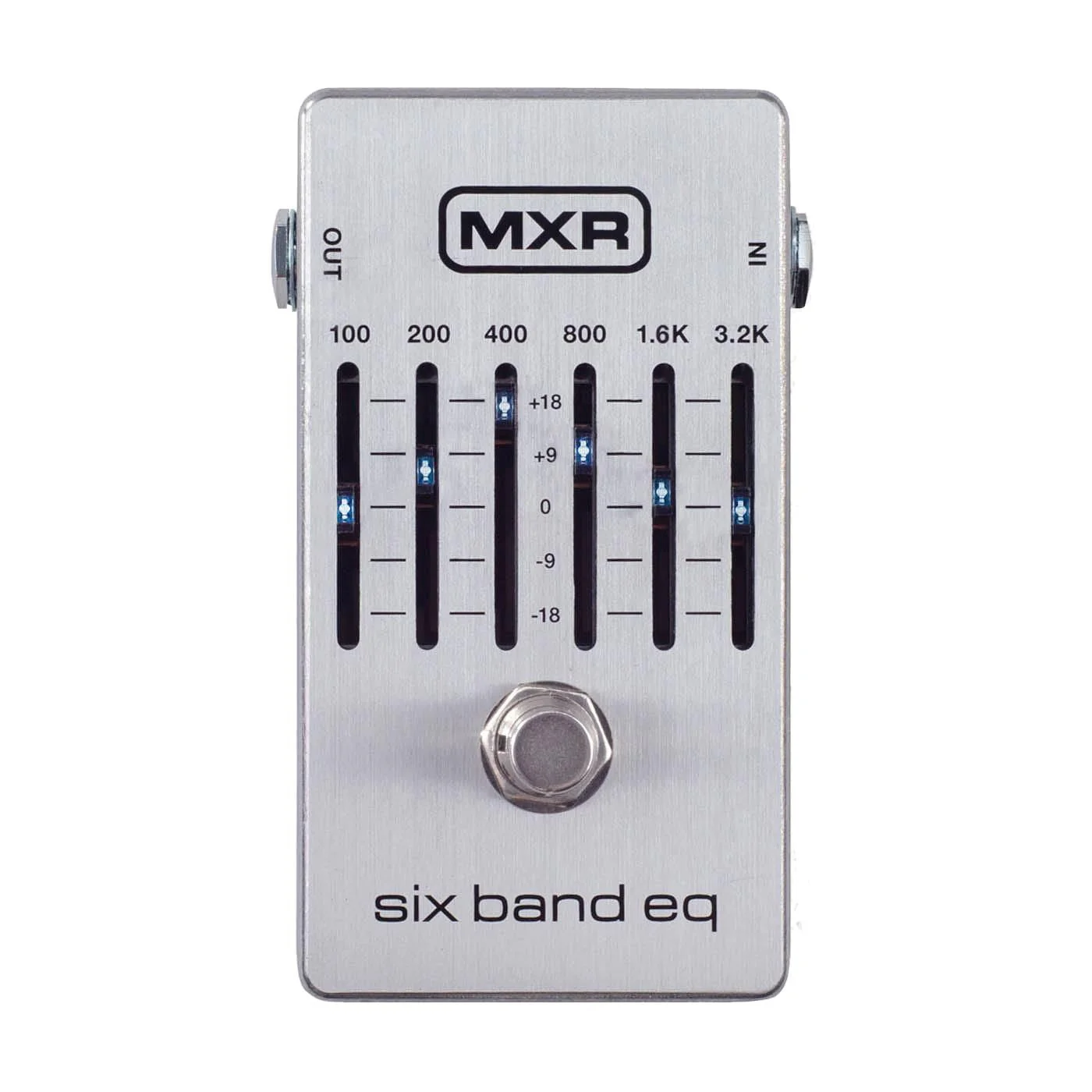

It covers all the essential guitar frequencies, with each slider ready to deliver +/-18dB of cut or boost for incredible control over your sound. The Six Band EQ can create scooped-mid rhythm tones with massive low end, add natural sounding warmth to a quacky acoustic pickup, eliminate onstage feed-back, and much more. You can also use the Six Band EQ in the effects loop of your amp for a huge, sculptable lead boost.
Specifications
Input Impedance: 470 kΩ
Output Impedance: 5 kΩ
Max Input Level: +14 dBV
All Sliders at 0 dB: at 1 kHz
Max Output Level: +14 dBV
All Sliders at 0 dB: at 1 kHz
Frequency: ±1 dB, 20 Hz
Response: to 20 kHz
Noise Floor*: -101.7dBv
Filtering ±12db at: ±18dB shelf
100, 200, 400, at 16kHz
1.6k, 3.2k,
Bypass: True Hardwire
Current Draw: 14.5 mA
