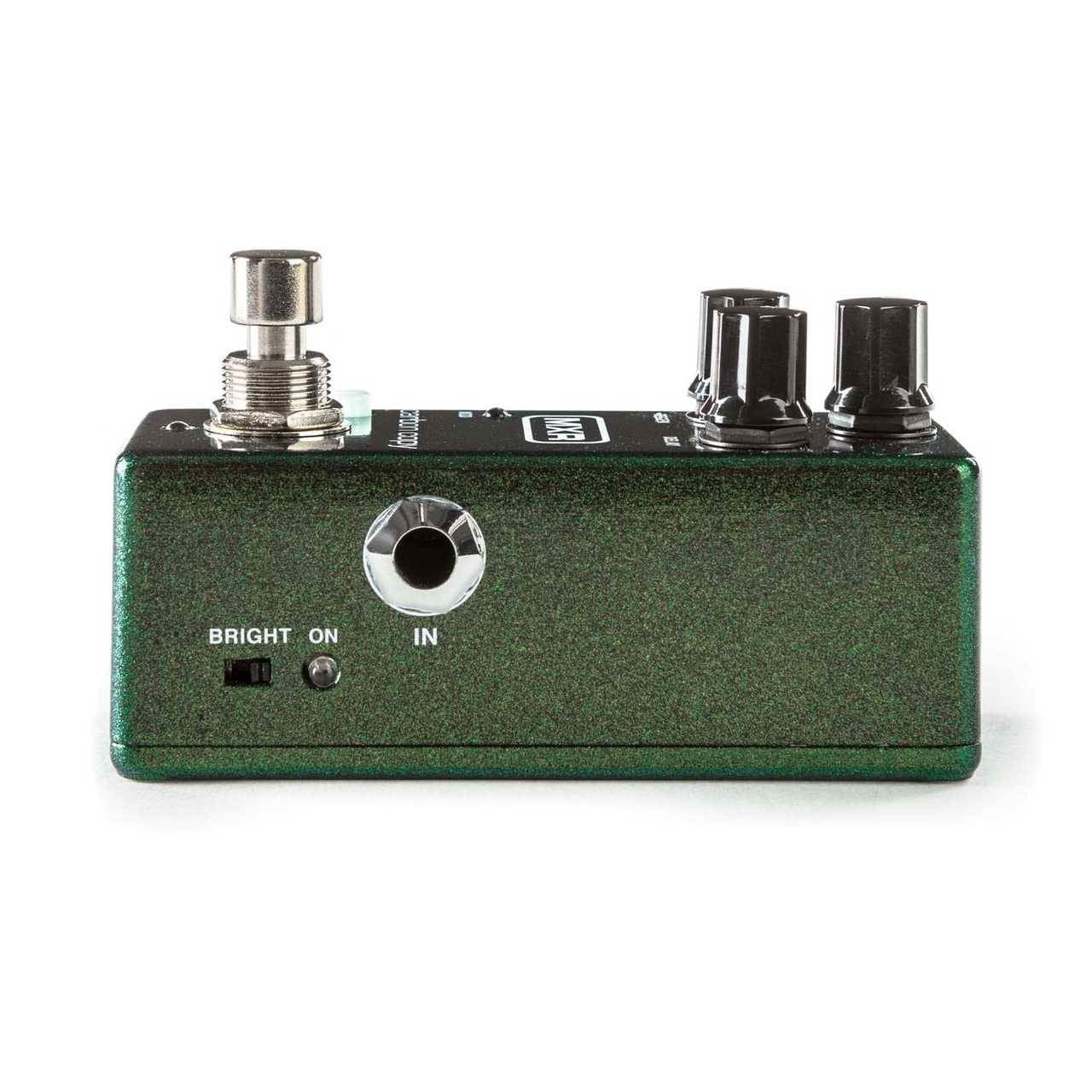

In its default mode, this pedal’s repeats yield the dark, mellow wash that made the Carbon Copy Analog Delay famous. For players who want more sparkle and clarity, we added a Bright switch that accentuates high end frequencies for increased presence and distinctively vocal repeats.

And of course, the Carbon Copy Mini Delay is outfitted with the same modulation section as its forebear. Push the Mod switch and adjust the internal Speed and Depth controls to add everything from tape echo warble to shimmery, liquefied chorusing to your repeats. Finally, adjust the parameters of your delay signal with the Regen, Mix, and Delay controls.

---

Specifications

• Input Impedance: 1MΩ
• Output Impedance: 1kΩ
• Max Input Level: +5 dBV, 500 Hz
• Max Output Level: +8 dBV
• Noise Floor**:
• Mix at Max CW: -96 dBV
• Mix at Max CCW: -104 dBV
• Delay Distortion: <1%, 1 kHz -5 dBV Input
• Delay Time: 20 ms to 600 ms
• Noise Reduction: 2:1 ratio
• Modulation Speed: 0.2 Hz to 2.2 Hz
• Bypass: True Hardwire
• Current Draw: 26 mA
• Power Supply: 9 volts DC

---
