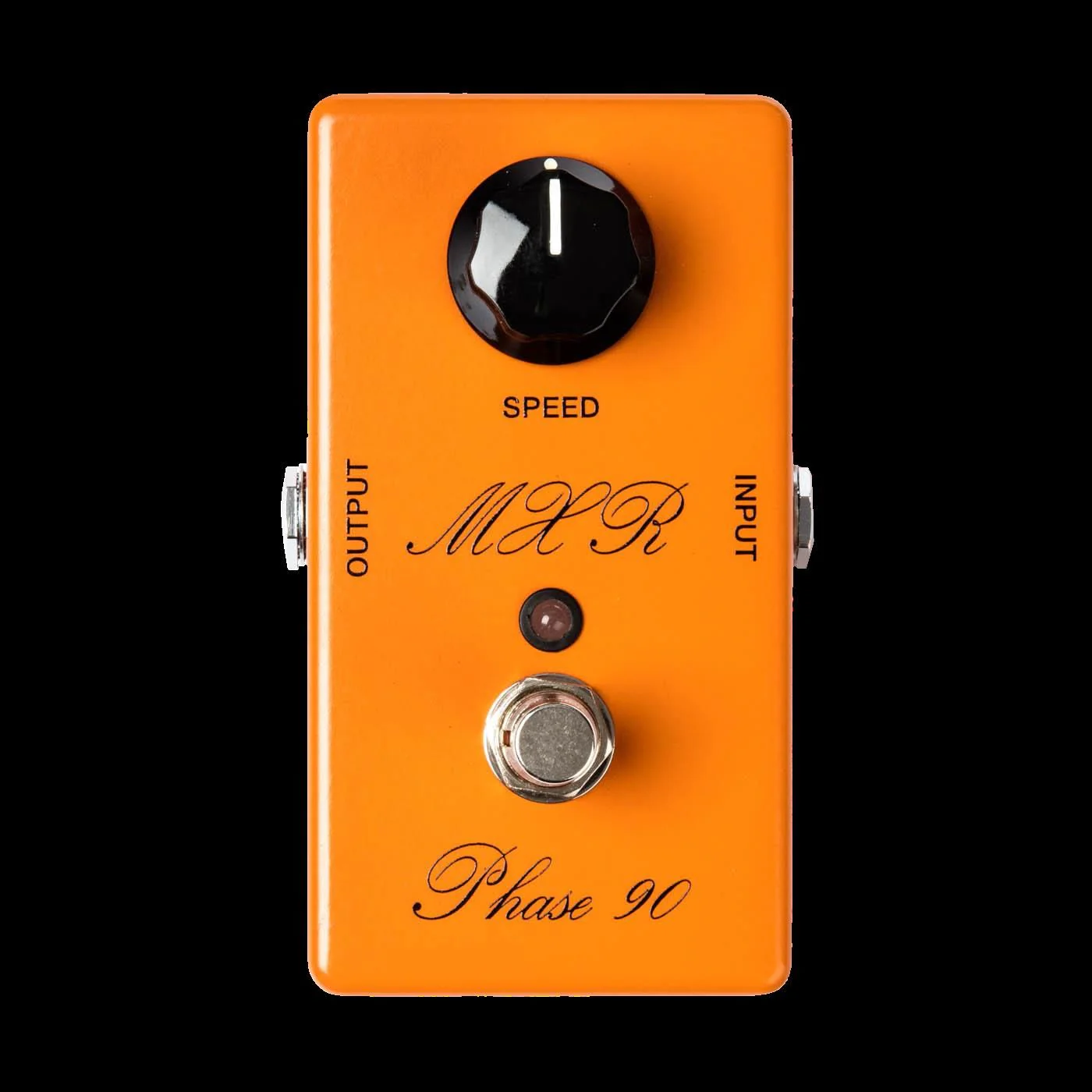

Often imitated but never duplicated, the elusive vintage script Phase 90 is at the top of the list for pedal collector''s world-wide. The original version-available from the company''s inception to the late ''70s-practically defined the classic phase shifter sound, and was heard on everything from hard rock, jazz-fusion, to funk hits.

The MXR Custom Shop Script Phase 90 brings back the headroom and clarity of the original, along with its ultra warm and smooth phasing and reduced midrange swell. And it comes dressed in the original smooth orange paint job and script logo with an LED and AC power jack, direct from the MXR Custom Shop.

---

Features

• Built to original 1974 circuit design

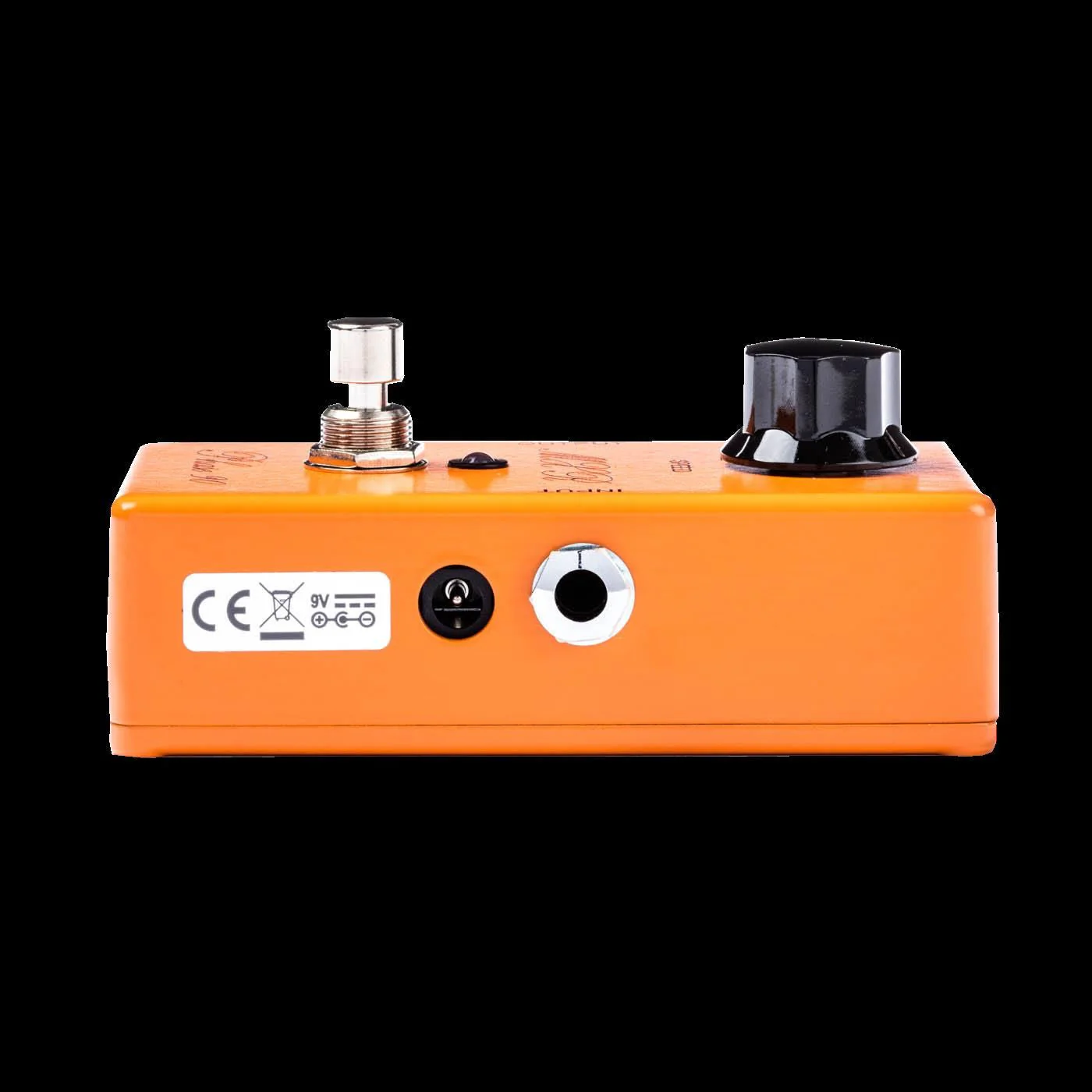

• Features AC power jack and on/off status LED
• True bypass

---

Specifications

• Input Impedance: 470 kΩ
• Output Impedance: 10 kΩ
• Max Input Level: -5 dBV
• Noise Floor*: > 95 dB
• Current Draw: 8.2 mA
• Bypass: True Hardwire
• Power Supply: 9 volts DC
  *A-weighted, all controls at mid position

---

WATCH: MXR Script Series: ''74 Phase 90 & ''75 Phase 45
