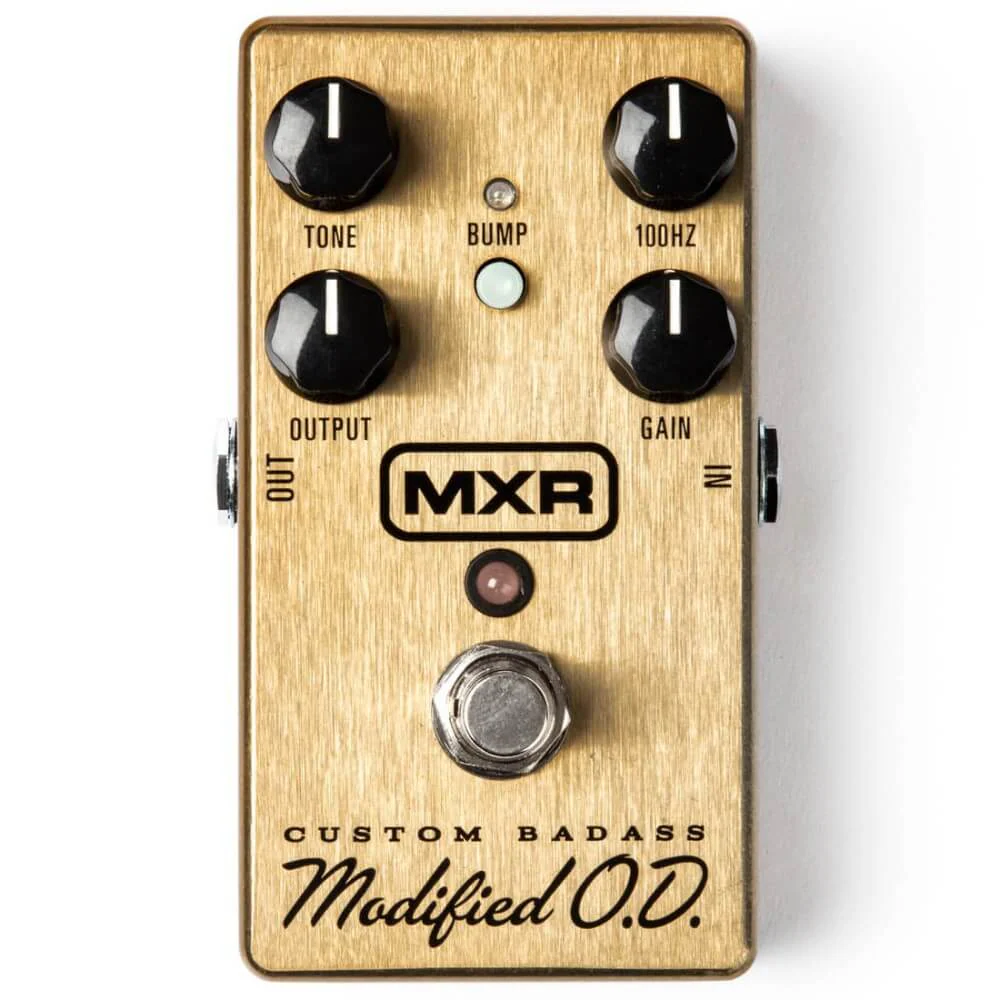

The MXR Custom Badass Modified O.D. is a classic overdrive circuit with modern refinements to improve performance and flexibility. Delivering outstanding tonal versatility, this pedal boasts an EQ shaping tone knob along with a 100Hz boost/cut control. 100Hz is one of the most fundamental and present frequencies in an electric guitar, and the ability to cut or boost this frequency allows for greater versatility - providing a more focused EQ curve when cut, and a thicker, beefier sound when boosted. The "Bump" button offers an alternate EQ voicing that boosts the bass and mid range.

The Custom Badass Modified Overdrive from MXR is the perfect pedal for the working musician searching for a touch-sensitive, amp-like, true bypass, boutique overdrive pedal that won't break the bank.

Features

• True Hardwire Bypass
• Hot-Rodded classic overdrive circuit with added versatility
• Gain, Output, Tone, and 100Hz cut or boost control knobs
• Bump Button adds alternate EQ voicing with boosted lows and mids

Specifications

• Impedance
  • Input: 1MΩ
  • Output: <7.5kΩ
• Noise Floor: >87dB
• Controls
  • Tone Control: ±8dB at 2.7kHz
  • 100Hz Control: ±24dB at 100Hz
  • Bump Button: +6dB Low - Mid Boost, -3dB at 540Hz
  • Gain Control: ±25dB Range at 100Hz
• Bypass: True Hardwire
• Power
  • Power Draw: <4mA
  • Power Supply: 9V DC
