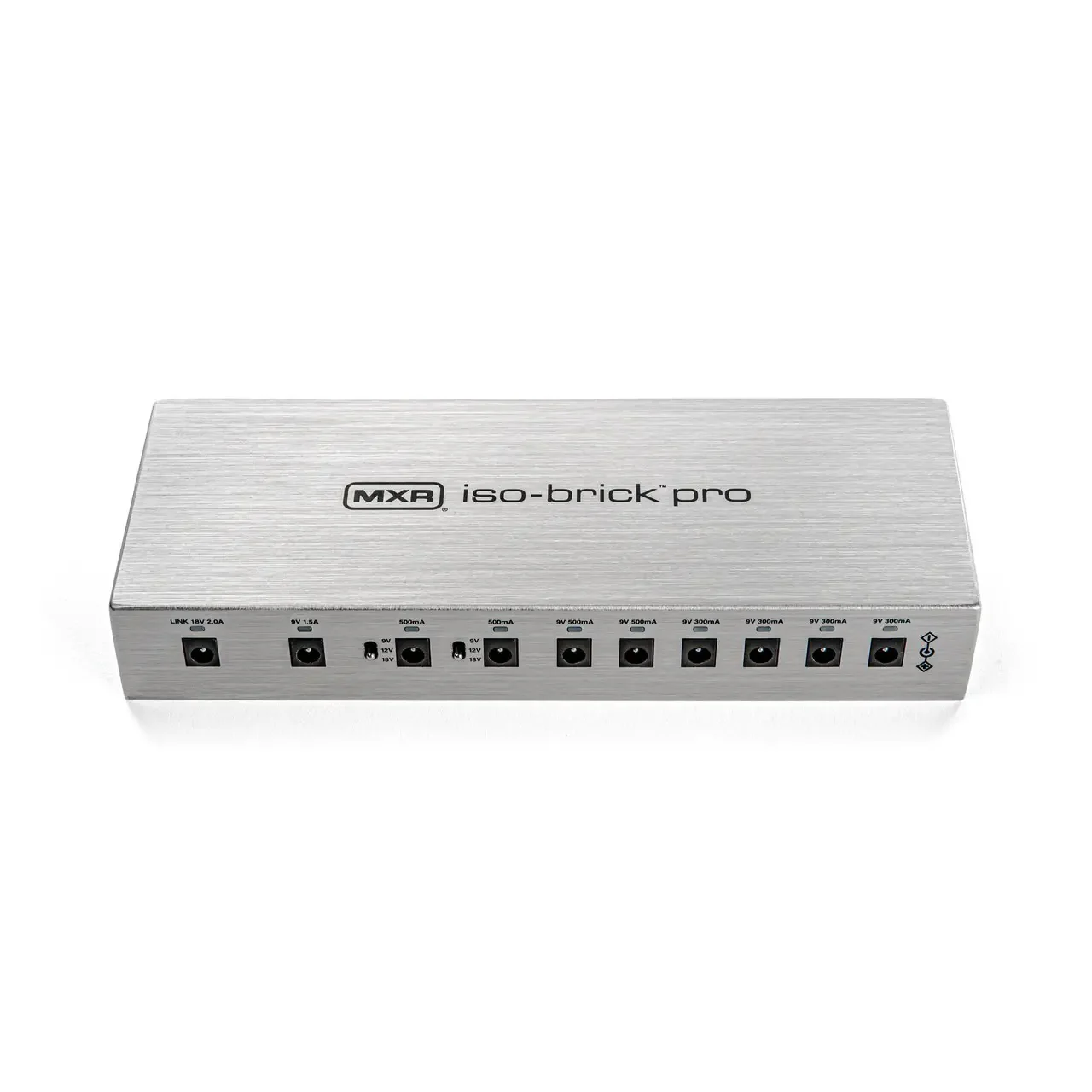

The MXR Iso-Brick Pro Power Supply provides reliable, clean power to all your pedals in a compact, streamlined design. With the ability to power a wide variety of pedal types, it ensures your entire board runs smoothly without the added bulk. Perfect for musicians who need dependable performance in a sleek, efficient package.

Features

• POWERFUL VERSATILITY

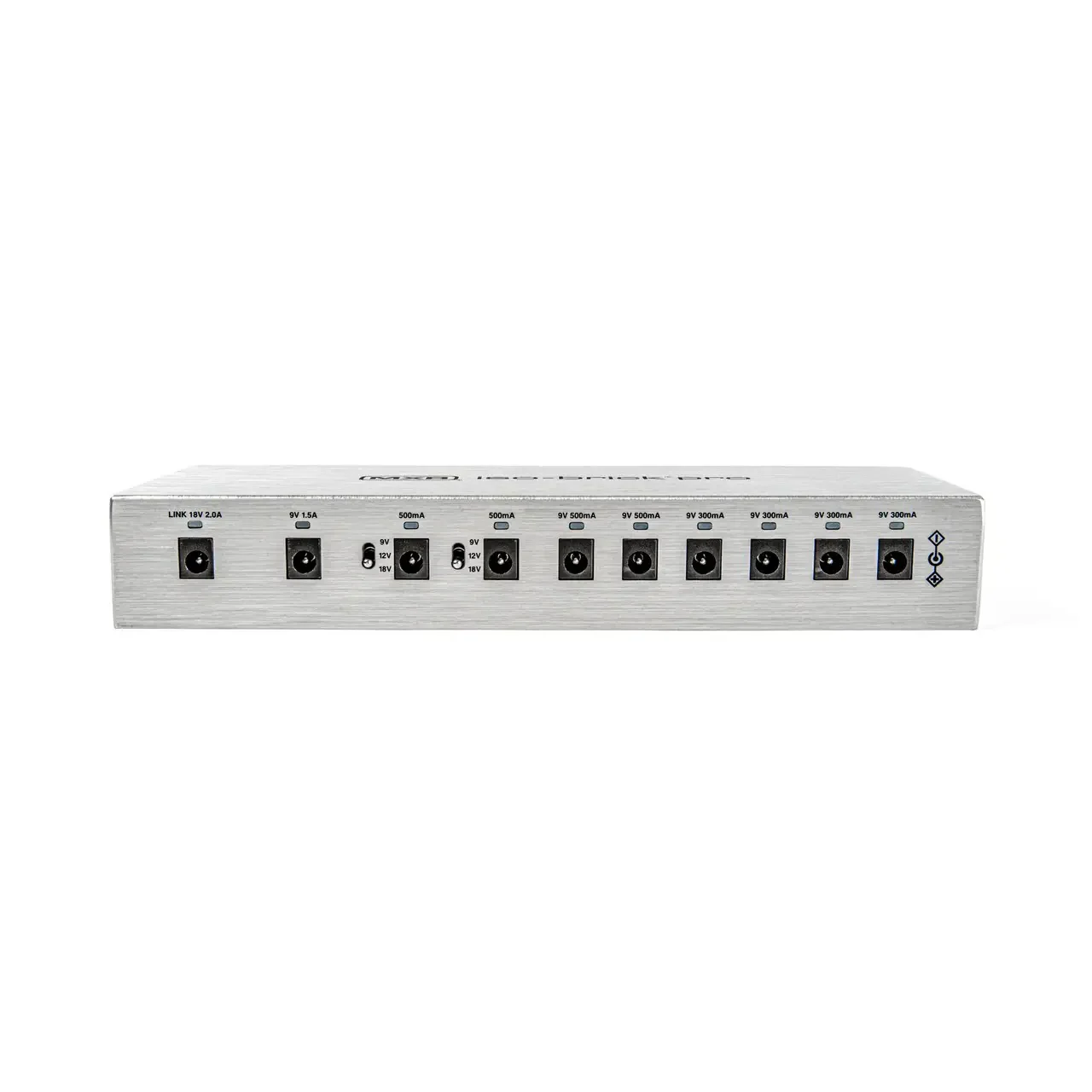

Every one of the MXR Iso-Brick Pro Power Supply’s outputs is fully isolated to preserve signal purity and cut out environmental noise. Catering to an array of power requirements, this unit offers six fixed outputs—two 9V DC at 500mA and four 9V DC at 300mA—and two switchable 9/12/18V DC outputs at 500mA. Even high-demand multi-effects units are covered, with a dedicated 9V DC output at 1.5A for units such as the Line 6 HX Effects processor and HX Stomp amp/processor.

• ALL ABOARD

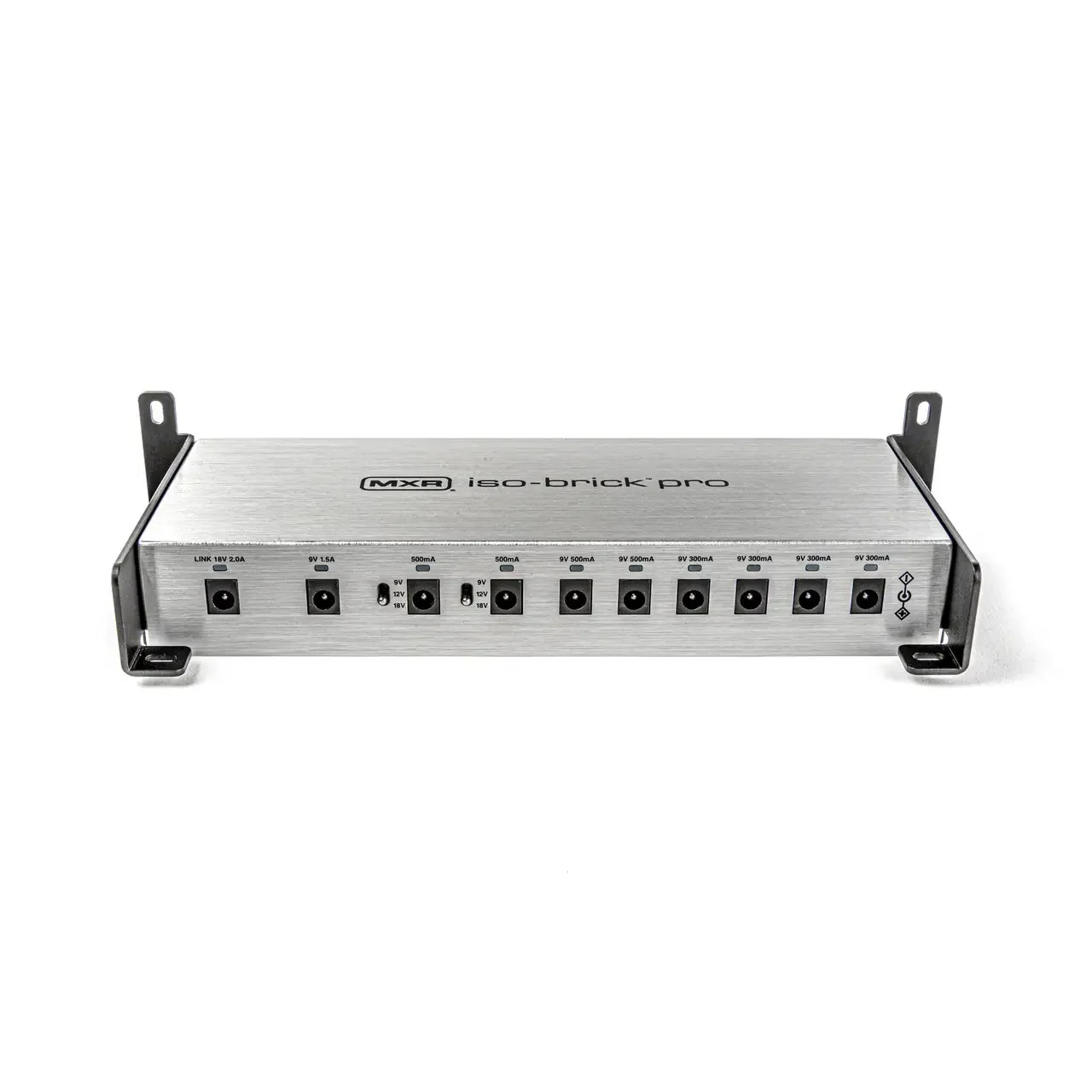

With its compact, lightweight design, the MXR Iso-Brick Pro Power Supply is perfectly sized to fit under most Pedaltrain pedalboards—and it comes with all the mounting brackets and screws you need to set it up.

• POWER UP WITH CONFIDENCE

The MXR Iso-Brick Pro Power Supply will keep your effects pedals running smoothly and quietly, and its slim-yet-robust construction allows you to keep space open for all of your favorite pedals—whether low-powered analog overdrives or high-powered digital multi-effects processors. Power up with the MXR Iso-Brick Pro Power Supply.

Specifications

• Input

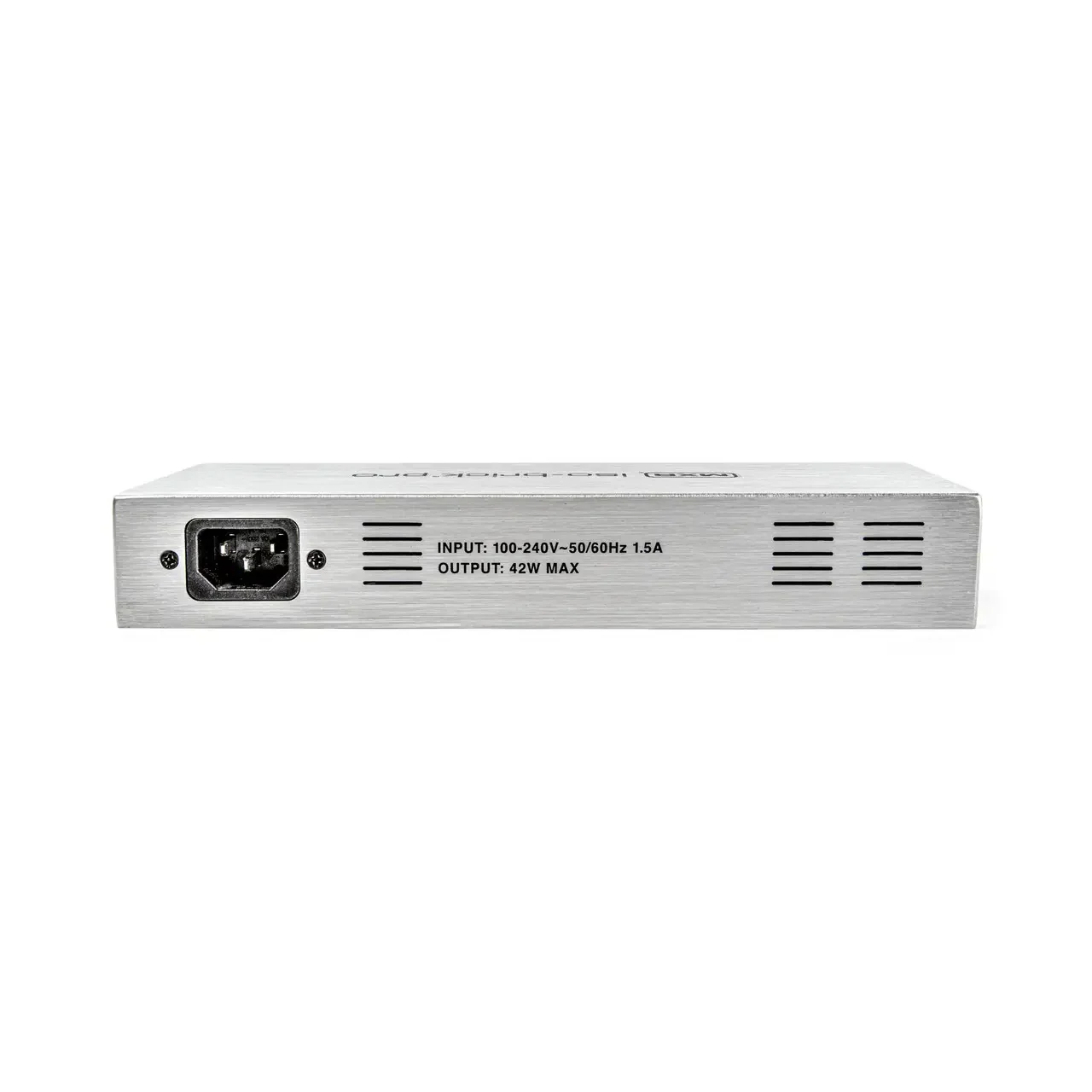

  100–240V~ 50/60 Hz 1.5A

• Output
  42W MAX
  9V 300mA (x4)
  9V 500mA (x2)
  9/12/18V 500mA (x2)
  9V 1.5A (x1)
  18V 2.0A (x1)

• Dimensions
  235 (W) x 88 (D) x 37 (H) mm
  9-1/4 (W) x 3-7/16 (D) x 1-7/16 (H) inches
