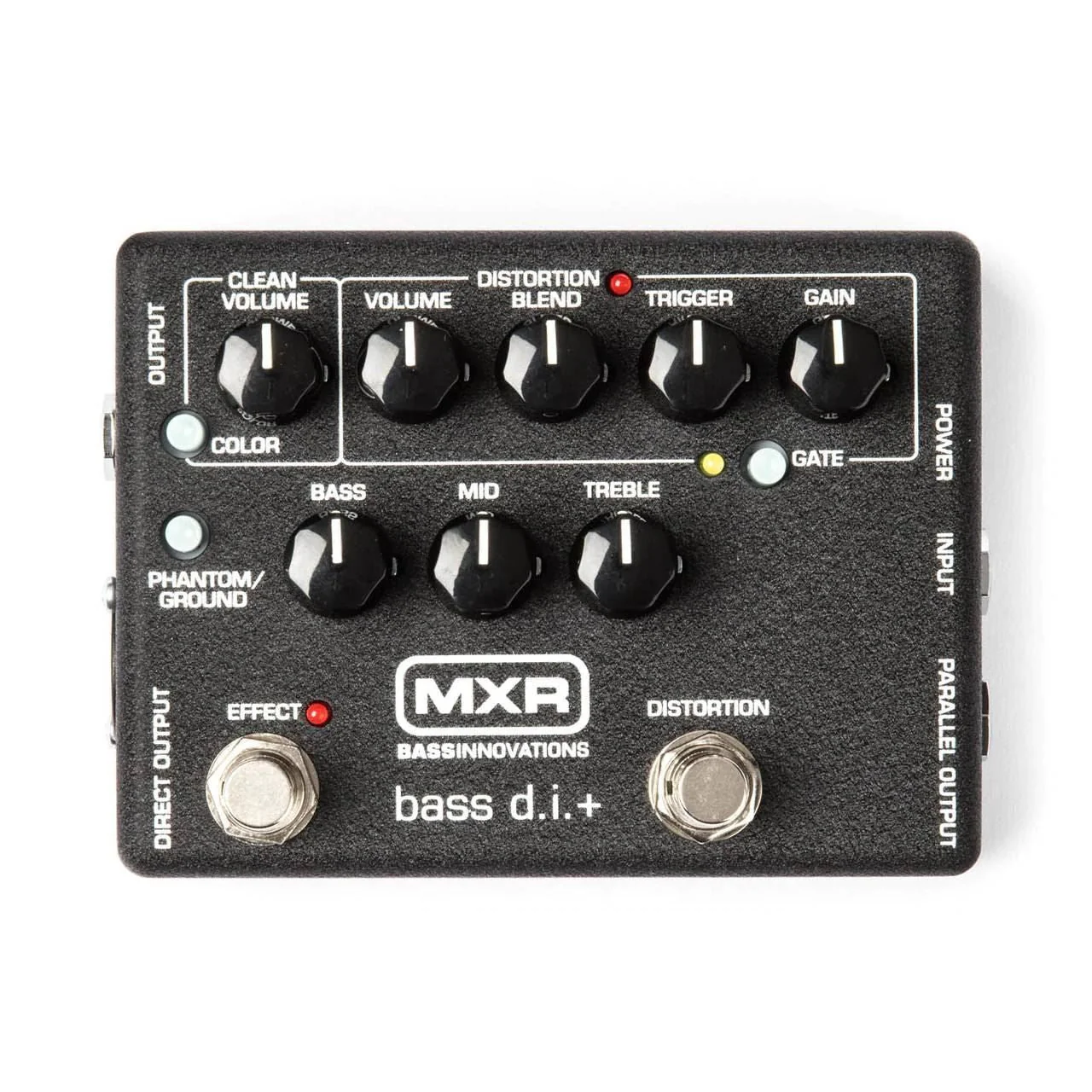

Features

• An incredibly flexible Bass D.I.+, Clean and Distortion effects
• Run direct to the PA or straight to the mixing board for pure tone
• A smart “noise gate” and optimized EQ help you find the sweet spot in the mix!

Specifications

• Input Impedance: 2.2 MΩ
• Output Impedance:

  • Unbalanced 150 Ω
  • Balanced 300 Ω
• Bypass Freq. Response: +0/-0.5 dB, 20 Hz to 20 kHz
• Tone Controls:

  • Bass ±18 dB, 60 Hz
  • Mid ±10 dB, 850 Hz
  • Treble ±12 dB, 4 kHz
• Noise Floor*:

  • Bypass -102 dBV
  • Clean Effect -98 dBV
  • Distortion Effect, Gate Off -94 dBV
  • Distortion Effect, Gate On -98 dBV
• Volume Control Range: 40 dB
• Gate Trigger Range: 28 dB
• Sensitivity: -66 dBV at 1 kHz
• Bypass: Buffered
• Current Draw: 9 mA
• Power Supply: 9 volts DC
