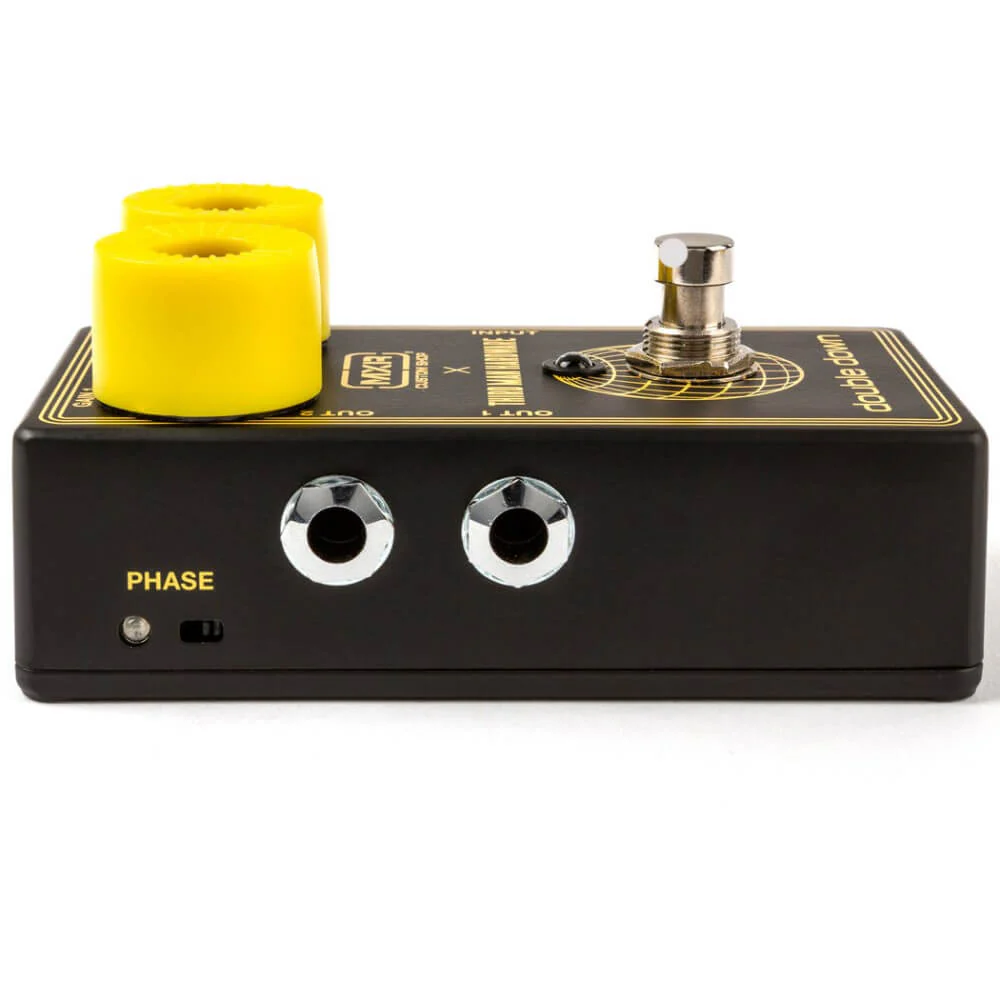

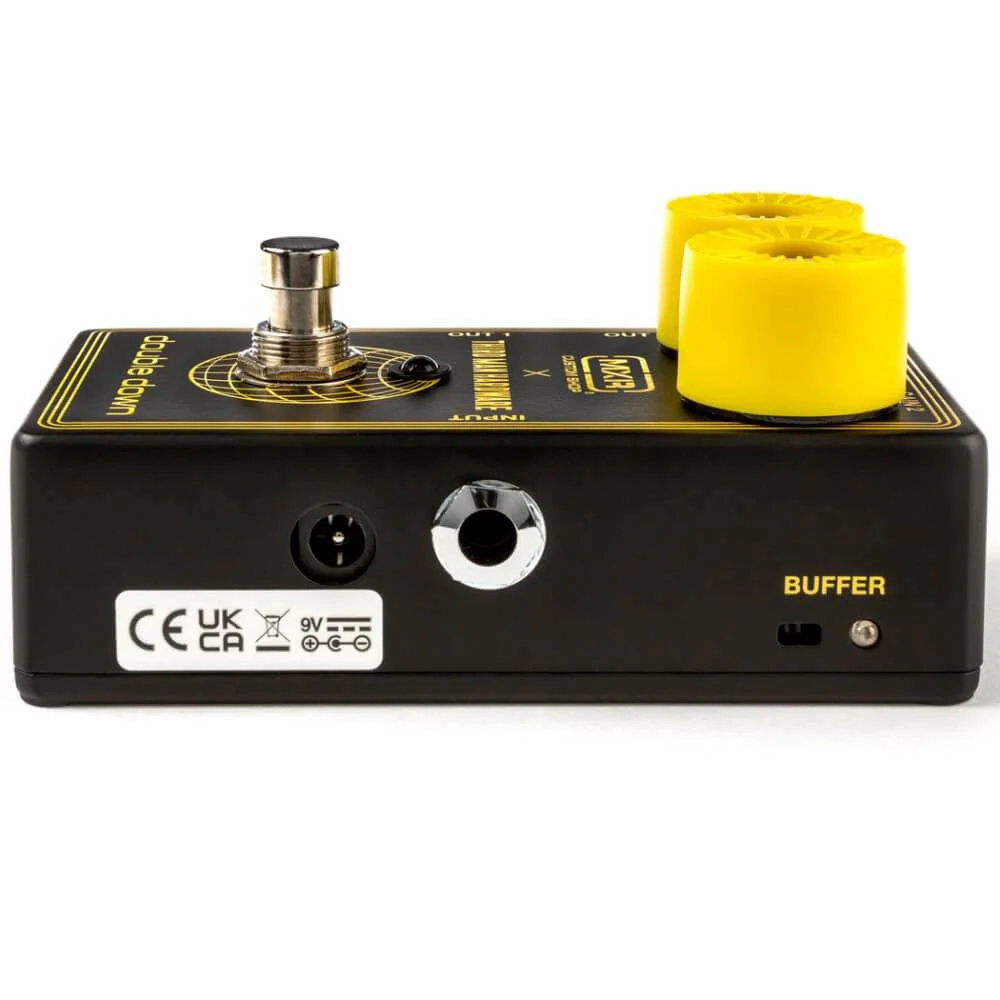

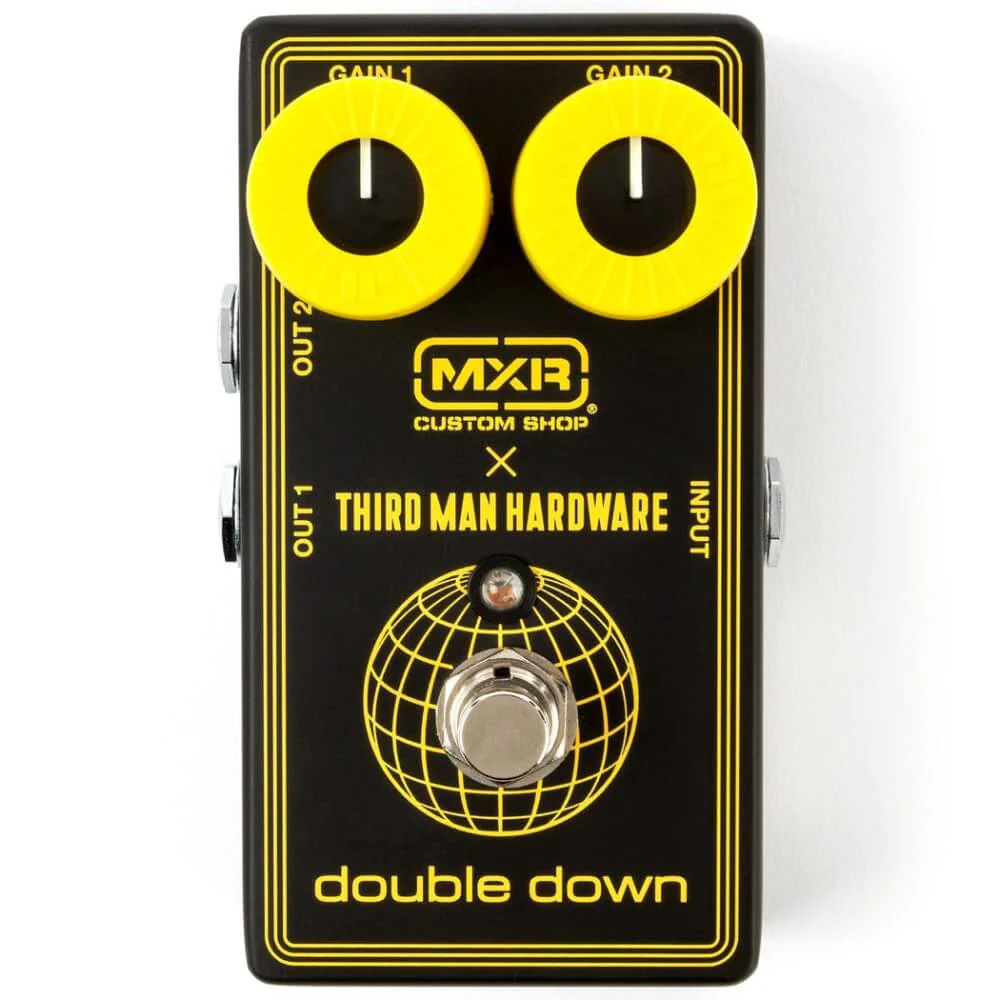

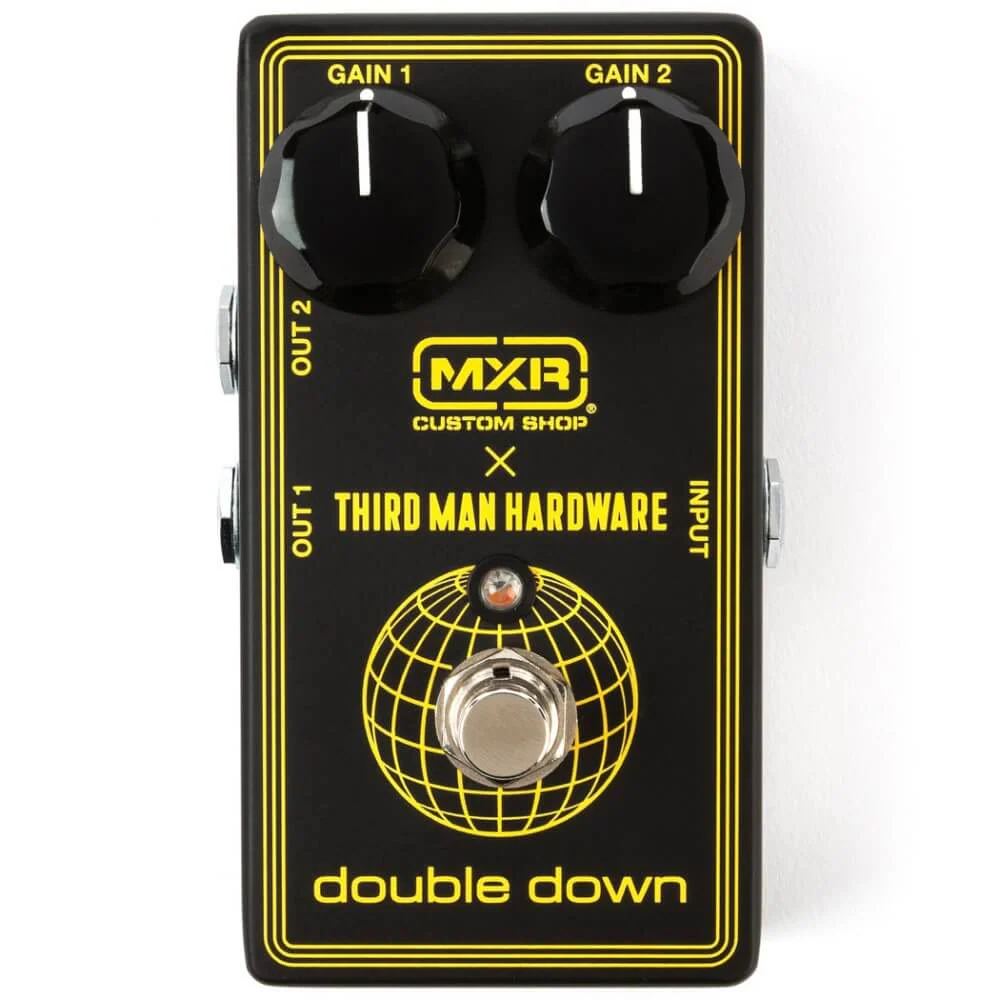

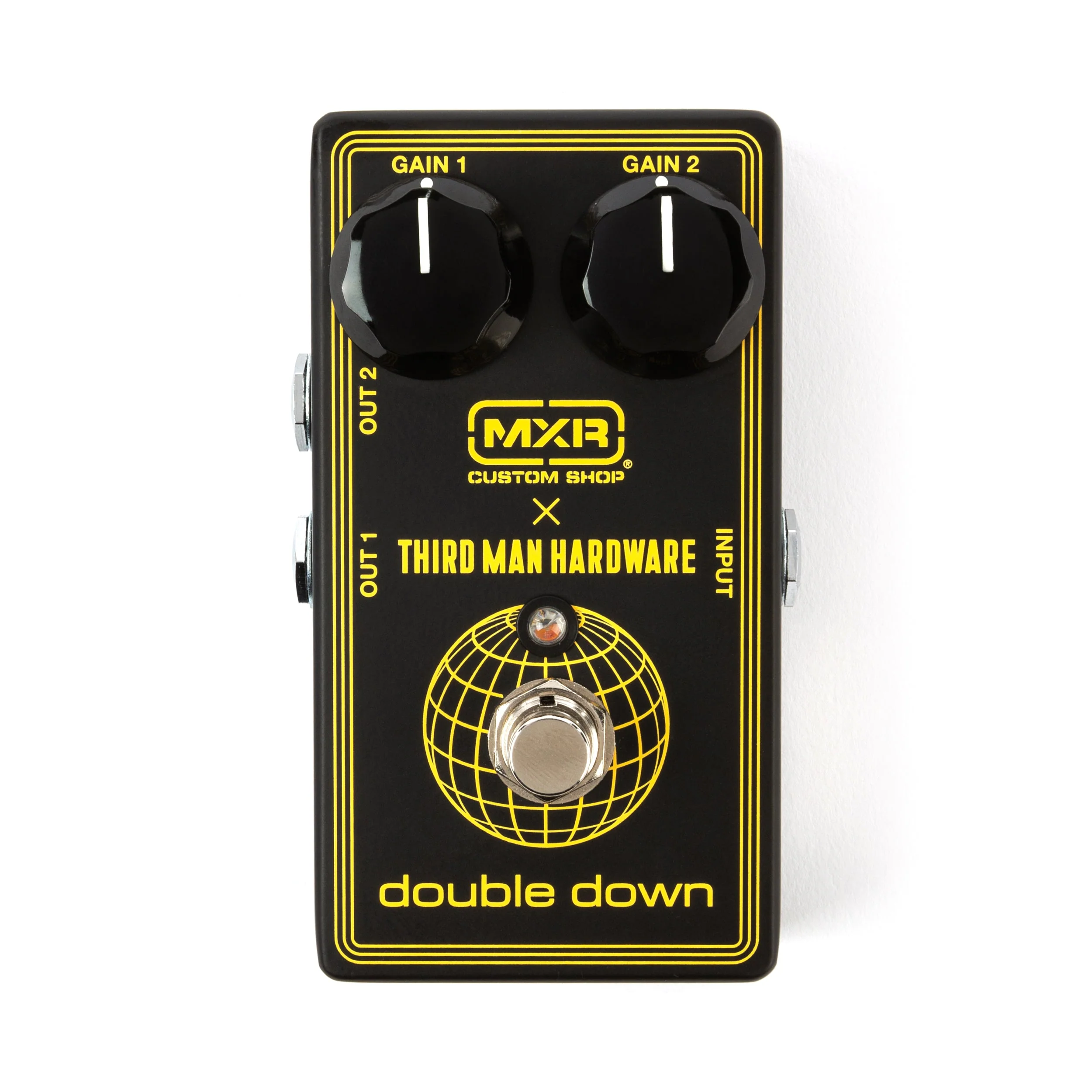

The all-new Double Down Pedal from MXR and Third Man Hardware takes your single input signal and splits it to two separate outputs with individual Gain controls, offering up to +26dB of signal boost. A Phase switch located on the left side of the chassis adds a unique and pronounced stereophonic effect by inverting the phase of the second output signal. A Buffer switch on the right hand side of the housing allows you to select between True and Buffered bypass switching to maintain the integrity of your fundamental tone when driving two signal chains. Plug into the MXR x Third Man Hardware Double Down Pedal and experience the power - twice!

Specifications

• Input Impedance
  • Buffer OFF: >450kΩ
  • Buffer ON: >700kΩ
• Output Impedance: <1kΩ
• Bypass: Buffered/True Bypass
• Power
  • Power Requirements: 9V DC (Center Negative)
  • Current Consumption: 11mA
