Digital heart. vinyl soul

---

Features

• Everything you need to kick off your DVS setup
• Spin timecode vinyl, and mix your tracks in TRAKTOR or on an external mixer
• Includes TRAKTOR AUDIO 6 soundcard, timecode vinyl and CDs, and TRAKTOR PRO 3

---

Specifications

System Requirements

• macOS 10.12, 10.13, 10.14, 10.15 (latest update), Intel Core i5, 4 GB RAM
• Windows 10 version 1803 or later (64 Bit), Intel Core i5 or equivalent CPU, 4 GB RAM

Supported Audio Formats

• MP3, WAV, AIFF, Audio-CD, FLAC, Ogg Vorbis, non-DRM AAC

Supported Drivers

• ASIO
• Core Audio
• DirectSound
• WASAPI

General

Monitor with 1280 x 800 screen resolution, USB 2.0, 1 GB free disc space. An internet connection and a graphics card which supports OpenGL 2.1 or higher are required to download and activate TRAKTOR software. Once installed and activated, all products can be used offline.

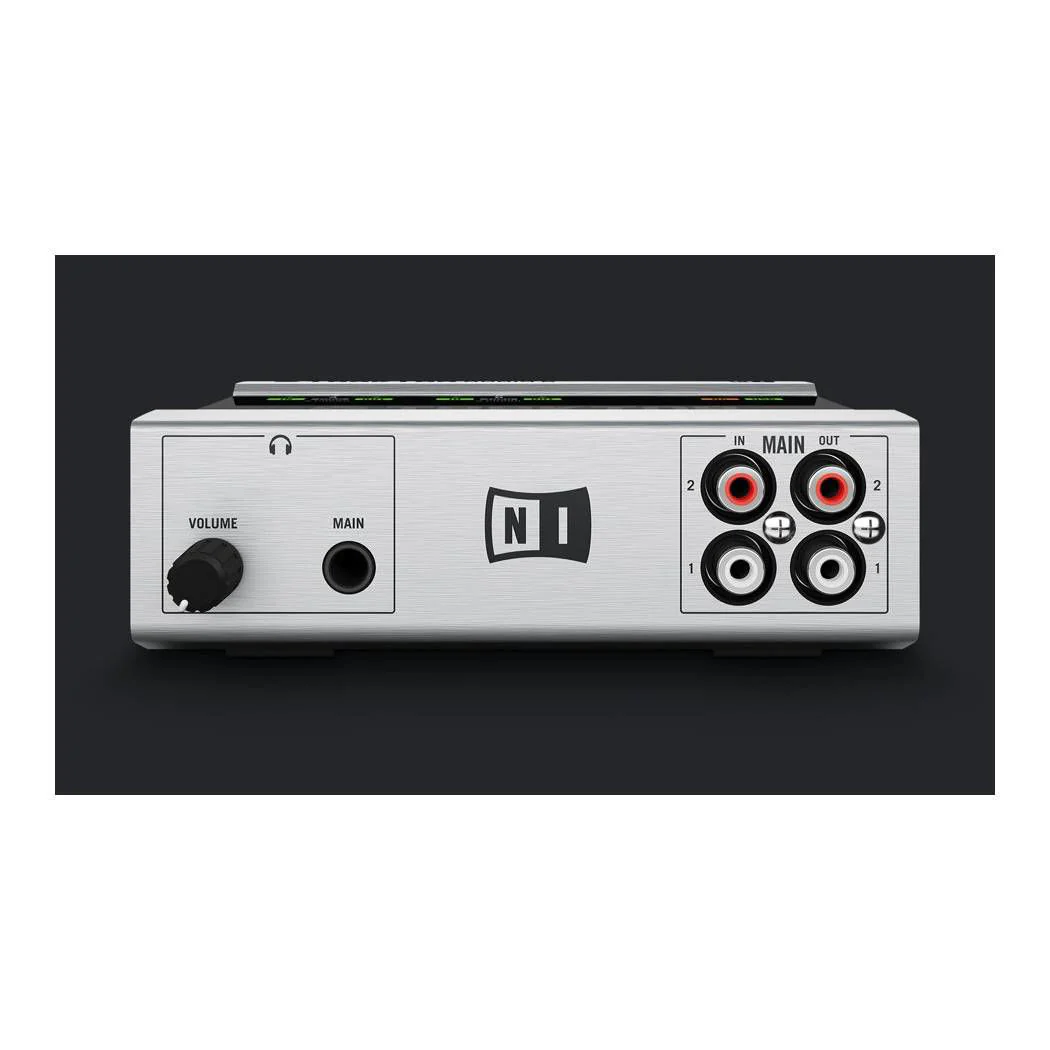

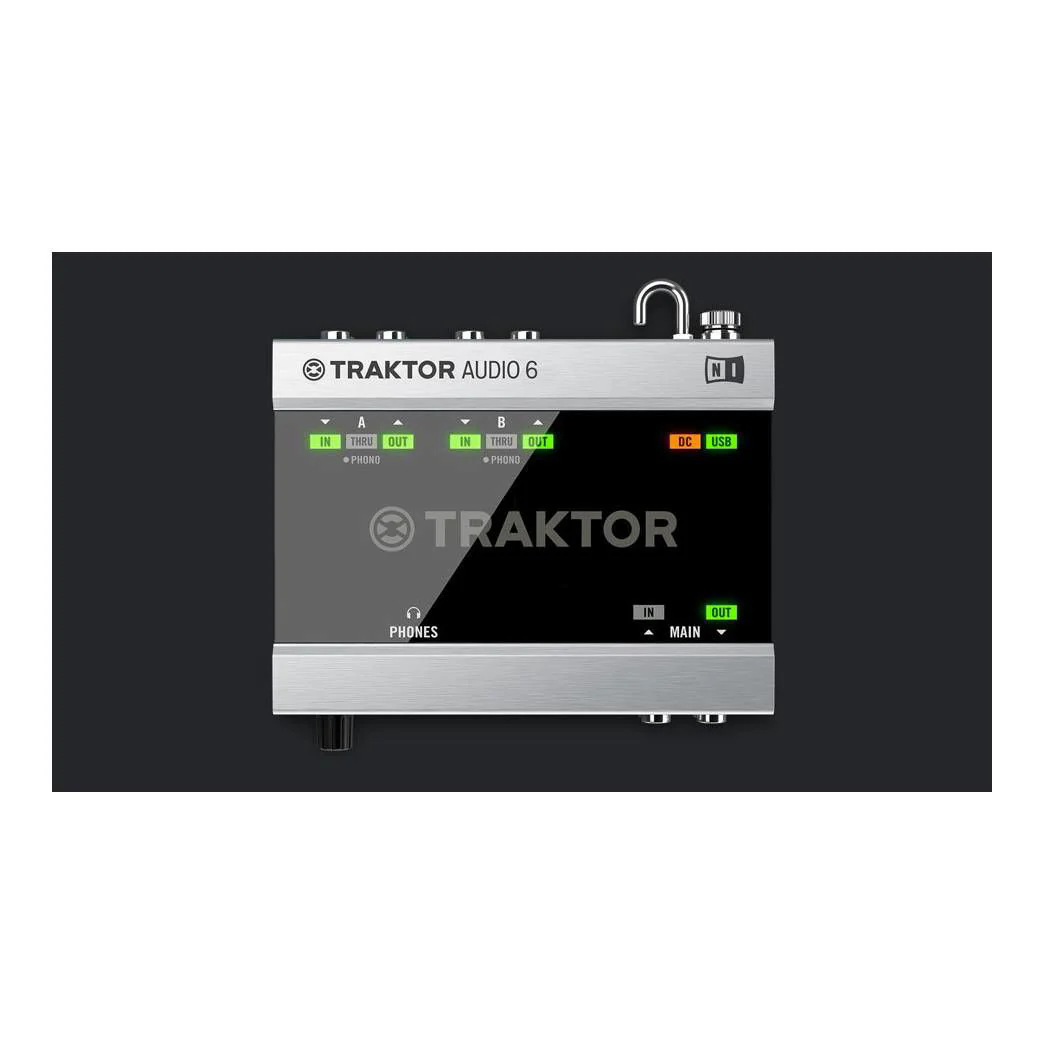

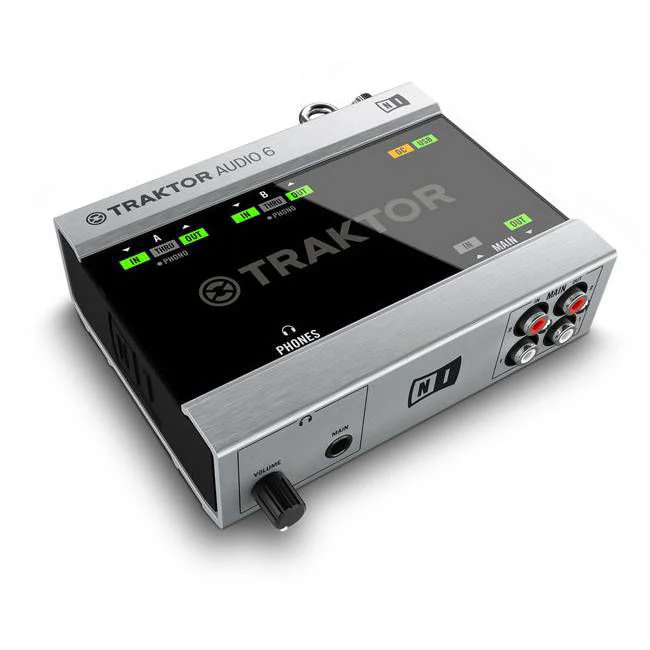

Audio interface dimensions

• 44 x 137 x 134 mm / 1.7 x 5.4 x 5.3”
• Weight: 750g / 1,65 lbs

Hardware Specifications

Audio Converters

• Channels (A/D, D/A): 6, 6
• Sample Rates: 44.1, 48, 88.2, 96 kHz
• Bit Resolution: 16, 24 Bit
• Converter: Cirrus Logic

Line Inputs

• Input Impedance: 47 kOhm

A/D-D/A to Output:

• Full Scale Input Level: +12 dBu, 3.08 Vrms
• Gain: -2.6 dB
• Dynamic Range: 98.9 dB (A)
• THD+N (Full Scale Level): 0.018 %
• Frequency Response (96 kHz), -1 dB: 13 Hz - 45 kHz

Direct Thru:

• Maximum Input Level: +13.35 dBu, 3.6 Vrms
• Gain: -4.55 dB
• Dynamic Range: 107.8 dB (A)
• THD+N (Maximum Level): 0.0027 %
• Frequency Response, -1 dB: 13 Hz - 73 kHz

Phono Inputs

• Input Impedance: 47 kOhm

A/D-D/A to Output:

• Full Scale Input Level @ 1 kHz: -22.2 dBu, 60 mVrms
• Gain @ 1 kHz: +31.5 dB
• Dynamic Range @ 1 kHz: 95.8 dB (A)
• THD+N @ 1 KHz: 0.02 %
• Frequency Response: IEC curve +/- 1 dB

Direct Thru:

• Maximum Input Level @ 1 kHz: -16.2 dBu, 120 mVrms
• Gain @ 1 kHz: +29.1 dB
• Dynamic Range @ 1 kHz: 96.9 dB (A)
• THD+N @ 1 kHz: 0.01 %
• Frequency Response: IEC curve +/- 1 dB

Line Outputs (D/A)

• Full Scale Output Level: +9.6 dBu, 2.35 Vrms
• Dynamic Range: 101.8 dB (A)
• THD+N: 0.008 %
• Frequency Response (96 kHz), -1 dB: 9 Hz - 45 kHz

Headphone Output

• Maximum Output Level @ 10 kOhm: 11.3 dBu, 3.55 Vrms
• Maximum Output Power: 20 mW @ 100 Ohms, 11 mW @ 33 Ohms
• THD+N (Maximum Level, 100 Ohms): 0.011 %
• Frequency Response (96 kHz), -1 dB: 9 Hz - 45 kHz
