The acoustic environment is analyzed in a guided process using an individually calibrated measurement microphone. Advanced algorithms based on decades of experience in adjusting reference monitor systems ensure optimally tuned frequency response, arrival times and levels for accurate and reliable monitoring. The unique advantage of the MA 1 algorithm is the precise and effective compensation of spatial modes. With MA 1 you get better clarity, better consistency between monitors, drier bass and a more time-accurate and more accurate representation of reverb and acoustic space.

Features

• Algorithms derived from decades of experience in aligning monitors
• Individually calibrated measurement microphone
• Room adaptive target curve

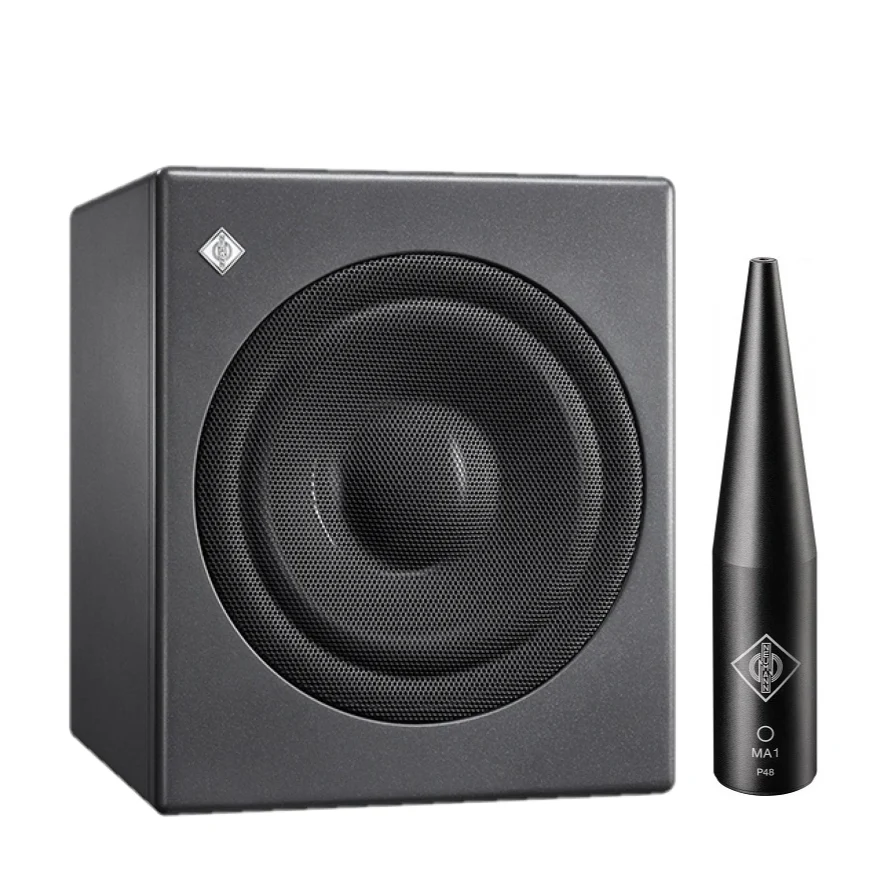

• For stereo setups with network-enabled Neumann monitors and any analog Neumann monitors using KH 750 subwoofers
• For multichannel setups with Multichannel Extension license
• For Mac and PC

RELIABLE MONITORING ANYWHERE Neumann's automatic adjustment software MA 1 is a special tool for adjusting network-enabled KH Line monitors in stereo systems and in stereo systems with bass management by an additional subwoofer. Non-networked (analog) KH Line monitors can be adjusted via MA 1 if they are connected to a KH 750 DSP/AES67 subwoofer. Unlike traditional correction software, MA 1 is an integrated solution with new algorithms developed specifically for Neumann studio monitors. No plug-ins or special audio drivers are required. The alignment data is stored and processed in the DSP-equipped speakers themselves. For analog Neumann studio monitors connected to a KH 750 DSP/AES67 subwoofer (i.e. without network connection), MA 1 offers the added benefit that the phase response is also linearized. This functionality is already built into all network-enabled speakers with digital electronics, but the DSP capabilities of the KH 750 make it possible in analog Neumann studio monitors as well – resulting in even greater accuracy of tonality, impulse reproduction and stereo positioning.

Specifications

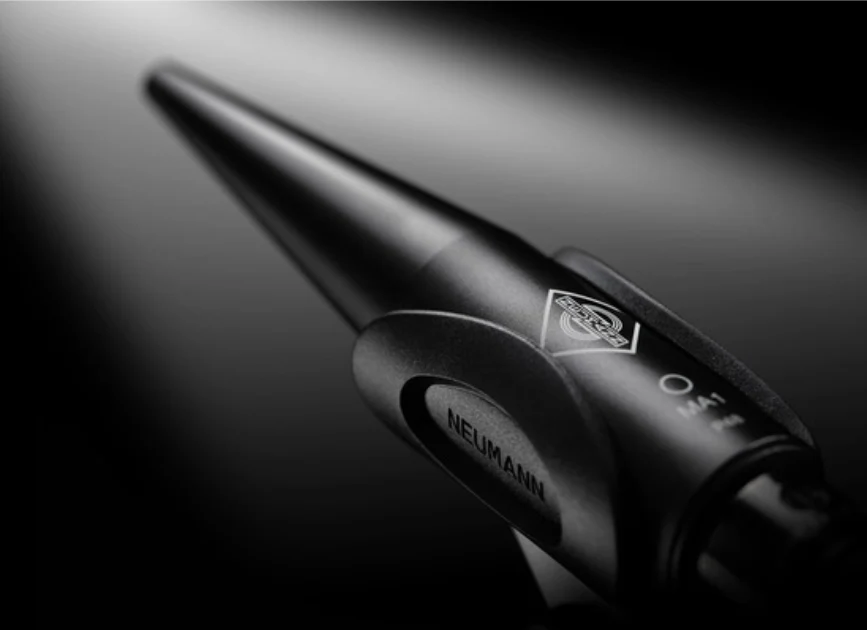

MA1 Acoustical operating principle: Pressure transducer Directional Pattern: Omnidirectional Frequency Range: 20 Hz - 20 kHz Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software) Rated Impedance: 50 Ohms Rated load impedance: 1000 Ohms Equivalent noise level, CCIR¹⁾: 39 dB Equivalent noise level, A-weighted¹⁾: 27 dB-A Maximum SPL for THD 0.5%²⁾: 132 dB Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 55 dB Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 67 dB Maximum output voltage: 10 dBu Supply voltage (P48, IEC 61938): 48 V ± 4 V Current consumption (P48, IEC 61938): 3 mA Matching connector: XLR3F Product Weight: 37 g Product Diameter: 23 mm Product Length: 117 mm Operating conditions: 0 °C - +70 °C (32 °F - 158 °F); max. 90 % at +20 °C Transport/storage conditions: −20 °C - +70 °C (−4 °F - 158 °F); max. 90 % at +20 °C KH 750

• Type: Powered
• Speaker Size: 10″
• Driver Type: Long-throw with Pressed-steel basket
• Total Power: 256W
• Frequency Range: 20Hz-300Hz
• Crossover Frequency: 80Hz
• Maximum Peak SPL: 105 dB SPL @ 1m
• Input Types: 2 x XLR
• Output Types: 2 x XLR
• Other I/O: AES3 In/Out (digital)
• Product Dimensions: 383 x 330 x 383 mm
• Product Weight: 19.5 kg
