Specifications

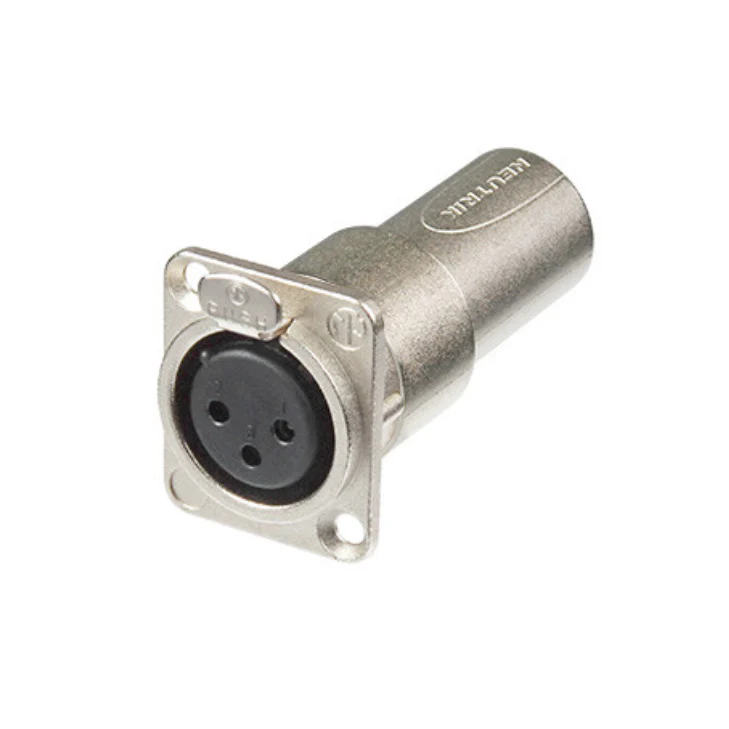

Product Title: NA3FDM Connection: Type Adapter Electrical Capacitance between contacts: 4 pF Contact resistance: 5 mΩ Dielectric strength: 1,5 kVdc Insulation resistance: > 2 GΩ (initial) Rated current per contact: 16 A Rated voltage: < 50 V Mechanical Insertion force: 20 N Withdrawal force: 20 N Lifetime: > 1000 mating cycles Wiresize: max. 2.5 mm² Wiresize: max. 14 AWG Wiring: Solder contacts Locking device: Latch lock Chassis shape: D Material Contact plating: 2 µm Ag over 2 µm Ni Insert: Polyamide (PA 6.6 30 % GR) Locking element: Steel Ck67 Shell: Zinc diecast (ZnAl4Cu1) Shell plating: Nickel Environmental Flammability: UL 94 HB Standard compliance: IEC 61076-2-103 Protection class: IP 40 Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to +80 °C
