Features

• NUX Modeled Everything. Even the Patch Cables This world-class amp modeling algorithm comes fully loaded with features and functionality. Just like their real counterparts, the included 27 amps feature HIGH/LOW inputs, 4 inputs for patch cable jumping, toggle switch for voicing, for max tweaking.

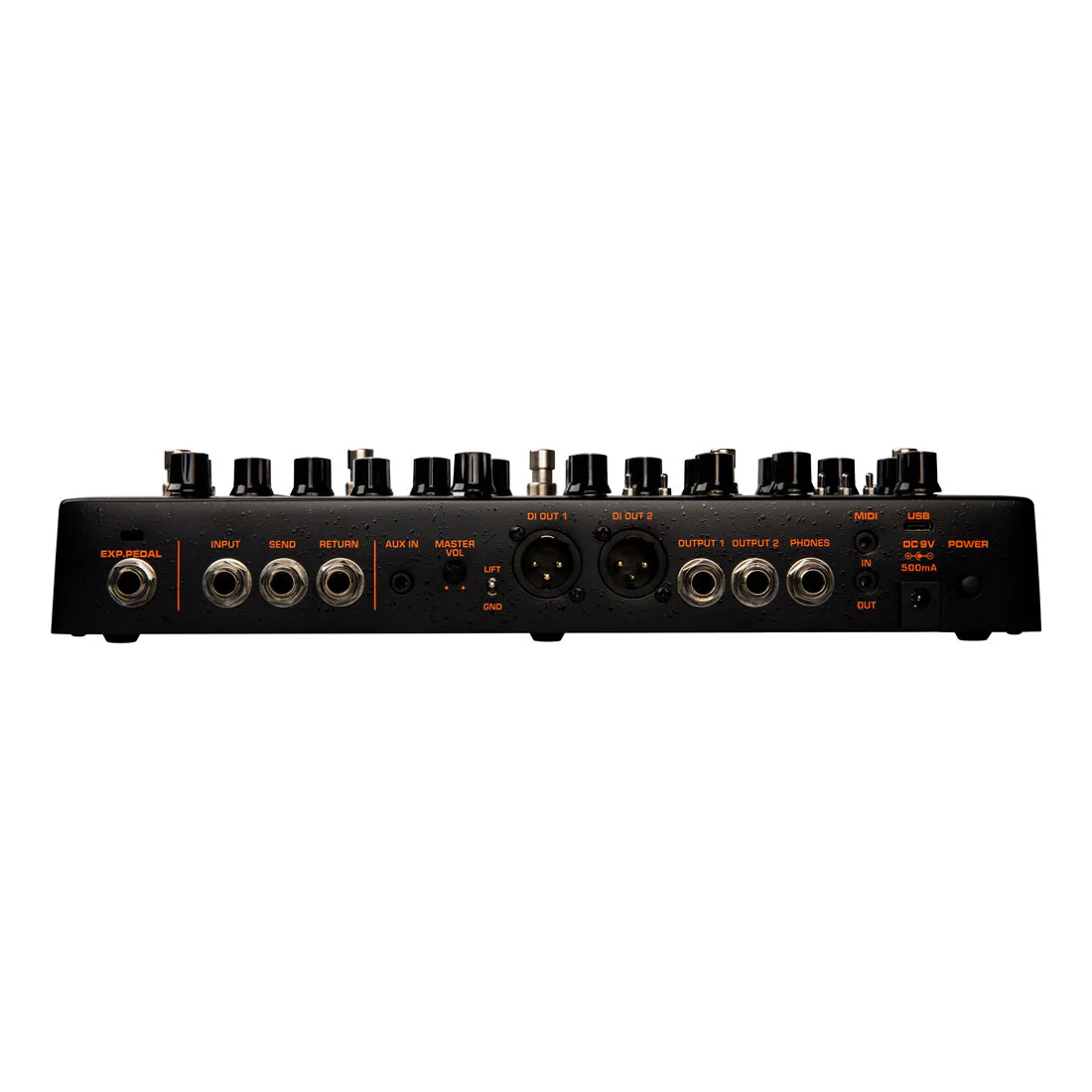

• Inputs/Outputs Perfect for live applications, the TRIDENT offers plenty of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for adding an expression pedal, MASTER VOL pot, and MIDI IN / OUT.
• USB Port Connect the USB cable to your computer for firmware updates, USB audio recording, or Trident edit software editing. *Note: Connect USB cable to computer and hold UP & REVERB foot switches to turn on TRIDENT, then you can enter to DFU (Device Firmware Update) mode to do firmware update. For more details, please visit product page to check the firmware update guide and download the newest firmware & Trident edit software.
• MIDI 1/8" MIDI IN / OUT Jack: Connect an external MIDI device here with the included 1/8" to 5 pin MIDI adaptors in the giftbox. Note: Do not connect an audio device here. Doing so will cause malfunctions.
• Master VOL Pot The MASTER VOL potentiometer can adjust overall output level. Tips: Please adjust the pot from it's minimum setting to the target volume you feel comfortable with. It's usually loud enough when set at 12 o'clock. Protect your hearing!
• A Powerful Studio Device The TRIDENT is also a powerful studio device, a perfect USB-C Audio Interface for guitar. You can download Trident Editor from the product page to edit patches, and setup the USB routing. Record your TRIDENT tracks to your favorite DAW or use it as a re-amp device to breathe new life into your previously recorded audio tracks. **Caution!! In order to offer you the best dynamic range of USB Streaming, the TRIDENT doesn't control the PC's system playback volume. When using the TRIDENT as a USB audio interface, remember to adjust your PC's playback volume from the "minimum" to the desired volume. Take care of your ears.

Specifications

INPUT Impedance: 1M ohms AUX IN Impedance: 10K RETURN Impedance: 100K OUTPUT 1, OUTPUT 2, SEND Impedance: 1K Phone Impedance: 47 ohms Dynamic Range: 109dB Sampling Rate: 48kHz / 32bit System Latency: 1ms Power: 9V DC (Negative Tip, included ACD-006A adaptor)
