Features

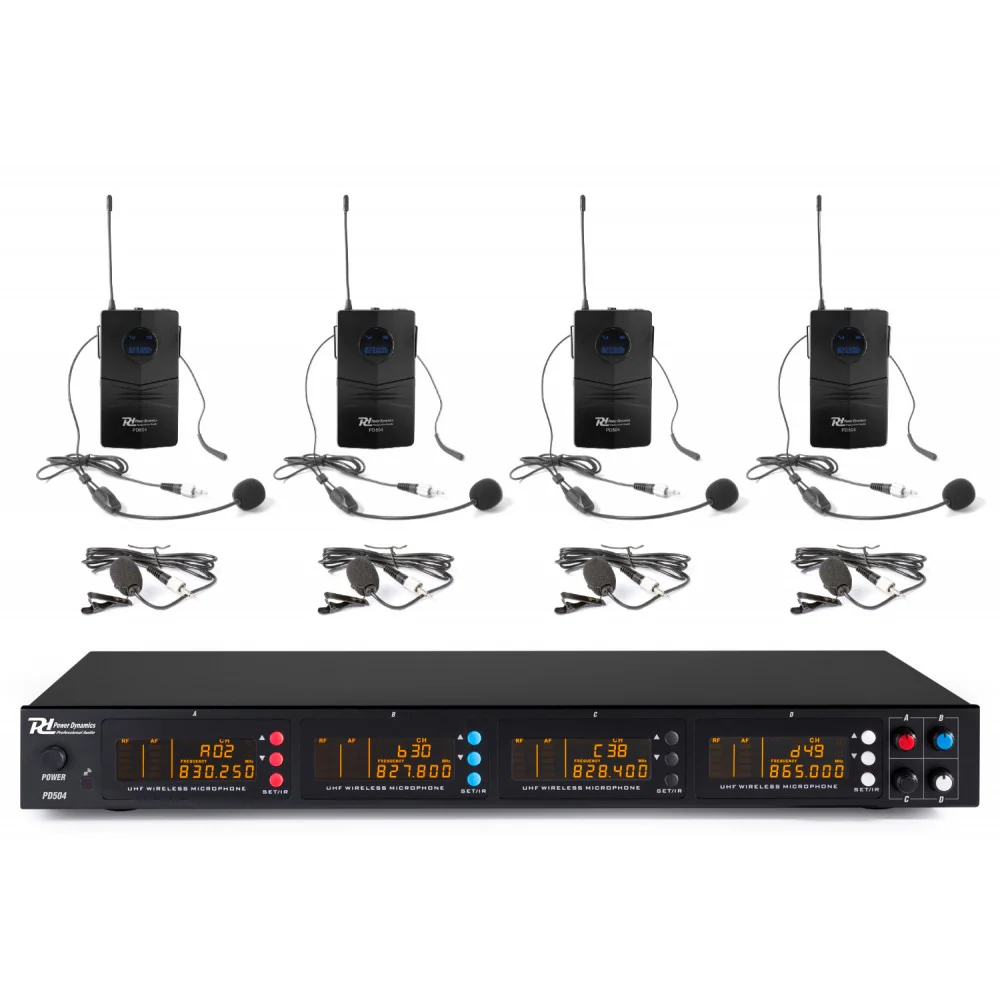

• 4x Bodypack with headset and tie-clip microphone and mute function
• 4x 50 Selectable non-interfered UHF channels
• IR data transmission for channel selection
• Microphone connection using 3.5mm jack

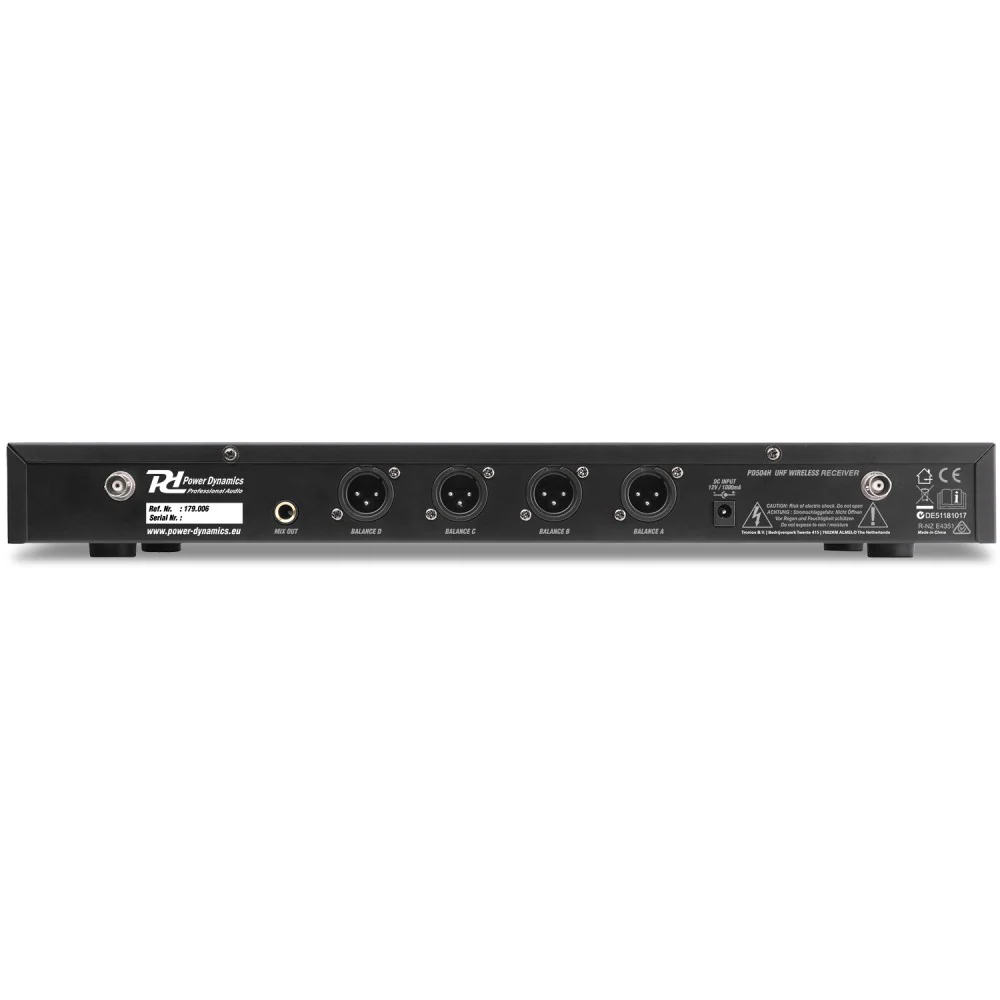

• 4x balanced XLR outputs
• CPU controlled
• PLL oscillator
• Transmitters with display showing the frequency and battery low indication
• Equipped with Dynamic LCD

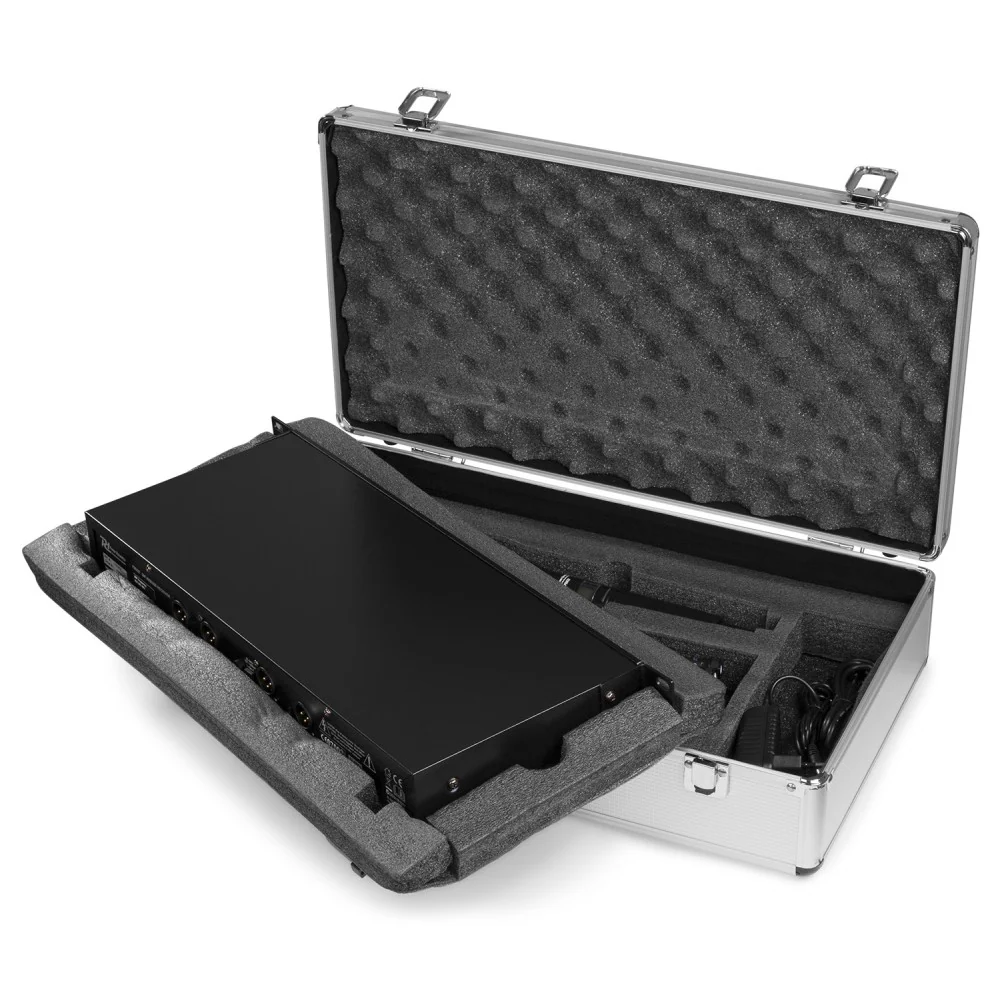

• Supplied in aluminum carrying case
• Including 19″ brackets

Specifications

Input Connections: 3.5mm Jack, XLR (3-pin) Output connections: 3.5mm Jack, XLR (3-pin) Frequency range: 826.300 – 831.200 MHz, 863.000 – 865.000 MHz Frequency response: 60 – 18.000 Hz Frequency stability: 0.0015% RF output: <10mW Signal-to-noise ratio: >97dB THD: <1% Batteries: 3V (2x AA) Power supply: 100-240VAC 50/60Hz (12V Adapter) Dimensions – Receiver: 235 x 420 x 44mm Dimensions – Body pack: 75 x 60 x 23mm Weight: 5.1 kg Weight – Receiver: 1.7 kg Weight – Bodypack: 0.2 kg
