Pioneer PLX-1000 High-torque Professional Direct Drive Turntable
Key Features
Turn the tables - The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
Excellent sound design-The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
Pick up the pace-Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

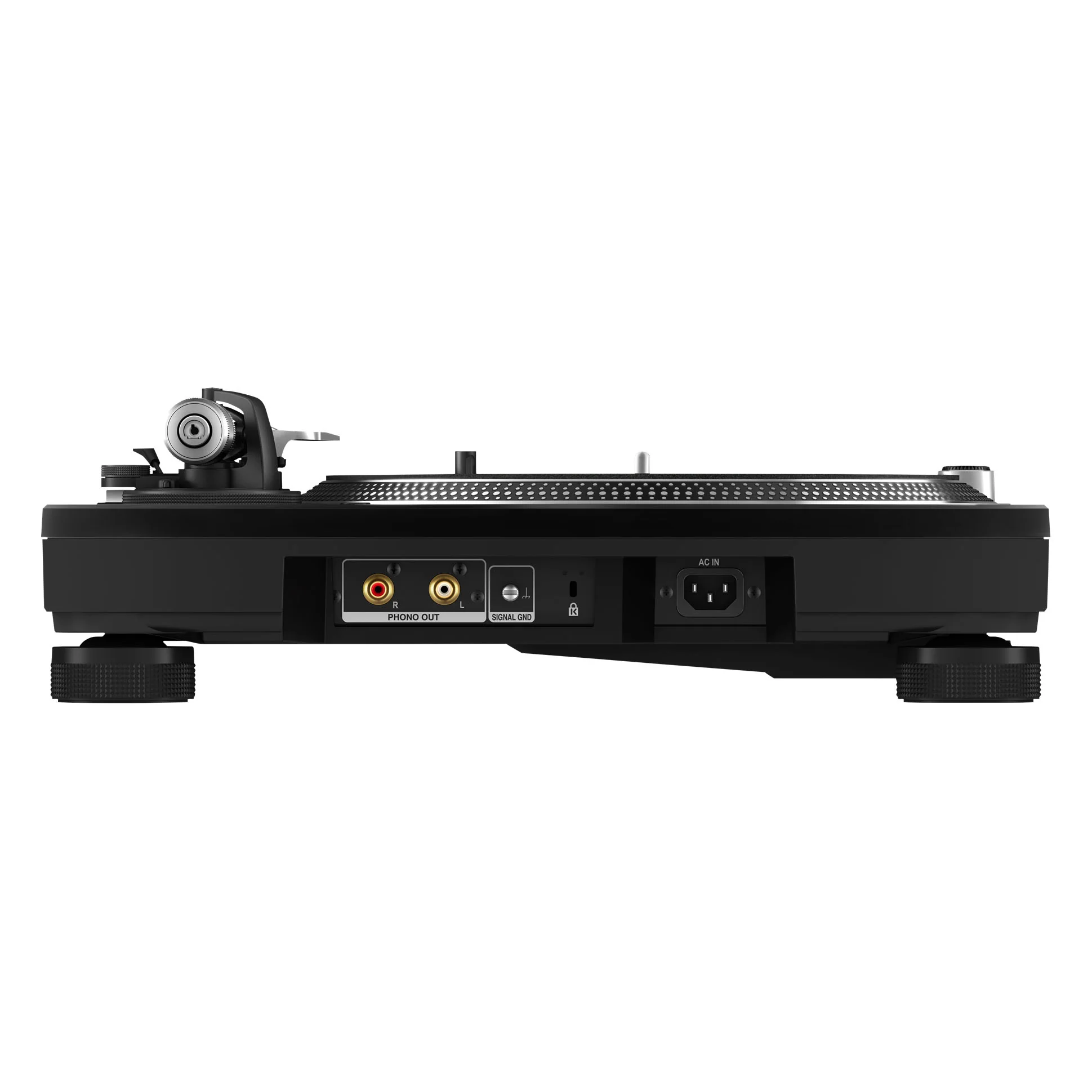

Flexible connectivity-Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
Main Features
What's in the box |
|
|---|
Turntable
Drive Method |
Quartz lock, servo-type, direct drive |
|---|---|
Platter |
Aluminium, die-casting diameter: 332 mm |
Motor |
3-phase, brushless DC motor |
Braking System |
Electronic brake |
Rotation Speed |
33⅓-45 rpm |
Rotation Adjustment Range |
±8, ±16, ±50 % |
Wow and Flutter |
<0.01% (Measured by obtaining signal from built-in frequency generator of motor assembly.) |
Signal-to-Noise Ratio |
70 dB |
Starting Torque |
> 4.5 kgf・cm |
Start Time |
Within 0.3 sec (at 33⅓ rpm) |
