Born for the Stage Ideal for life on the go, this convenient 19" rack-mount power distribution family can be used to power mobile sound and lighting systems, AV and TV equipment for businesses, as well as fixed theatre and nightclub installations at home. With a range of specialised features, you can choose the model that best suits your needs.

Features

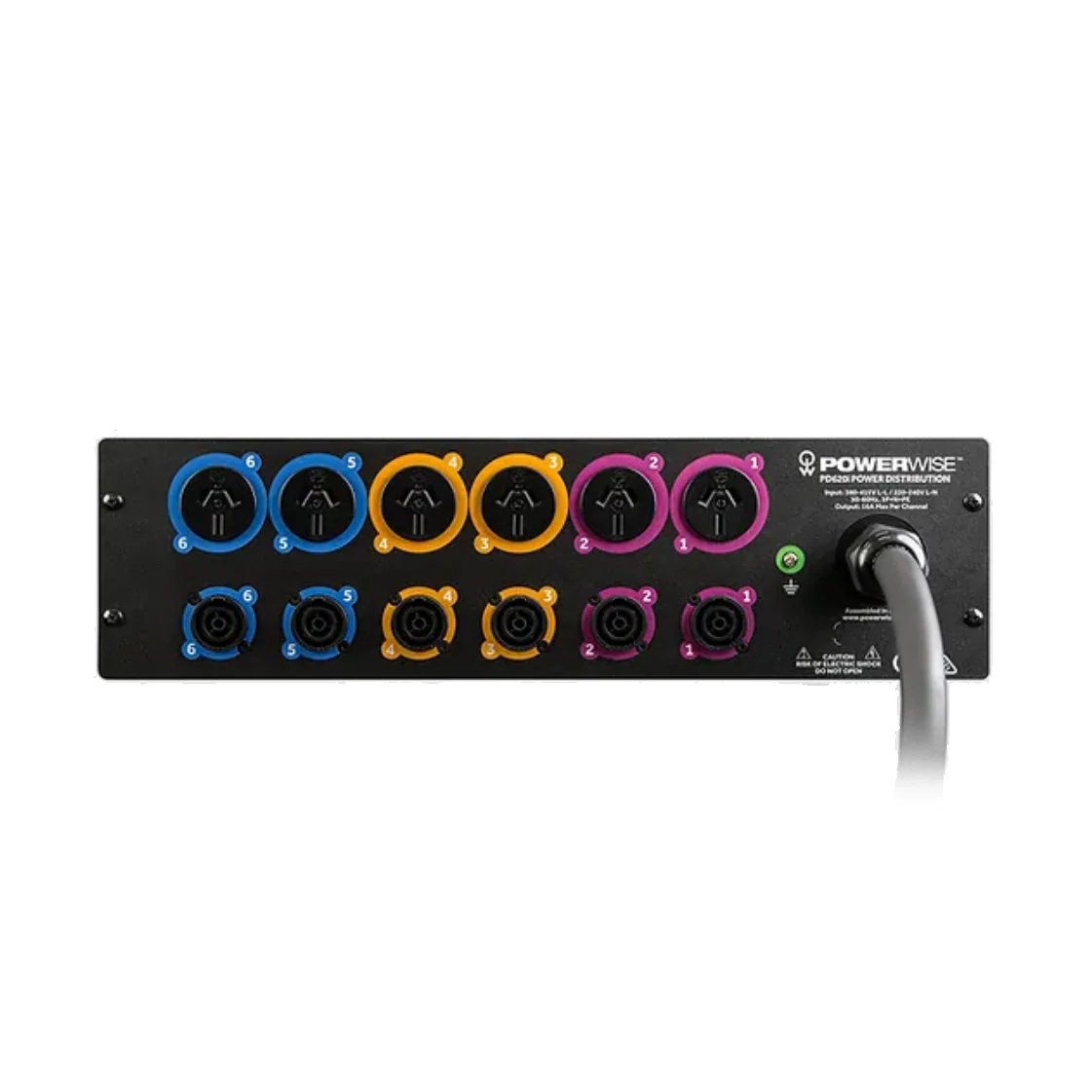

• 6 x neutrik powerCON® TRUE1 and 6 x 15A AU GPO rear mounted outlets
• 2-pole line & neutral outlet switching
• 30mA Type A c-curve RCBO outlet protection
• 32A main isolator and incoming supply protection
• 3RU 19” rack mountable
• Neutral and earth fault indicator
• Visual phase identification
• 1.6M supply cable fitted with 32A 5 Pin 56 series style supply connection
• AS/NZS 62368.1:2022 AV & IT compliance
• 6 year limited warranty

Specifications

• Number of Circuits: 6
• Output Capacity Per Circuit: 20A
• Number of Outputs per Circuit: 2
• Output Connector Type: 6 x 15A AU GPO + 6 x powerCON TRUE1 TOP
• Master Isolator: 4-Pole 32A MCB, C-Curve
• Circuit Protection: 1P+N 20A, Type A, C Curve RCBO
• Supply Cable: 1.7m, 5x6mm2 Heavy Duty Flexible Rubber
• Supply Connector: 5-Pin 32A 3-Phase, 380-415V 50Hz 3P+N+PE
• Input Power Indicator: YES
• Neutral Fault Indicator: YES
• Earth Fault Indicator: YES
• 19" 3RU Rackmount: YES
• Dimensions: (WxHxD) 525mm x 215mm x 505mm
• Weight: 9.8kg
• Warranty: 6 Year Limited
