Presonus 16x8 Remote XLR Network Stage Box for SLIII Mixers

Product image 1
1 / 4

Presonus 16x8 Remote XLR Network Stage Box for SLIII Mixers

Powerful connectivity that’s designed to be shared.

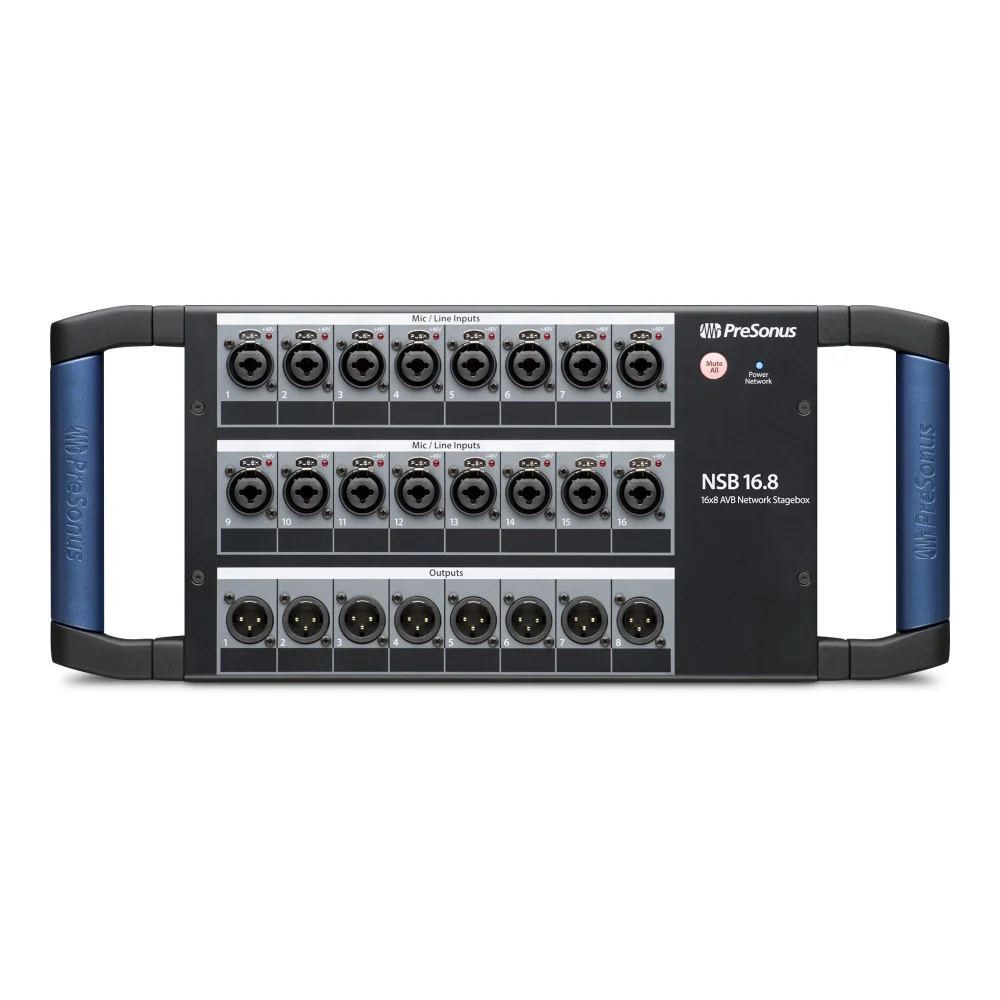

The NSB 16.8 networked stage box is loaded with 16 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line level devices—the NSB 16.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

Rugged stage box, flexible installation.

PreSonus built the NSB 16.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 16.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or to multiple mixers on the same network. For StudioLive Series III mixers that have limited onboard analog I/O, the NSB 16.8 provides a simple expansion to a full 32- or 64-channel mixing system.

Features

  • 16x8 network stage box for StudioLive® Series III console mixers
  • 16 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
  • 8 line outputs
  • Easy configuration from StudioLive Series III console mixers and UC Surface

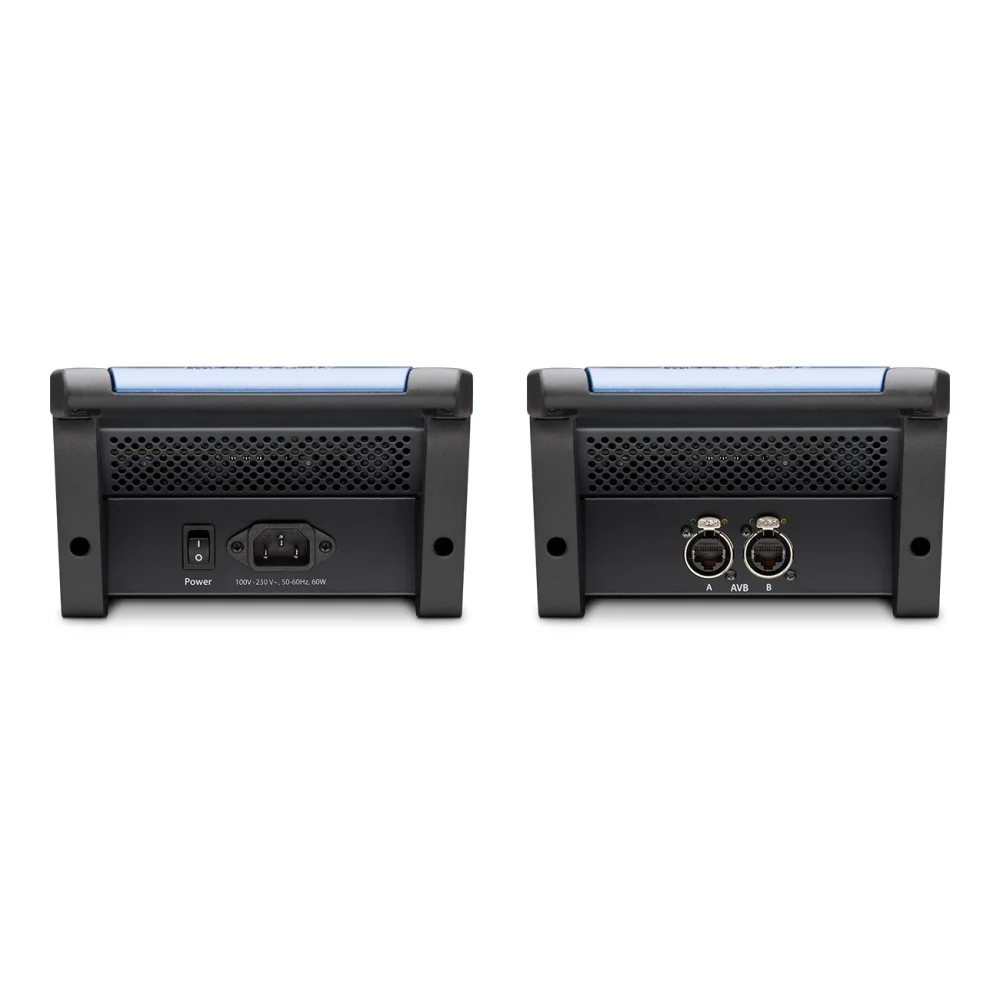

  • Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
  • Rugged all-metal stage box enclosure
  • Optional rack ears
  • Compatible with stage pockets from Ace Backstage

Technical Specifications

Microphone Preamplifier: Input Type: XLR Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 1 kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (ref = +4dB, 20kHz BW, unity gain, A-wtd): 94dB Common Mode Rejection Ratio (1kHz at unity gain): 65dB Gain Control Range (±1 dB): 0dB to +60dB Maximum Input Level (unity gain): +12dBu Phantom Power (±2 VDC): 48VDC, switchable per channel Line Inputs: Type: ¼” TRS Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 10kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (Ref+ +4dB, 20kHz BW, unity gain, A-wtd): 94dB Maximum Input Level:+18dBu XLR Outputs: Type: XLR Male, balanced Maximum Output Level: +24 dBu, ±0.5 dBu Output Impedance: 100Ω Digital Audio: ADC Dynamic Range: 115 dB (A-wtd, 48 kHz) DAC Dynamic Range: 115 dB (A-wtd, 48 kHz) AVB Audio Network Ports: Locking XLR Ethernet Sampling Rate: 48 kHz, 44.1 kHz Power: Connector: Locking IEC Input-Voltage Range: 90 to 230 VAC (±10%) Physical: Height: 7” (178 mm) Width: 16.7” (424 mm) Depth: 4.5” (114 mm) Weight: 6.2 lbs. (2.8 kg)
$427.37

Original: $1,221.05

-65%
Presonus 16x8 Remote XLR Network Stage Box for SLIII Mixers—

$1,221.05

$427.37

Product Information

Shipping & Returns

Description

Powerful connectivity that’s designed to be shared.

The NSB 16.8 networked stage box is loaded with 16 versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line level devices—the NSB 16.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

Rugged stage box, flexible installation.

PreSonus built the NSB 16.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 16.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or to multiple mixers on the same network. For StudioLive Series III mixers that have limited onboard analog I/O, the NSB 16.8 provides a simple expansion to a full 32- or 64-channel mixing system.

Features

  • 16x8 network stage box for StudioLive® Series III console mixers
  • 16 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
  • 8 line outputs
  • Easy configuration from StudioLive Series III console mixers and UC Surface
  • Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
  • Rugged all-metal stage box enclosure
  • Optional rack ears
  • Compatible with stage pockets from Ace Backstage

Technical Specifications

Microphone Preamplifier: Input Type: XLR Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 1 kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (ref = +4dB, 20kHz BW, unity gain, A-wtd): 94dB Common Mode Rejection Ratio (1kHz at unity gain): 65dB Gain Control Range (±1 dB): 0dB to +60dB Maximum Input Level (unity gain): +12dBu Phantom Power (±2 VDC): 48VDC, switchable per channel Line Inputs: Type: ¼” TRS Female, balanced Frequency Response to Main Output (at unity gain): 20-20kHz, ±0.5 dBu Input Impedance: 10kΩ THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd S/N Ratio to Main Output (Ref+ +4dB, 20kHz BW, unity gain, A-wtd): 94dB Maximum Input Level:+18dBu XLR Outputs: Type: XLR Male, balanced Maximum Output Level: +24 dBu, ±0.5 dBu Output Impedance: 100Ω Digital Audio: ADC Dynamic Range: 115 dB (A-wtd, 48 kHz) DAC Dynamic Range: 115 dB (A-wtd, 48 kHz) AVB Audio Network Ports: Locking XLR Ethernet Sampling Rate: 48 kHz, 44.1 kHz Power: Connector: Locking IEC Input-Voltage Range: 90 to 230 VAC (±10%) Physical: Height: 7” (178 mm) Width: 16.7” (424 mm) Depth: 4.5” (114 mm) Weight: 6.2 lbs. (2.8 kg)
