Features

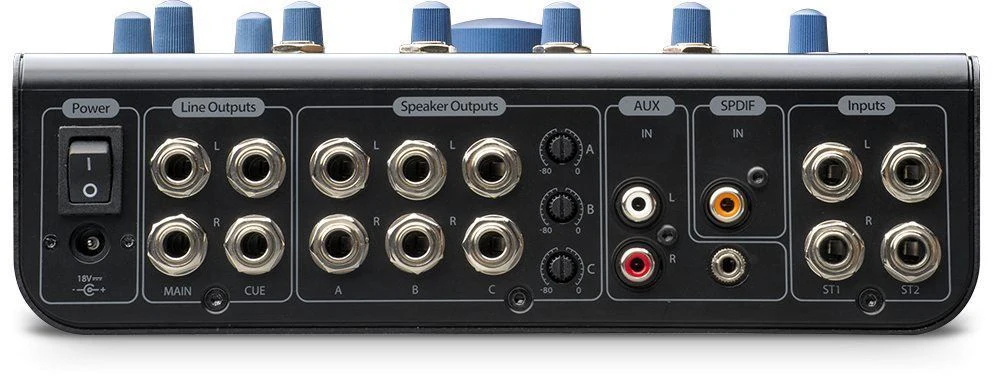

Inputs and Outputs

• 2 Stereo pairs of ¼” TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of ¼” TRS speaker outputs with level controls
• 1 Stereo pair of ¼” TRS Main outputs
• 1 Stereo pair of ¼” TRS Cue outputs
• 4 ¼” TRS screaming-loud stereo headphone outputs

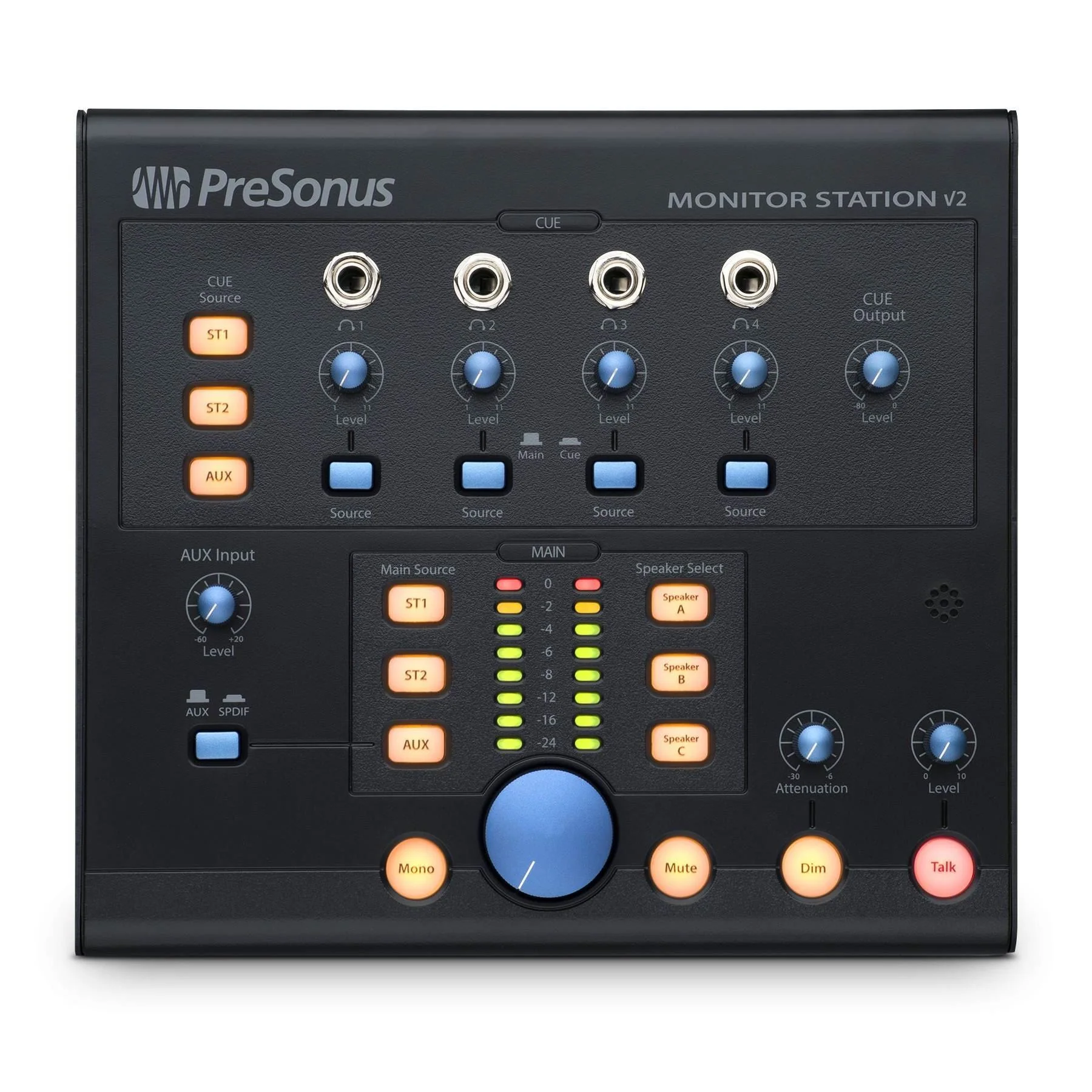

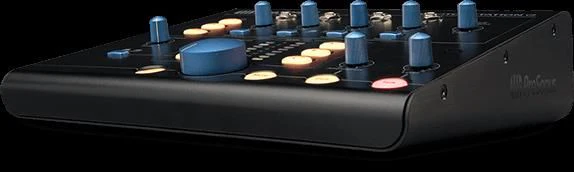

Controls

• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation

Additional Features

• 8-segment color LED input meters with selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and
• Talkback button
• Convenient desktop design

---

Specifications

• Audio Inputs Internal Talkback Microphone:

  • Gain Range +15 to +55 dB
  • Type Electret condenser
  • Sensitivity -42 dB
• Stereo 1 and Stereo 2 Inputs:

  • Type ¼” TRS Active Balanced
  • Input Impedance (Balanced) 10 kΩ
  • S/N Ratio (1 kHz @ +10 dBu, Unity Gain) >105 dB
  • THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.0075%
  • Frequency Response (±0.5 dB) 10 Hz to 65 kHz
  • Noise Floor (20 Hz to 20 kHz, 150Ω input termination) -96 dBu
  • Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) +22 dBu
• Auxiliary Inputs:

  • Type RCA Active Unbalanced
  • Input Impedance 47.5 kΩ
  • S/N Ratio (1 kHz @ 0 dBu, Unity Gain) >115 dB
  • THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) <0.01%
  • Frequency Response (±0.5 dB) 10 Hz to 50 kHz
  • Gain Range 80 dB to +10 dB
• S/PDIF:

  • Types RCA 75Ω coax
  • Dynamic Range 113 dB
  • THD+N 0.0025% (1 kHz @ -1 dBFS)
  • Maximum output at 0 dBFS +18 dBu
  • Sample Rates 44.1, 48, 88.2, 96 kHz
• Input Meters (ST1, ST2, and Aux only):

  • Type Dual 8-segment LED w/peak hold
  • Sensitivity Range -24 dB to 0 dB
• Audio Outputs:

  • Type ¼” TRS Active Balanced
  • Output Impedance (Balanced) 51Ω
  • THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) <0.01%
  • Frequency Response (±0.5 dB) 10 Hz to 50 kHz
• Speaker A, B, and C:

  • Trim Range -80 dB to 0 dB
  • Main Level Range -80 dB to 0 dB
  • Dim Attenuation Range -30 dB to -6dB
• Cue:

  • Cue Level Range -80 dB to 0 dB
  • Dim Attenuation (Talkback activated) -20 dB
• Headphones:

  • Type ¼” TRS Active Stereo
  • Maximum Output (60Ω load) 150 mW / channel
    Frequency Response (±1.0 dB) 10 Hz to 50 kHz
• Power:

  • Power Supply Type External DC Transformer/Internal Line
  • Input Connector Type Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
  • Monitor Station Input Voltage Range 18 VDC
  • Power Requirements (Continuous) 10W
• Physical Dimensions:

  • Height 2.5” (63.5 mm)
  • Depth 8.5” (216 mm)
  • Width 9” (228.6 mm)
  • Weight 6 lbs. (4.54 kg)

---
