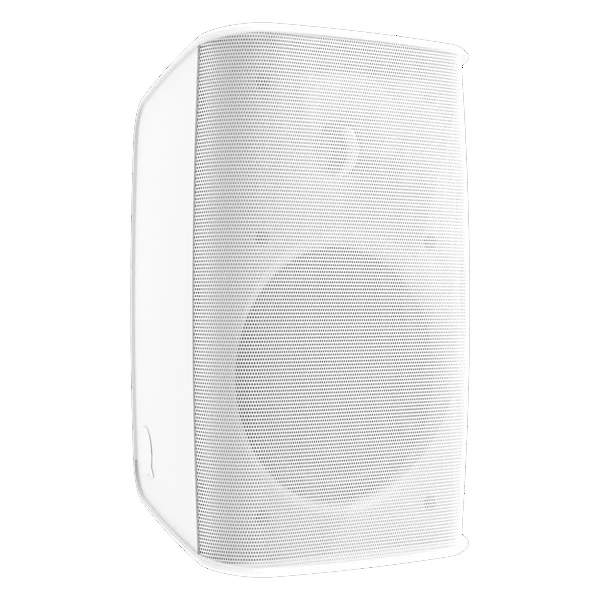

The series is based on 6 or 8 inch two-way full-range speakers for wall or ceiling mounting and can be expanded with a very compact subwoofer system. Ceiling speaker versions are also available. The ultra-compact MX601 and MX801 speakers are extremely slim, offer high-fidelity audio reproduction, are weatherproof and feature an elegant, practical and easy-to-install mounting system. The objective for the Engineers of the MX Series Indoor/Outdoor line-up was to take the compact wall mount speaker to a new standard of performance. This meant consulting with a wide range of venue and public space designers to determine what is needed in a modern designed architectural space. To achieve the desired outcomes a completely new approach to the design was required, both technically for the audio performance, and in developing new manufacturing techniques. The result is a refined appearance that fits visually into any environment, reproduces Hi-Fi quality music and speech; and is easy to install.

Specification

Max SPL *calculated: 112 dB Sensitivity *5-band average: 93 dB Frequency Response: 75Hz – 20kHz ±2dB Impedance: 16Ω Transformer Taping: 100V: 20w/30w/40w/60w 70V: 10w/15w/20w/30w Amplifier Power Transducers RMS 100W: HF: 25mm Titanium Dome Tweeter Peak: 200W: LF: 8” High Performance Polypropylene Woofer Directivity *H x V: 150° x 120° -10dB Connections: Captive Screw Terminal Plug (In/Thru) Environmental Ingress Rating: Speaker Cabinet IP56 (IP67 when used with IPMX1 kit) Product Dimensions *H x W x D: 345 x 202 x 243mm Shipping: 4.3 kg
