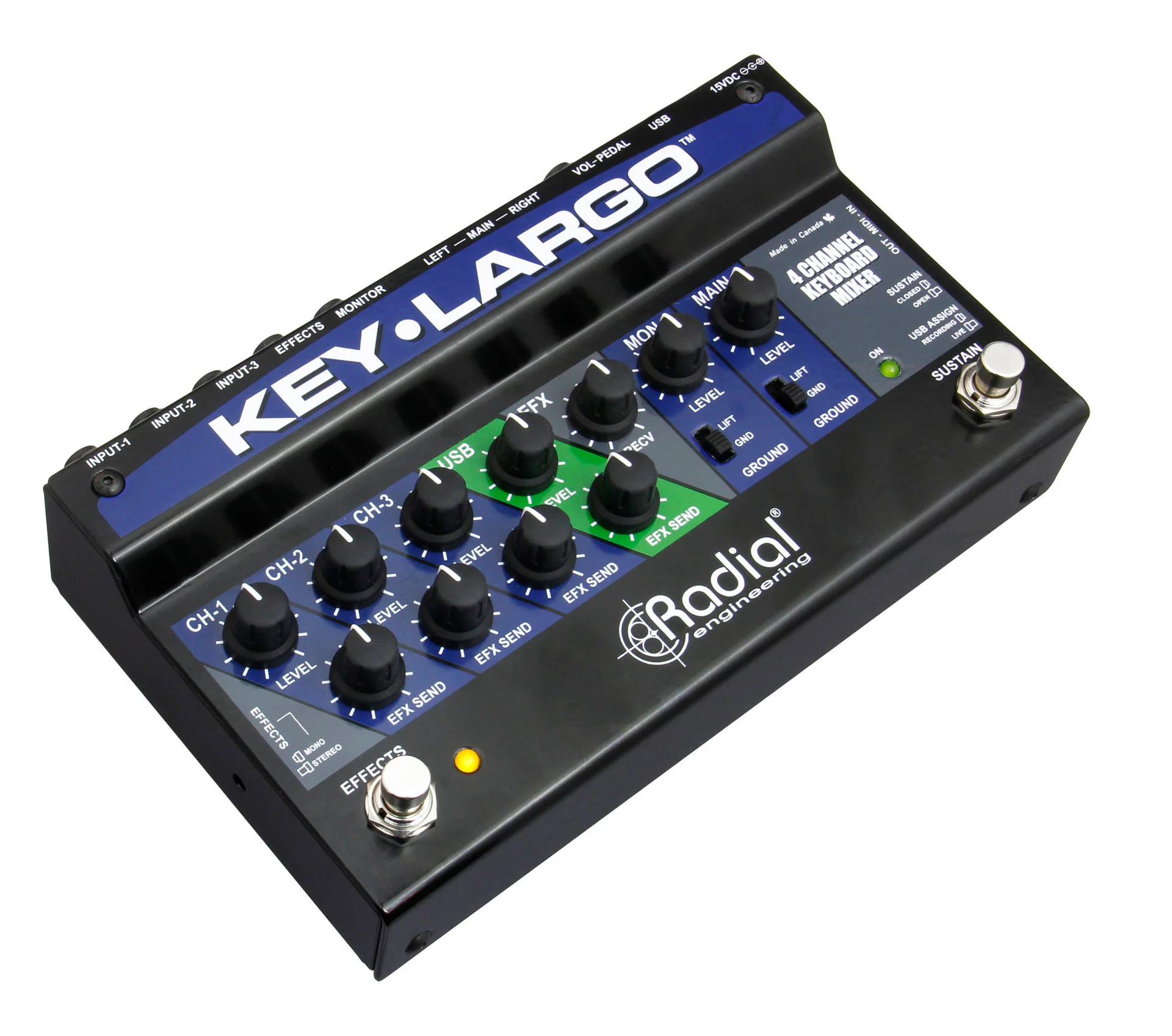

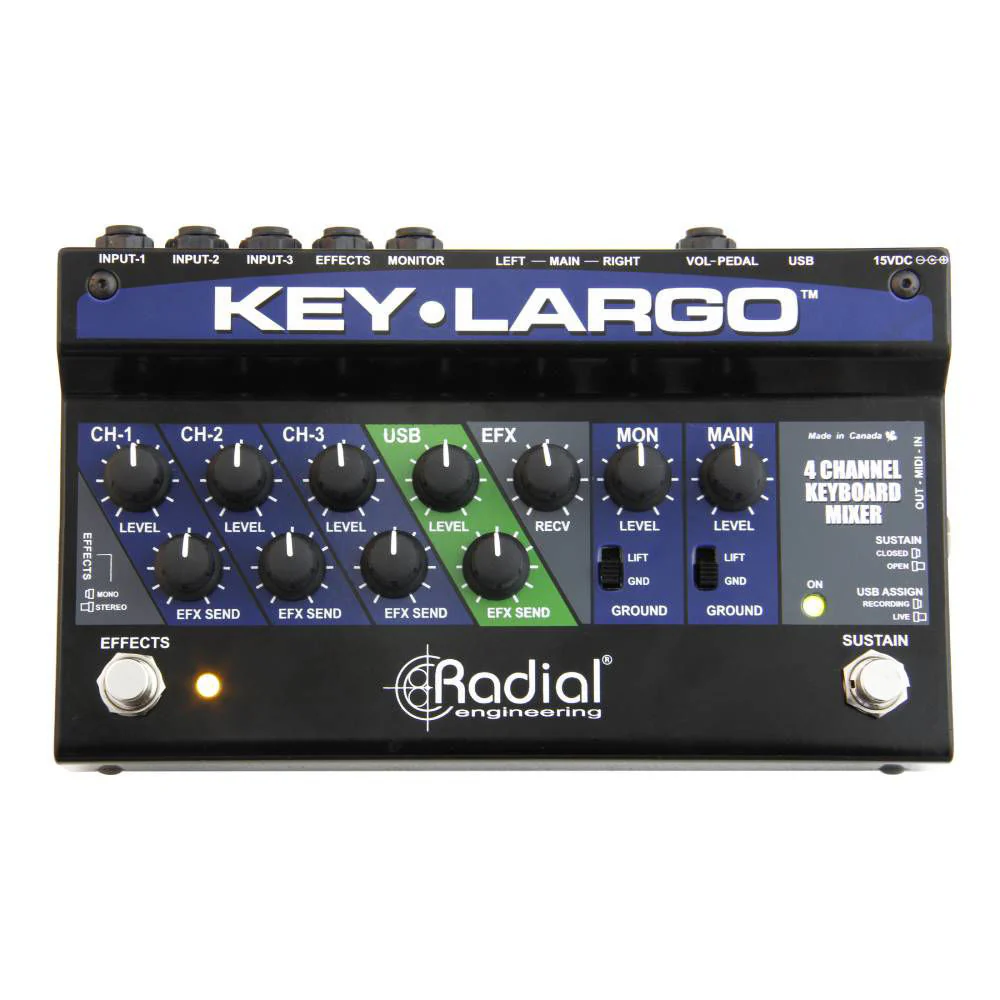

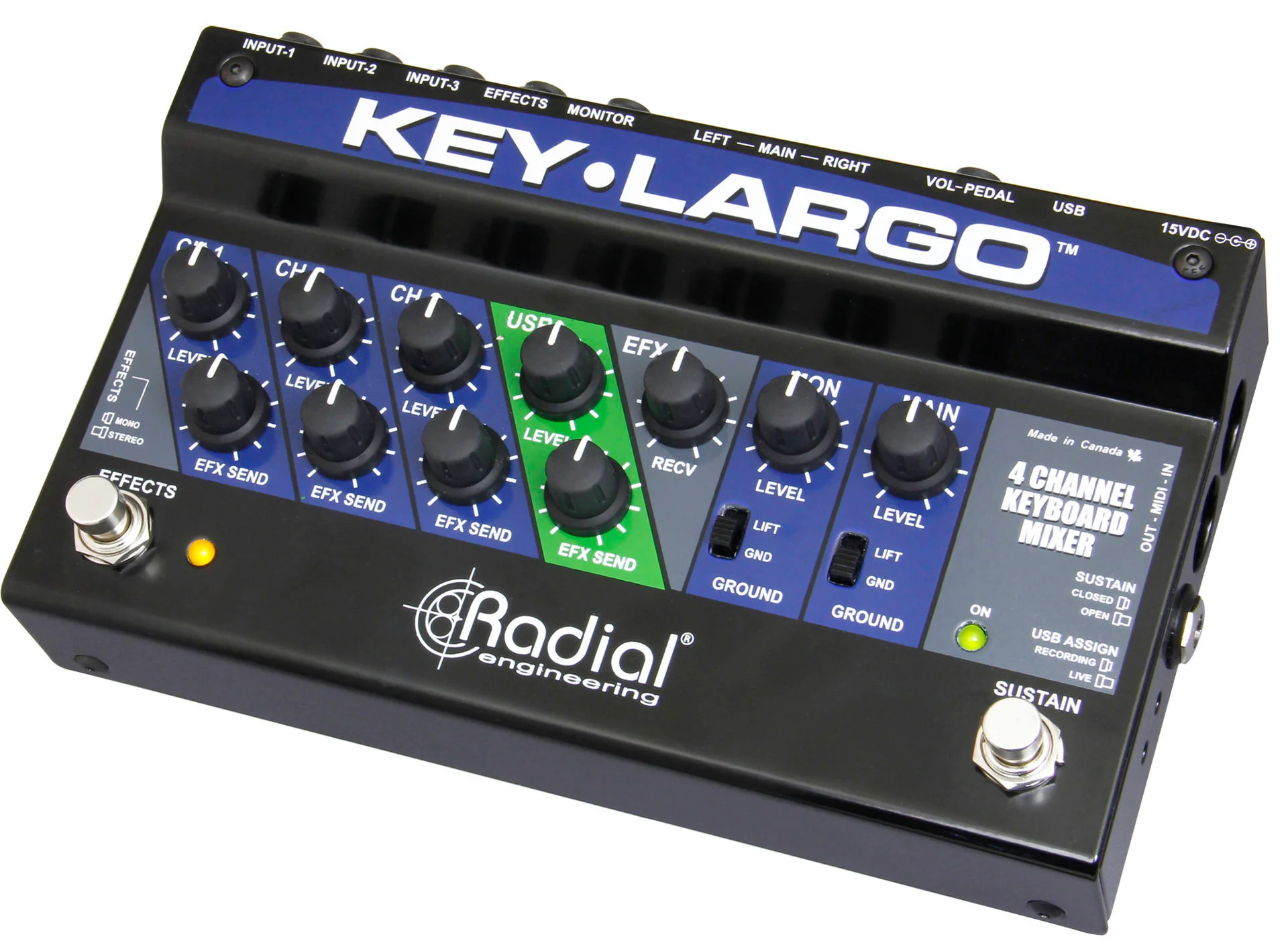

Designed for stage use, the Key-Largo allows you to connect up to three stereo keyboards, effects and volume pedals, and a laptop computer via USB, managing all these signals to send a balanced audio feed to a PA system for a seamless performance on stage.

Three stereo analog inputs feature individual volume controls to balance levels, and each can be sent to a shared effects loop to add reverb or delay in an instant using a dedicated footswitch.

A USB connection allows laptop computers to be integrated into the setup for control of soft-synths, and a built-in sustain footswitch and connections for a stereo volume pedal provide additional ways to control your performance.

---

Features

• Three stereo analog inputs for keyboards
• Digital USB connection for laptop soft-synths
• On-board sustain and effects loop footswitches
• Separate balanced outputs for the PA and stage monitors

---

Specifications

• Audio circuit type: Active circuit with audio-grade operational amplifiers
• Number of channels: 3x stereo analog inputs, 1x stereo USB input, 2x stereo analog outputs
• Frequency response: 20Hz - 20kHz ±0.5dB
• Gain: +12dBu
• Clip Level: +12dBu
• Total harmonic distortion: <0.005% @ 1kHz
• Input Impedance: Analog 20k Ohms
• Output Impedance: XLR: 300 Ohms 1/4": 450 Ohms
• Noise: -91dBu
• Noise: 24bit / 192kHz
• 180° polarity reverse, Ground lift, Level Control, Effects Loop
• Input Connectors: 3x Stereo Analog Inputs, 1 x Stereo USB Input

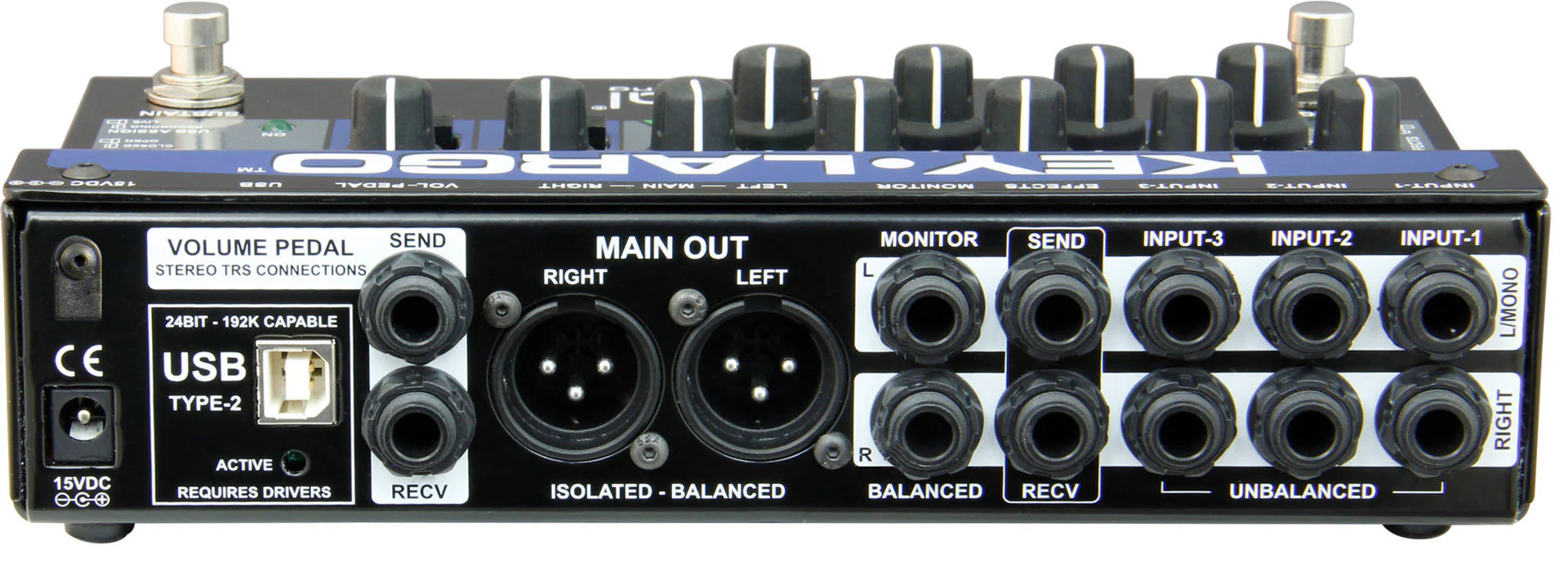

• Output Connectors: Stereo XLR Balanced Outputs, Stereo 1/4" Monitor Outputs
• Extras: Performance or Recording Mode
• Construction: 14-gauge steel
• Size (L x W x D): 8.4" x 5" x 1.9" (21.3cm x 12.7cm x 4.8cm)
• Weight: 3.25lb (1.47kg)
• Conditions: For use in dry locations only between 5°C and 40°C
• Warranty: Radial 3-year, transferable

---
