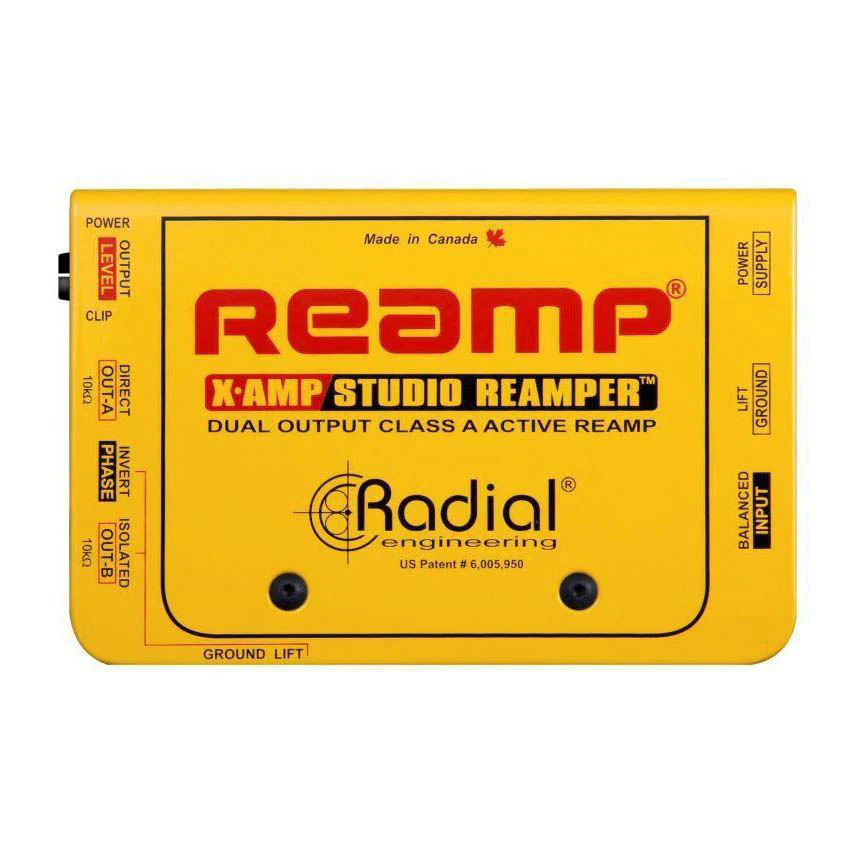

Radial X-Amp Class-A Re-Amping Device
Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.
Features
- Active Reamp® with two outputs
- 100% discrete class-A signal path
- Transformer isolated to eliminate noise

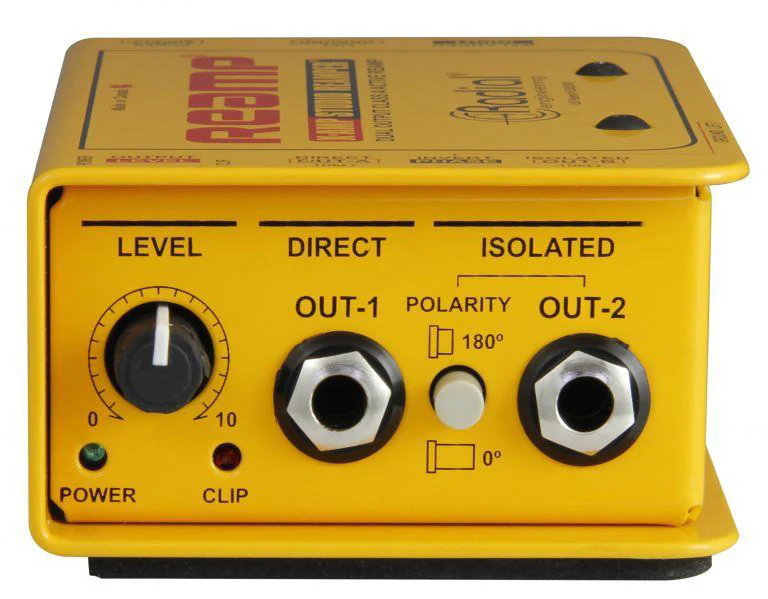

- LED peak indicator and level control
Applications
Reamping Step-1
To Reamp, start by recording a dry track using a Radial J48 and splitting the signal. Record the wet track using a mic so that the guitarist can hear it. Send him to the beach!
Reamping Step-2
Send the dry track back to the guitar amps and pedals using the X-Amp. Adjust the tone and move the mics around till it sounds right. You can always come back and Reamp later.
Reamping – Not just for guitars!
Try sending a vocal track into a Marshall® amp or a Tonebone Classic-V9™ to add tube warmth and grit. Take it a step further by sending your kick drum to a wah pedal. There are no limits!
Specifications
Specifications
Audio circuit type: 100% discrete class-A
Frequency response: 20Hz ~ 15kHz (± 1.0dB)
Dynamic range: 119dB
Total harmonic distortion: 0.02% @ -15dBu
Intermodulation Distortion: 0.02% @ -20dBu
Input Impedance: 600Ω
Noise: OUT-1 -110dB; OUT-2 -108dBu
Maximum Input: +22dBu
Features

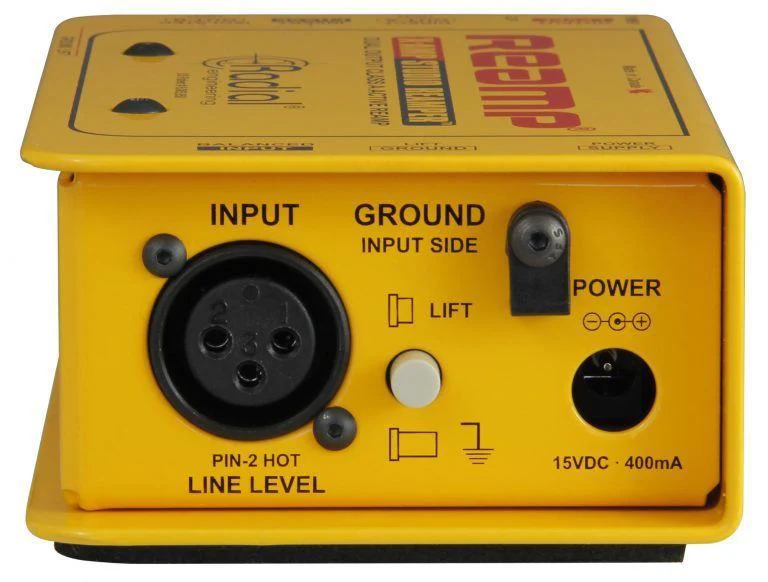

180° polarity reverse, Ground lift, Level Control
Input Connectors: XLR
Output Connectors: 1/4" Isolated and Direct
General
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
Weight: 1.55lb (720g)
Shipping size (L x W x D): 5" x 2.75" x 10.75" (127 x 70 x 273mm)
Shipping weight: 2.6lb (1.18kg)
Power: +15VDC/400mA adapter included
Conditions: For use in dry locations only between 5°C and 40°C
