The M 08 features high sensitivity typical of professional audio enclosures thanks to the use of oversized magnets and high fidelity sound quality thanks to a smooth, wide frequency response thanks to the wave-guided compression drivers. The sound pressure levels of low distortion audio that the M 08 can deliver far exceed expectations for such a compact solution. Thanks to its elegant and compact design with careful craftsmanship, the M 08 is suitable for almost any environment, even where there are architectural limitations. Optional mounting accessories allow the M 08 to be mounted on a wall or ceiling.

Features

• 200W RMS power handling
• 124 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle
• 1 x 8" high power woofer
• 1 x 1.4" voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing
• Installation points available on rear, top and bottom panels

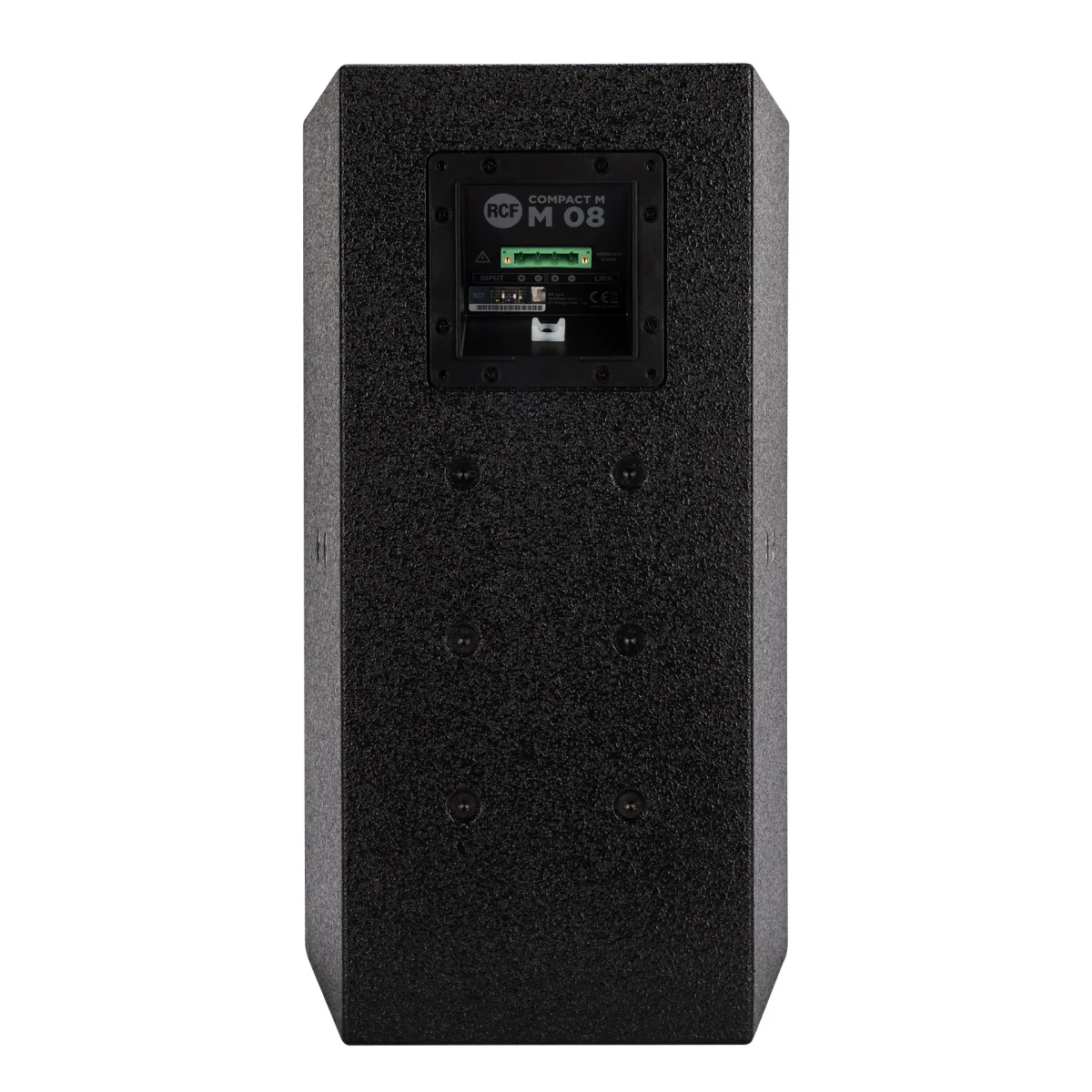

• 4 pole EUROBLOCK connector (audio input and parallel link output)

Specifications

Acoustical Specifications Frequency Response (-10dB): 60 Hz ÷ 20000 Hz Max SPL @ 1m: 124 dB Horizontal coverage angle: 90° Vertical coverage angle: 70° Directivity index Q: 9 System Sensitivity: 95 dB Power Section Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 200 W Peak Power Handling: 800 W PEAK Protections: Dynamic active mosfet Crossover Frequencies: 1800 Hz Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 Transducers Compression Driver: 1 x 1.0'', 1.4'' v.c Woofer: 1 x 8'', 1.7'' v.c Input/Ouput Section Input connectors: Euroblock Output connectors: Euroblock Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 6 x M6, 4 x M8, 2 x M10 Color: Black - RAL 9005, White - RAL 9003 Product Size Height: 442 mm / 17.4 inches Width: 257 mm / 10.12 inches Depth: 284 mm / 11.18 inches Weight: 10.5 kg / 23.15 lbs
