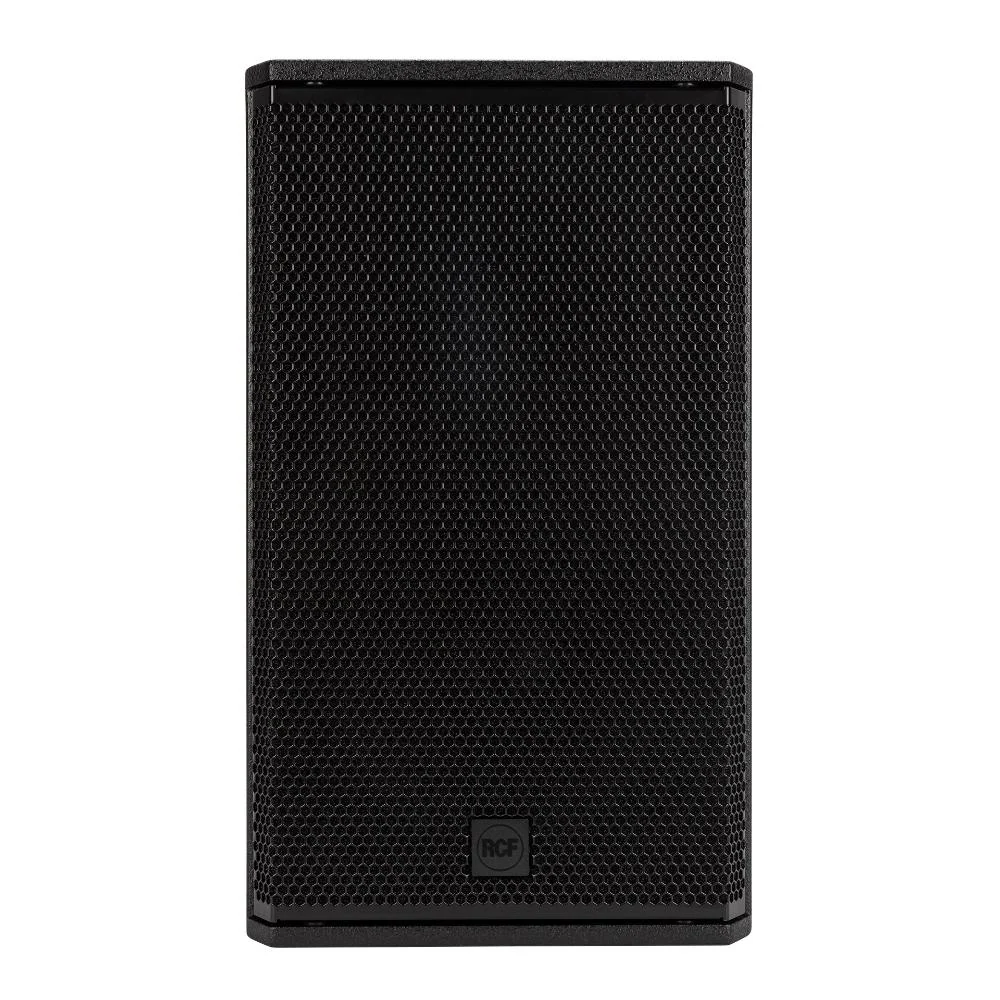

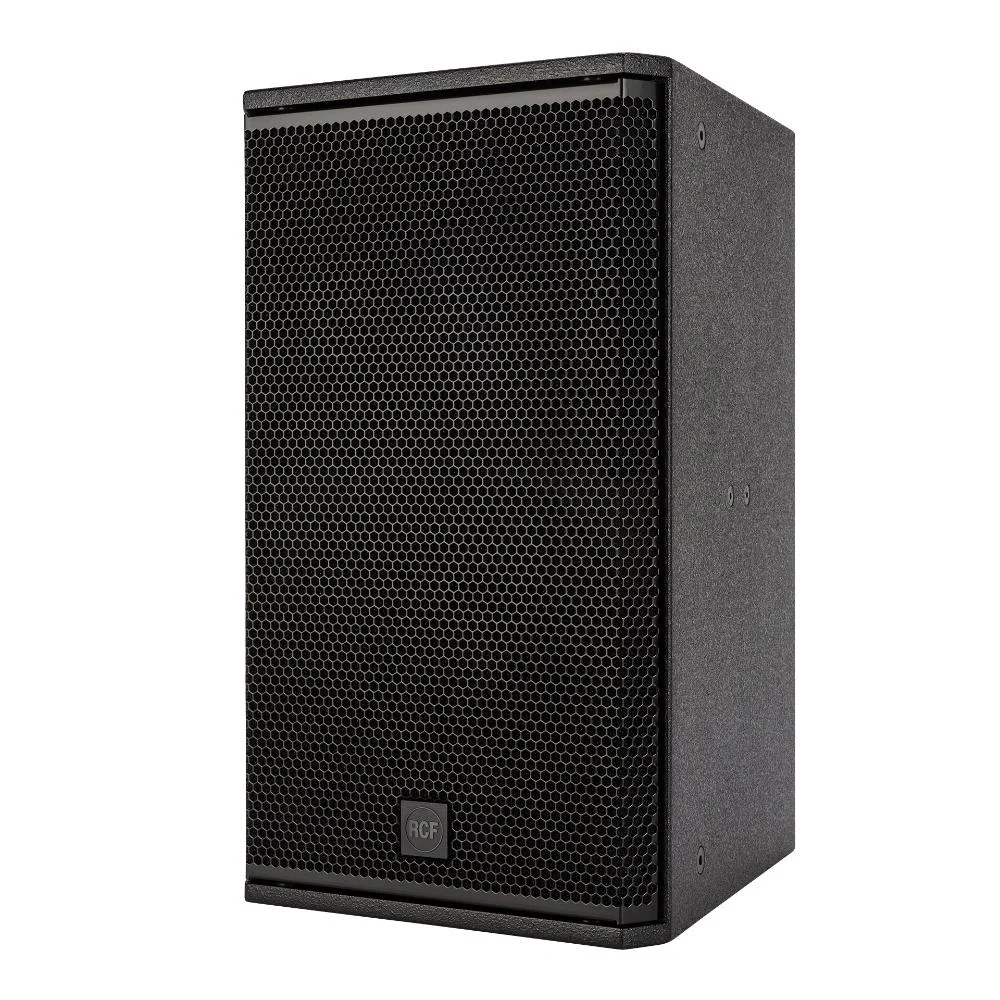

The M 12 combines the high sensitivity typical of professional audio enclosures thanks to the use of oversized magnets with high fidelity sound quality thanks to the smooth, wide frequency response of the wave-guided compression drivers. The sound pressure levels of low distortion audio that the M 12 can deliver far exceed expectations for such a compact solution. Thanks to its elegant, compact design with careful craftsmanship, the M 12 is suitable for almost any environment, even with architectural limitations. Optional mounting accessories allow for M12 for wall or ceiling mounting.

Features

• 300 W RMS power handling
• 129 dB max SPL
• 55 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle
• 1 x 12" high power woofer
• 1 x 1.4" voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing

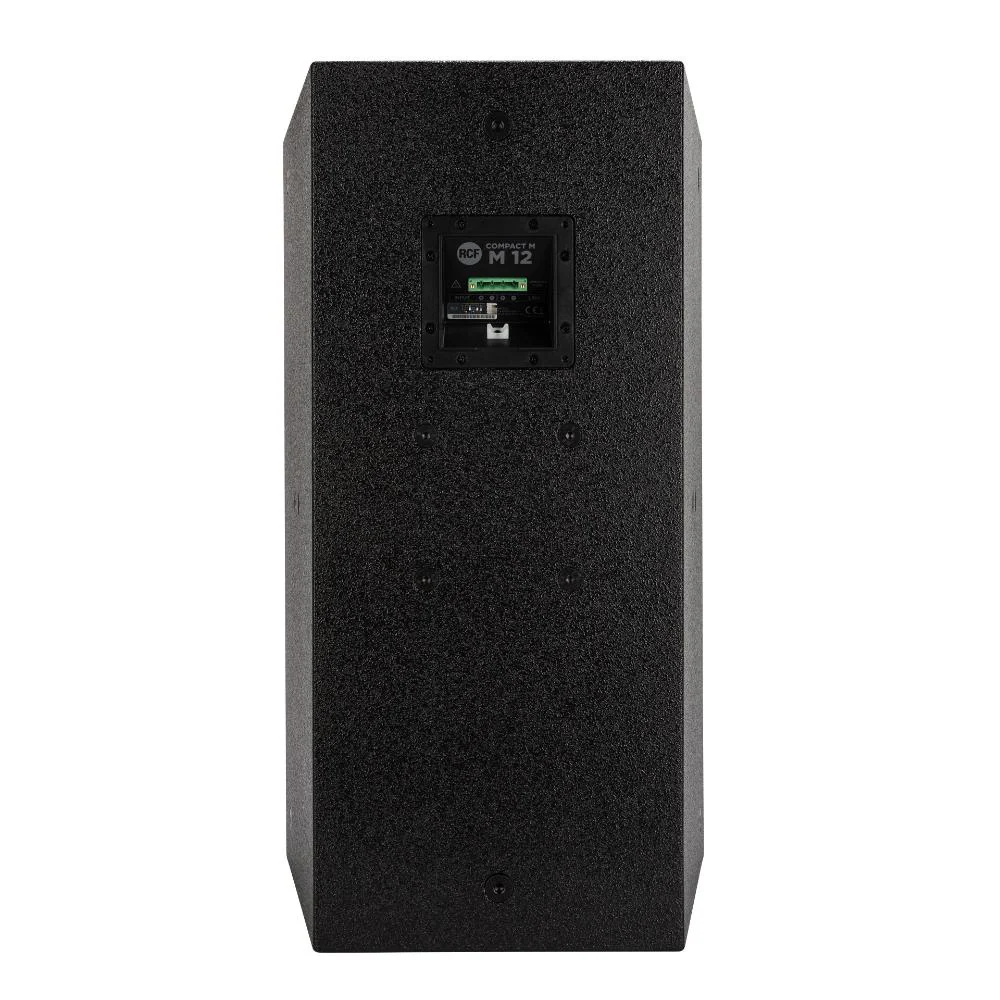

• Installation points available on rear, top and bottom panels
• 4 pole EUROBLOCK connector (audio input and parallel link output)

Specifications

Acoustical Specifications Frequency Response (-10dB): 55 Hz ÷ 20000 Hz Max SPL @ 1m: 129 dB Horizontal coverage angle: 90° Vertical coverage angle: 70° Directivity index Q: 9 System Sensitivity: 98 dB Power Section Amplification: Full Range Nominal Impedance: 8 ohm Power Handling: 300 W Peak Power Handling: 1200 W PEAK Protections: Dynamic active mosfet Crossover Frequencies: 1800 Hz Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504 Transducers Compression Driver: 1 x 1.0'', 1.4'' v.c Woofer: 1 x 12'', 2.5'' v.c Input/Output Section Input connectors: Euroblock Output connectors: Euroblock Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 8 x M8, 8 x M10 Color: Black - RAL 9005, White - RAL 9003 Product Size Height: 620 mm / 24.41 inches Width: 362 mm / 14.25 inches Depth: 404 mm / 15.91 inches Weight: 22 kg / 48.5 lbs
