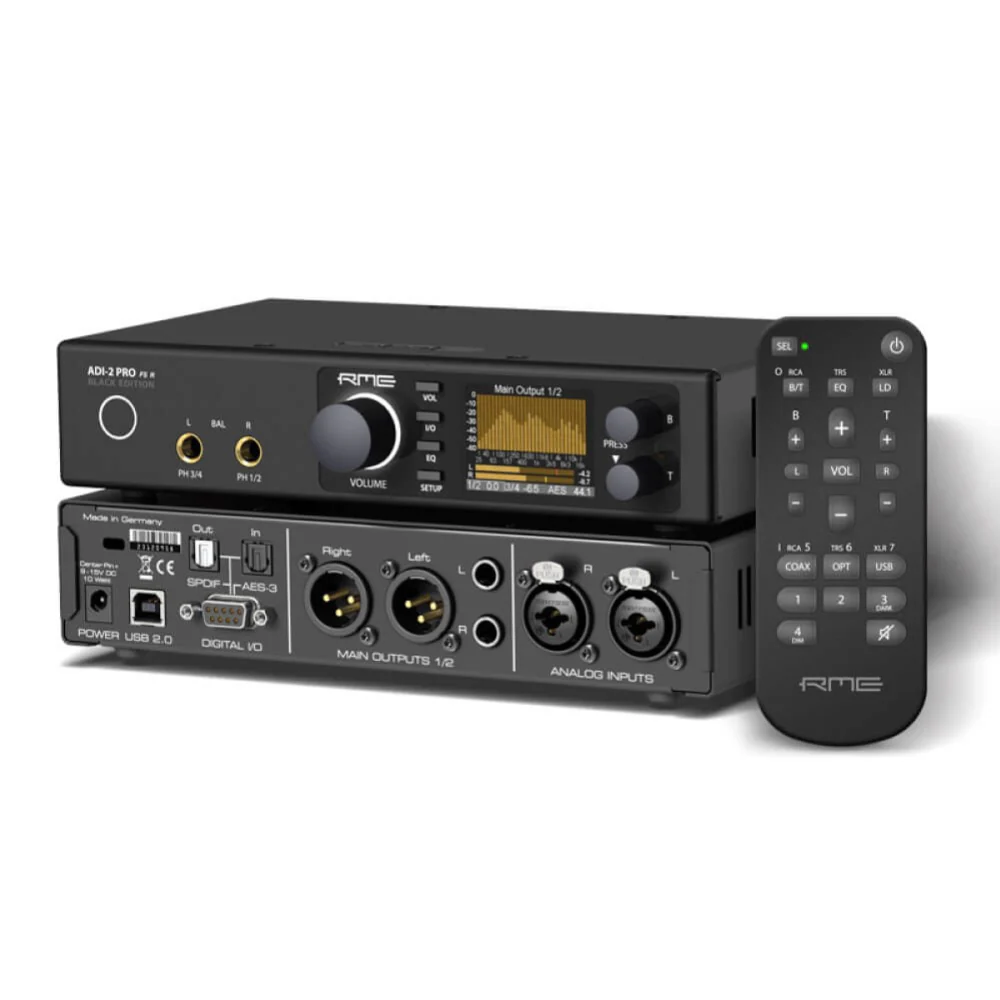

A device with the industry's largest footprint per feature ratio, outstanding specs, a pristine and transparent sonic signature, and two highly powerful headphone outputs. The new ADI-2 Pro FS R Black Edition is powered by the AK4493 chip, has a slight spec upgrade and comes with the new extended Multi-Remote Control (MRC). RME's reference AD/DA converter is:

• A high-end AD/DA converter in professional studio quality
• A double headphone amplifier in true high-end quality
• A USB DAC like no other - the most versatile and capable one
• A high-end AD/DA frontend and headphone amp for iPad / iPhone
• A multi-format converter (AES, SPDIF, ADAT) with monitoring function
• A DSD record and playback solution
• An AD/DA frontend for audio measurement at up to 768 kHz sample rate

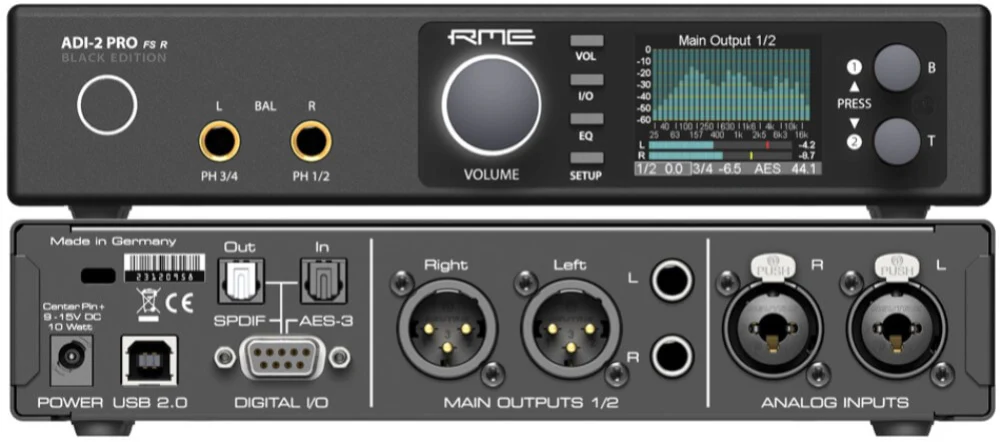

Ultra-fidelity PCM/DSD 768 kHz AD/DA Converter The most flexible converter on the market, the ADI-2 Pro features balanced/unbalanced analog I/O, dual Extreme Power headphone outputs, SteadyClock FS, 4-stage hardware input and output level control, DSP-based signal processing, and an external power supply. Class compliant USB compatibility, sample rates up to 768kHz, DSD record and direct DSD playback (256 / 11.2MHz). Analog or Digital - Options Galore ADI-2 Pro has 2 servo-balanced analog inputs on combo XLR/TRS jacks, 2 separate balanced and unbalanced outputs on XLR and TS, 2 front panel stereo Extreme Power headphone outputs, optical SPDIF I/O that also understands ADAT, and coaxial SPDIF (RCA) and AES I/O (XLR) connections via included breakout cable. The USB 2.0 port is fully class compliant (UAC 2) for connecting to compatible iOS devices, and is dual-purposed for firmware updates. Including an external switched power supply with a lockable connector, the ADI-2 Pro can be easily battery powered, opening up both mobile applications and isolated use cases. As a computer interface, the ADI-2 Pro provides stereo (2 in / 2 out) and multi-channel mode (6 in / 8 out). Perfect Sound Capture and Reproduction A 4-channel AD converter, supporting 768kHz sample rate and DSD recording, is used in a dual-mono configuration, with a 3dB improvement to S/N ratio. Two premium DACs are used for two independent stereo outputs. Internal audio processing such as EQ, Crossfeed and spectral analysis is performed by a high performance DSP with 2.17 GigaFLOPS (2882 MIPS) DSP, providing enough processing power to operate even at 768 kHz sample rate. A high-quality Sample Rate Converter has been added for ease of use, switchable to AES or SPDIF input, and solves clocking issues between them. Also, RME's latest SteadyClock FS technology guarantees perfect jitter reduction and stable clocking regardless of whether internal or external clock is used. High Resolution Display Operation RME have incorporated a myriad of incredible features not found in any comparable devices, including 5-band parametric EQs for headphone correction, quick-access adjustable bass/treble controls, binaural crossfeed functionality, adjustable loudness filter, selectable AD/DA filters, 4 discrete I/O reference levels, automatic reference level adjustment, auto balanced phones mode and more. The display is used to control the device as well as display warning and important information. It also includes professional features from M/S processing, stereo width and phase inversion to full control and storage of all settings, including RME's famous spectral analyzer a 30-band analysis tool, which sits perfectly on the high resolution IPS display. The Reference Converter The ADI-2 Pro is RME's reference AD/DA converter, USB DAC, USB interface and headphone amplifier. With its numerous use cases, from home users who appreciate innovative solutions with the highest sound quality, to studio owners seeking reference AD/DA conversion, the audiophile who wants flexible, yet high end headphone amplifier, all the way to the industries using the device as front-end for a measurement system. SteadyClock FS - Reference class Digital Clocking - Superlative performance in all clock modes and High Quality Analog Conversion to hear your mix in every detail, with lowest jitter and highest jitter immunity. DigiCheck - The Secret Weapon of High Resolution Audio Measurements - RME Audio Interfaces not only deliver a professional digital audio interface, but also DigiCheck, a free software tool for measuring, testing, metering and analyzing digital audio streams.
