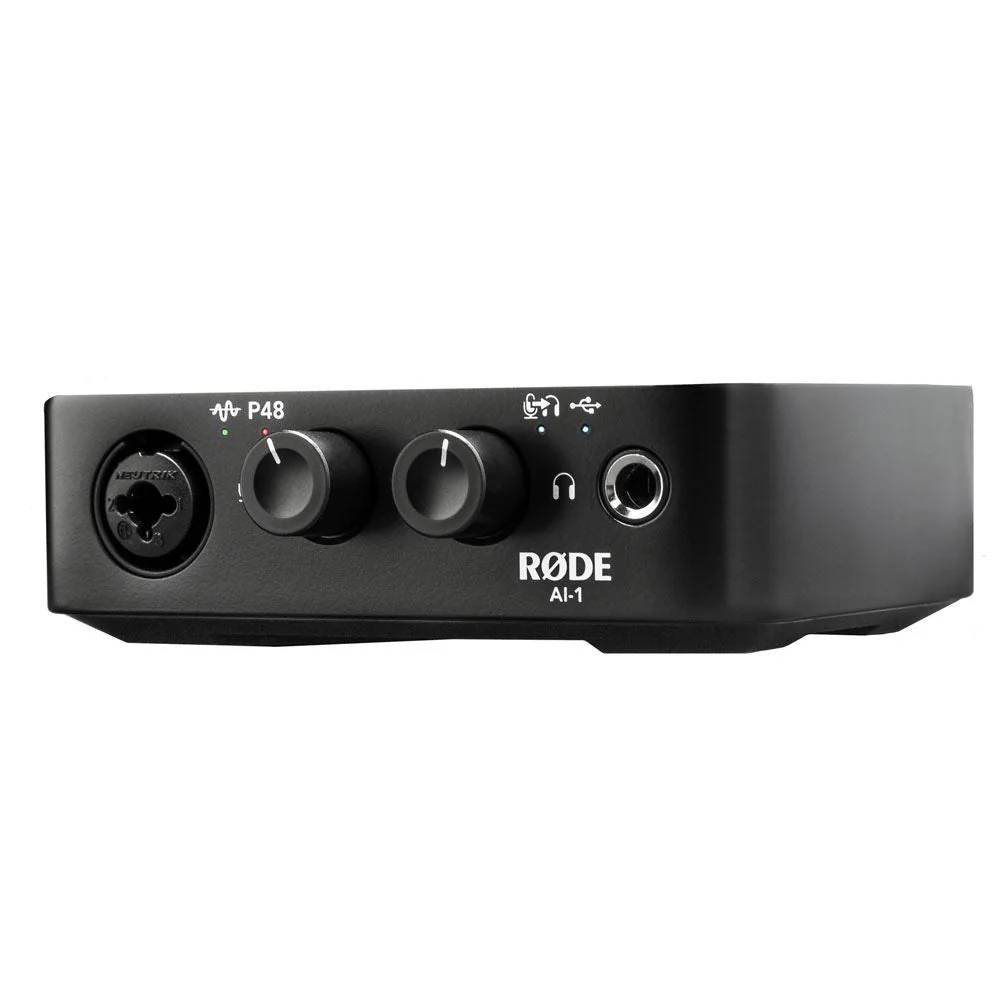

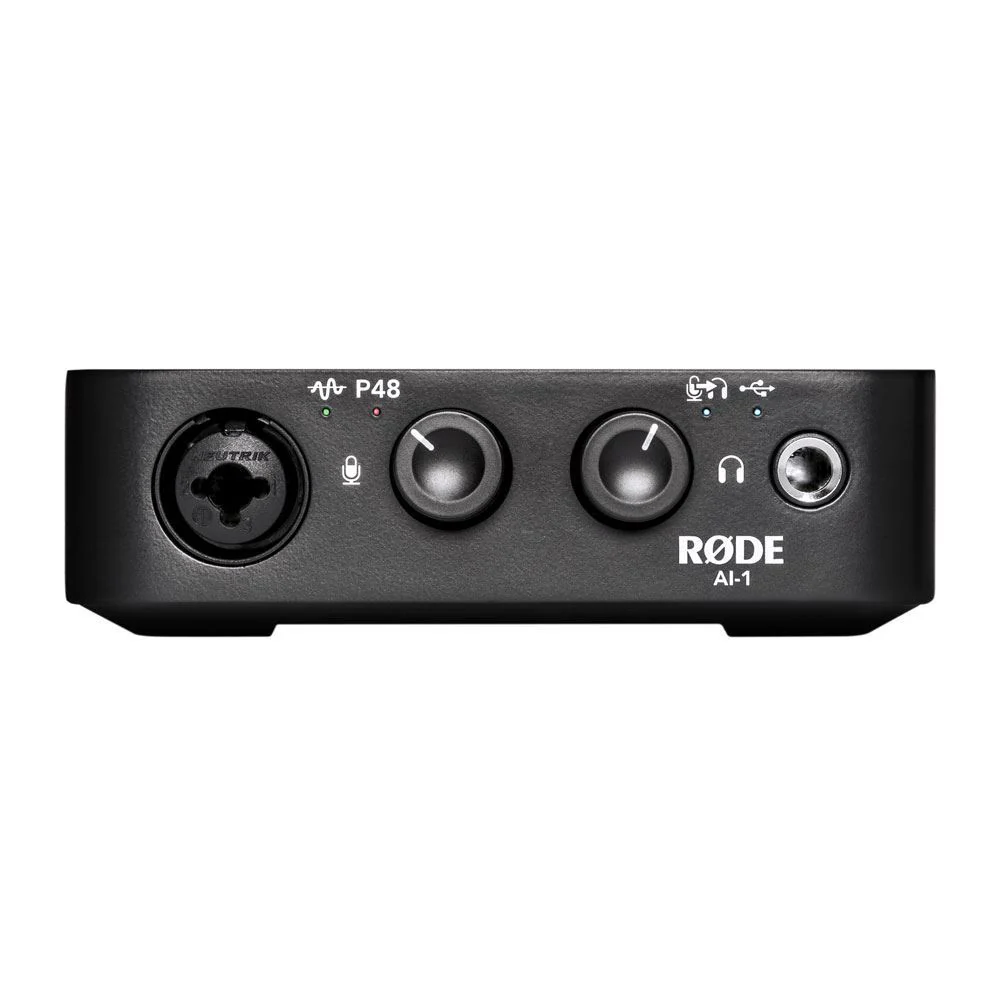

The AI-1’s single input is a NeutrikTM Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al.

Layering tracks is as easy as plug in, set level and go. Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

---

Specifications

• Computer Connectivity: USB
• Form Factor: Desktop
• Simultaneous I/O: 1 x 2
• Number of Preamps: 1
• Phantom Power: Yes
• Bit Depth: 24-bit
• Sample Rates: 44.1 kHz; 48 kHz; 88.2 kHz; 96 kHz
• Analog Inputs: 1 x Neutrik XLR-1/4” combo

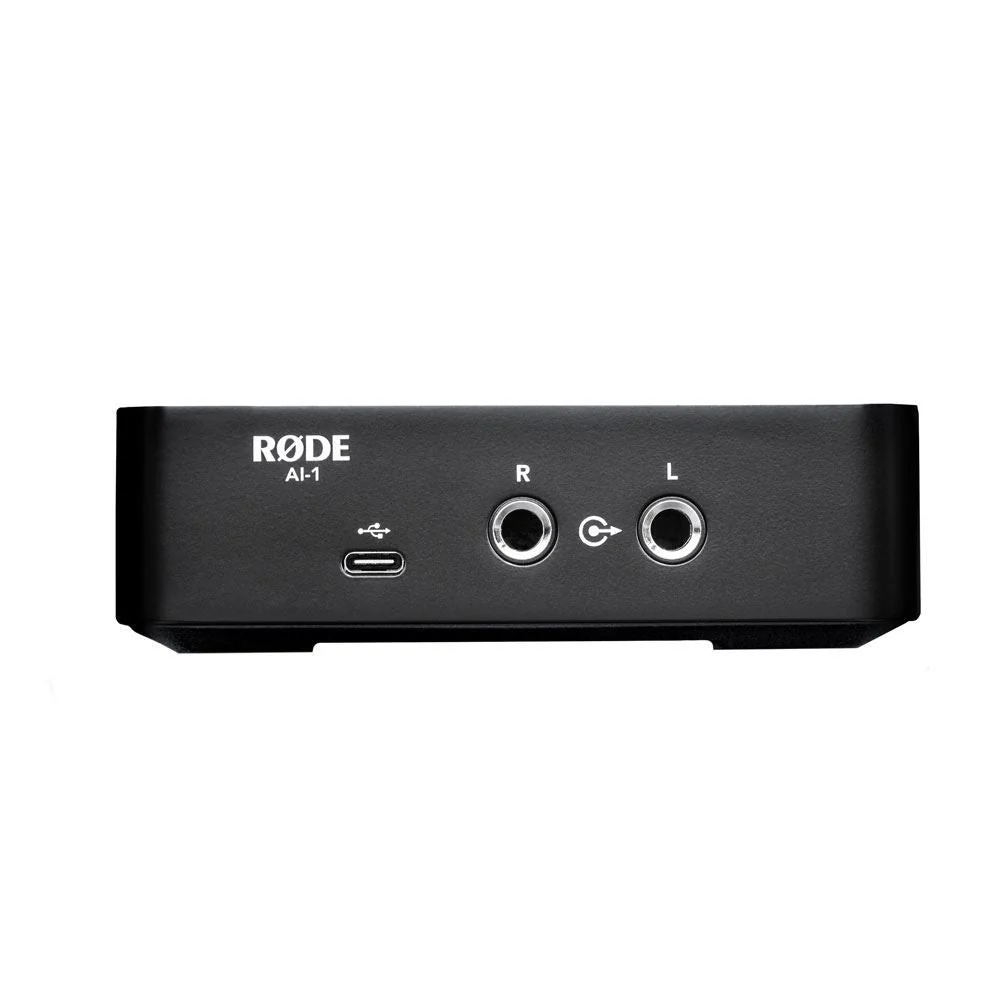

• Analog Outputs: 2 x 1/4” (impedance balanced); 1 x 1/4” (headphones)
• Direct Monitor: Yes
• USB: 1 x USB Type C
• Bus Powered: Yes
• OS Requirements: Mac OS 10.10 or later; Windows 7 or later
• Power: USB bus-powered
• Depth: 100mm total (with knobs); chassis: 88mm
• Width: 124mm
• Height: 38mm
• Weight: 1lb 3.7oz; 560g

---
