Watch - Overview of the Rode NT1 Studio Condenser Microphone:

Although the body of the new NT1 closely resembles the NT1-A the microphone has been completely redesigned from the ground up, with the only shared component being the mesh grille.

Product Features

• Large 1" condenser capsule with gold-plated membrane
• Cardioid polar pattern
• Internal Rycote® Lyre® based capsule shock mounting system
• Ultra-low noise, self noise of only 4.5dB (A)
• State-of-the-art surface mount electronics
• Available with included RM2 mount (NT1-SINGLE) or with SM6 shock mount (NT1-KIT)
• 10 year extended warranty when you register the microphone

RØDE’s design engineers approached the NT1 as a marriage of innovation and tradition, starting with the capsule which is a completely new design. Codenamed the HF6, it is the perfect example of RØDE’s fusion of artistic design approaches and cutting-edge manufacturing techniques, and features a sound signature reminiscent of the famous microphones of old while at the same time exhibiting extremely low noise.

It has been developed with a focus on detailed midrange response, coupled with silky smooth high frequencies, and warm, round, bass reproduction to make the NT1 an absolute standout in its class.

In another world-first for RØDE, the transducer itself is suspended inside the microphone using Rycote’s industry-leading Lyre system, minimizing external vibrations at the capsule level. The capsule is then married to high-grade electronics that have been designed to provide the lowest noise level of any studio microphone available. The NT1 is an incredibly quiet microphone, measuring only 4.5dBA of self-noise.

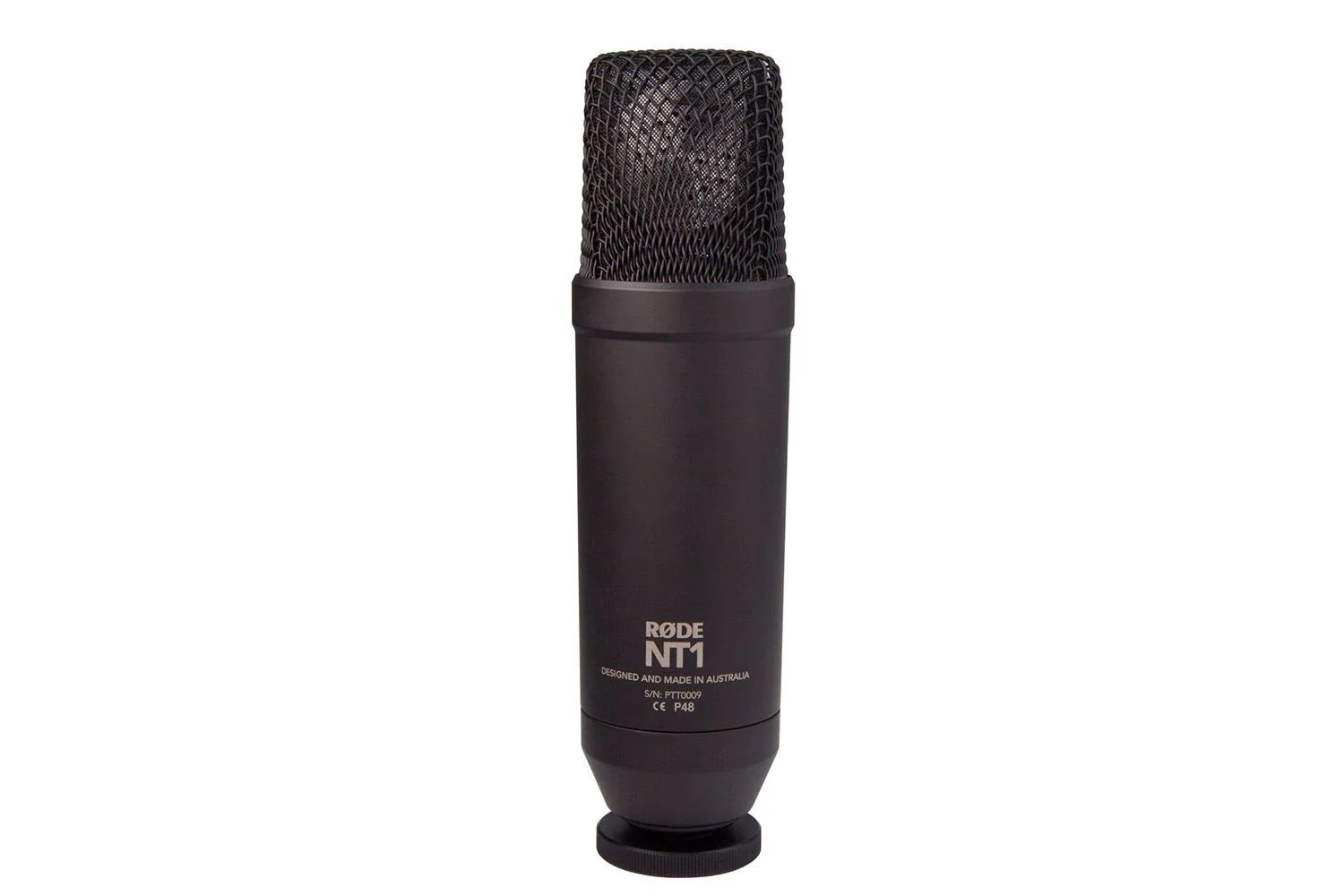

Its body is machined from 6061 aluminium and then nickel plated for resistance against corrosion. Finally it is coated in a durable, military-grade ceramic layer, using advanced electrostatic application techniques developed by RØDE to ensure an extremely hard wearing finish that is resistant to scratches or marks.

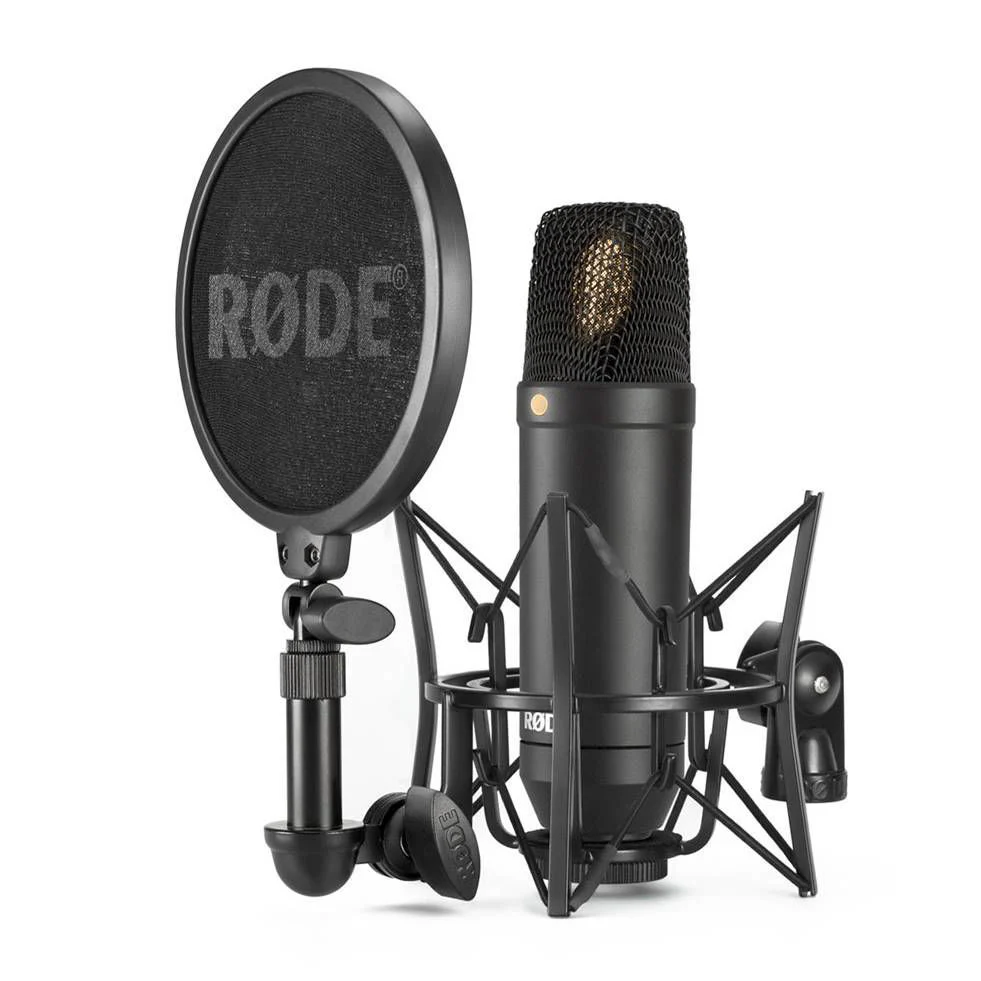

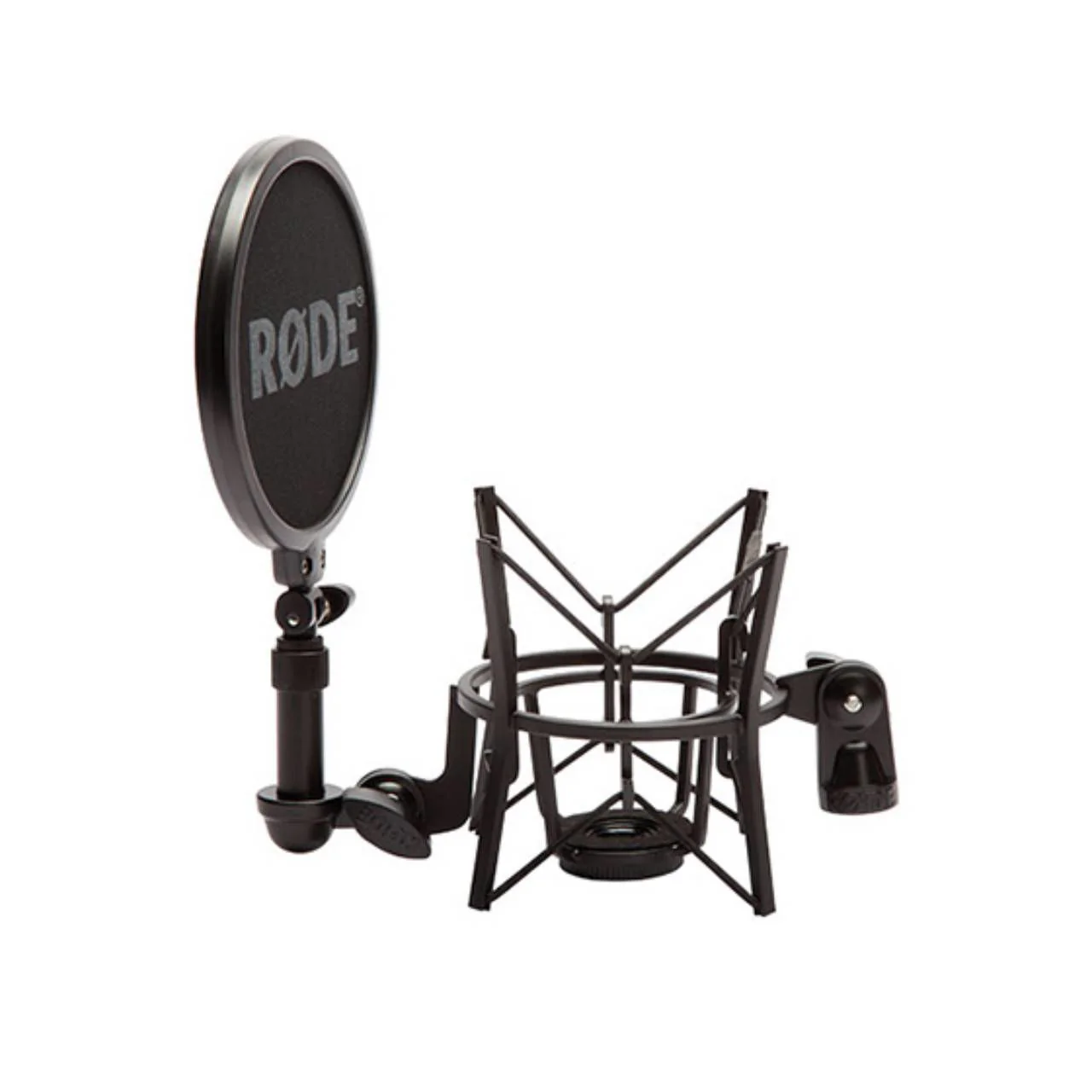

The NT1 is supplied with the revolutionary new RØDE SMR shock mount. Featuring a unique double-Lyre suspension system, the SMR enhances the existing superior vibration cancellation of Rycote’s Lyre system by using a smaller inner Lyre to act as a tensioning element. This maintains each Lyre in the neutral position where it is most efficient at cancelling vibration. The SMR’s removable all-metal pop filter is as effective as it is visually striking, providing an integrated solution for plosive protection that is easily washable and designed to last as long as the shock mount and microphone.

The NT1 is designed and made in Australia, and is covered by RØDE's industry-leading 10 year warranty.

Product Specifications

Acoustic Principle	Pressure Gradient
Active Electronics	JFET impedance converter with bipolar output buffer
Capsule	1.00"
Polar Pattern	Cardioid
Address Type	Side
Frequency Range	20Hz - 20kHz
Output Impedance	100Ω
Maximum SPL	132dBSPL
Maximum Output Level	8.0mV (@ 1kHz 1% THD into 1KΩ load)
Sensitivity	-29.0dB re 1 Volt/Pascal (35.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)	4dBA
Power Options	+24V phantom power+48V phantom power
Weight	440.00g
Dimensions	187.00mmH x 50.00mmW x 50.00mmD
Output	XLR Output
Warranty	1 year with free extension to 10 years following registration
