Rode RODELink Filmmaker Kit

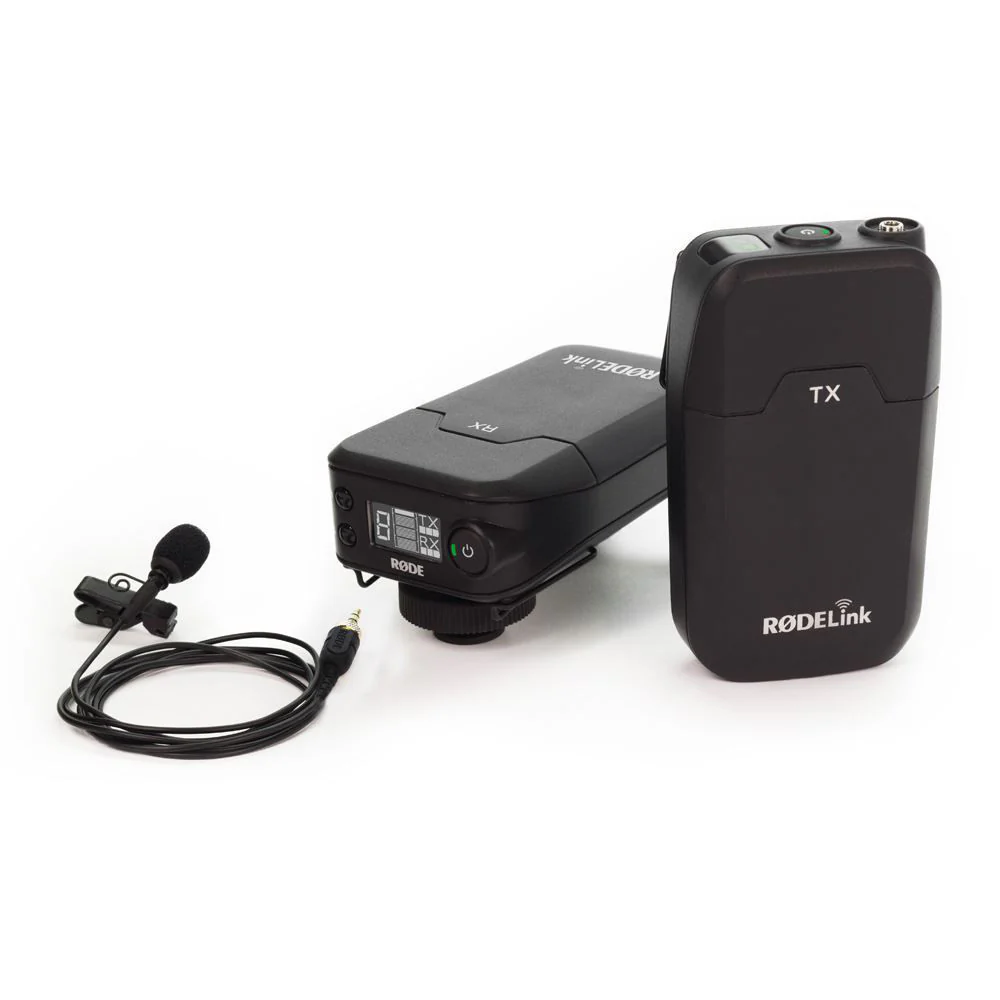

The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection.
The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.
Features
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range*
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes broadcast lavalier microphone
- Two year extended warranty when you register your microphone
Specifications
RØDELink Filmmaker Kit Specifications
- Transmission type: 2.4GHz Fixed Frequency Agile System
- System dynamic range: 112dB
- Range (distance): Up To 100m
- Frequency range: 35Hz - 22kHz
- Maximum output level: 1v Rms (2.8v P-p)
- Max input signal level: 1v Rms (2.8v P-p)
- Max latency: 4ms

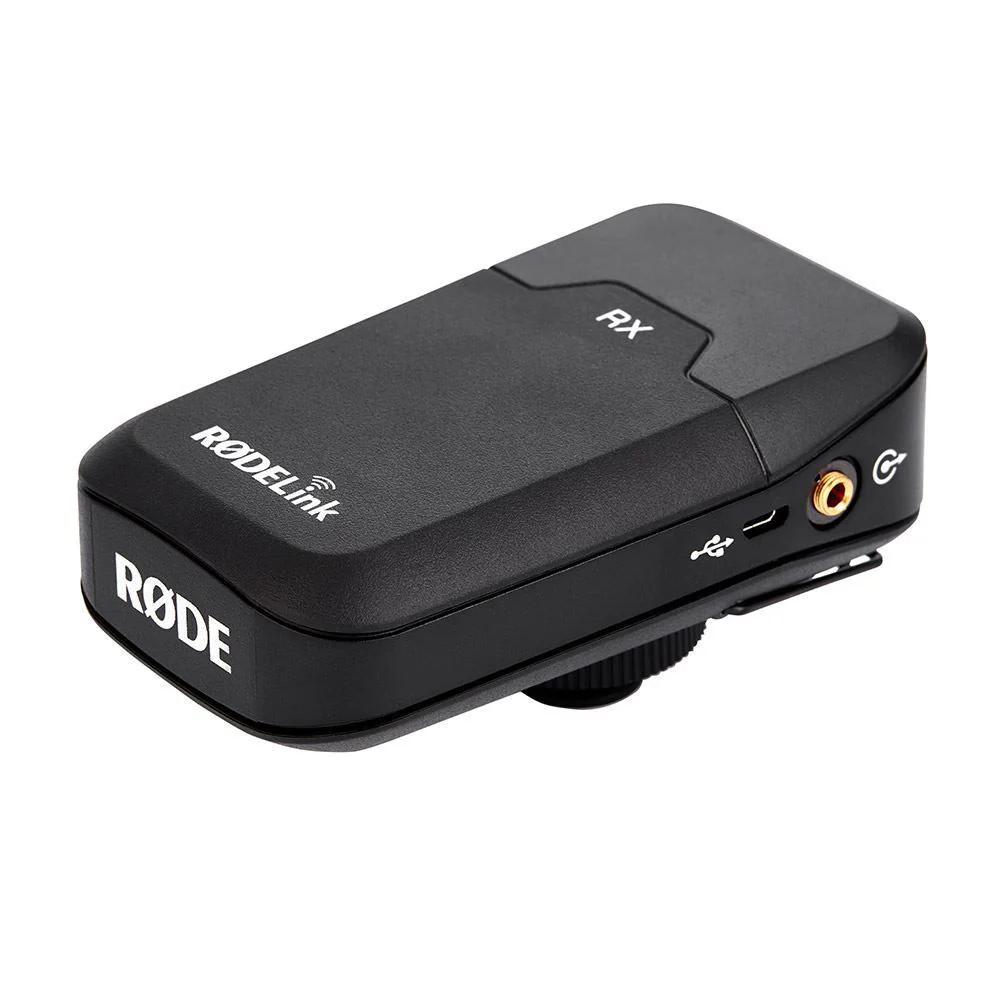

Receiver (RX-CAM)
- Power source: 2 X AA Battery Or MicroUSB
- Antenna: Internal
- Output connection: 3.5mm TRS Locking Jack Socket - Dual Mono
- Output impedance: 300Ω
- Dimensions: 111mm X 65mm X 52mm
- Weight: 190gm

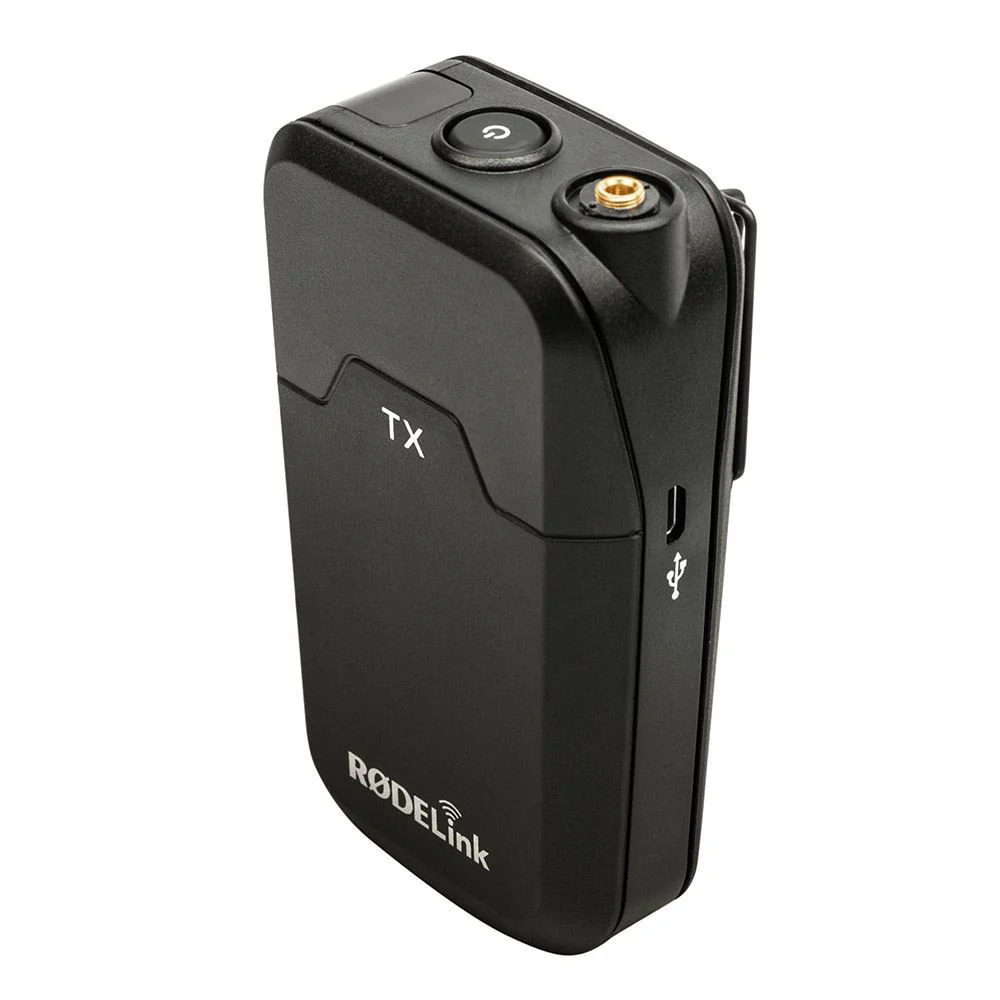

Transmitter (TX-BELT)
- Power source: 2 X AA Battery Or MicroUSB
- Antenna: Internal
- Input connection: 3.5mm TRS Locking Jack Socket
- Input impedance: 10kΩ
- Dimensions: 111mm X 65mm X 40mm
- Weight: 190gm
RØDELink LAV - ACOUSTIC & ELECTRICAL SPECIFICATION
- Acoustic Principle: Permanently Polarised Condenser
- Polar Pattern: Omni-directional
- Output Impedance: 3k Ω Typical
- Frequency Range: 20Hz – 20kHz
- Maximum SPL: 110 dB SPL (@ 1kHz, 1% THD into 1Ω load)
- Sensitivity: -33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz
- Signal to noise Ratio: 67 dB
- Equivalent Noise (A-weighted): 27 dB Typical
- Dynamic Range: 83 dB Typical
- Dimensions: 1200.00mmH x 4.50mmW x 4.50mmD
WATCH: Introducing the RØDELink Digital Wireless Audio System
