This innovative stereo amp uses sophisticated digital signal processing to deliver a crisp sound with lush stereo/multi-band chorus—including a new “wide” mode—plus delay/reverb and impressive Auto Anti-Feedback control.

And with its 2-channel Mic/Line design and stand-mountable configuration, the AC-60 is clearly heads above the competition.

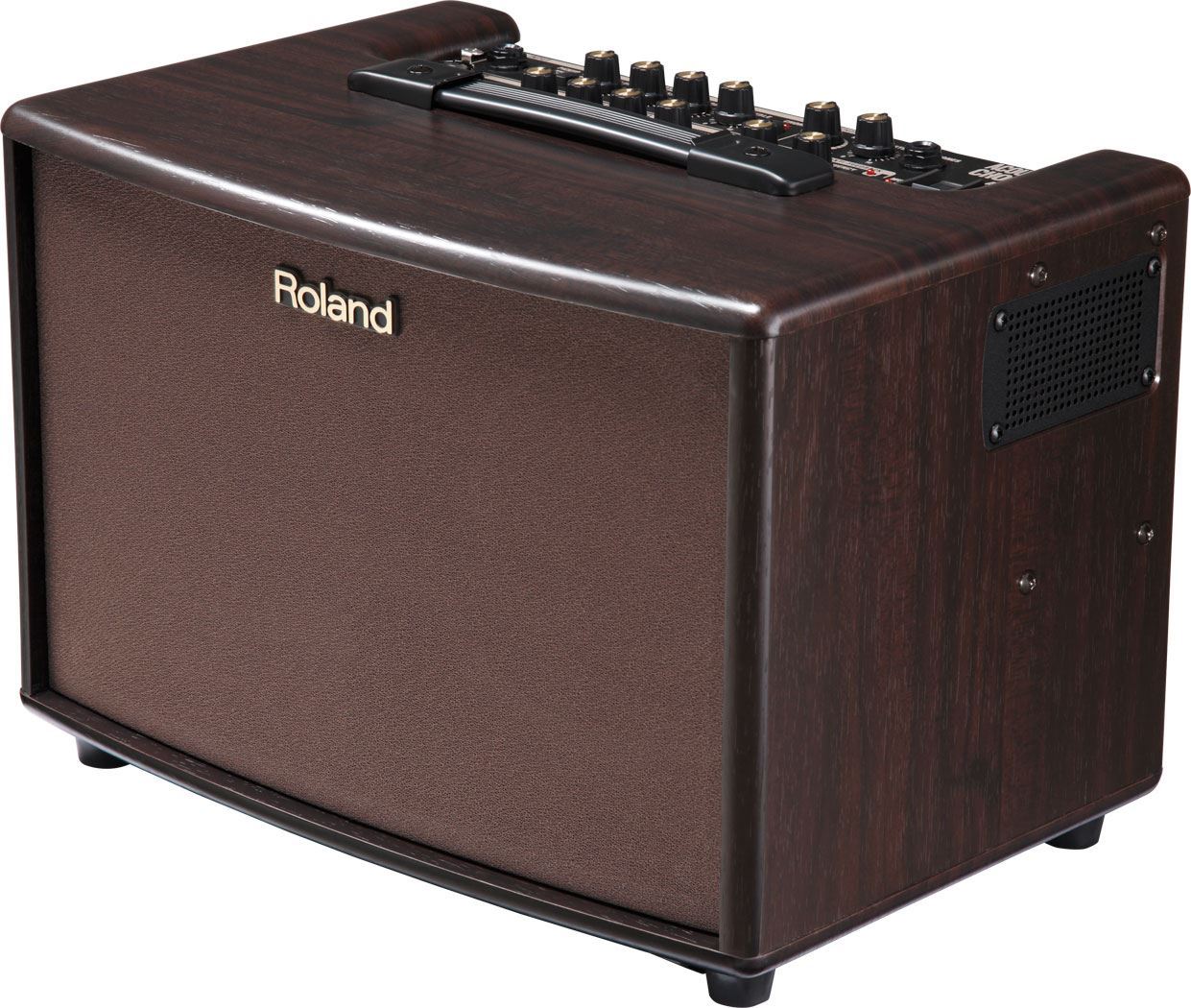

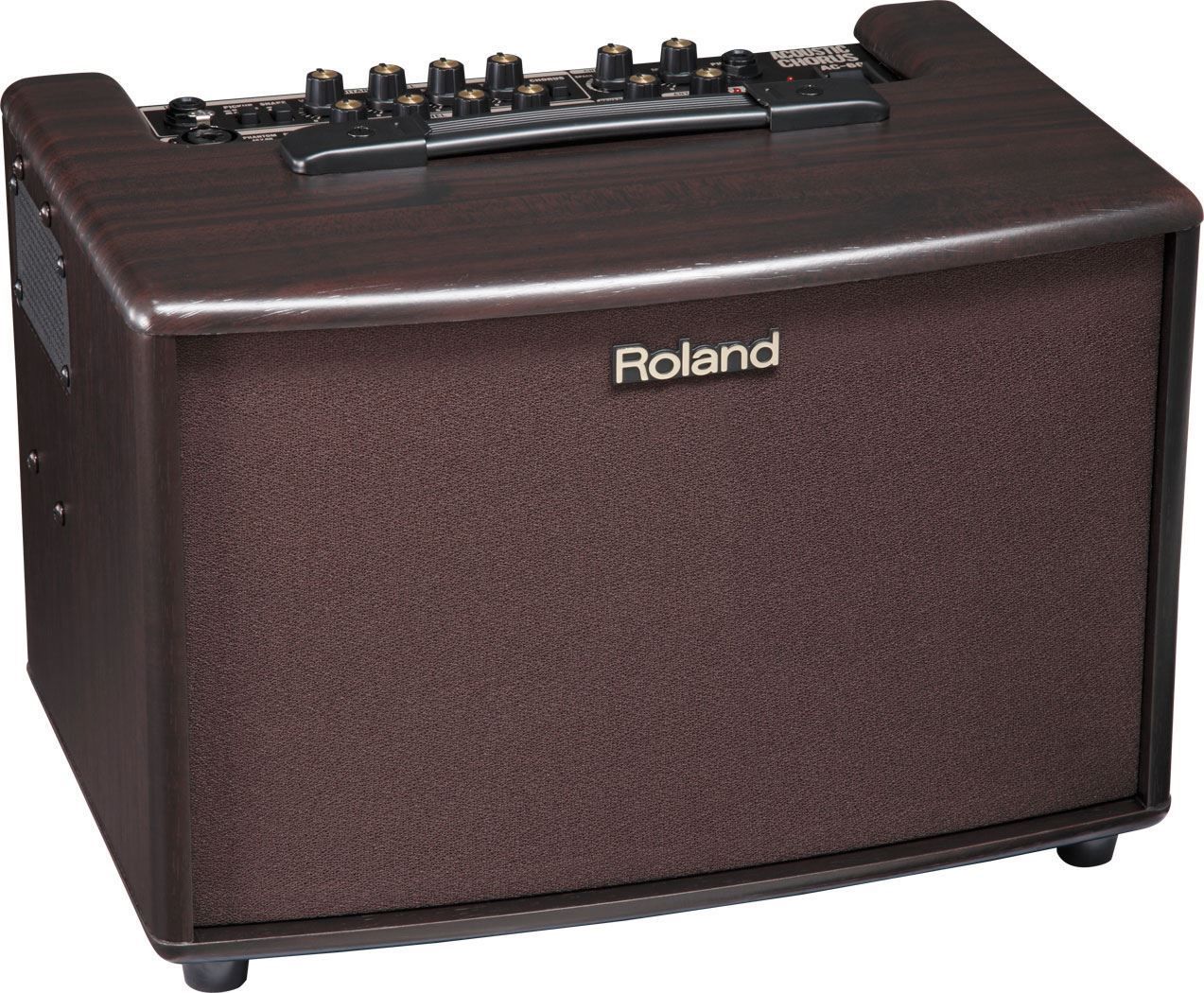

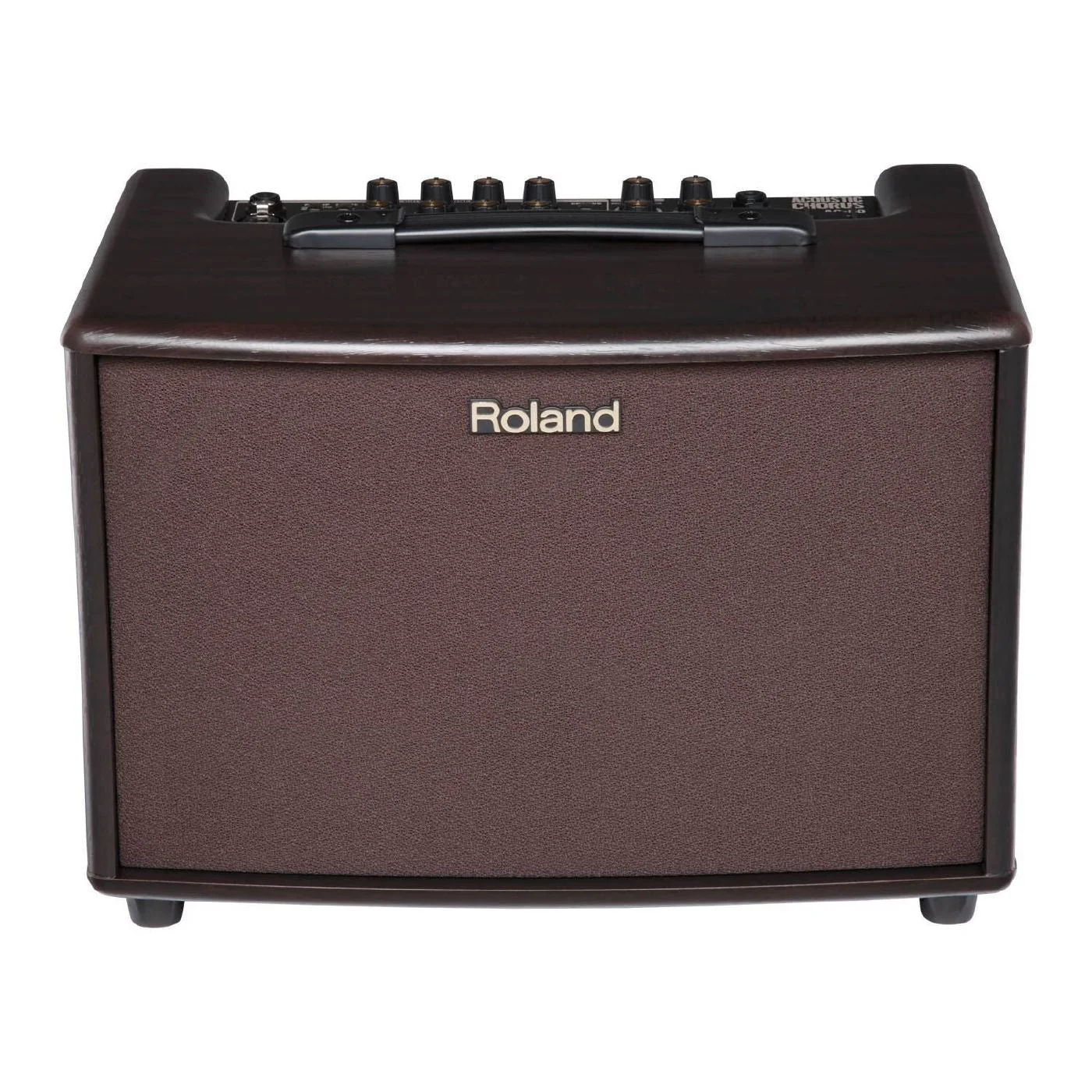

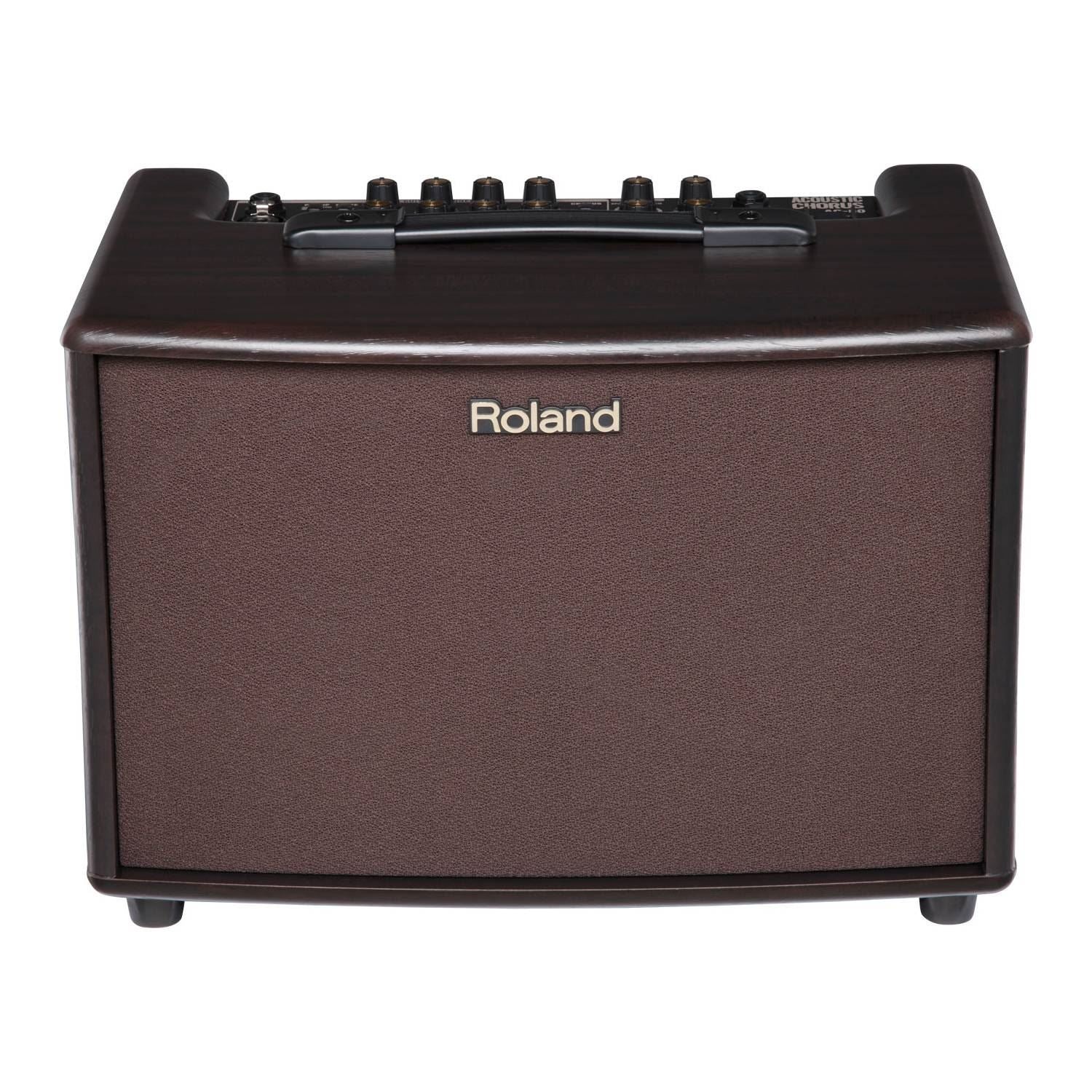

New Rosewood Finish!
Now the AC-60 is available with beautiful rosewood-look cabinets, offering an alternative to the standard stage-ready black finish. The attractive woodgrain styling perfectly matches the atmosphere of your living room or studio, as well as the aesthetic of your acoustic guitars.

---

Features

• Compact stereo acoustic amplifier with pure, natural tone and excellent projection
• 2-Channel design: Guitar input and Mic/Line input with Phantom Power
• Stereo 30-watt/dual 6.5-inch speaker configuration loud enough for club gigs and small PA applications
• Onboard DSP delivers lush stereo/multi-band chorus, newly developed “wide” chorus and delay/reverb with footswitch control
• Built-in Auto Anti-Feedback controls allow for maximum volume without feedback
• Convenient Mute switch for silent tuning on stage
• Stereo Line Out for PA and recording applications; Subwoofer output
• Built-in tilt stand offers better acoustic projection; can also be mounted on commercially available speaker stands
• Now available in rosewood finish (model # AC-60-RW)

---

Specifications

• Rated Power Output: 30 W + 30 W
• Nominal Input Level (1 kHz)
  • GUITAR Channel: -10 dBu
  • MIC/LINE Channel: -50 dBu/-20 dBu
  • AUX IN: -10 dBu
• Nominal Output Level (1 kHz)
  • DI/TUNER OUT: +4 dBu
  • LINE OUT: +4 dBu
  • SUB WOOFER OUT: +4 dBu
• Speakers: 16 cm (6.5 inches) x 2
• Controls
  • [GUITAR Channel]

    • PICKUP Switch (PIEZO, MAGNETIC)
    • SHAPE Switch
    • VOLUME Knob
    • BASS Knob
    • MIDDLE Knob
    • TREBLE Knob
    • CHORUS Switch
  • [MIC/LINE Channel]

    • PHANTOM Switch
    • SELECT Switch (MIC, LINE)
    • VOLUME Knob
    • BASS Knob
    • MIDDLE Knob
    • TREBLE Knob
    • CHORUS Switch
  • [CHORUS]

    • CHORUS Knob (SPACE, RICH, WIDE)
  • [REVERB/AMBIENCE]

    • REVERB/AMBIENCE Knob
  • [ANTI-FEEDBACK]

    • FREQUENCY Knob
    • START Button
    • MUTE Switch
    • MASTER Knob
    • POWER Switch
• Indicators
  • [GUITAR Channel]

    • CHORUS
  • [MIC/LINE Channel]

    • CHORUS
    • ANTI-FEEDBACK
    • MUTE
    • POWER
• Indicators: REC, PLAY, OVERDUB, POWER
• Connectors

  • [GUITAR Channel]

    • Input Jack (1/4-inch phone type)
  • [MIC/LINE Channel]

    • Input Jack
      (XLR type, balanced, phantom power: DC 48 V, 10 mA Max)
    • (1/4-inch TRS phone type, balanced)
    • AUX IN Jacks
    • L, R (RCA phono type)
    • L (MONO), R (1/4-inch phone type)
    • DI/TUNER OUT Jack (1/4-inch TRS phone type)
    • LINE OUT Jacks
    • L, R (XLR type)
    • MONO (1/4-inch phone type)
    • SUB WOOFER OUT Jack (1/4-inch phone type)
    • PHONES Jack (Stereo 1/4-inch phone type)
    • FOOT SW Jacks
    • TIP: MUTE, RING: ANTI-FEEDBACK (1/4-inch TRS phone type)
    • TIP: CHORUS, RING: REVERB/DELAY (1/4-inch TRS phone type)
• Power Consumption: 68 W
• Current Draw: 490 mA
• Accessories

  • Carrying Case
  • Owner''s Manual
• Options (Sold separately): Footswitch: BOSS FS-5L (Mute On/Off), BOSS FS-5U, Dual Footswitch: BOSS FS-6, BOSS FS-7
• Width: 380 mm; 15 inches
• Depth: 270 mm; 10-11/16 inches
• Height: 268 mm; 10-9/16 inches
• Weight: 9.8 kg; 21 lbs. 10 oz.

---
