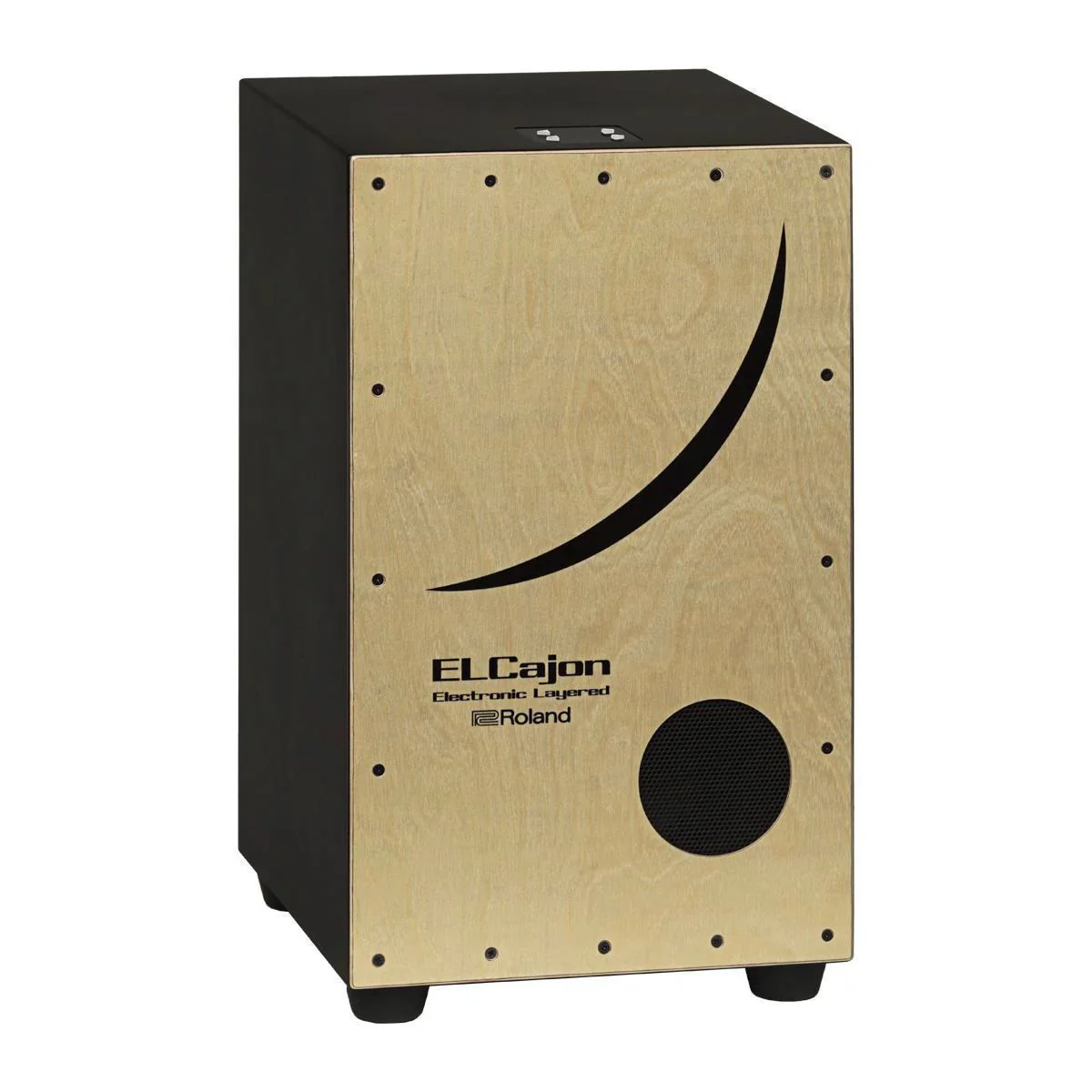

Roland's innovative EL (electronic layered) Cajon EC-10 is an authentic, quality acoustic cajon that sounds great on its own, but also allows layering of electronic sounds. It has Roland’s renowned electronic percussion technology built in, letting you blend a range of complementary sounds with the cajon's own acoustic sounds - from acoustic snare sounds, electronic drums and sound effects to traditional percussion like tambourine and shaker and much more. With battery power and onboard amplification, the EC-10 is completely self-contained.

Features

• Sapele playing surface delivers warm, natural tone with excellent response for expressive playing.

• Built-in electronic sound system offers 30 versatile sound kits including cajon, percussion, and sound effects.

• Coaxial 6.5-inch speaker provides clear, balanced audio projection for practice and performance.

• Dual-layer triggering (head and edge) enhances dynamic control and playing articulation.

• Intuitive onboard controls allow quick sound selection, volume adjustment, and trigger balance customization.

• Flexible connectivity with mix input and output options supports live performance and external audio integration.

• Dual power options (AC adaptor or AA batteries) ensure portability and reliable use anywhere.

• Compact yet sturdy construction with a 6.0 KG build offers durability without sacrificing portability.

Specifications

Body & Construction
Playing Plate: Sapele Plywood
Resonance Box: MDF (Medium Density Fibreboard)

Electronics
Speaker: Coaxial 16 cm (6.5 inches)
Rated Power Output: 3W
Nominal Input Level: MIX IN: -10 dBu
Layered Sound Kit Variation: 30 (Cajon: 10, Percussion: 10, SFX: 10)
Layered Sound Contents: 2 (Head, Edge)

Controls & Interface
Rear Panel Controls: Power Switch, Volume Knob, Trigger Balance Knob

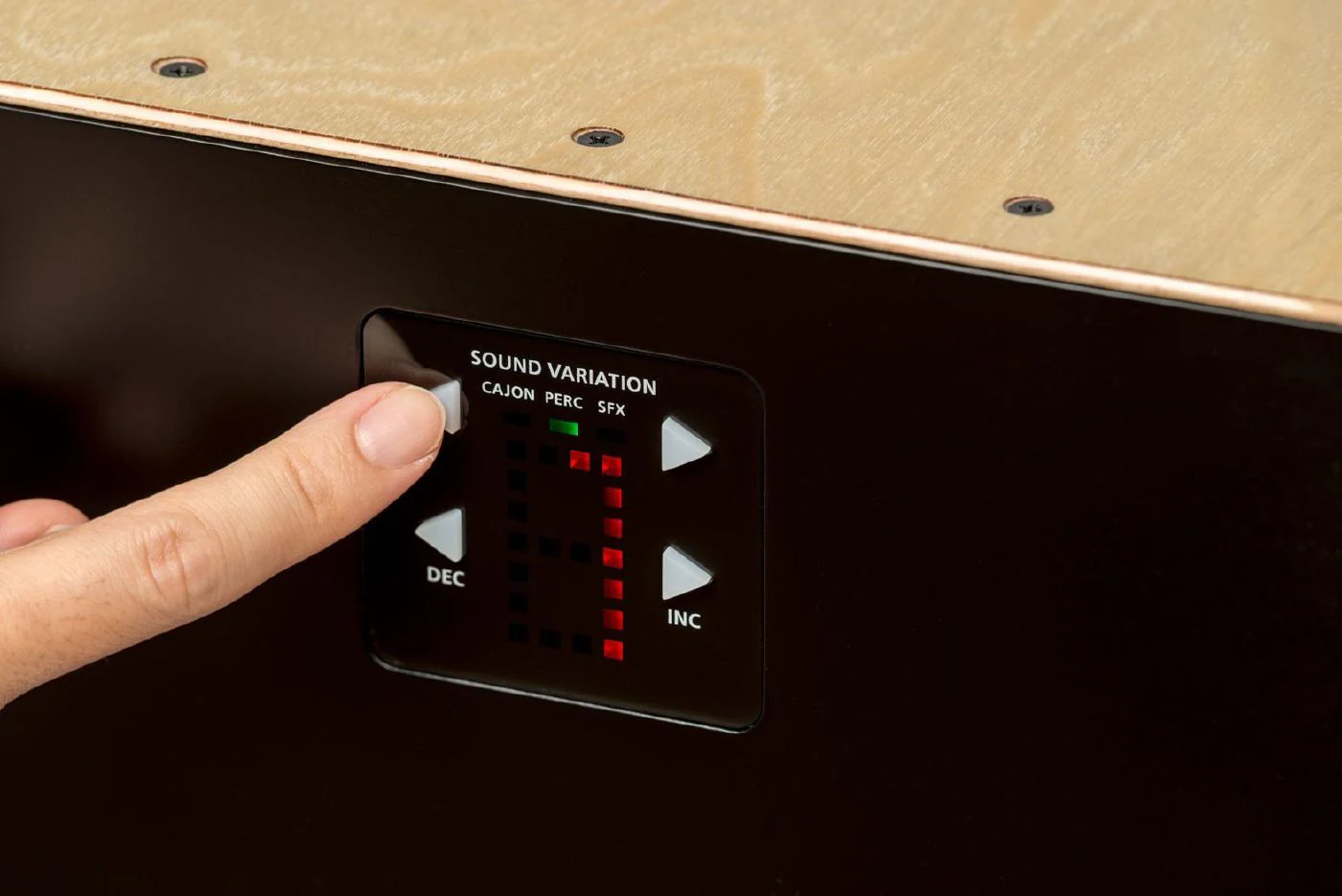

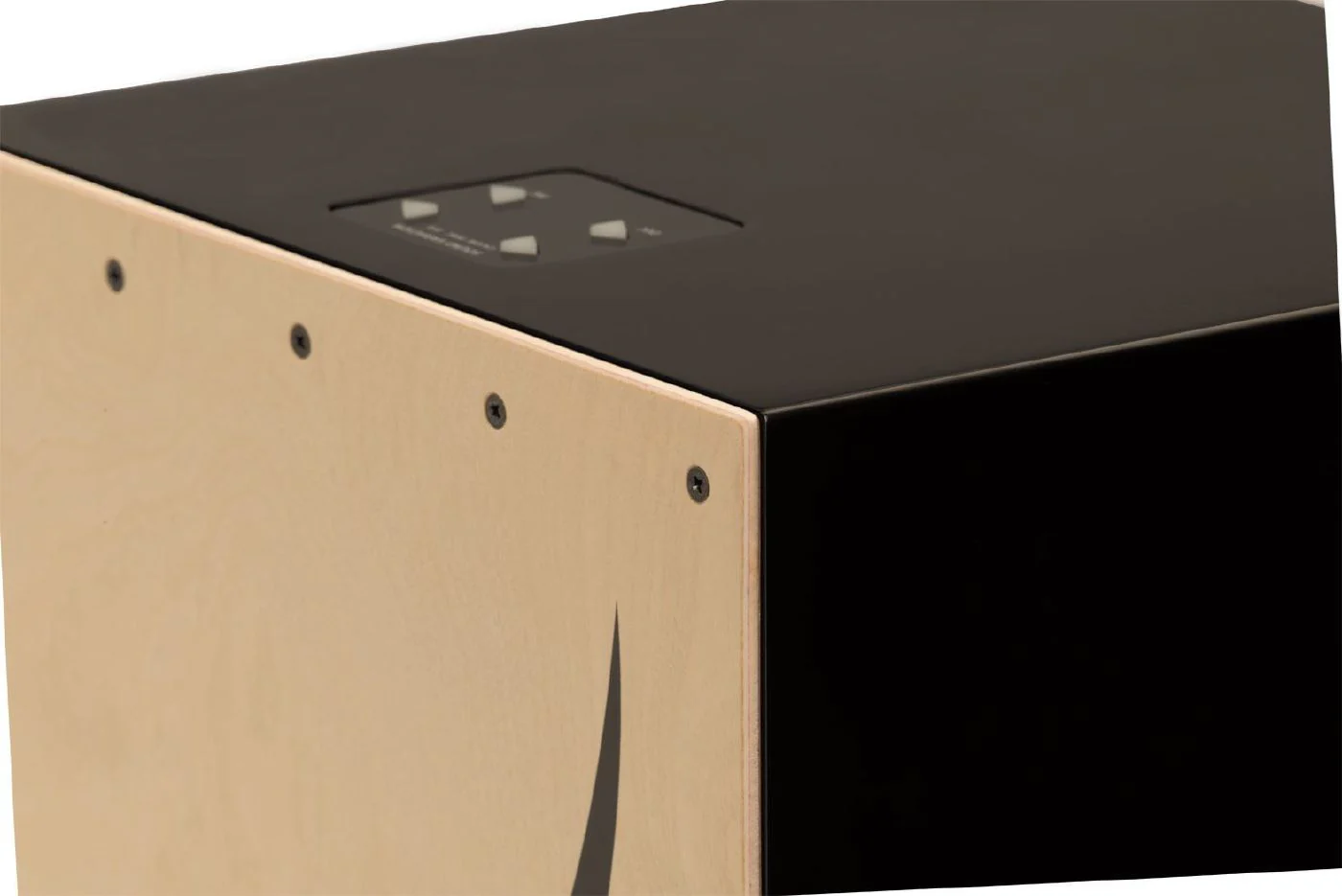

Top Panel Controls: Sound Group Select Button x2, Kit Number Select Button x2
Indicators: Sound Group, Kit Number

Connectivity
Electronic Sound Out Jack: 1/4-inch Phone Type
Mix In Jack: Stereo Miniature Phone Type
AC Adaptor Jack: Yes

Power
Power Supply: AC Adaptor (DC 5.7V), AA Alkaline Batteries (LR6) x6
Current Draw: 250 mA
Battery Life: Approx. 12 Hours (Normal Use), Approx. 6 Hours (Maximum Load)

Dimensions & Weight
Size: 295 x 298 x 495 mm
Weight: 6.0 KG
