With features such as twin expression and control pedals and more, this advanced control station is a perfect companion for any performance-based MIDI instrument or device.

---

Features

• Advanced MIDI foot controller with two assignable expression pedals, two control pedals, nine footswitches and expandability
• New Patch Mode stores up to 100 MIDI setups
• In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products
• 3-way power supply and rock-solid metal construction for stage use
• Two Amp Control switches for controlling amp channels or effects

---

Specifications

• Controls

  • Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
  • DOWN/UP Pedals
  • Control Pedal x 2 (1, 2)
  • Expression Pedal x 2 (1, 2)
  • PARAMTER Button x 2
  • VALUE Button x 2
  • UTILITY Button
  • MODE Button
  • EXIT Button
  • WRITE Button
  • POWER Switch
• Display

  • 7 segments, 3 characters (LED)
  • 16 characters, 2 lines (backlit LCD)
• Indicators

  • MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
  • UTILITY Indicator
  • WRITE Indicator
  • Number Indicator x 10 (1--10)
  • DOWN/UP Indicators
  • Control Indicator x 2 (1, 2)
  • Expression Pedal ON/OFF Indicator x 2 (1, 2)

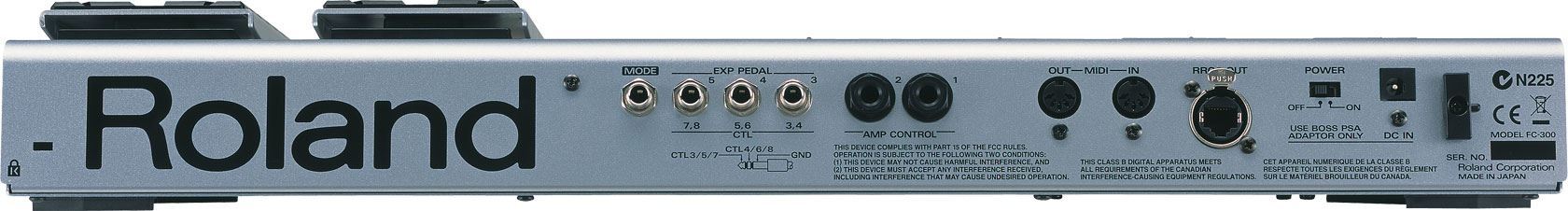

• Connectors/Jacks

  • DC IN Jack
  • MIDI Connectors (IN, OUT)
  • RRC2 OUT Connector
  • AMP CONTROL 1 Jack
  • AMP CONTROL 2 Jack
  • EXP PEDAL 3 / CTL 3, 4 Jack
  • EXP PEDAL 4 / CTL 5, 6 Jack
  • EXP PEDAL 5 / CTL 7, 8 Jack
  • MODE Jack
• Number of PATCH (PATCH Mode): 100
• Power Supply: DC 9 V: AC Adaptor

  • Dry Batteries AA type x 6
  • RRC2
• Current Draw: 94 mA (ECONOMY MODE OFF)

  • 61 mA (ECONOMY MODE ON)
  • Expected batery life under continuous use
  • Carbon:
  • 6.5 hours or longer (ECONOMY MODE OFF)
  • 12 hours or longer (ECONOMY MODE ON)
    * These figures will vary depending on the actual conditions of use.
• Accessories

  • Owner''s Manual
  • Dry Batteries R6 (AA) type (carbon) x 6
  • Roland Service
• Options

  • AC Adaptor PSA serise (BOSS)
  • Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
  • Expression Pedal: EV-5, FV-500H/500L (BOSS)
• Width: 550 mm; 21-11/16 inches
• Depth: 250 mm; 9-7/8 inches
• Height: 76 mm; 3 inches
• Weight: 5.3 kg; 11 lbs. 11 oz.
