Watch - Overview of Roland Juno DS Synthesizer:

Lightweight 76-note performance synth with great sounds and intuitive operation for bands expanding their musical range

Life moves fast as an upcoming musician or ambitious new band. When you’re racing between rehearsals, sessions, and shows, you don’t have time to deal with a bulky, complex synth that’s difficult to use. The Roland JUNO-DS76 is the portable modern synth that can keep up with your busy band life. Lightweight, compact, and powerful, this 76-note instrument is always ready to go, with easy operation and instant access to pro onboard sounds that let you create or perform music anywhere, from studio to stage. And with its extended-range keyboard, the JUNO-DS76 is ideally suited for playing advanced arrangements with multiple sounds split across the keys.

Product Features

• 76-note velocity-sensitive keyboard with synth action
• Compact and lightweight (15.25 lb./6.9 kg) for easy travel and effortless setup
• Gig-ready instrument with pro sounds, enhanced performance features, battery-powered operation, and intuitive navigation
• Instant access to essential pro-quality sounds for live band performances, including acoustic and electric pianos, organs, synths, and other stage favorites
• Wave expansion slot enables users to download new sound waveforms and patches, available for free at Roland’s Axial website
• Sample import function for playing user WAV files on the keyboard
• Multi-sample import support for creating complex and expressive sounds
• JUNO-DS Tone Manager and Librarian software for editing and managing the keyboard’s sounds from your computer
• Easy sound manipulation and editing with hands-on knobs and sliders
• Eight Phrase Pads for triggering samples and audio songs stored on USB memory
• Mic input and dedicated Reverb, Vocoder, and Auto Pitch effects for impressive vocal performances
• Intuitive eight-track pattern sequencer with non-stop recording for quickly developing song ideas USB audio/MIDI and DAW Control mode

Wherever you play music, make it matter

Your music could take you anywhere – and weighing as little as 5.3kg (JUNO-DS61), the light and compact JUNO-DS series is ready to go with you. Public transport, cramped stages and busy studios are no problem for these mobile synths, which combine pro features with a space-saving setup. From club shows using AC power to street performance with optional battery operation and a battery-powered keyboard amp, the JUNO-DS is your new wingman.

Find the perfect sound in seconds, and play for hours

Ditch the manual with the JUNO-DSThis intuitive synth series makes it easy to get up and running. Choose your favorite pro-quality sound from nine categories including piano, organ, and synth – and simply connect to an amp or PA system to share your music with the world. It’s not rocket science.

The flexibility to make every gig your best performance yet

The JUNO-DS makes it easy to find your signature sound. Select the performance mode and you can set up advanced sounds like layering strings onto the acoustic piano, or assigning organ and bass to right and left hand.

No bandmates, no problem – jam with realistic-sounding, drums, guitar and bass

When your bandmates can’t make it to the rehearsal or gig, the JUNO-DS offers the perfect solution, covering the missing parts and giving you a full-band sound. Using the phrase pads, you can bring instant beats to your music by playing along with the authentic drum patterns, or copy audio data (MP3/WAV) onto the USB memory and play it back at the gig. It’s a flexible feature that means you’ll always have a full and professional sound – whether you’re in a band or a solo performer.

Record, evaluate, develop; improving your band’s performance

More than an instrument, the JUNO-DS is a mobile studio. With the onboard audio interface function, you can record your band via the mic input, then store the music on your computer and share with your bandmembers. It’s a great feature for recording minus-one tracks, without keyboard, for home practice, or for assessing your band’s performance.

From flash of inspiration to finished arrangement – get it done fast

When you’re working at home, the JUNO-DS guides you from flash of inspiration to finished song, with a built-in pattern sequencer that offers up to 8-track recording for full band-style arrangements, including drums, bass, guitar and keyboard. Maybe you’ll complete the track yourself – or take your portable JUNO-DS synth to rehearsals and let the band help finish it off.

Keep your music up to date with downloadable new sounds

The JUNO-DS’s onboard tones are a great primer – but they’re just the start. With this open-ended synth range, you can enjoy free downloads from Roland’s Axial Sound Library, and give your performance a shot in the arm with tones from the famous XV-5080 Collection or EXP series.

Plug into your DAW and start making music

The JUNO-DS is the all-in-one solution for songwriters who want to write and record original material using a DAW. This flexible synth makes the process simple and cost-effective, with no need to buy an additional MIDI keyboard or audio/MIDI interface.

Use the same sounds as the pros

Whichever setting you choose on the JUNO-DS, you can expect pro-quality tone that sparks an inspired performance. Your next favorite sound is just a button-push away.

Access your all-time favorite sounds, in a split second

In the heat of a live show, the JUNO-DS puts you in control. With the Favorite function, it’s quick and easy to recall bespoke sounds for every song on the setlist – or even switch tones instantly during a song. From a simple electric piano to an epic synth swoosh featuring layer/split using up to 16 sounds simultaneously, all it takes is a press of the button.

Stand out from the crowd by developing your signature sound

The JUNO-DS is the smart way to bring personality into your music. It’s easy to import audio data – including sound effects, drum patterns or vocal phrases – then assign these sounds to each pad or key on the keyboard, ready to be triggered. Plus, by connecting a mic into the dedicated input, you can enjoy vocal effects like vocoder and auto-tune – and even play keyboard with the voice input from the mic.

Great music can look good too

The JUNO-DS takes your performance into the visual realm, with phrase pads that flash in response to your keyboard performance. There are 13 colors to choose from, helping you to create an onstage atmosphere to match your songs.

Roland JUNO-DS Synthesizer Series—Simply Creative

Whether you're working on a song idea in your room, recording a track in the studio, or playing a gig on stage, the lightweight JUNO-DS61, JUNO-DS76, and JUNO-DS88 synthesizers will inspire creativity and take your music wherever you go.

Product Specifications

Keyboard	76 keys (with velocity)
Maximum Polyphony	128 voices
Parts	16 parts
Preset Memory	Patches: Over 1200
	Drum kits: Over 30
	Performances: 64
	* GM2 compatible sounds are included.
User Memory	Patches: 256
	Drum kits: 8
	Performances: 128
	Favorites: 100
Wave Expansion Slots	1 slot
File Format	Audio file: WAV (44.1 kHz 16 bits)
	Supports multi-sample System Program Ver. 2.00
	or later with JUNO-DS Tone Manager
Effects	Multi-effects: 3 systems 80 types
	Chorus: 3 types
	Reverb: 5 types
	Mic input reverb: 8 types
File Format	Audio file: WAV AIFF MP3
Rhythm Pattern	Preset: 30 groups x 8
	Arpeggio
	Preset: 128
Controllers	Pitch bend/Modulation lever
	Control knob x 4
	Level slider x 4
	Multicolor pad x 8
	Display
Graphic	LCD 256 x 80 dots
External Storage Device	USB flash drive

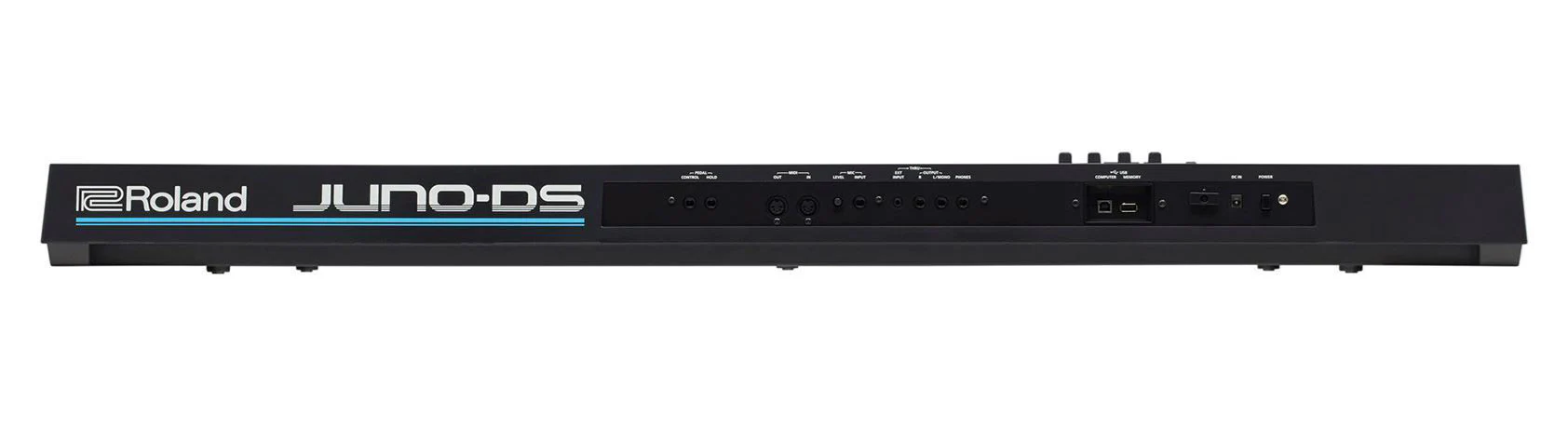

Connectors	PEDAL HOLD jack
	PEDAL CONTROL jack
	MIC INPUT jack: 1/4-inch phone type
	EXT INPUT jack: stereo miniature phone type
	OUTPUT jacks (L/MONO R): 1/4-inch phone type
	PHONES jack: stereo 1/4-inch phone type
	MIDI connectors (IN OUT)
	USB MEMORY port
	USB COMPUTER port (supports USB MIDI/AUDIO)
	DC IN jack
Power Supply	DC 9 V: AC adaptor

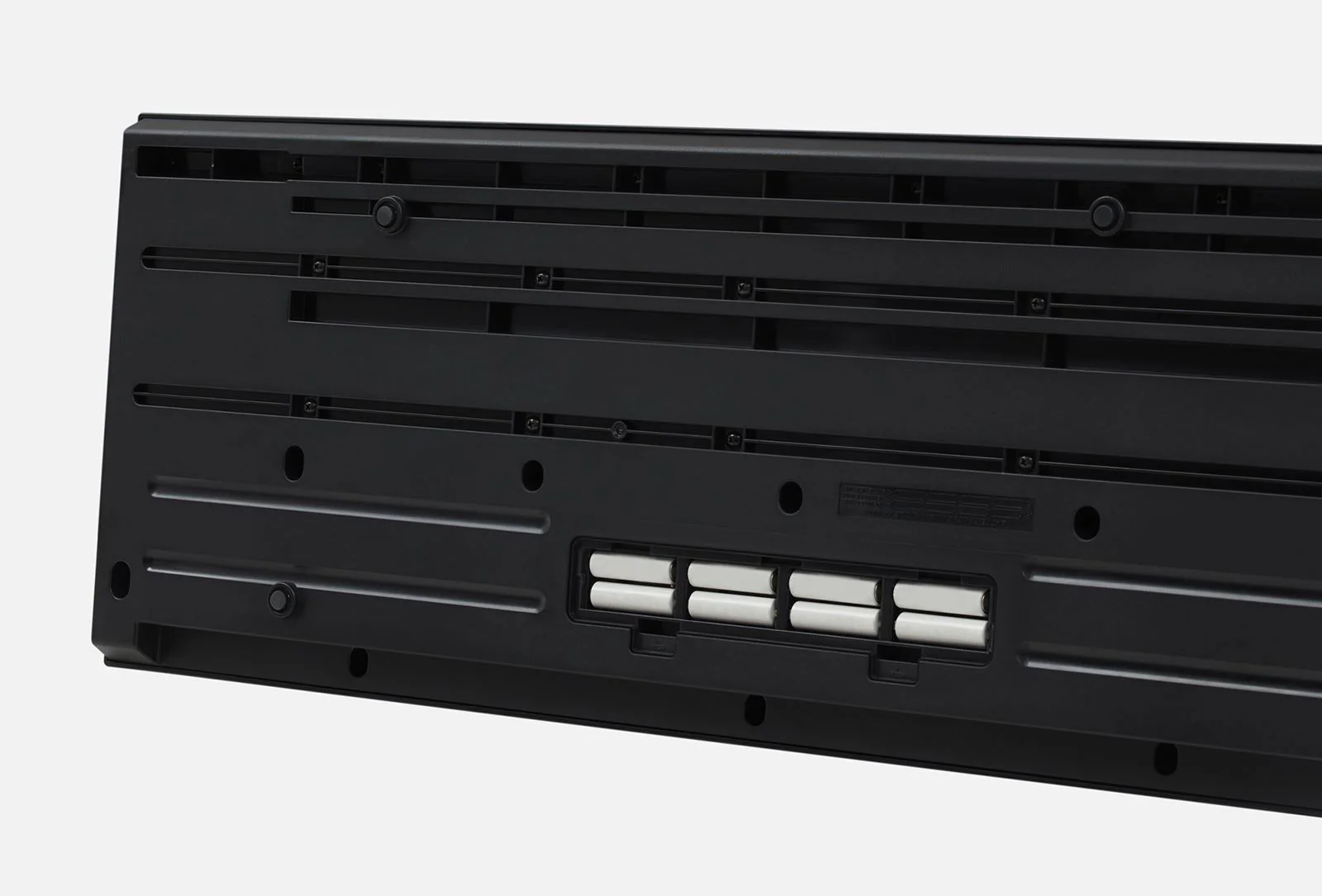

	or rechargeable Ni-MH battery (AA -HR6) (sold separately) x 8
Current Draw	600 mA
Accessories	Owner's manual
	Leaflet “USING THE UNIT SAFELY”
	AC adaptor
	Power cord
Options	Keyboard stand (*1): KS-18Z KS-12
	Pedal switch: DP series
	Expression pedal: EV-5
	USB flash memory (*2)
Width	1231 mm
Depth	311 mm
Height	102 mm
Weight (excluding AC adaptor)	6.9 kg
