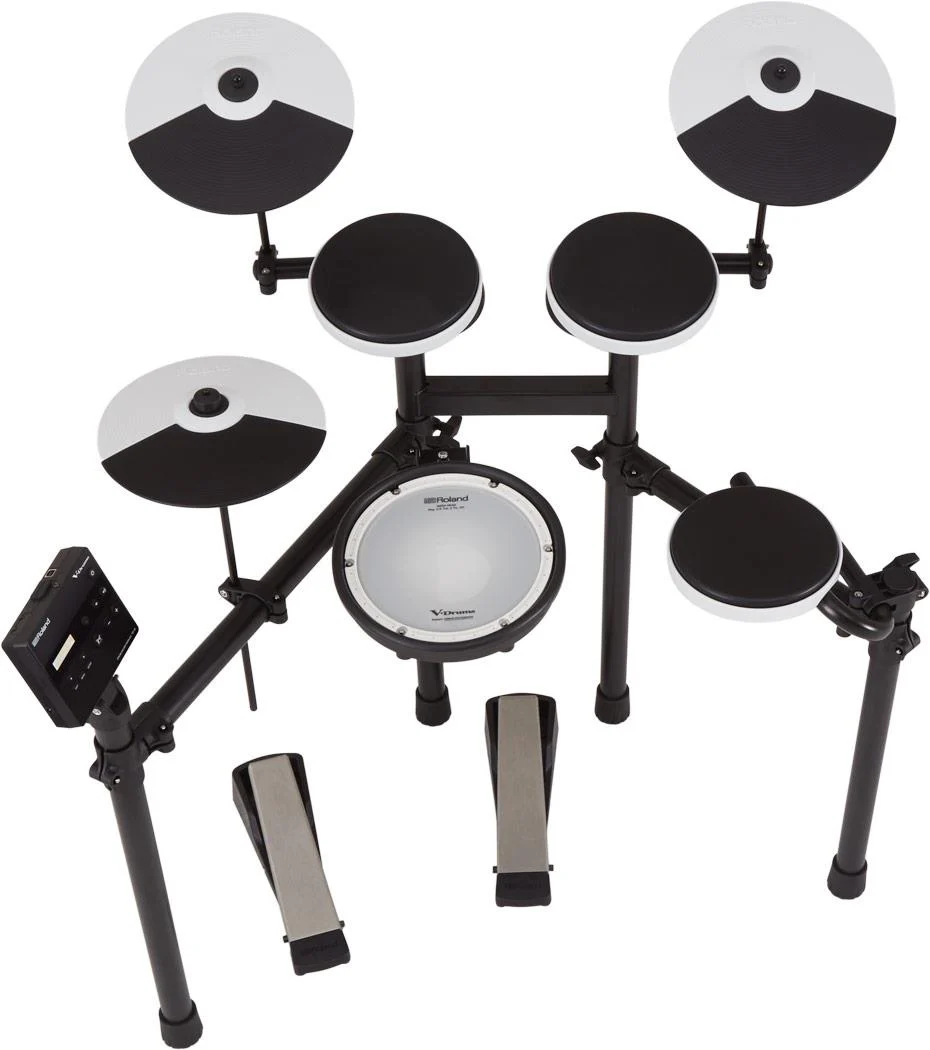

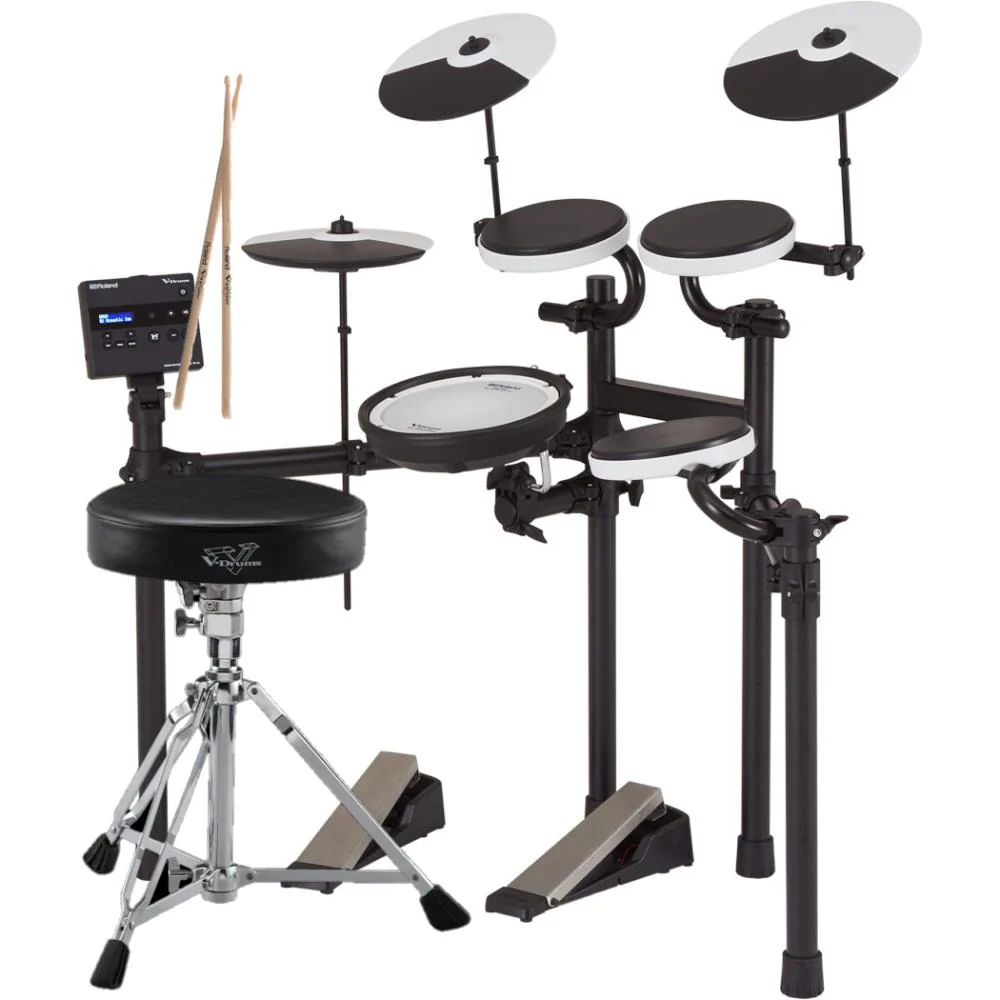

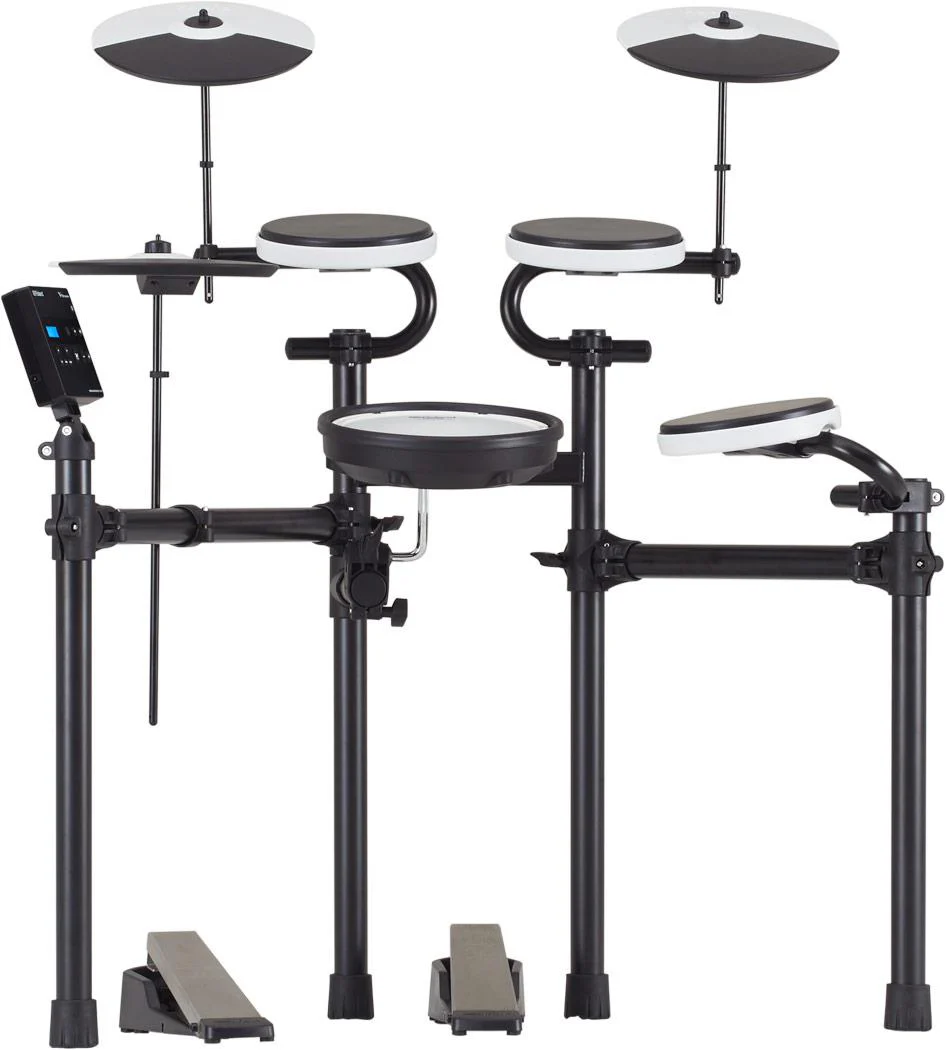

Every element of the Roland TD-02KV works together to form a complete musical foundation, from the world-class sounds and ultra-responsive pads to the onboard practice tools, robust hardware, and practical features for reducing noise when playing at home. And with expansion options such as Bluetooth® connectivity for mobile devices, upgradable pads, and more, you can easily grow your setup with genuine Roland accessories as needs evolve. The TD-02KV is the top-line model in the series, featuring a mesh-head snare pad with natural acoustic stick feel and a rugged four-post stand with a wide acoustic-style playing layout. The kit also includes three tom pads, a quiet beaterless kick pedal, and three cymbal pads (hi-hat, crash, and ride).

Highlights

• High-quality electronic drum kit for new and returning drummers, with authentic V-Drums sound, expression, and playability

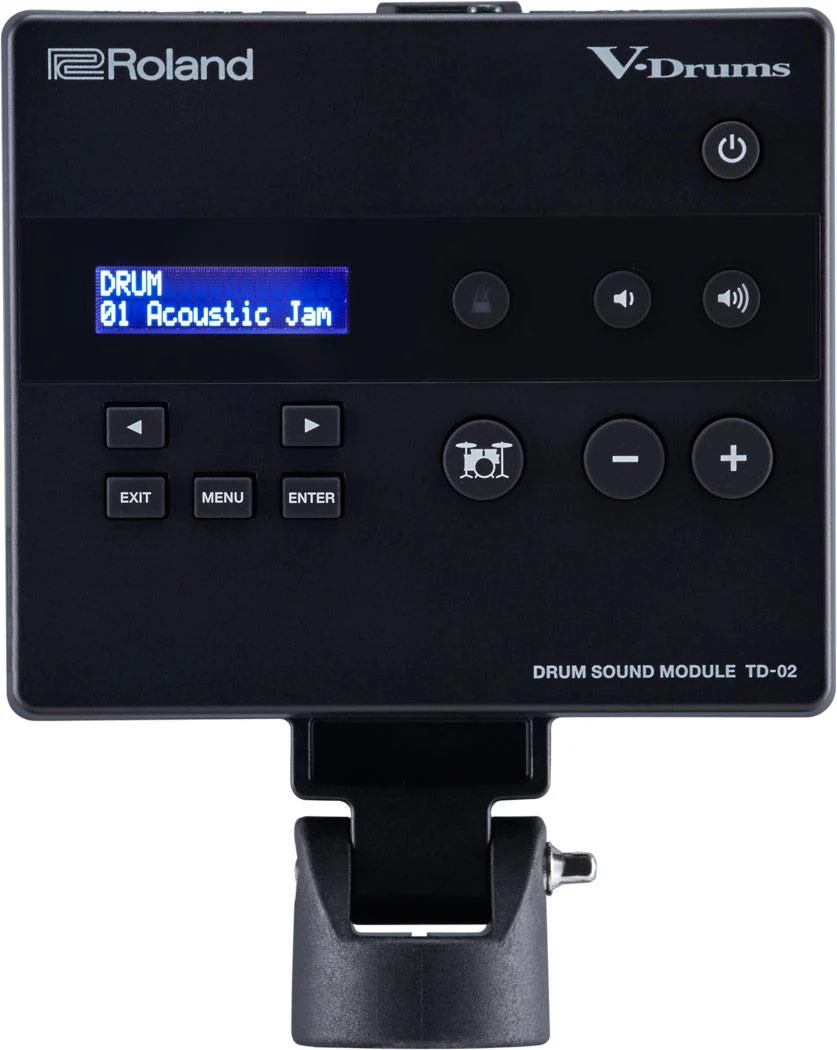

• TD-02 module with 16 ready-to-play kits inspired by high-end V-Drums
• Add wireless audio/MIDI streaming to the module with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor
• Onboard Coach functions for guided practice and steady development of drumming skills
• Built-in metronome with dedicated panel control and numerous rhythm subdivision and sound options
• Upgraded PDX-8 mesh-head snare pad with natural acoustic stick feel and cross-stick playability
• Three tom pads and three cymbal pads (hi-hat, crash, and ride) with sensitive playing surfaces and expressive response for developing proper techniques
• Kick trigger and hi-hat controller pedals with noise-reducing design features for minimizing sound transfer to other rooms
• Rugged and stable four-post stand with a wide acoustic-style layout
• Perfectly adjust the response of each pad to your playing touch with a deep array of sensitivity settings
• Headphones output for quiet practice
• Audio input for drumming with music from a smartphone or music player
• USB audio/MIDI connectivity for working with music production apps on computers and mobile devices
• Expand and upgrade your drumming experience with a wide range of V-Drums accessories

SPECIFICATIONS

Kit Configuration:

• Drum sound module: TD-02 x 1
• Snare: PDX-8 x 1
• Tom: PD-4 x 3
• Hi-Hat: CY-5 x 1
• Hi-Hat control pedal: FD-1 x 1
• Crash: CY-5 x 1
• Ride: CY-5 x 1
• Kick: KT-1 x 1
• Drum Stand: MDS-LITE x 1

Drum Kits: 16 Coach Functions (5 modes):

• Time Check (easy)
• Time Check (hard)
• Quiet Count
• Auto Up/Down
• Change-Up

Metronome:

• Tempo (20--260)
• Rhythm Type (5 types)
• Sounds (15 types)

Display: 16 Characters x 2 Lines LCD (with backlight) Connectors:

• OUTPUT/PHONES Jack: Stereo Miniature Phone Type
• MIX IN Jack: Stereo Miniature Phone Type
• USB COMPUTER Port: USB B Type
• TRIGGER INPUT Connector: DB-25 Type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Crash 2, Ride, Hi-Hat Control)
• Bluetooth ADAPTOR SLOT: Bluetooth(R) Audio MIDI Dual Adaptor (MODEL BT-DUAL)

USB COMPUTER:

• Speed: Full-speed USB (Generic), Hi-Speed USB (Vendor)
• Driver Mode: Generic, Vendor
• Protocol: USB MIDI, USB Audio *2

USB Audio:

• Sampling Rate (original): 44.1 kHz
• Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
• Record: 2 Channels
• Playback: 2 Channels

Power Supply: AC Adaptor (DC 12 V)Current Draw200 mA Accessories:

• Setup Guide
• Leaflet "USING THE UNIT SAFELY"
• AC Adaptor
• Special Connection Cable
• Drum Key

SIZE AND WEIGHT

• Width: 1,200 mm (Including the drum throne)
• Depth: 1,100 mm (Including the drum throne)
• Height: 1,200 mm (Including the drum throne)
• Weight: 14.3 kg
