The V-Drums 3 Series brings you next-generation V-Drums expression and flexibility for daily practice and home recording. The V31 sound module features the same flagship-grade engine as the V-Drums 71 and V-Drums 51 modules in our premium kits, delivering rich, multi-sampled onboard sounds and seamless integration with DW Soundworks software for computer-based drumming. You also get powerful tools for daily practice and jamming, updated components for enhanced playability, and built-in wireless connectivity to access an ever-expanding range of sound expansions and other V-Drums content on Roland Cloud.

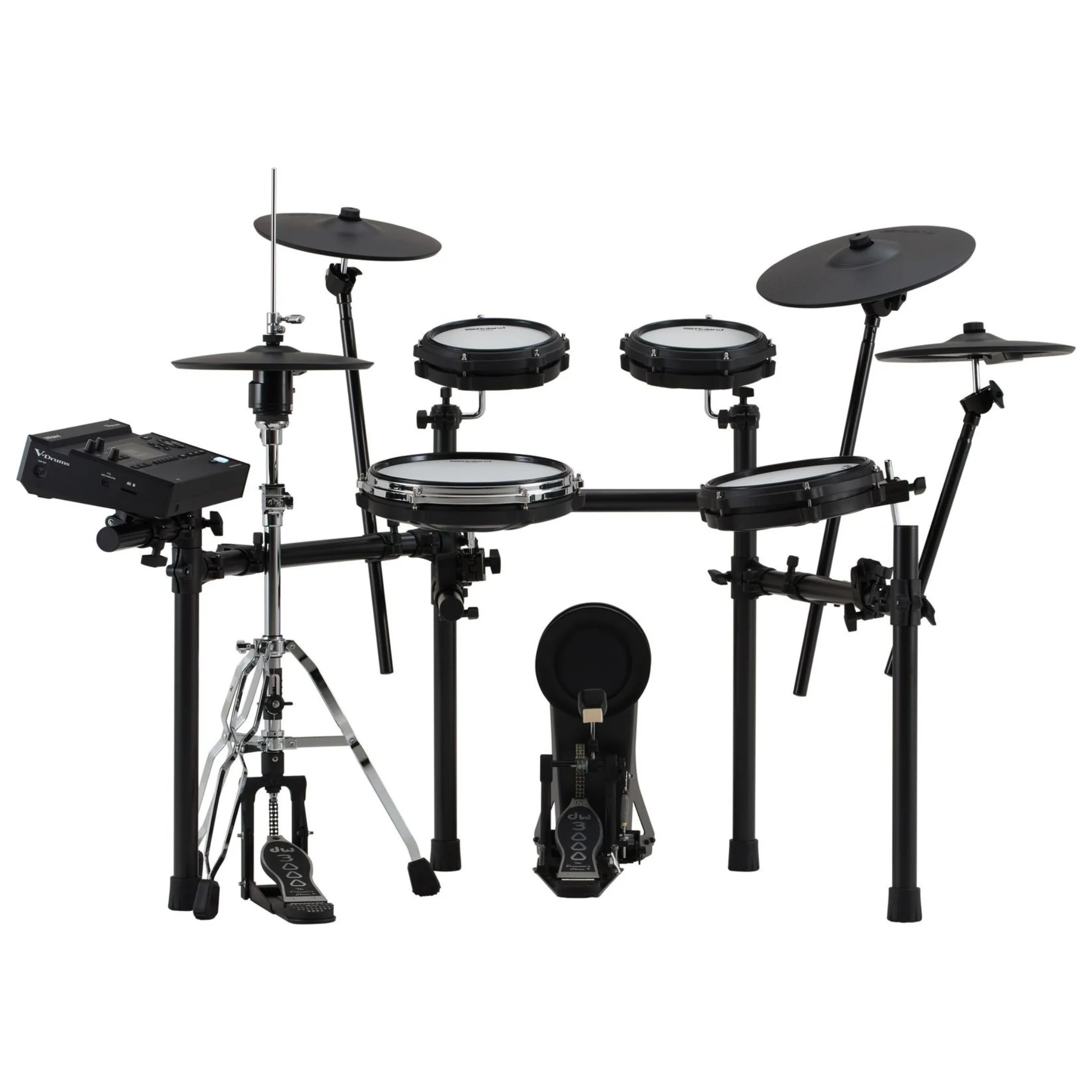

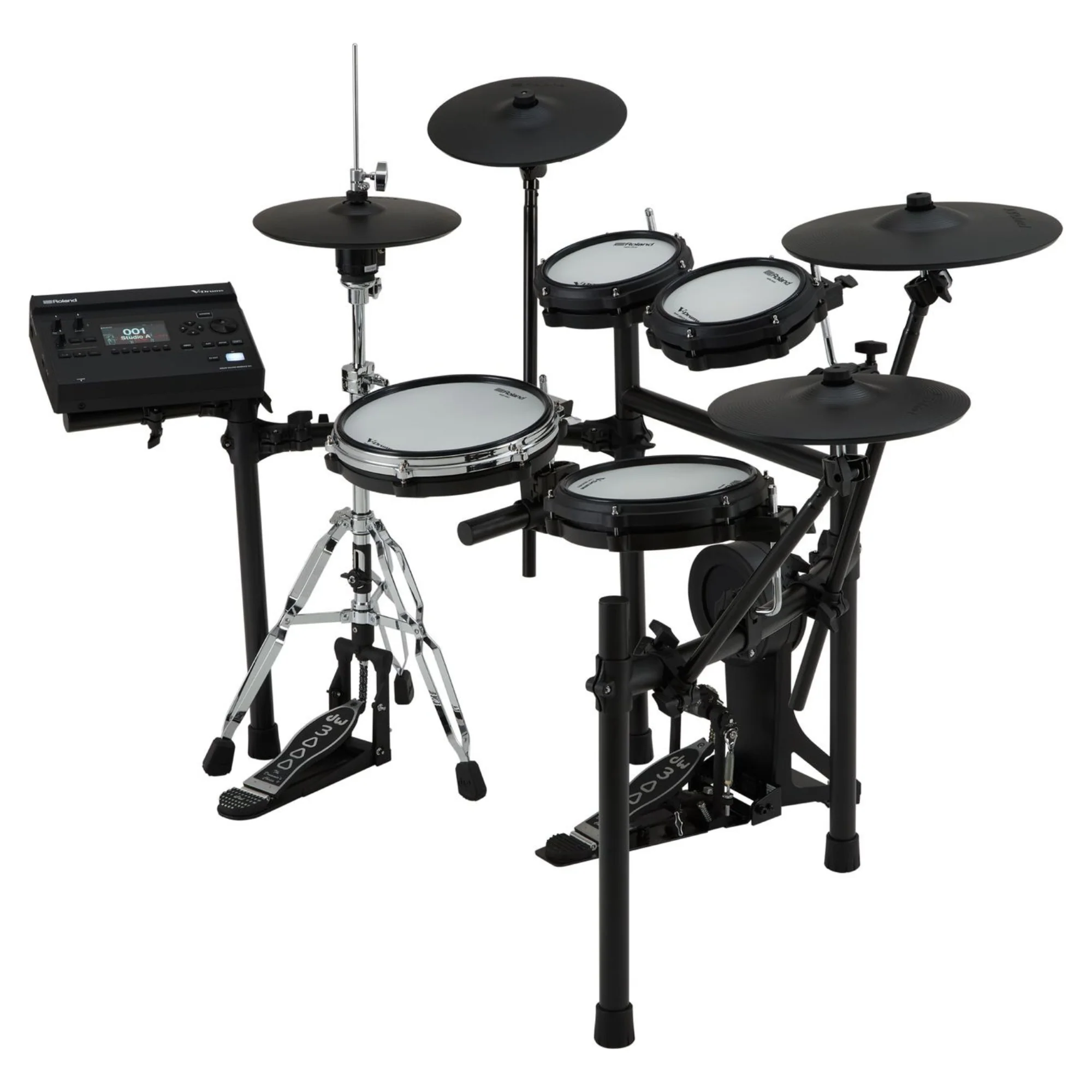

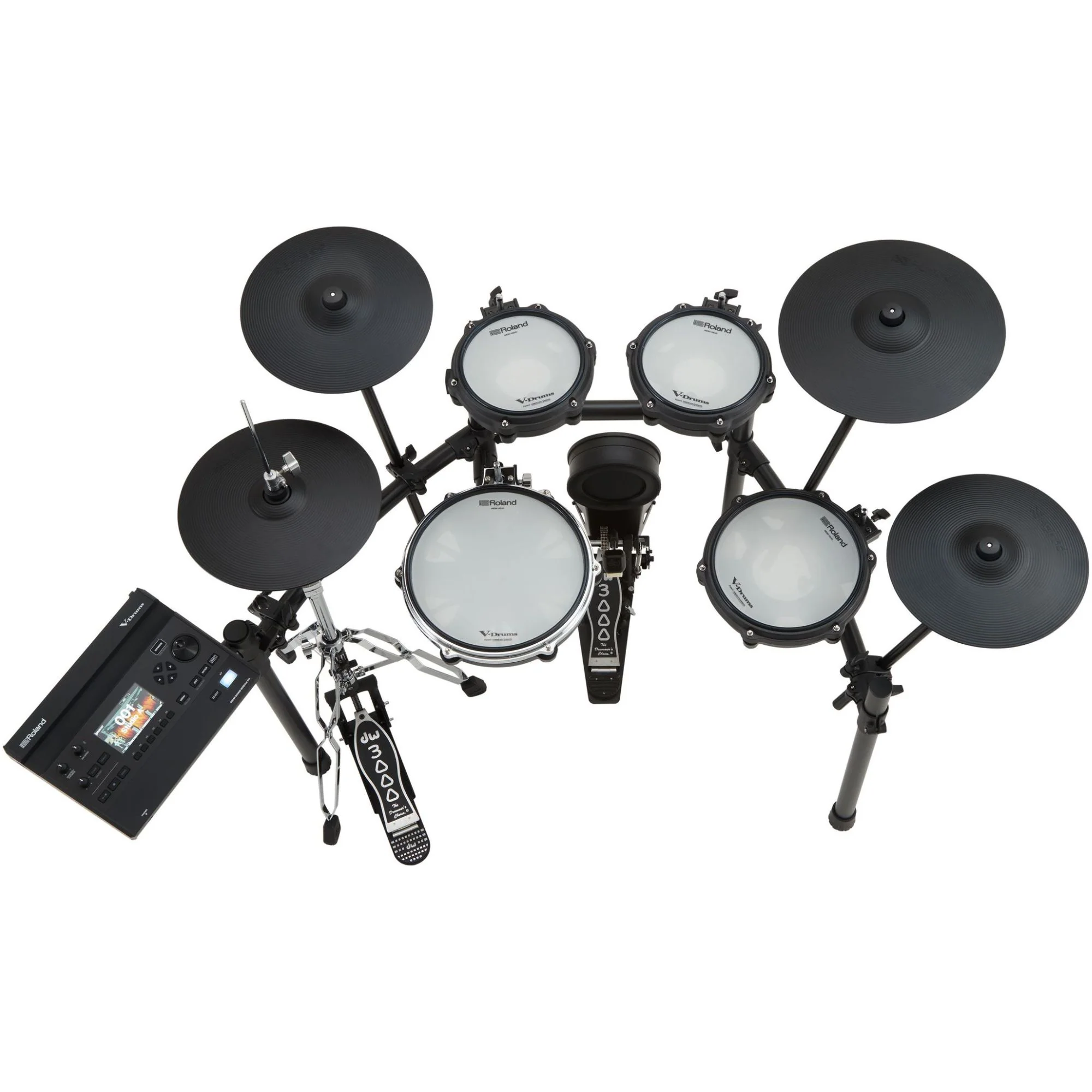

The mid-level TD-316 steps things up with pro-inspired enhancements that provide an immersive playing experience in a compact footprint. Filled with performance-grade features like upgraded pads, dual crash cymbals, and the stand-mounted VH-10 hi-hat, this kit is ideal for drummers who want high-end V-Drums expression and flexibility in a streamlined package.

Features

• Next-generation V-Drums sound and features powered by Roland’s latest technologies
• Mid-level V-Drums 3 Series kit with pro-inspired enhancements and a compact footprint
• V31 module with a multi-sampled sound library created in collaboration with Drum Workshop (DW)
• DW Soundworks software instrument for a seamless transition to computer-based playing (included with Roland Cloud Ultimate membership)
• Wirelessly download V-Drums Instrument Expansions and Kit Packs with the Roland Cloud Connect mobile app
• Six-month Roland Cloud Ultimate membership included
• Large color display, intuitive user interface, and built-in wireless adapter
• EZ Edit controls for fast changes to tuning, muffling, and instrument types
• Companion V31 Editor software (macOS/Windows) and V-Drums Play app (iOS/Android)*
• Add your own sounds with sample import support
• Dedicated pad input to upgrade your kit with an advanced Roland digital snare, ride, or hi-hat pad
• Multi-pin trigger cable harness and two ¼-inch analog trigger inputs
• Analog mix input for a music playback device or Roland percussion pad
• Integrated coach mode with Phrase Trainer, Stroke Monitor, and other advanced tools
• Includes Drum Pass, an exclusive Roland bundle of 100 free Melodics™ lessons for V-Drums players
• USB-C multi-channel audio and MIDI connectivity for seamless integration with DAWs and software-based instruments
• Bluetooth® audio for streaming music and backing tracks from a mobile device
• Audio recording and song playback via SD media
• PD-12P snare with triple piezo sensors and positional sensing
• Redesigned PD-8H and PD-10H tom pads with offset sensors for natural dynamics and hot spot reduction
• Durable KD-10 kick pad with genuine acoustic feel and low in-room noise
• VH-10 hi-hat mount on a traditional hi-hat stand (not included) for natural open/closed control
• Two dual-zone CY-12C-T crash cymbal pads for an expanded layout and more expressive fills
• CY-14R-T ride cymbal pad with natural response, bow/edge/bell triggering, and choke support
• MDS-Compact 2 stand provides a sturdy setup with room to add or upgrade pads (hi-hat stand, kick pedal, and throne sold separately)
• Self-adhesive KDP-5 kick pad patch (replacement patches available separately)

Specifications

Kit configuration

• Drum sound module: V31x 1
• Snare: PD-12P x 1
• Tom 1: PD-8H x 1
• Tom 2: PD-8H x 1
• Tom 3: PD-10H x 1
• Hi-hat: VH-10 x 1
• Crash 1: CY-12C-T x 1
• Crash 2: CY-12C-T x 1
• Ride: CY-14R-T x 1
• Kick: KD-10 x 1
• Drum stand: MDS-Compact2 x 1

Extra trigger input jack

• 2 (AUX/TOM 4, CRASH 2)
  * CRASH 2 jack is used for CY-12C-T of 2nd crash cymbal.
  * The DIGITAL TRIGGER IN port is used when replacing with a digital pad (sold separately).

Dimensions (The required space volume)

• 1,790 (W) x 1,100 (D) x 1,200 (H) mm
• 70-1/2 (W) x 43-5/16 (D) x 47-1/4 (H) inches
  (including Kick pad, Cymbals, Hi-hat stand and Drum throne)

Weight (Total weight of kit components and accessories)

• 24.7 kg
• 54 lbs 8 oz

Accessories

• Sound module mounting plate set
• AC adaptor
• Special connection cable
• Connection cable (Crash 2)
• Drum key
• Setup guide
• Owner's manuals

Options (sold separately)

• Cymbal mount: MDY series
• Pad mount: MDH series
• Personal drum monitor: PM series
• V-Drums accessory package: DAP series
• V-Drums mat: TDM-20
• Noise eater: NE-10, NE-1
  * Kick pedal, snare stand, hi-hat stand, and drum throne are not included.
  * NEQ-K and NEQ-H cannot be used.
