The V71 module unlocks the advanced capabilities of Roland's latest pads, including the PD-14DSX digital snare. And with built-in wireless connectivity and Roland Cloud Connect on your smartphone, you can instantly transform your sounds with a growing library of V-Drums instrument expansions, kit packs, and more.

Features

• V-Drums 7 Series module, reimagined with an expandable sound engine and support for the latest Roland pad technologies
• Newly recorded multi-sampled sound library created in collaboration with DW
• DW Soundworks software instrument for a seamless transition to computer-based playing (included with Roland Cloud Ultimate membership)
• Wirelessly download V-Drums Instrument Expansions and Kit Packs with the Roland Cloud Connect mobile app
• Six-month Roland Cloud Ultimate membership included

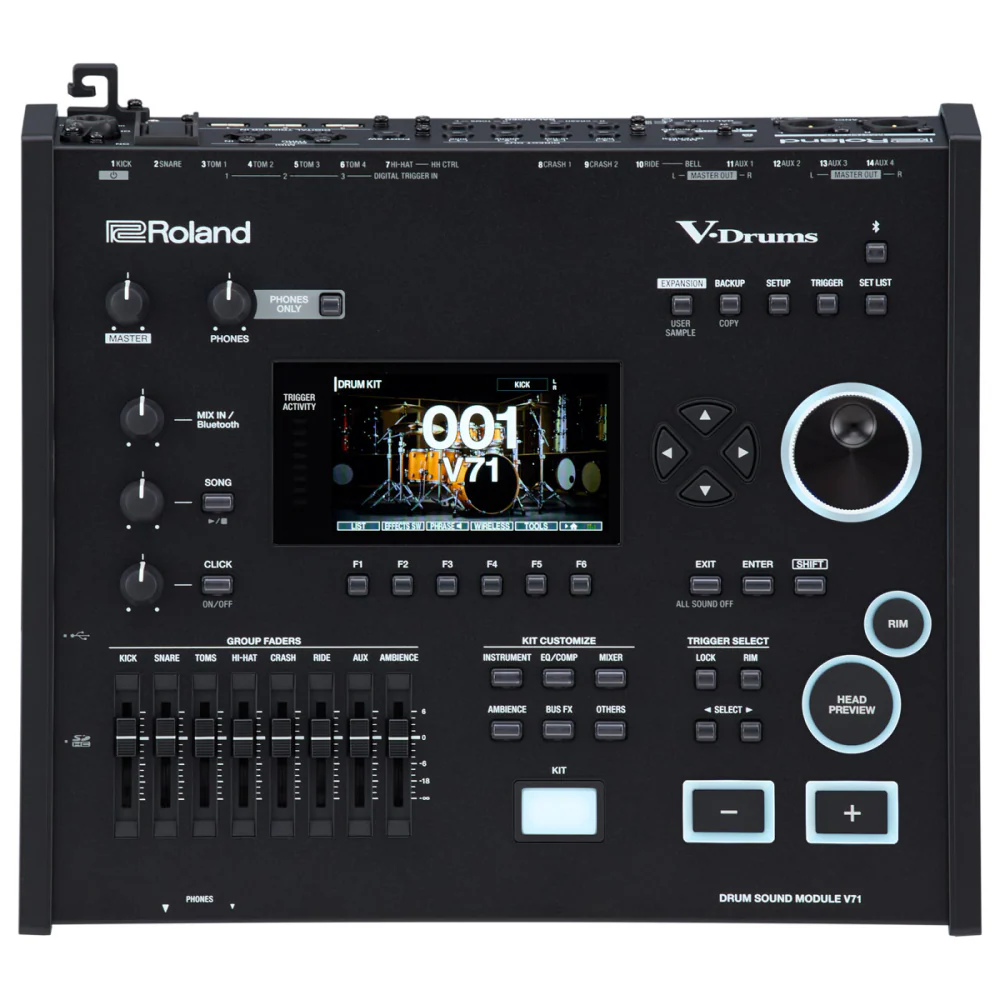

• Large color display, updated user interface, and built-in wireless adapter
• Enhanced V-Edit tools and companion V71 Editor software (macOS/Windows)
• Deep studio-grade processing tools, including EQs, compressors, reverbs, ambience effects, and more
• Add your own sounds with sample import support

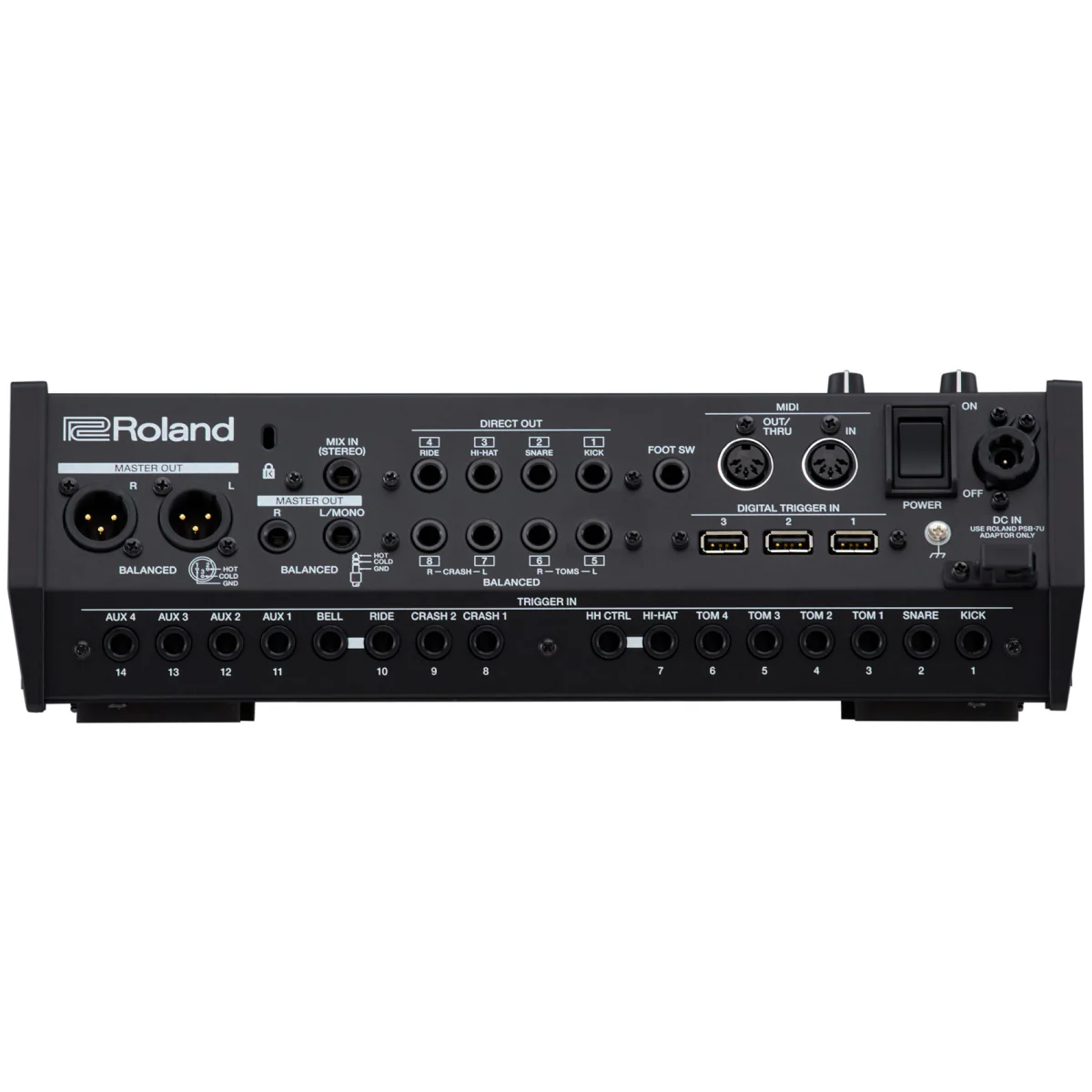

• Balanced main XLR and 1/4-inch outputs, eight balanced 1/4-inch direct audio outputs, three digital trigger inputs, and 14 analog trigger inputs
• Full support for the latest V-Drums 7 Series pads, including the PD-14DSX digital snare, PD-10X/PD-12X V-Pads, and others
• Multi-channel USB interface with 32 discrete audio channels and MIDI
• Bluetooth audio/MIDI for wireless music streaming and MIDI recording with your smartphone
• Stereo aux input for mixing in an external device like an SPD series percussion pad

Specifications

Drum Kits: 200 (Preset: More than 70) Instruments: More than 1000 Effect Types: Layer Transient: each layer Layer Equalizer: each layer Pad Equalizer: each pad (by head and rim) Pad Compressor: each pad (head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bass Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer User Sample Import: - Number of User Sample: Maximum 500 (includes factory preloaded user samples) - Sound Length (total): 24 minutes in mono, 12 minutes in stereo - File formats that can be loaded: WAV (44.1 kHz, 16/24 bits) Song Player (SD Card): Audio File: WAV (44.1 kHz, 16/24 bits), MP3 Recorder: Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export File Format: WAV (44.1 kHz, 16 bits), SMF or Recording Method: Realtime Maximum length: 60 min (temporary recording: 1 min) (*1) File format: WAV (44.1 kHz, 16 bits) Display: Graphic color LCD 4.3 inch TRIGGER ACTIVITY Indicator (LED) Faders: 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE) External Memory: SD Card (SDHC supported) Connectors: TRIGGER IN jack x 14: 1/4-inch TRS phone type (Exclusion use with digital pad) DIGITAL TRIGGER IN port x 3: USB A type MASTER OUT (BALANCED) jacks (L/MONO, R): 1/4-inch phone type, balanced MASTER OUT (BALANCED) jacks (L, R): XLR type, balanced DIRECT OUT (BALANCED) jack x 8: 1/4-inch TRS phone type, balanced PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type MIX IN (STEREO) jack x 1: Stereo 1/4-inch phone type MIDI (IN, OUT/THRU) connectors USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI) FOOT SW jack: 1/4-inch TRS phone type DC IN jack Number of USB Audio Record/Playback Channels: Vendeor Mode Sampling Rate (Original): 44.1 kHz Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz Record: 32 channels Playback: 32 channels Generic Mode Sampling Rate (Original): 44.1 kHz Record: 2 channels Playback: 2 channels Power Supply: DC 12V (AC Adaptor) Current Draw: 2,400 mA Power consumption when in off mode (when the power automatically turns off): 0.2 W Accessories: Quick Start Roland Cloud Connect Setup Guide Roland Cloud Activation Card AC Adaptor
