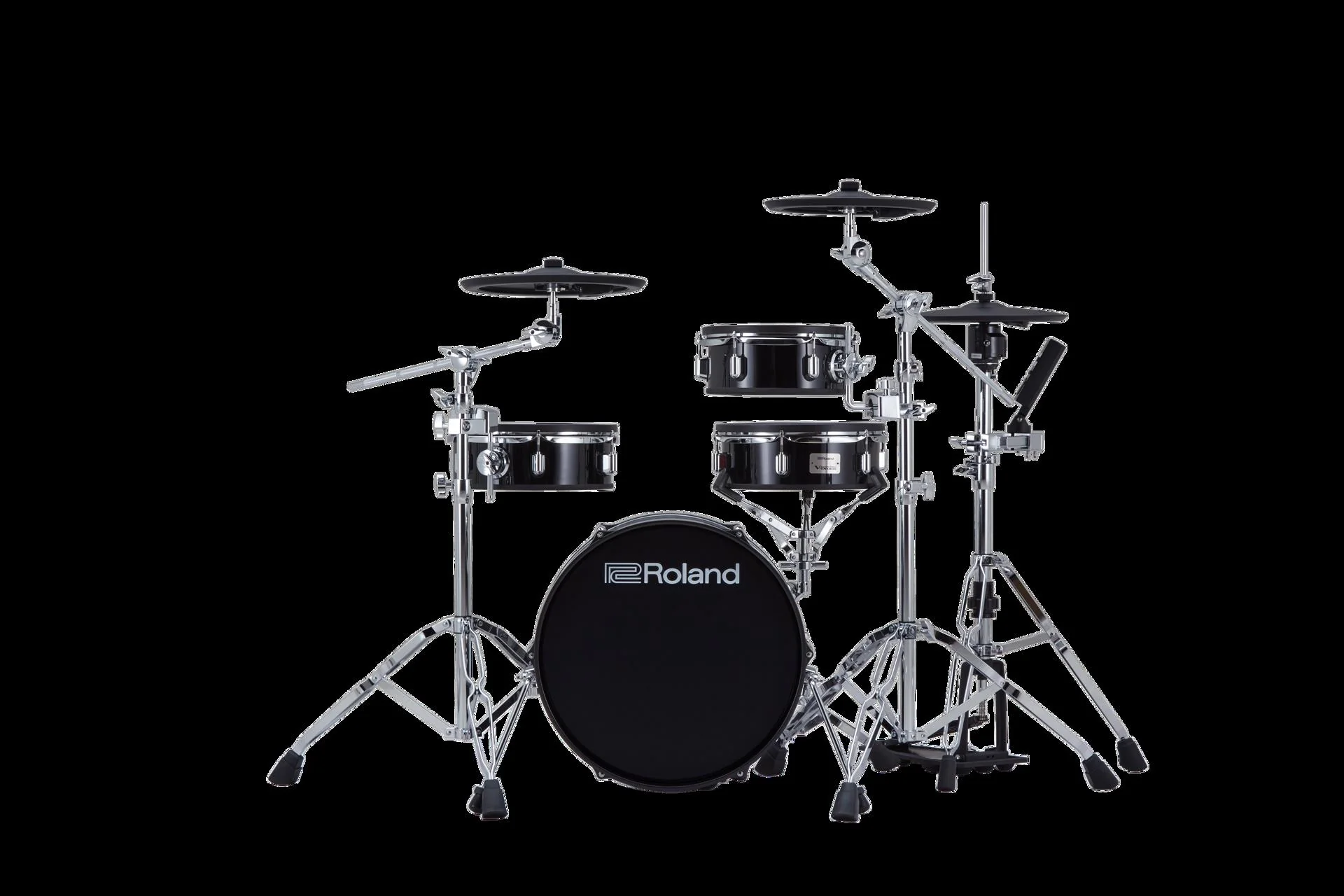

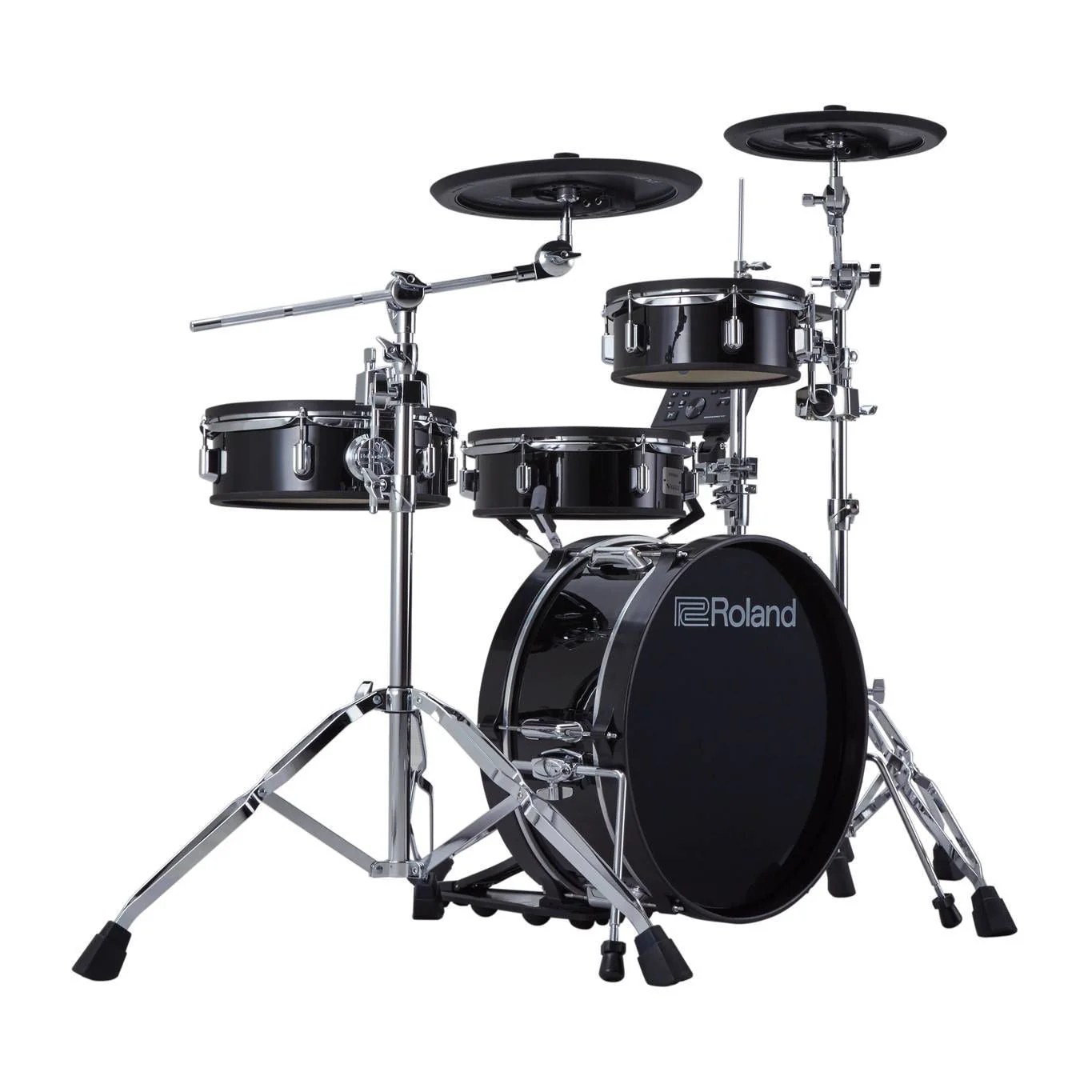

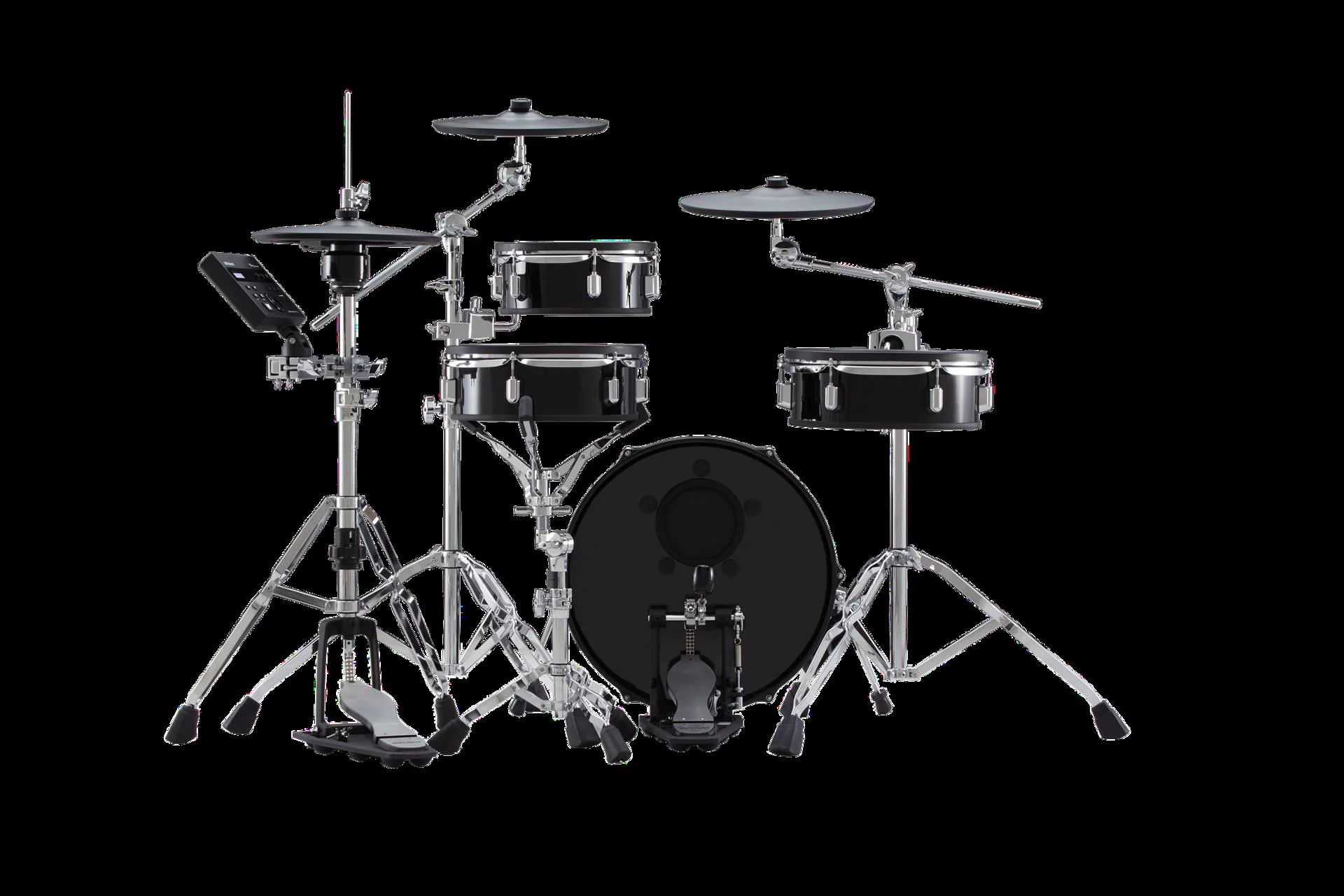

As the entry point to the V-Drums Acoustic Design series, the VAD103 is the affordable all-digital kit that captures the vibe and feel of a traditional acoustic set, complete with shallow-depth wooden drum shells.

Keep the noise down with Roland’s acclaimed double-ply mesh heads and a smart air-damping system in the kick drum, and then let loose when it’s showtime. Stay focused with a streamlined tom layout or express yourself with a full array of cymbals.

Mount the VAD103’s large drum and cymbal pads to regular stands to accompany the 18-inch kick drum for a classic acoustic kit vibe, and set it up anywhere in your home thanks to the compact footprint.

Go beyond acoustic drums with the TD-07 module offering authentic kits for every musical style, deep editing for creating your signature sound, a built-in Coach mode for developing your technique, plus Bluetooth connectivity for drumming along to your favorite bands—streamed from your phone, tablet, or computer.

---

Features

• TD-07 module with 25 preset kits, 25 user kits, and 143 instruments
• V-Edit, EQ, ambience, and 30 multi-effects offer deep editing tools to create your perfect drum kit sounds
• Snare and tom pads with Roland’s legendary double-ply, tension-adjustable mesh drumheads
• PDA120LS-BK 12-inch snare pad, with independent head and rim zones for assigning different sounds, mounts on a conventional snare drum stand
• 1 x PDA100L-BK 10-inch rack tom pad and 1 x PDA120L-BK 12-inch floor tom pad with independent head and rim zones for assigning different sounds
• 18-inch KD-180L-BK kick drum with trigger pad mounted to a drumhead provides positive beater resistance, rebound, and real feel
• Chrome-finished, double-braced cymbal and cymbal/tom combination stands feature durable ball clamps to easily adjust pad heights and angles, with secure and sturdy mounting
• Integrated Bluetooth lets you wirelessly stream sound from phones, tablets, and other Bluetooth devices and send MIDI data to music apps
• Advanced built-in metronome with the ability to adjust time signature, note value, and click tone
• Onboard Coach function provides interactive tools to build timing skills and track progress
• USB for recording audio and MIDI data to computer music software
• 40 free lessons with Melodics, an interactive drum tuition app for PC/Mac computers and iPad

---

Specifications

• Kit configuration (*1)
  • Drum sound module: TD-07 x 1
  • Snare: PDA120LS-BK x 1
  • Tom: PDA100L-BK x 1 (*2)
  • Floor Tom: PDA120L-BK x 1 (*2)
  • Hi-hat: VH-10 x 1
  • Crash: CY-12C x 1
  • Ride: CY-13R x 1
  • Kick: KD-180L-BK x 1
  • Drum combination stand: DCS-10 x 2
  • All purpose clamp: APC-10 x 1
• Dimensions
  • 1,300 (W) x 1,200 (D) x 1,200 (H) mm
  • 51-3/16 (W) x 47-1/4 (D) x 47-1/4 (H) inches (including Kick pad, Cymbals, Hi-hat stand and Drum throne)
• Weight: 26.4 kg / 58 lbs 4 oz
• Accessories
  • Sound module holder
  • AC adaptor
  • Special connection cable
  • Drum key
  • Setup guide
  • Owner's manuals
• Options (sold separately)
  • Tom Pad: PDA series (*3)
  • Personal drum monitor: PM series
  • V-Drums accessory package: DAP-3X
  • V-Drums mat: TDM series
  • Noise eater: NE-10, NE-1(*4)

*1 This package does not include a kick pedal, a snare stand, a hi-hat stand, and a drum throne. *2 Rim-shot is not supported. *3 An additional DCS-10 is required for mounting the pad. *4 The NE-10 and NE-1 are for the hi-hat stand.
