DM2 TNT lets you select between a modest +15dB gain or colossal +30dB gain with an ultra-high impedance input and 8 load settings to perfectly suit any passive mic. SWITCHABLE, CLEAN AND CONSISTENT GAIN FROM MODERATE +15DB TO EXPLOSIVE +30DB

• designed for flat, balanced sound quality with the least possible noise
• explore eight settings that cover an uncommonly low 50Ω to remarkably high 10 MΩ to suit your preamp accurately with any mic
• two gain level options for increased utility on various sources
• unapologetically boosts the signal independent from load impedance or cable distance

SLIM, RUGGED, ALL-METAL HOUSING WITH PREMIUM FINISH

• efficient rejection of any electrical interference and hum
• a flashy appearance for years to come with a high-quality finish
• slim design allows simple positioning in the studio or on stage

IN THE BOX

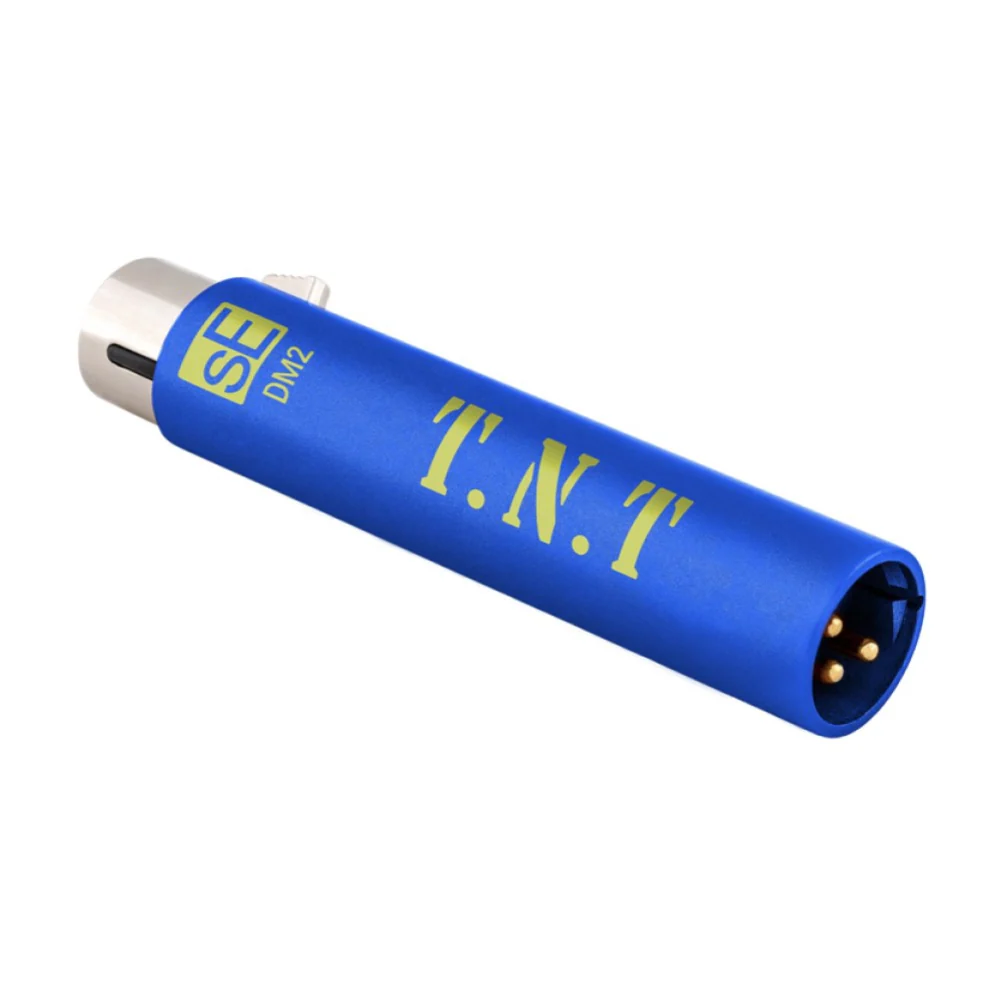

• DM2 TNT
• sE Logo Sticker
• User manual with warranty card

SPECIFICATIONS

• Frequency Range: 10 Hz – 120,000 Hz (-0.3 dB)
• Gain: 15 dB / 30 dB
• Max output level (0.5% THD): 9.5 dBV (3.0 V)
• Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
• Powering: 48 Volts according to IEC 61938
• Electrical impedance: 135 Ohms
• Recommended load impedance: >1k Ohms
• Current consumption: 3.1 mA
• Connectivity: 3-pin male/female XLR connector
• Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
• Weight: 80 g (2.82 oz.)

REQUIREMENTS

• input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power
