Engineered for professional live sound: Rugged all-in-one wireless system for guitar and bass. Robust bodypack transmitter and Ci1 instrument cable for daily use on stage

---

Features

• Engineeered for professional live sound: Rugged all-in-one wireless system for guitar and bass.
• Robust bodypack transmitter and robust Ci 1 instrument cable for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

---

Specificastions

EM 100 G4

• Frequency range: AS: 520 - 558 MHz
• Dimensions: Approx. 190 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: Approx. 980 g
• Audio output:

  • 6.3 mm jack socket (unbalanced): +12 dBu
  • XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Current consumption: 300 mA
• Adjacent channel rejection: Typically 65 dB
• Intermodulation attenuation: Typically 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 2.5 μV for 52 dBA eff S/N
• Equalizer:

  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: 70 dB

SK 100 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption:

  • at nominal voltage: typ. 180 mA
  • with transmitter switched off: 25 µA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

What's in the Box

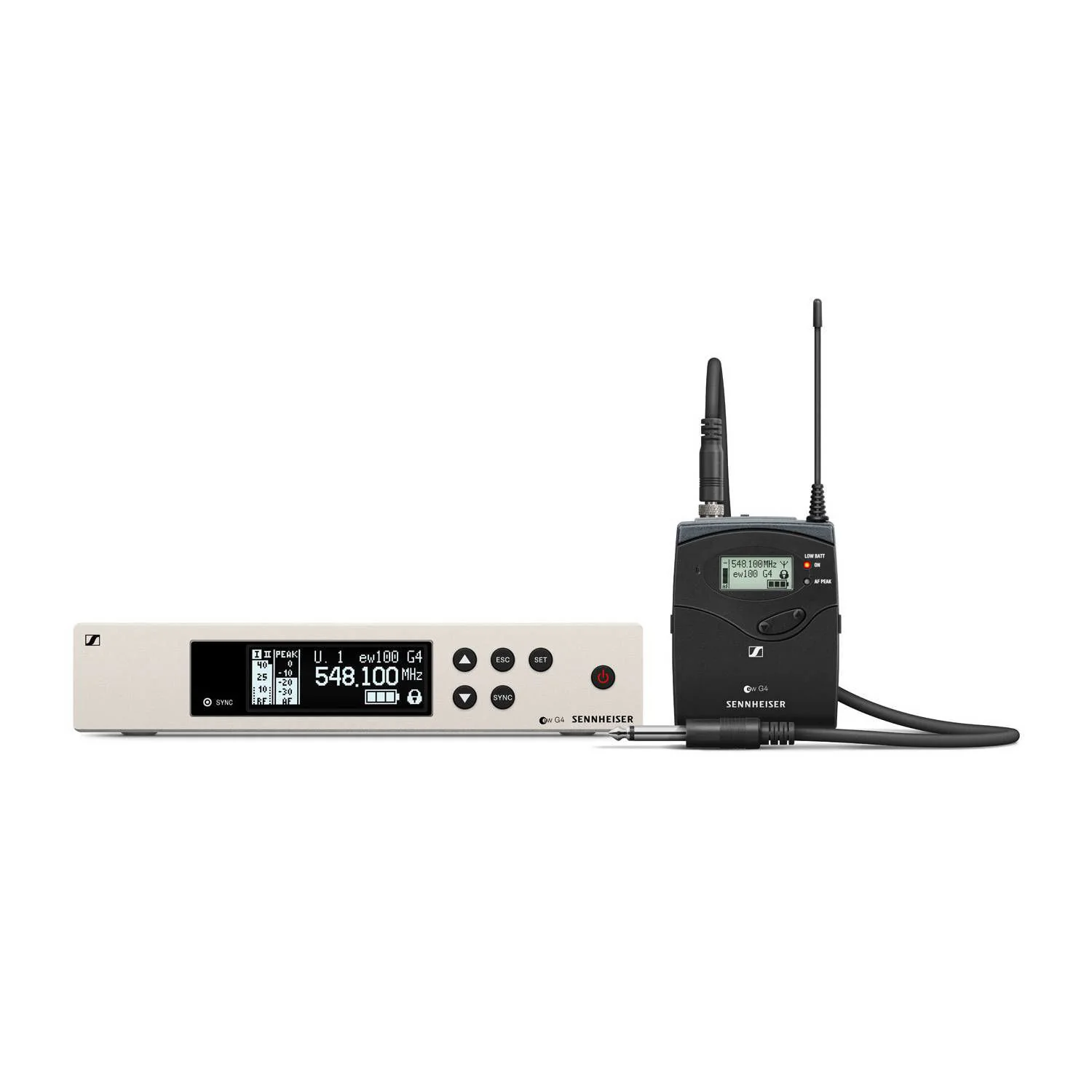

• EM 100 G4 true diversity receiver
  SK 100 G4 bodypack transmitter
  Ci 1 instrument cable
  rackmount set
  power supply
  2 AA batteries
  2 rod antennas
  RJ 10 cable
  quick guide
  safety guide
  manufacturer declaration sheet
  frequency supplement sheet
