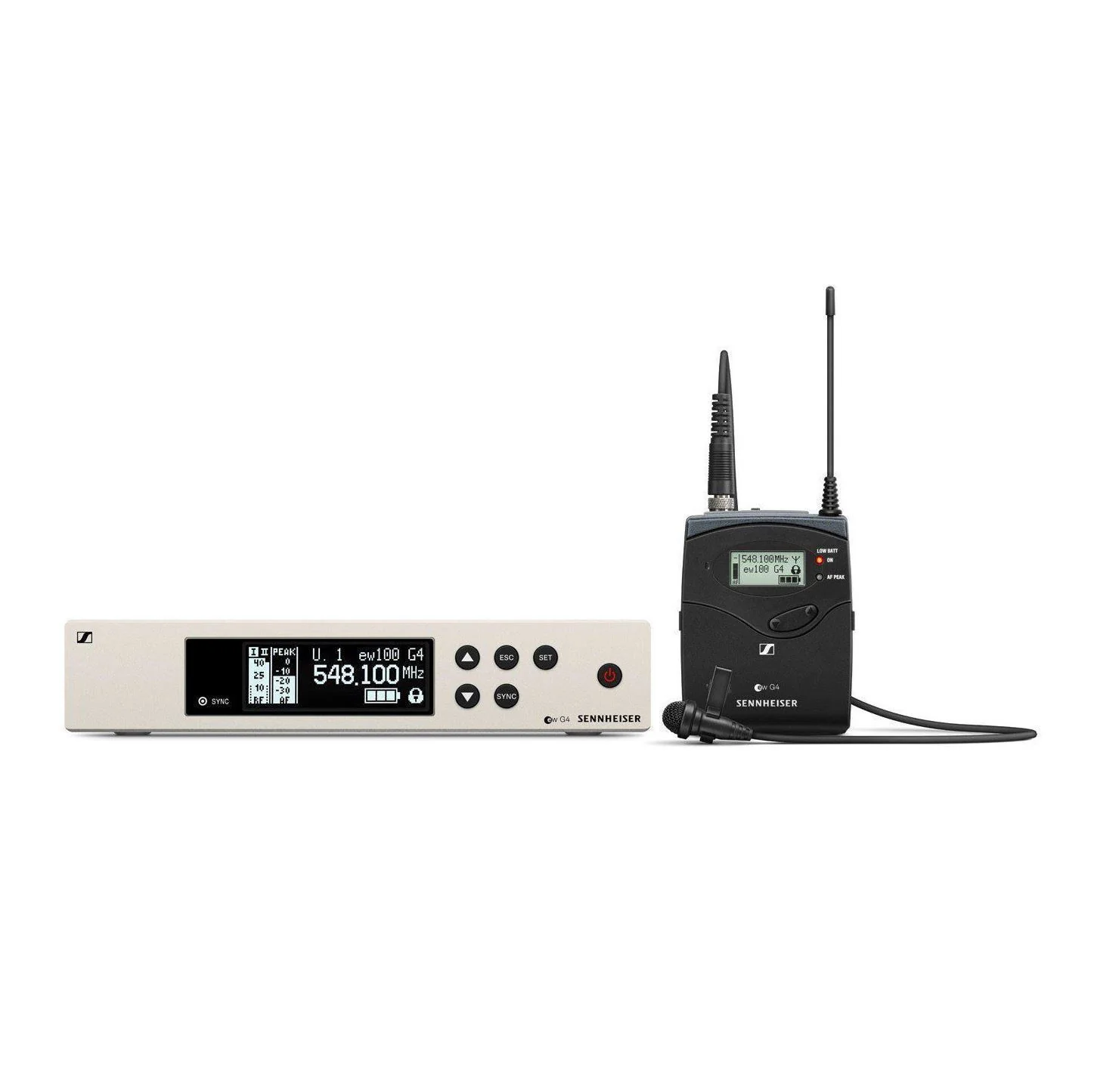

Sennheiser EW 100 G4-ME4 Evolution G4 Wireless Lavalier Microphone Set AS (520 - 558 MHz)
The Sennheiser Evolution G4 100 Series are engineered for professional live sound. This is a rugged wireless system that is ideal for speakers and presenters who require hands-free mobility.
The ultimate wireless system that grows with you.
The fourth generation of Sennheiser's most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all.
This is a versatile wireless lavalier system for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
It is the perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME4 with high speech intelligibility for easy hands-free operation on any stage.
Features
- Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
- Robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardiod) with high speech intelligibility for daily use on stage
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet High
- RF output power (up to 30 mW) depending on country regulations
What's in the box?
- EM 100 G4 true diversity receiver
- SK 100 G4 bodypack transmitter
- ME 4 clip-on microphone
- GA 3 rackmount set
- power supply 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
Specifications
| Component | EM 100 G4 true diversity receiver | |
| Frequency ranges | AS: 520 - 558 MHz | |
| Dimensions | Approx. 190 x 212 x 43 mm | |
| Compander | Sennheiser HDX | |
| THD total harmonic distortion | 0.9 % | |
| Weight | Approx. 980 g | |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu | |
| XLR socket (balanced): +18 dBu | ||
| Signal-to-noise ratio | 110 dBA | |
| Switching bandwidth | up to 42 MHz | |
| Peak deviation | ±48 kHz | |
| Nominal deviation | ±24 kHz | |
| Modulation | Wideband FM | |
| Power supply | 12 V DC | |
| Antenna connector | 2 BNC sockets | |
| Current consumption | 300 mA | |
| Adjacent channel rejection | Typically 65 dB | |
| Intermodulation attenuation | Typically 65 dB | |
| Receiving frequency | Max. 1680 receiving frequencies | |
| adjustable in 25 kHz steps 20 frequency banks | ||
| each with up to 12 factory-preset channels | ||
| no intermodulation 1 frequency bank with up to 12 programmable channels | ||
| RF sensitivity | < 2.5 μV for 52 dBA eff S/N | |
| Squelch | low: 5 dBµV middle: 15 dBµV high: 25 dBμV | |
| Equalizer | Preset 1: Flat | |
| Preset 2: Low Cut (-3 dB at 180 Hz) | ||
| Preset 3: Low Cut/High Boost (-3 dB at 180 Hz / +6 dB at 10 kHz) | ||
| Preset 4: High Boost (+6 dB at 10 kHz) | ||
| Temperature Range | -10 °C to +55 °C | |
| Receiver Principle | True diversity | |
| Blocking | 70 dB |
| Component | SK 100 G4 bodypack transmitter |
| DimensiComponentons | Approx. 82 x 64 x 24 mm |
| Compander | Sennheiser HDX |
| THD total harmonic distortion | 0.9 % |
| Weight | (incl. batteries) approx. 160 g |
| Signal-to-noise ratio | 110 dBA |
| RF output power | Max. 30 mW |
| Switching bandwidth | up to 42 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries 1.5 V or BA 2015 accupack |
| Current consumption | at nominal voltage: typ. 180 mA |
| with transmitter switched off: 25 µA | |
| Input impedance | 40 kΩ unbalanced / 1 MΩ |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Transmission frequency | Max. 1680 transmitting frequencies |
| adjustable in 25 kHz steps 20 frequency banks 12ch each/td> | |
| no intermodulation 1 frequency bank with up to 12 programmable channels | |
| AF frequency response | Mic: 80 – 18000 Hz Line: 25 – 18000 Hz |
| Temperature Range | -10 °C to +55 °C |
| Frequency stability | ±15 ppm |
| Component | ME 4 Clip-on Lavalier Microphone |
| Connector | 3.5 mm jack |
| Frequency response | 50 to 18000 Hz (ME 2-II) |
| Max. sound pressure level | 120 dB |
| Cable length | approx. 1.60 m |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | cardiod |
| Sensitivity in free field | 40 mV/Pa |
| Equivalent noise level | 31 dB |
