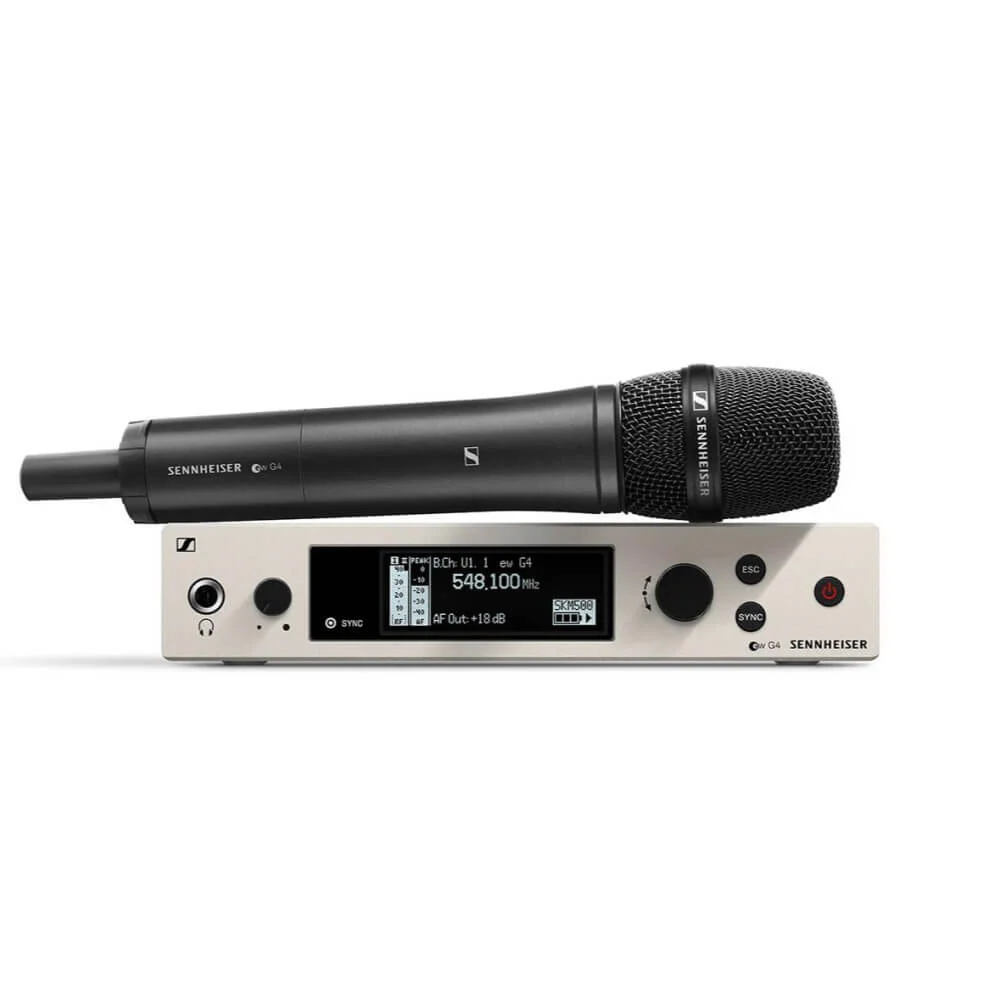

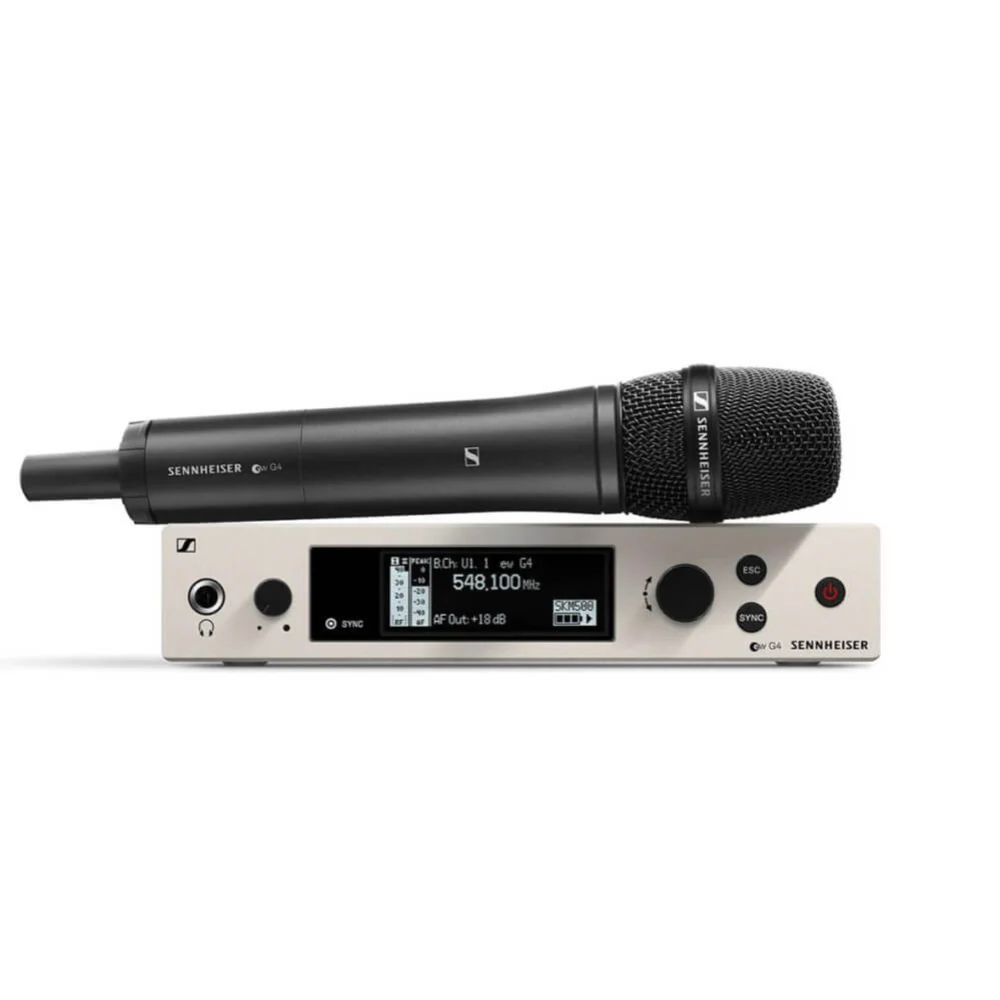

If you're looking to add convenient wireless operation to your professional live performances, look no further than Sennheiser's EW 500 G4 wireless system. Consisting of a SKM 500 G4 handheld transmitter, an MMD 945 supercardioid dynamic microphone capsule, an EM 300-500 G4 rackmount receiver, plus a GA3 rack kit and a mic clip, this package gives you everything you need to deliver pristine wireless transmission for vocalists on stage, as well as public speaking, conferencing, and presentation applications.

Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Robust, Reliable Operation

Some of the world's most revered sound engineers rely on EW 500 G4 for a robust and versatile wireless system, especially when handling multi-cannel settings on stages all over the world. Boasting up to 88MHz bandwidth, and up to 32 channels, the EW 500 G4 systems have a greater chance of finding an open frequencies to transmit through. With the included Ethernet connectivity for Wireless Systems Manager (WSM) control software, this system has the ability for advanced frequency coordination in multi-channel setups.

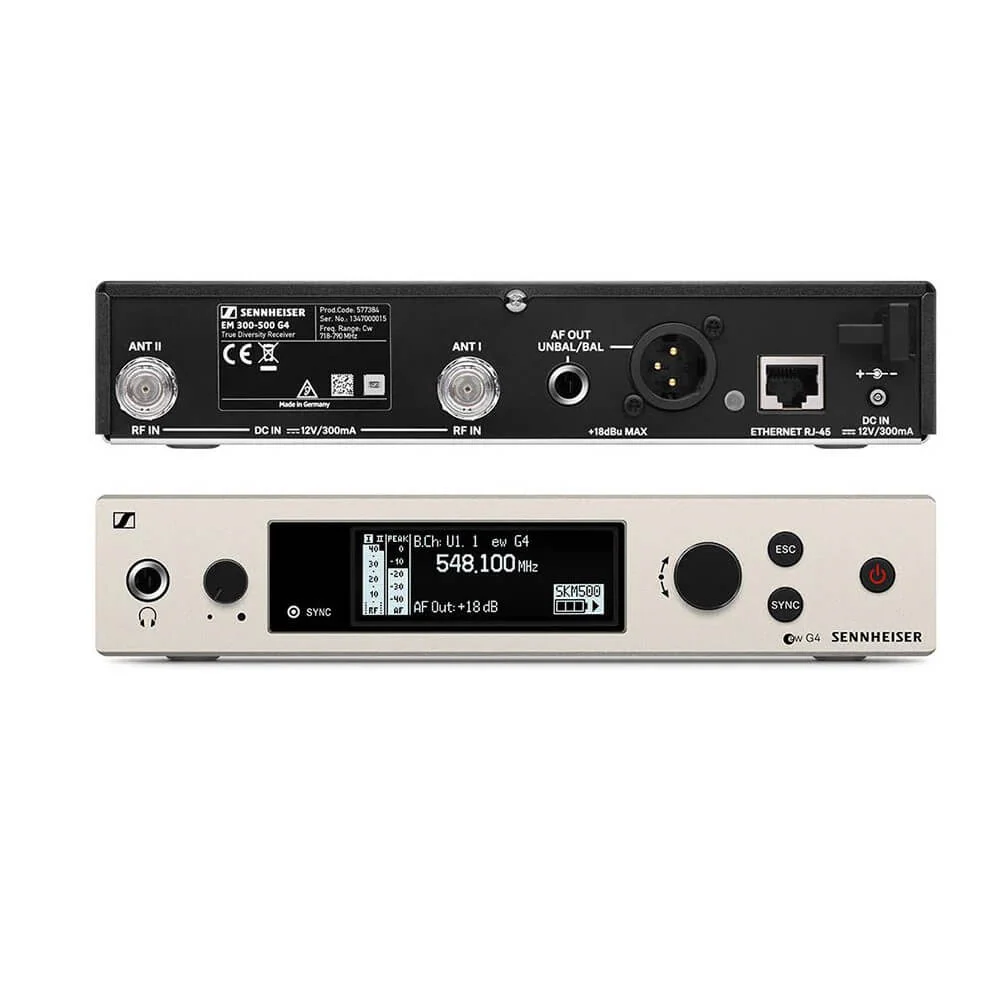

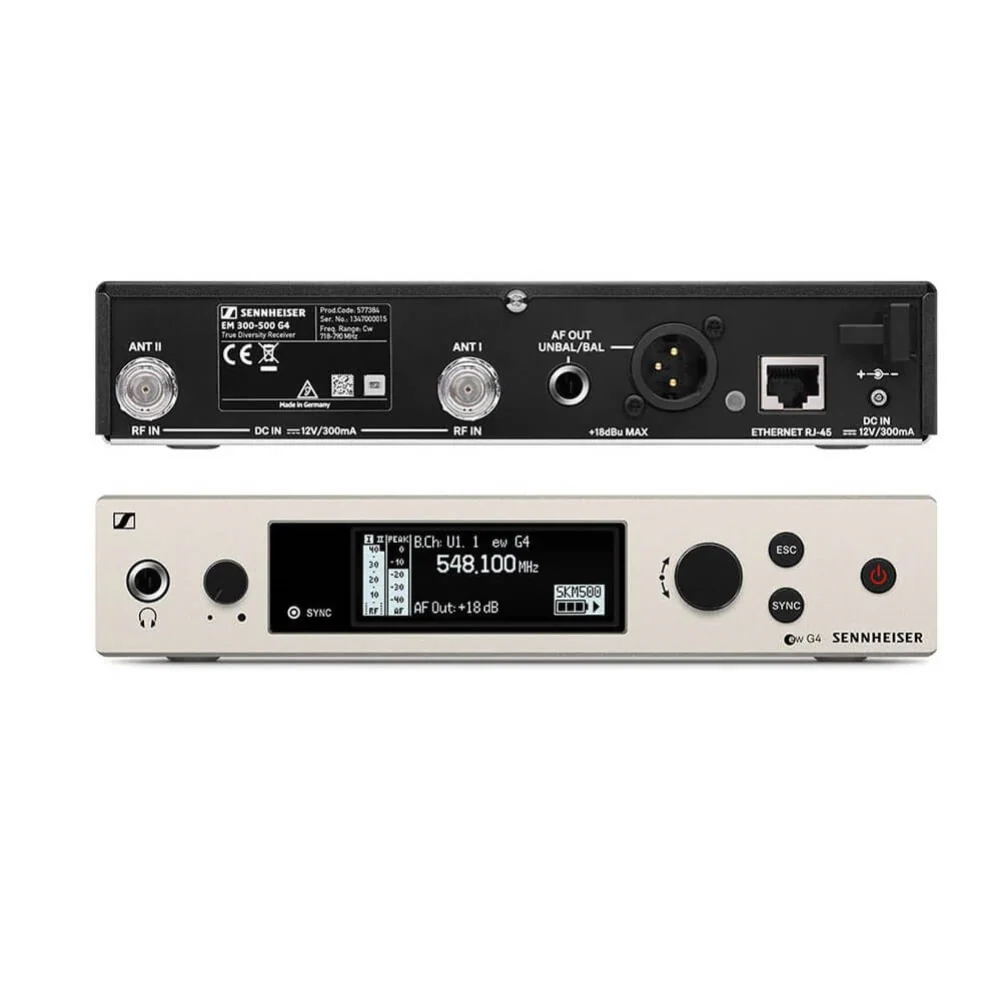

Specifications - EM 300-500 G4

• Frequency Range: 558MHz - 626MHz
• Compander: Sennheiser HDX
• THD: <0.9%
• Signal-to-Noise Ratio: >115dBA
• Switching Bandwidth: Up to 88MHz
• Deviation
  • Peak Deviation: ±48kHz
  • Nominal Deviation: ±24kHz
• Modulation: Wideband FM
• Intermodulation Attenuation: Typically >70dB
• Adjacent Channel Rejection: Typically >75dB
• Receiving Frequency: Max. 3520 Receiving Frequencies
• RF Sensitivity: <2.5μV for 52dBA eff S/N
• Squelch: 5 to 25dBμV in steps of 2dB
• EQ
  • Preset 1: Flat
  • Preset 2: Low Cut (-3dB at 180Hz)
  • Preset 3: Low Cut/High Boost (-3dB at 180Hz, +6dB at 10kHz)
  • Preset 4: High Boost (+6dB at 10kHz)
• Receiver Principle: True Diversity
• Blocking: >75dB
• Audio Output
  • 6.3mm Jack Socket (Unbalanced): +12dBu
  • XLR Socket (Balanced): +18dBu
• Antenna Connector: 2x BNC Sockets
• Power Supply: 12V DC
• Dimensions
  • 202mm x 212mm x 43mm
  • Approx. 980g

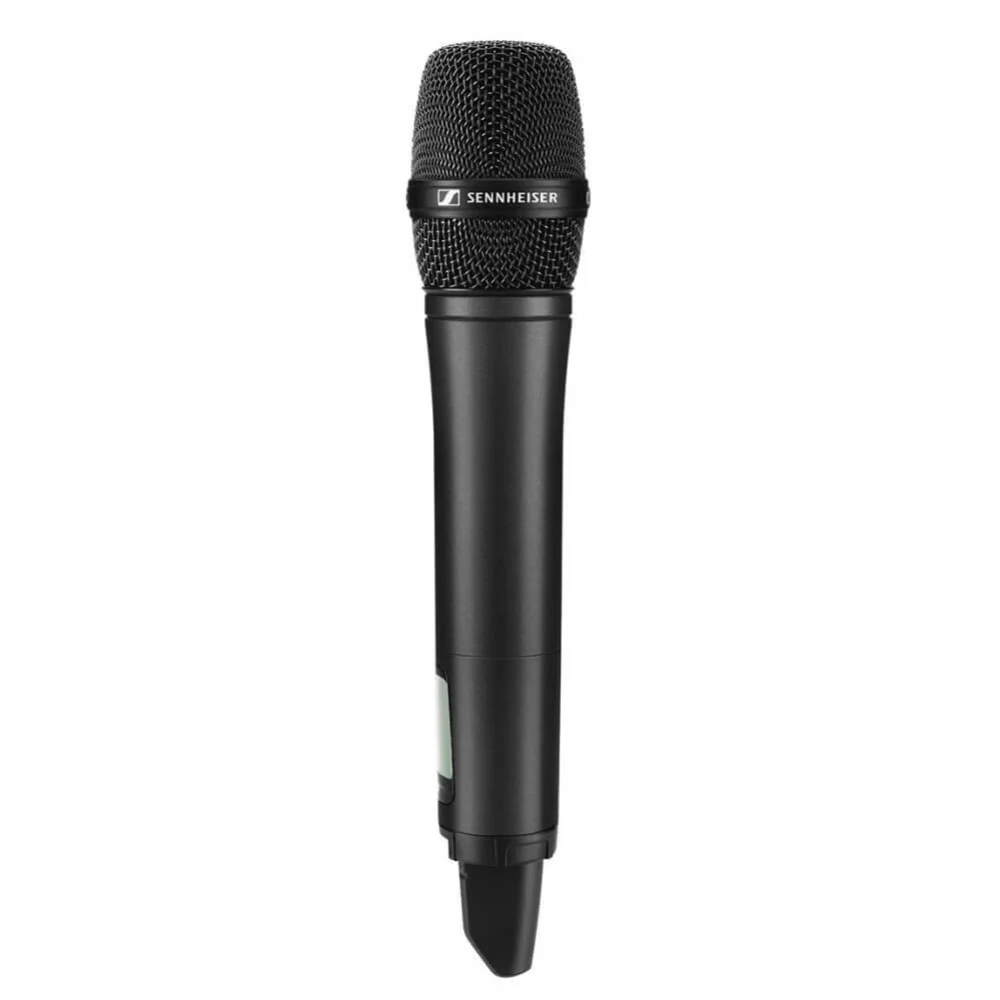

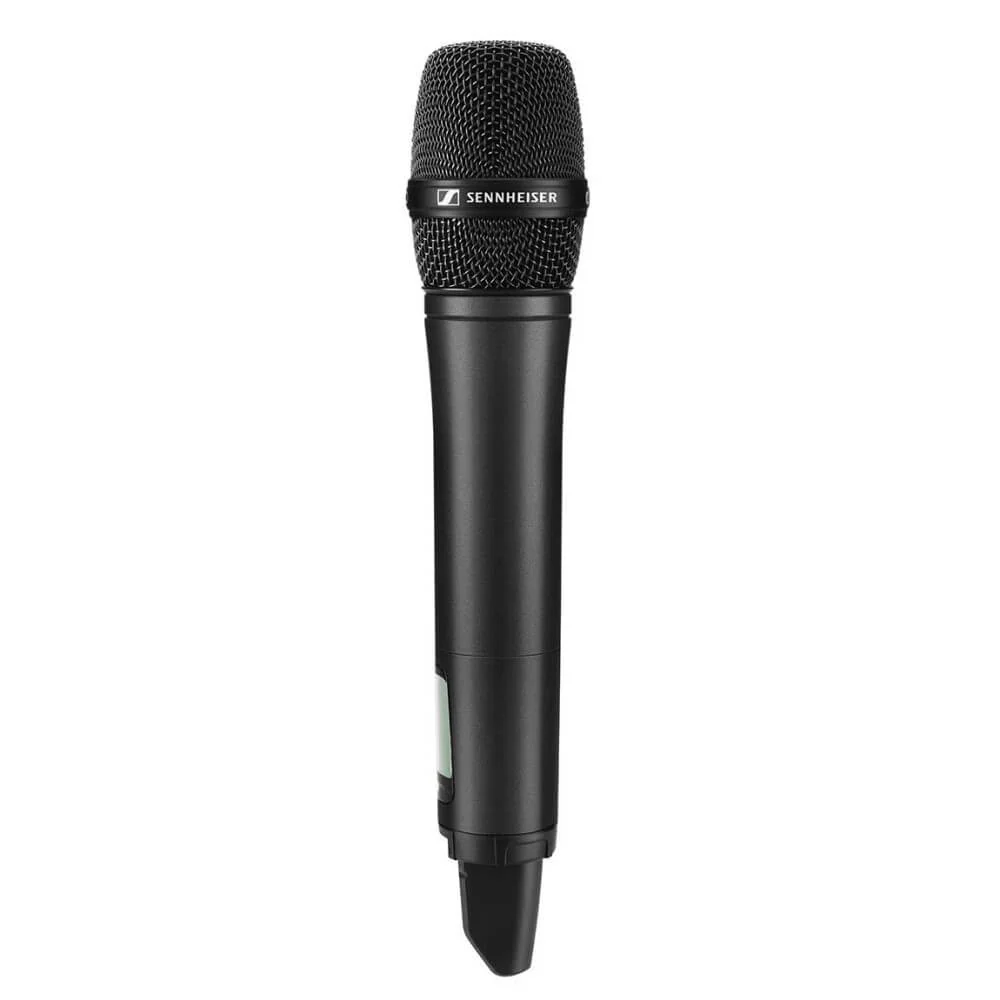

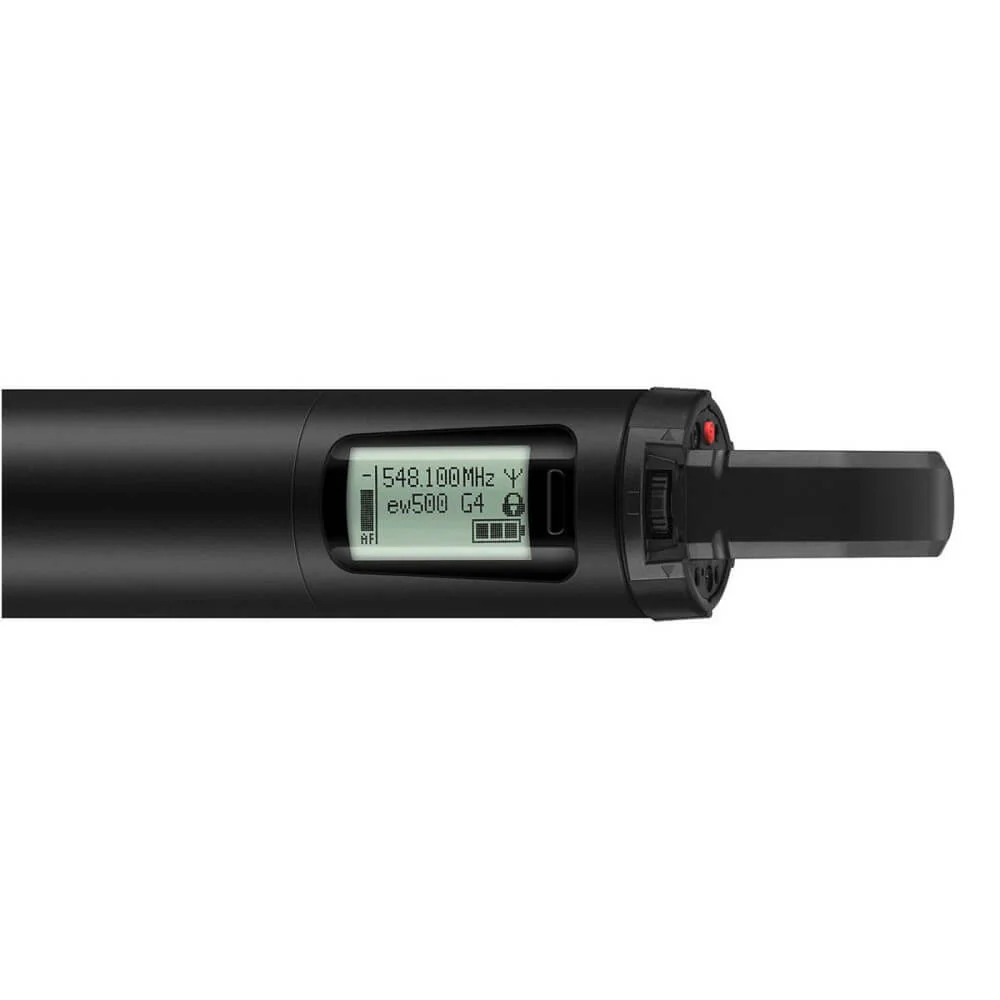

SKM 500 G4

• Switching Bandwidth: Up to 88MHz
• AF Frequency Response: 80Hz - 18kHz
• Signal-to-Noise Ratio: >115dBa
• Frequency Stability: <±15ppm
• Power
  • Powering: 3V Battery/2.4V Rechargeable Battery
  • Current Consumption: Typically 180mA
• Dimensions
  • Approx 50mm (∅) x 265mm
  • Approx. 450g

MMD 945-1

• SPL: 154dB SPL
• Transducer Principal: Dynamic
• Pick-Up Pattern: Supercardioid
• Sensitivity: 1.8mV/Pa

What's in the Box?

• EM 300-500 G4 True Diversity Receiver
• SKM 500 G4 Handheld Transmitter
• MMD 945-1 Microphone Head
• MZQ 1 Microphone Clamp
• 2 AA Batteries
• Power Supply
• GA 3 Rackmount Set
• 2 Rod Antennas
• Quick Guide
• Safety Guide
• Manufacturer Declaration Sheet
