This wireless set is ideal for presenters and demonstrators and is the professional's choice for hands-free performance and presentation.

The flagship of the Evolution Series - G4 500 Series Wireless

The pro‘s choice. Renowned sound engineers rely on EW 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

This system is the professional standard for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

---

Features

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What's in the box?

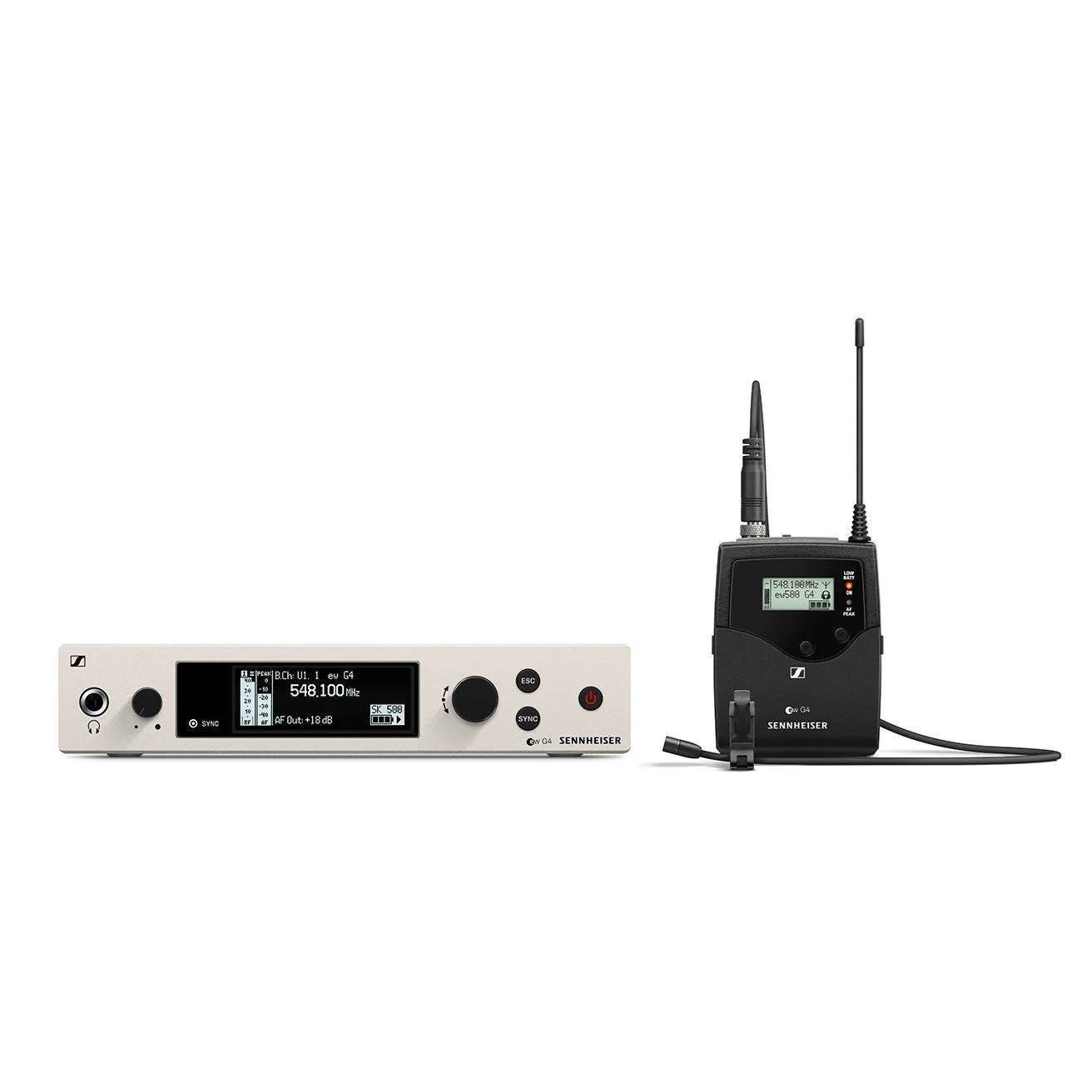

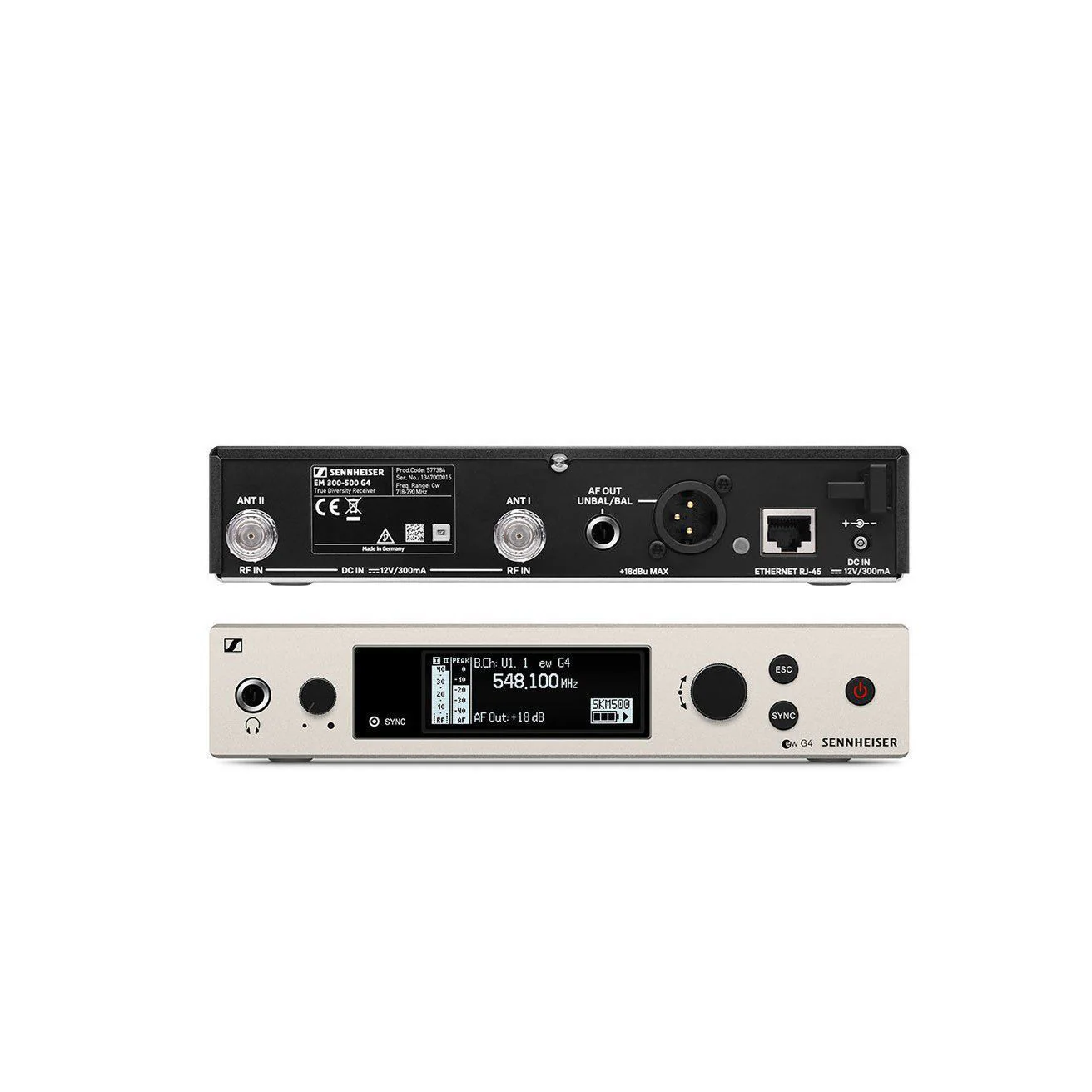

• EM 300-500 G4 true diversity receiver

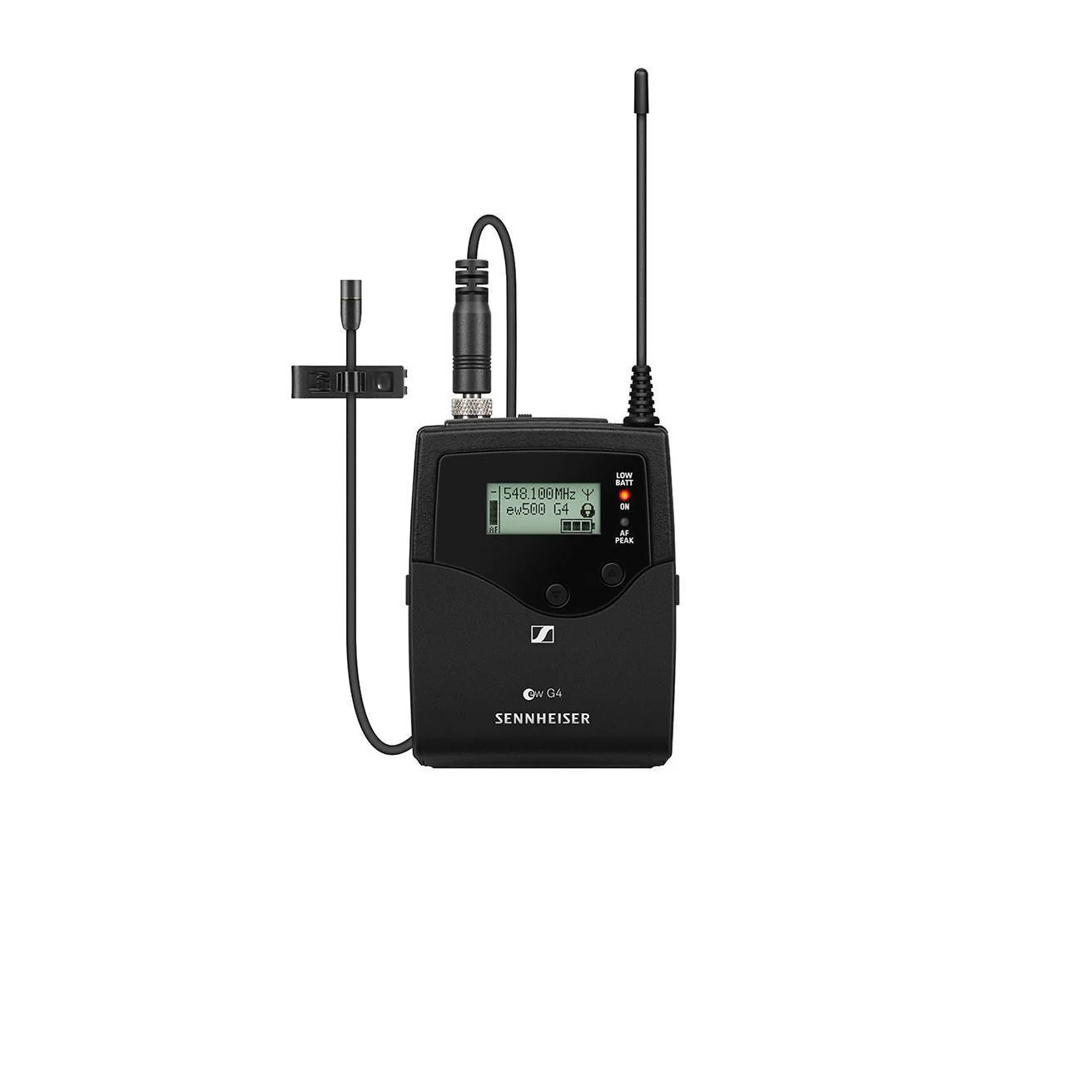

• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• GA 3 rackmount set
• 2 AA batteries
• 2 rod antennas
• power supply
• quick guide
• safety guide
• manufacturer declaration sheet

---

Specifications

Component	EM 300-500 G4 Wireless Receiver
Frequency range	GBW: 606 - 678 MHz
Dimensions	Approx. 202 x 212 x 43 mm
Compander	Sennheiser HDX
THD total harmonic distortion	0.9 %
Weight	Approx. 980 g
Audio output	6.3 mm jack socket (unbalanced): +12 dBu
	XLR socket (balanced): +18 dBu
Signal-to-noise ratio	115 dBA
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Modulation	Wideband FM
Power supply	12 V DC
Antenna connector	2 BNC sockets
Current consumption	350 mA
Adjacent channel rejection	Typically 75 dB
Intermodulation attenuation	Typically 70 dB
Receiving frequency	Max. 3520 receiving frequencies
	adjustable in 25 kHz steps
	20 frequency banks each with up to 32 factory-preset channels
	no intermodulation
	6 frequency banks with up to 32 programmable channels
RF sensitivity	< 2.5 μV for 52 dBA eff S/N
Squelch	5 to 25 dBμV in steps of 2 dB
Equalizer	Preset 1: Flat
	Preset 2: Low Cut (-3 dB at 180 Hz)
	Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz)
	Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range	-10 °C to +55 °C
Receiver Principle	True diversity
Blocking	75 dB

Component	SK 500 G4 Bodypack Wireless Transmitter
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD total harmonic distortion	0.9 %
Weight	(incl. batteries) approx. 160 g
Signal-to-noise ratio	115 dBA
RF output power (switchable)	Low: typ. 10 mW
	Standard: typ. 30 mW
	High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 hrs
Modulation	Wideband FM
Power supply	2 AA batteries/1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA
	with transmitter switched off: 25 µA
Input impedance	40 kΩ unbalanced / 1 MΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies
	adjustable in 25 kHz steps
	20 frequency banks each with up to 32 factory-preset channels
	no intermodulation
	6 frequency banks with up to 32 programmable channels
AF frequency response	Mic: 80 – 18000 Hz / Line: 25 – 18000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	±15 ppm

Component	MKE 2 Clip-on Microphone
Connector	3.5 mm jack
Frequency response	20 to 20000 Hz ± 3 dB
Max. sound pressure level	142 dB
Cable length	approx. 1.60 m
Transducer principle	pre-polarized condenser microphone
Pick-up pattern	omni-directional
Sensitivity in free field no load (1kHz)	5 mV/Pa ± 3 dB
Equivalent noise level	26 dB
Equivalent noise level weighted as per CCIR 468-3	39 dB

---
