Features

• Digital wireless eliminates noise, interference and static bursts
• UHF transmission greatly enhances range, reliability and scalability
• Mobile App streamlines setup and operation and eliminates complicated menus
• Automated setup creates reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• 56 MHz Bandwidth will allow for up to 90 channels

Specifications

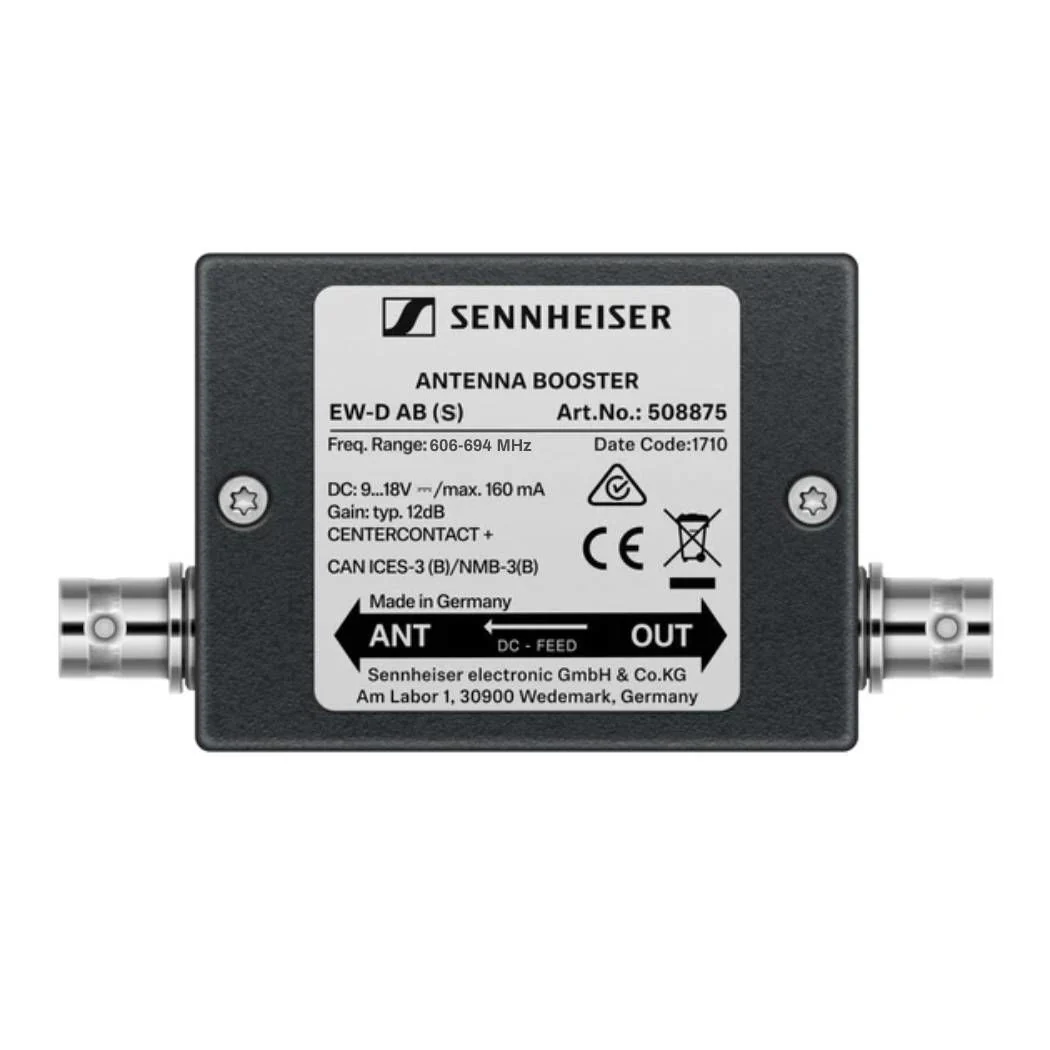

• Frequency ranges: EW-D AB (S): 606 – 694 MHz
• Power supply (DC coupled): DC 12 V (DC 9 – 18 V) / max. 160 mA @ 12 V, center contact +
• IIP3: > 25 dBm
• Max. RF input power: +10 dBm
• Gain Typically: 12 dB
• Impedance: 50 Ω
• Connections: 2x BNC female, DC power supply from OUT to ANT
• Dimensions Approx.: 95 x 47 x 21 mm
• Weight Approx.: 120 g
• Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
• Storage temperature range: -20 °C - +70 °C (-4 °F - 158 °F)
• Relative humidity: 5 - 95 % (non-condensing)
