Combining decades of research with refined technologies, the Sennheiser EW-DX is an easily-scalable digital UHF system that simplifies your professional workflow. Perfect for a host of live production solutions, classrooms, and corporate campus applications, EW-DX's advanced feature set and hardware options deliver a network-enabled system that is designed for seamless integration.

Features

• 134dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
• Remote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
• Secure transmission of confidential content using AES 256 encryption

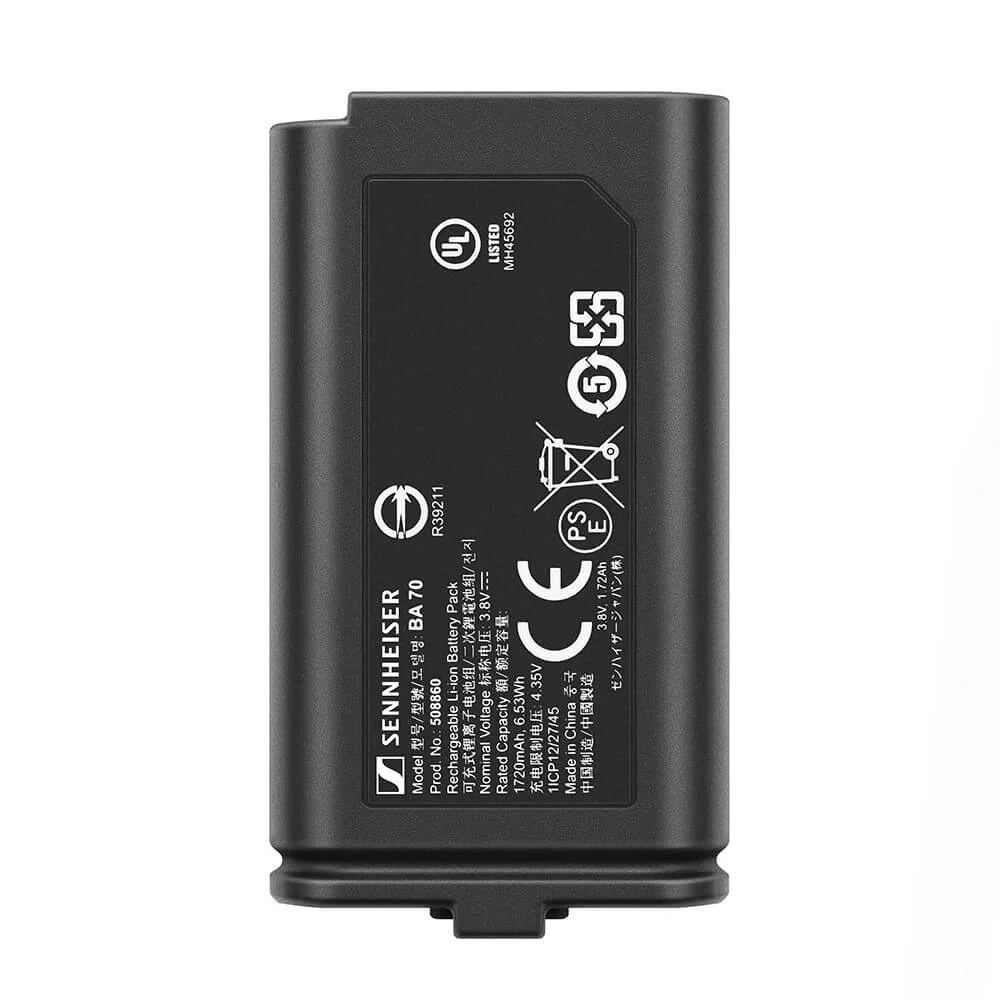

• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
• Function buttons - control all the transmitter settings directly from bodypack including button lock function
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600kHz spacing for up to 146 channels; Link Density (LD) Mode with 300kHz spacing for up to 293 channels
• Up to 88MHz switching bandwidth
• Low latency of 1.9ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Digital audio trim
• Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5mm jack plug connection
• Worldwide usage (specific frequencies subject to local RF regulations)

Powerful Features for Superior Performance

After a quick assessment of your environment, EW-DX uses equidistant channel spacing to deploy frequencies, while tools like Sennheiser's Control Cockpit, Systems Manager, and Smart Assist App offer remote monitoring of this system. With in-device charging, a 12-hour battery life, a switching bandwidth up to 88MHz, and many more incredible features, EW-DX is the ultimate wireless companion for a range of applications.

This all-in-one digital wireless set contains two of Sennheiser's coveted MKE 2 omnidirectional clip-on lavalier microphones, as well as two wireless bodypack transmitters with rechargeable batteries, and the EW-DX EM 2 rackmount receiver - a perfect solution for those who want to speak and present while being able to roam freely on stage

Specifications - System

• Audio Link Frequency Range: 520 - 607.8MHz (R1-9)
• Bluetooth Low Energy (BLE) Frequency Range: 2405 - 2480MHz
• Audio Frequency Response: 20Hz - 20kHz (-3dB) @ 3dBfs
• Total Harmonic Distortion (THD): -60dB for 1kHz @ -3dBfs Input Level
• Dynamic Range: 134dB
• System Latency: 1.9ms
• RF Technology: Intelligent Switching Diversity

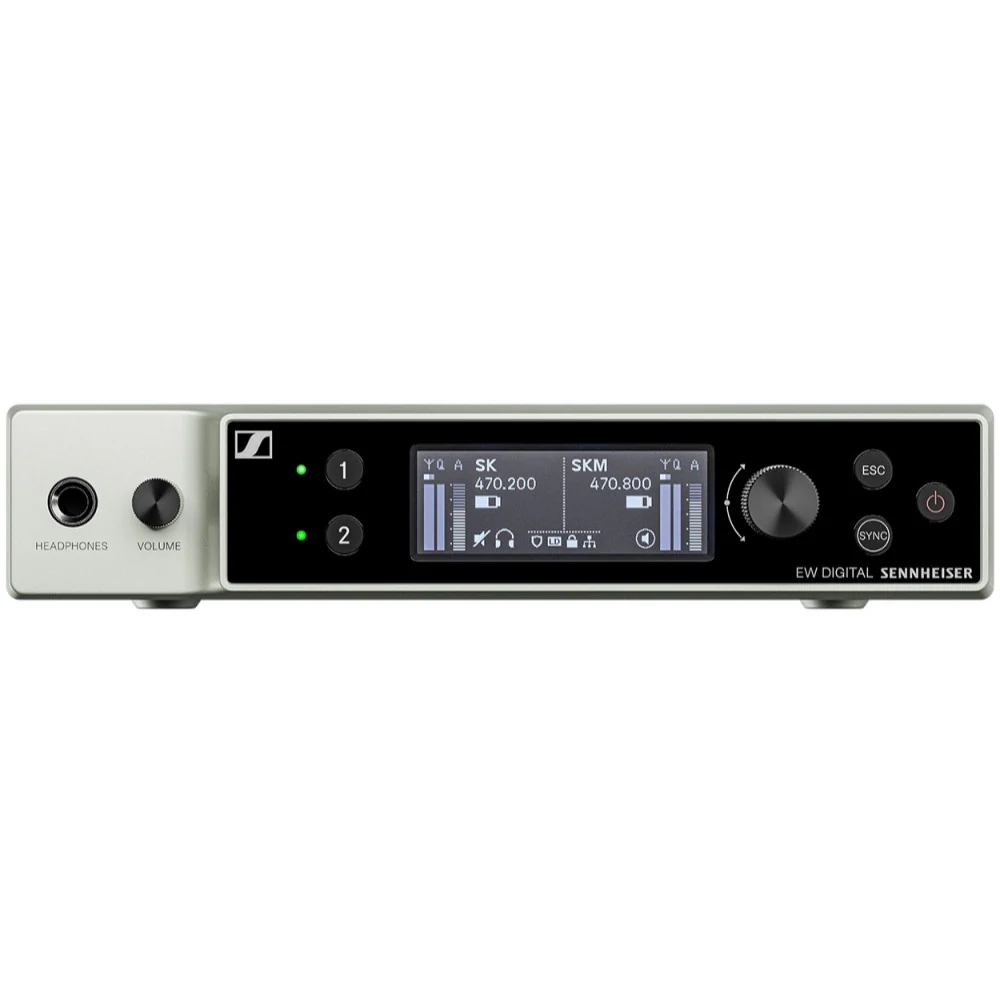

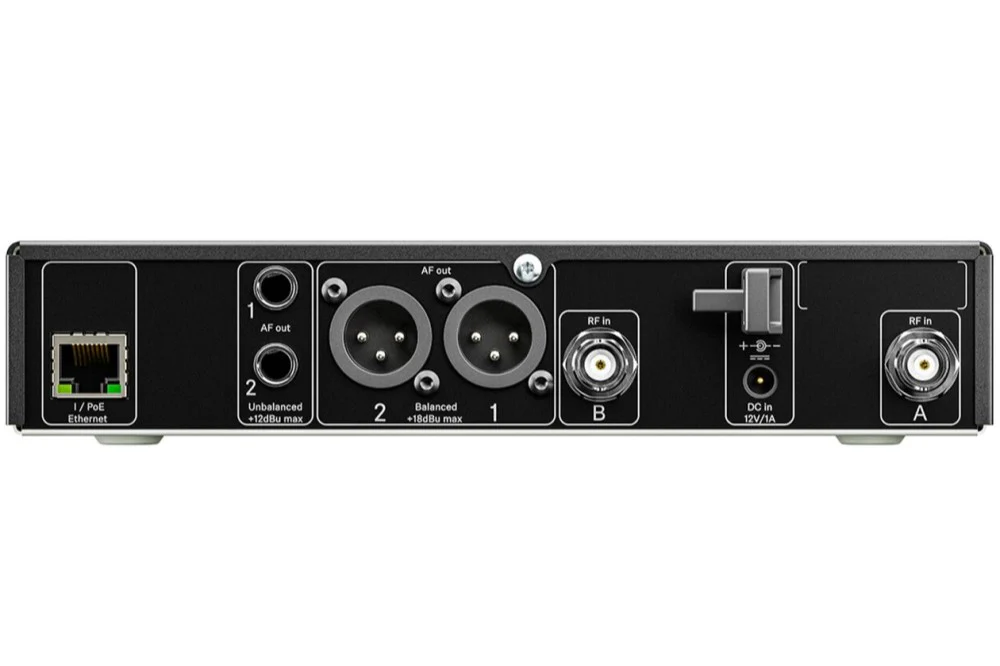

Specifications - EW-DX EM 2 (Rack Receiver)

• Input Voltage Range: 11 - 13V ⎓ or PoE IEEE 802.3af Class 0
• Input Current: 1A
• Transmit Power (Radiated): BLE: max. 10mW EIRP
• Audio Output Level: 18dBu Max.
• Ethernet
  • RJ-45 Socket, IEEE802.3
  • 100Base-TX (half+full duplex)
  • 10Base-T (half+full duplex)
  • (CAT5e or higher)
• Dimensions
  • 212mm x 44mm x 189mm
  • approx. 1000g (Without Antennas and Power Supply)

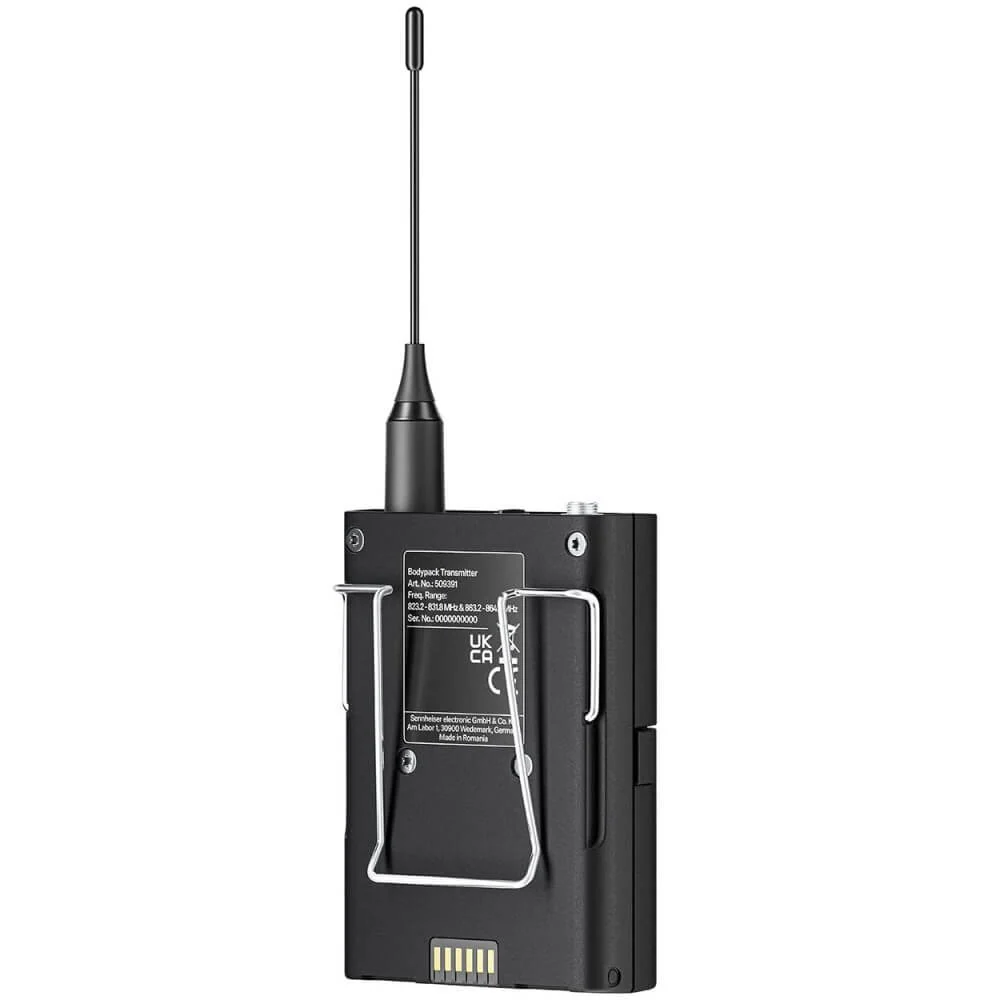

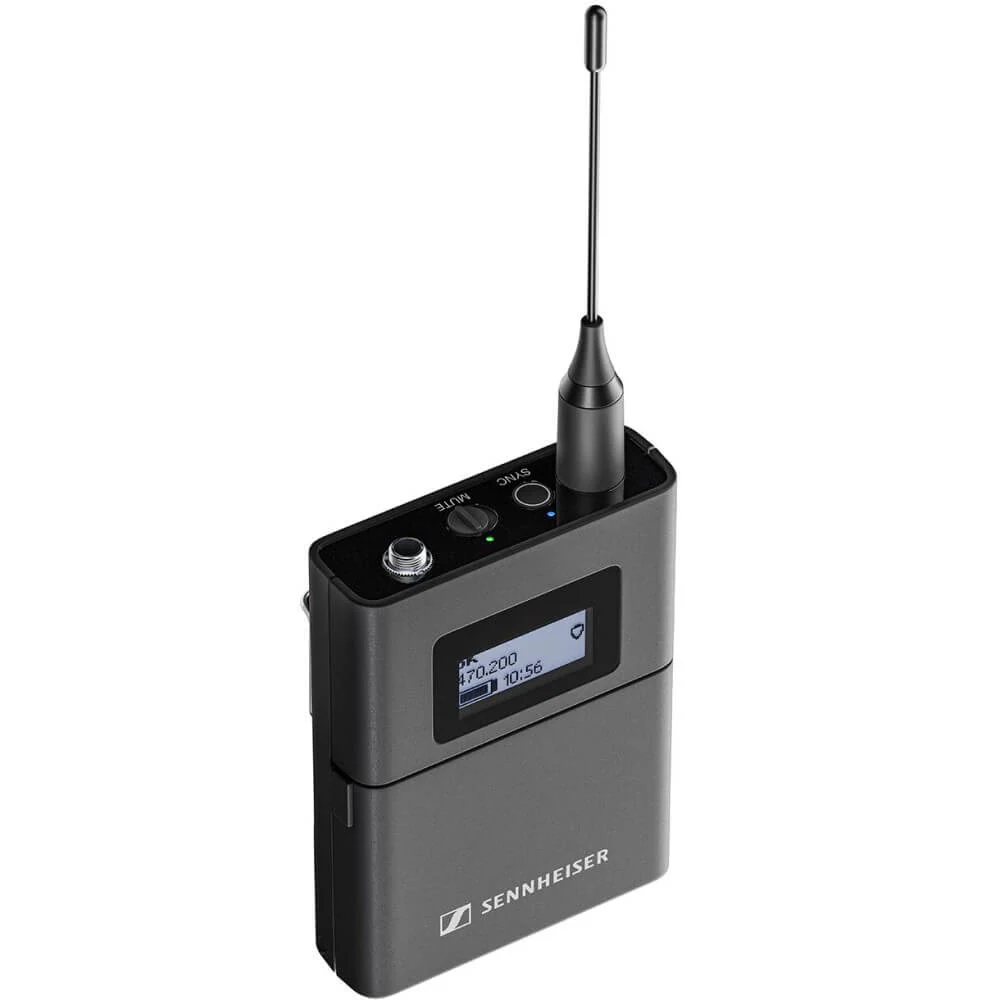

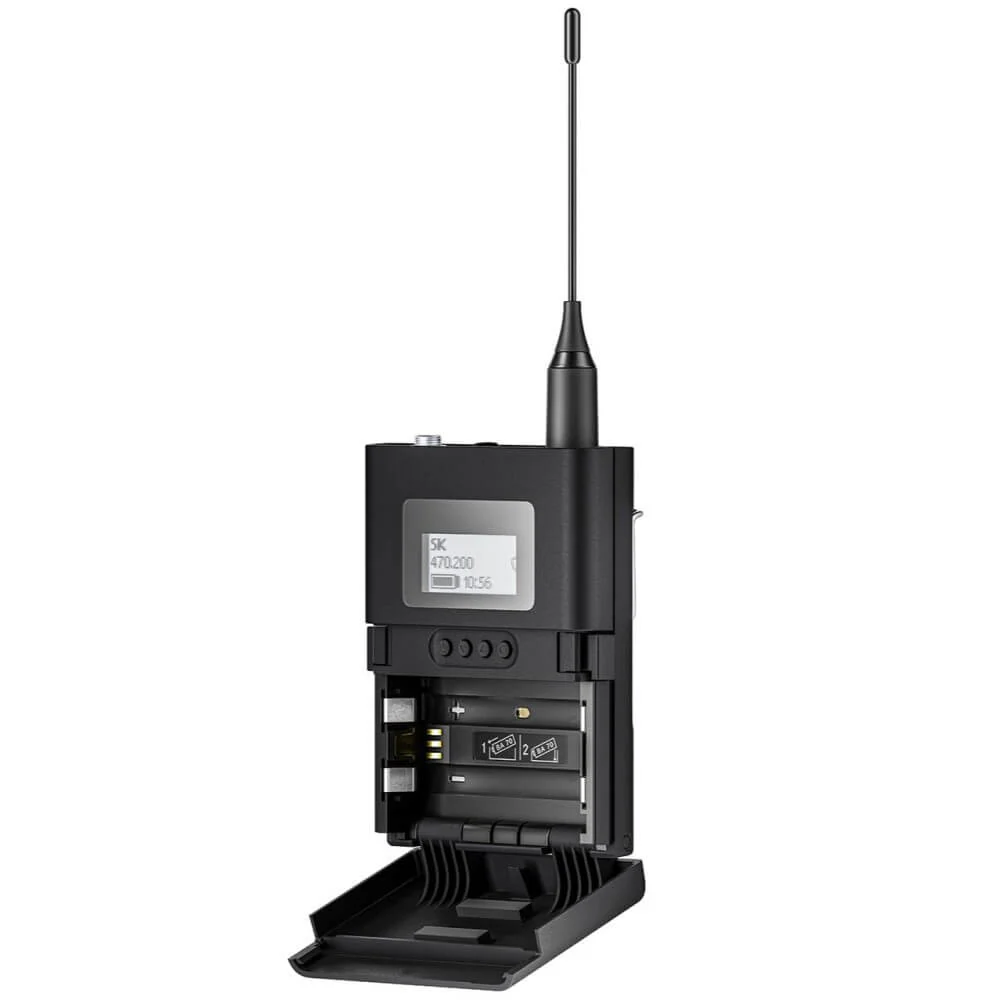

Specifications - EW-DX SK (Bodypack Transmitter)

• Input Voltage: 2.0 - 4.35V
• Input Current: 300mA
• Power Supply: 2x AA Batteries 1.5V (Alkaline Manganese) or BA 70 Rechargeable Battery Pack
• Occupied Bandwidth: 200kHz
• Transmit Power (Radiated)
  • Audio Link: 10mW ERP
  • LD mode: 10mw ERP
  • BLE: max. 10mW EIRP
• Dimensions
  • 63mm x 80mm x 20mm (Without Antenna)
  • approx. 120g (Without Batteries)

Specifications - MKE 2 (Lavalier Microphone)

• Transducer Principle: Pre-Polarized Condenser Microphone
• Pick-Up Pattern: Omni-Directional
• Sensitivity in Free Field, No Load (1kHz): 5mV/Pa +/- 3dB
• Max. SPL at 1kHz: 142dB
• Frequency Response: 20Hz - 20kHz
• Equivalent Noise Level: 26dB
• Connector: 3.5mm Jack
• Cable Length: approx. 1.60m
• Supply Voltage: 7.5V

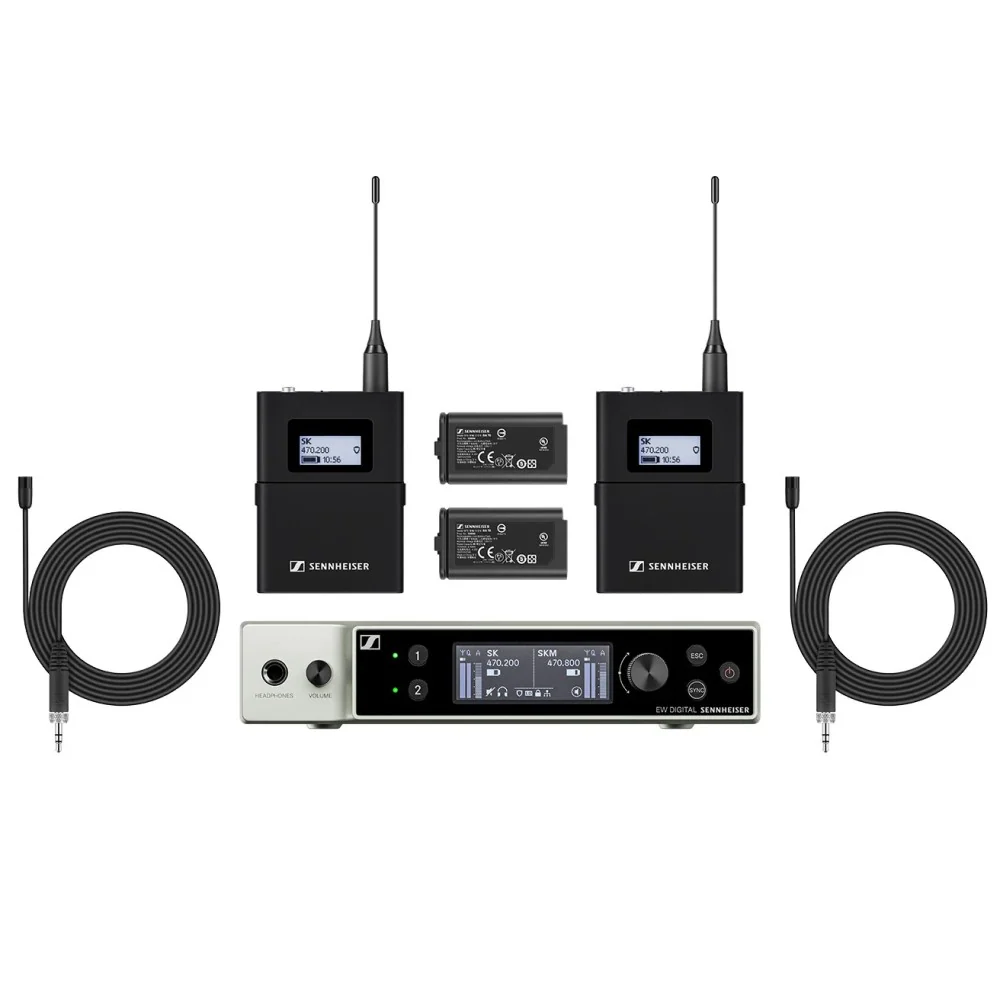

What's in the Box?

• EW-DX EM 2 Rack Receiver
• 2x EW-DX SK Bodypack Transmitter
• 2x EW-DX MKE 2 Lavalier Microphone (Omni-Directional)
• EW-D Power Supply with Country Adapters
• 2x BA 70 Rechargeable Battery Packs
• 2x Rod Antennas
• GA 3 Rack Mount Kit
• 4x Rubber Feet
