Combining decades of research with refined technologies, the Sennheiser EW-DX is an easily-scalable digital UHF system that simplifies your professional workflow. Perfect for a host of live production solutions, classrooms, and corporate campus applications, EW-DX's advanced feature set and hardware options deliver a network-enabled system that is designed for seamless integration.

Features

• 134dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Function buttons - control all the transmitter settings directly from handheld transmitter including button lock function
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Digital audio trim
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)

Powerful Features for Superior Performance

After a quick assessment of your environment, EW-DX uses equidistant channel spacing to deploy frequencies, while tools like Sennheiser's Control Cockpit, Systems Manager, and Smart Assist App offer remote monitoring of this system. With in-device charging, a 12-hour battery life, a switching bandwidth up to 88MHz, and many more incredible features, EW-DX is the ultimate wireless companion for a range of applications.

Specifications - System

• Audio Link Frequency Range: 520 - 607.8MHz (R1-9)
• Bluetooth Low Energy (BLE) Frequency Range: 2405 - 2480MHz
• Audio Frequency Response: 20Hz - 20kHz (-3dB) @ 3dBfs
• Total Harmonic Distortion (THD): -60dB for 1kHz @ -3dBfs Input Level
• Dynamic Range: 134dB
• System Latency: 1.9ms
• RF Technology: Intelligent Switching Diversity

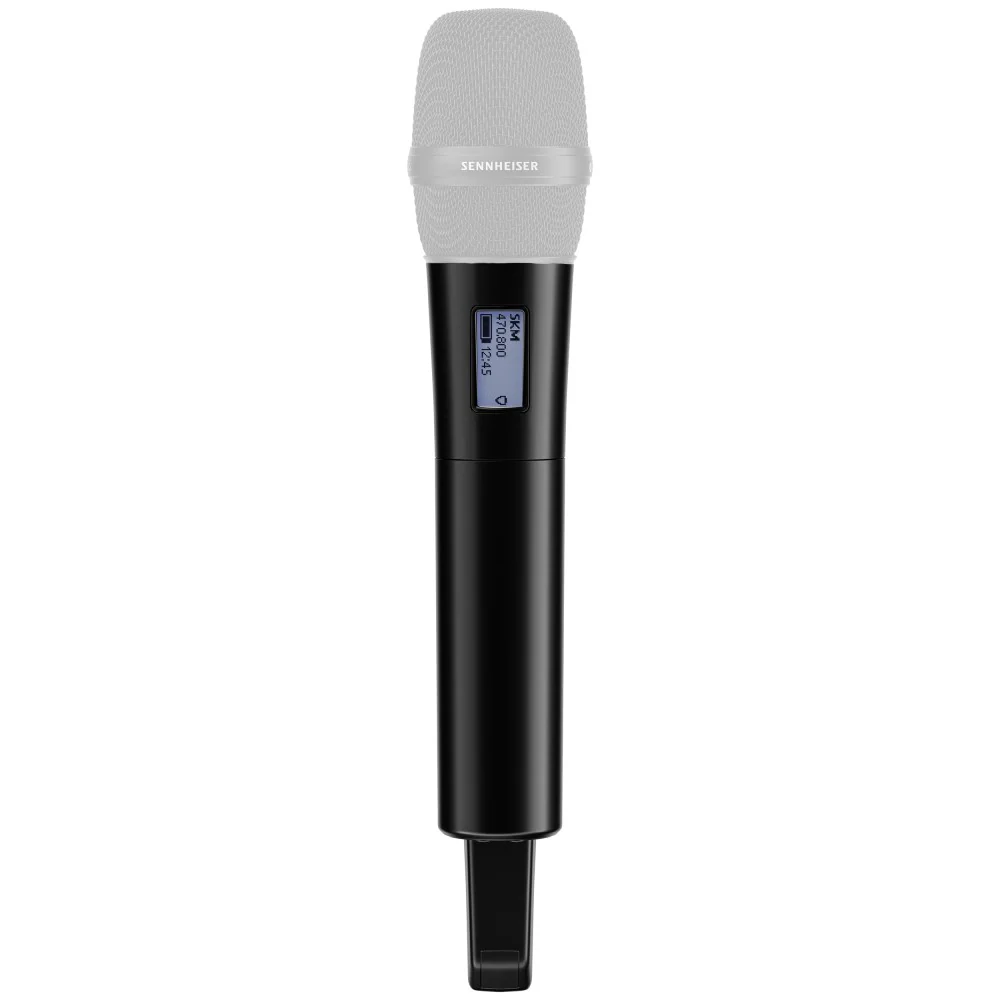

Specifications - EW-DX SKM (Handheld Transmitter)

• Input Voltage: 2.0 - 4.35V
• Input Current: 300mA
• Power Supply: 2x AA Batteries 1.5V (Alkaline Manganese) or BA 70 Rechargeable Battery Pack
• Occupied Bandwidth: 200kHz
• Transmit Power (Radiated)
  • Audio Link: 10mW ERP
  • LD mode: 10mw ERP
  • BLE: max. 10mW EIRP
• Dimensions
  • 40mm x 200mm
  • approx. 195g

What's in the Box?

• EW-DX SKM Handheld Transmitter
• MZQ 1 Microphone Clamp
• 2x AA Batteries
