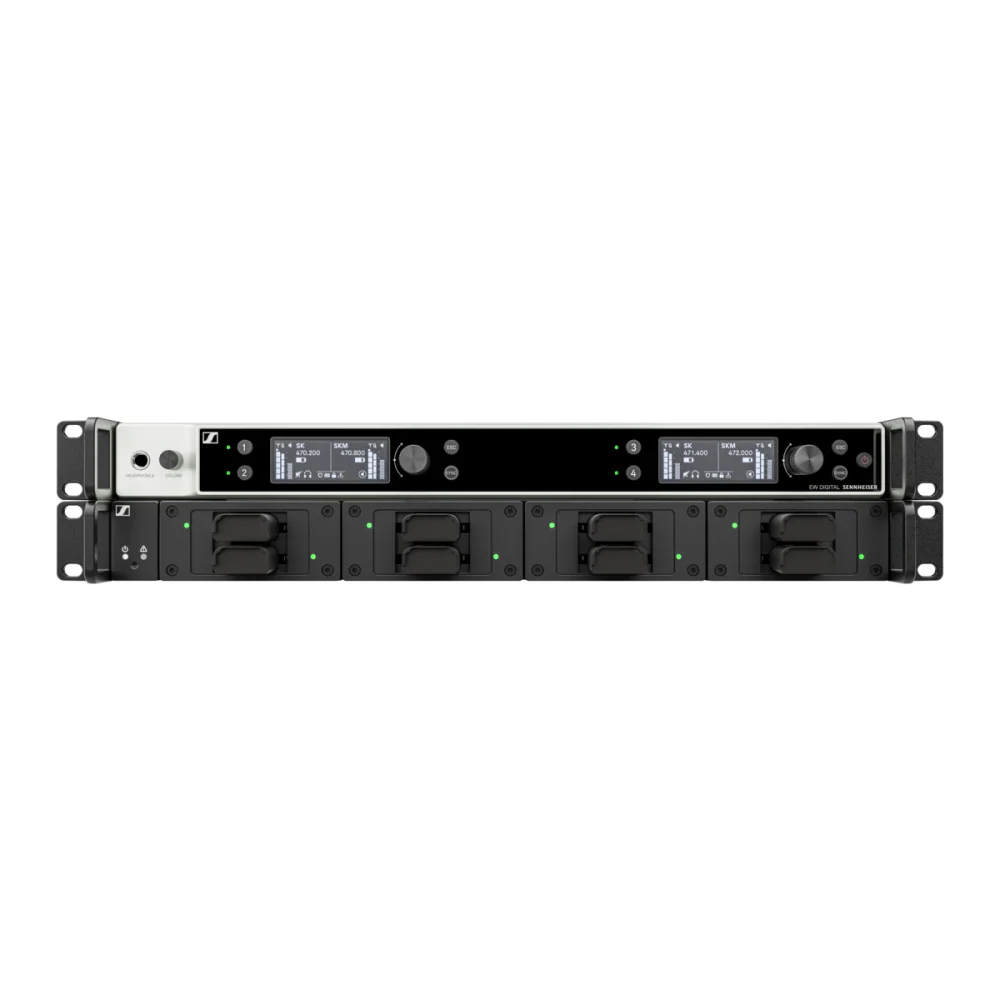

Practical, centralized, and intelligent: The 19-inch 1U L 6000 charging station provides centralized power directly within the rack. Up to four freely selectable charging modules each provide space for two pocket or handheld battery packs (total of eight charging ports for BA 60, BA 61 or BA 62 battery packs). Tri-color LED gives you a quick overview of charging status. Intelligent controls prevent heat build-up and also provide modes to optimally charge the battery for long-term storage. The L6000 charging station has a modular design and is future-proof. Charging stations for future battery pack types can also be easily retrofitted. Extensive details about temperature, remaining charge time, run time, charge cycles, and battery quality can be accessed via Wireless System Manager (WSM).

Features

• 19 inch charging station in 1 RU
• Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
• Quick overview of charging status with three-color LEDs
• Intelligent charging control with four fans for optimum cooling
• Storage mode keeps battery packs in optimum charge condition for longer storage periods
• Integrates into the Wireless Systems Manager

Specifications

Product Display: Multicoloured Ambient Conditions Operating relative humidity (<%): Max. 90% at 40°C Battery & Power

• Charging time (h): BA 60: 80%: approx. 1:15 h, 100%: approx.2:30h
• Power consumption (Amp): Max. 85 W
• Charging current (mA): 2A
• Charging voltage (V): 4.2 V

Technology Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
