Features

• Available Transmitter Form factors: Bodypack
• Operating range (up to): 100 m (Under typical conditions)
• Frequency Band Version: K14: 614-638MHz

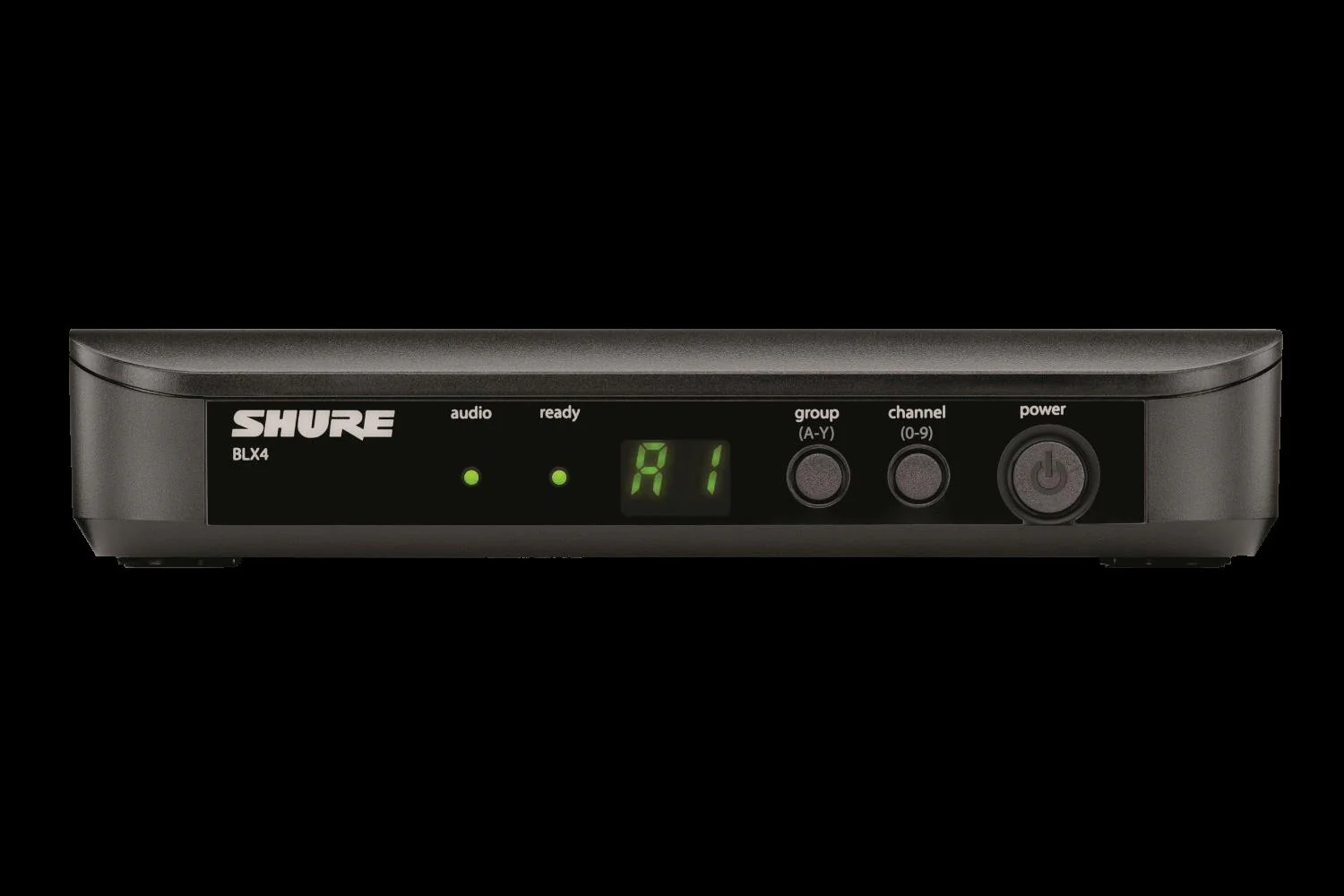

BLX4 Wireless Receiver

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open frequency
• ¼" and XLR audio outputs
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

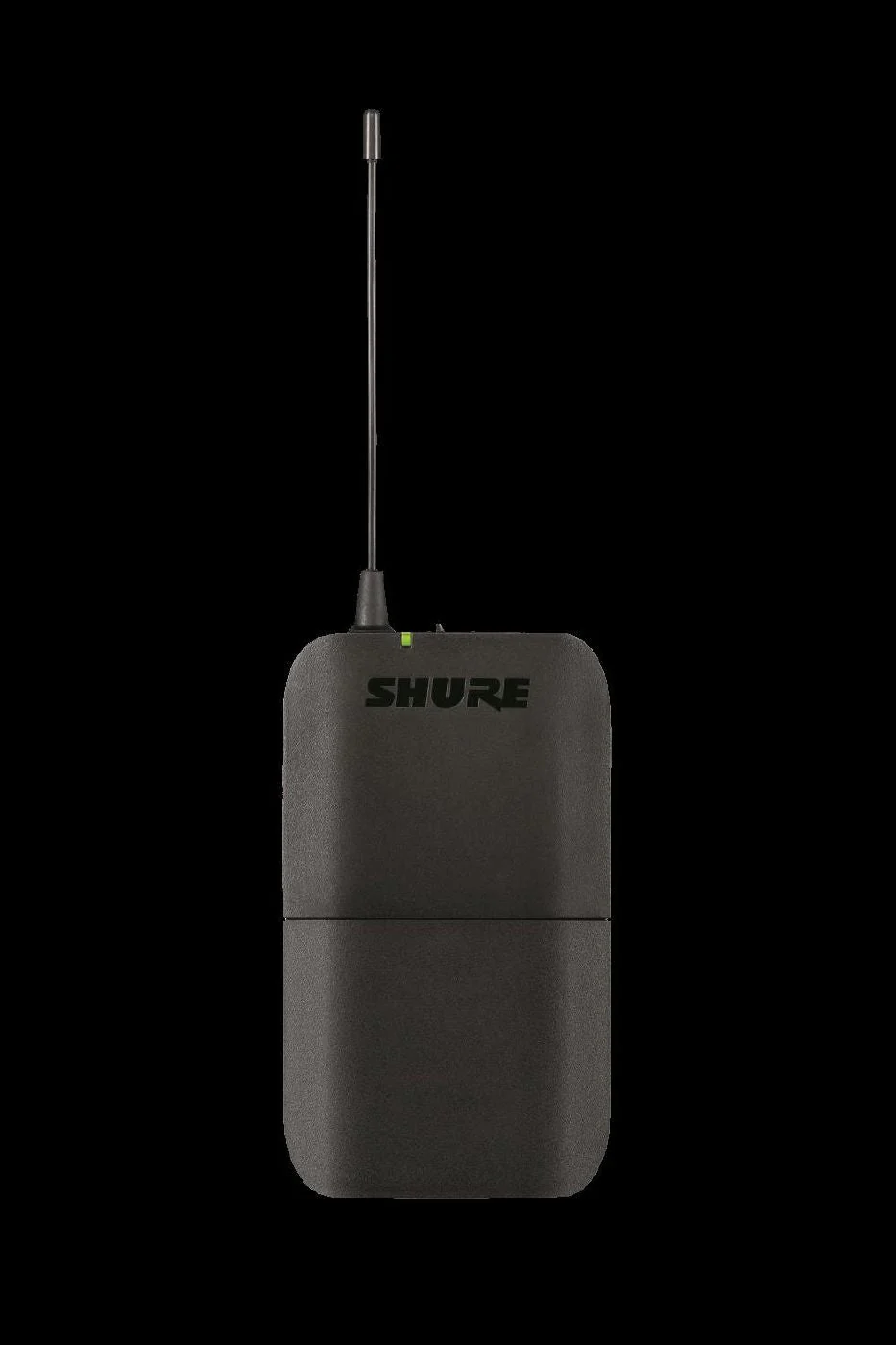

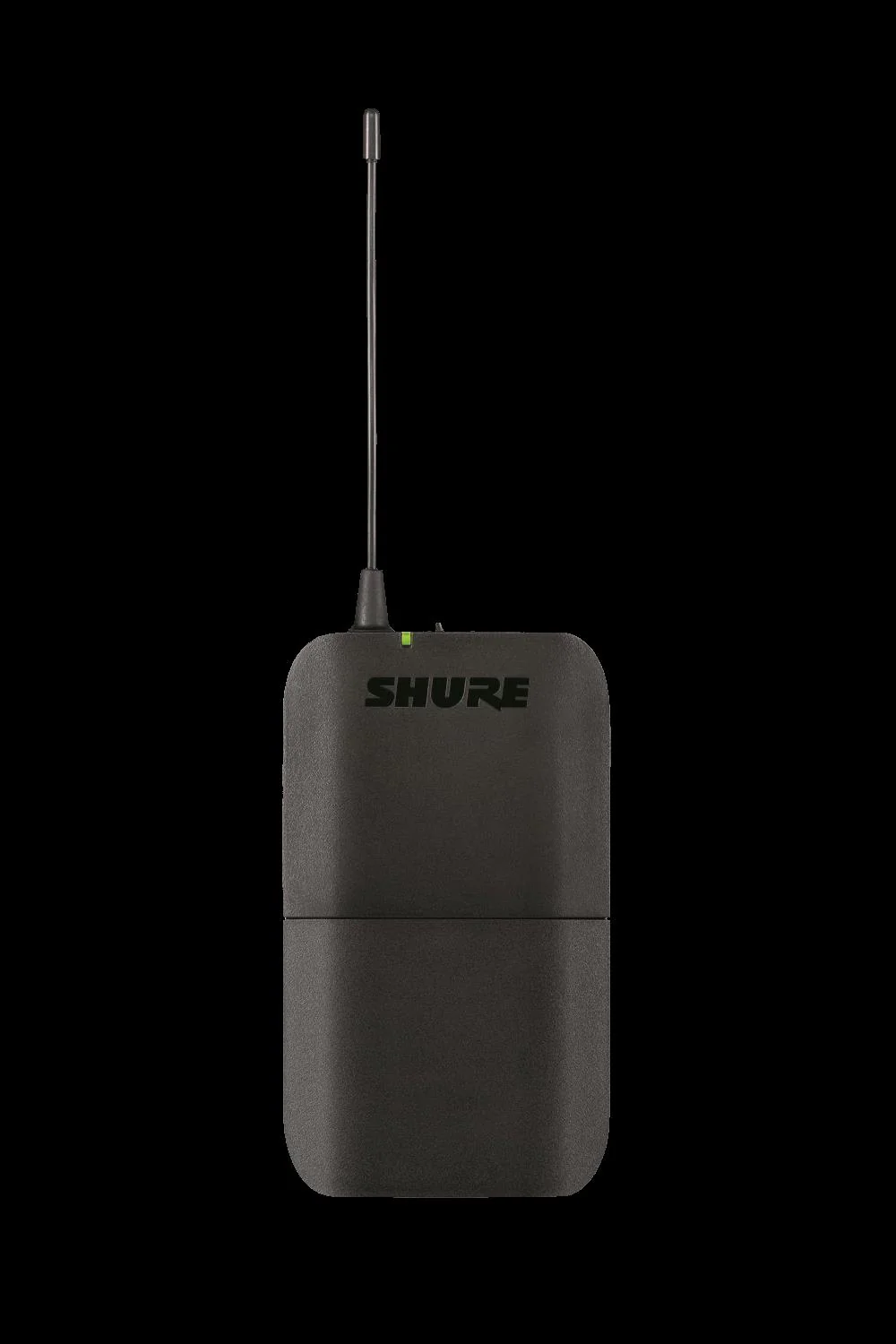

BLX1 Wireless Bodypack Transmitter

• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to 14 hours of continuous use
• 100 m (300 ft.) operating range (line of sight)

Headset Condenser Microphone

• Wearable wireframe headset fits securely for multi-instrumentalists and active performers
• Permanently-charged electret condenser element for detailed, crisp vocals
• Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
• Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
• Included windscreen tames plosives for clean and intelligible sound reproduction
• Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
• Included windscreen tames plosive, breath and wind noise for clean and intelligible sound
• Tailored frequency response primed for great sound on vocals
• Legendary Shure precision engineering for durability and performance

---

Specifications

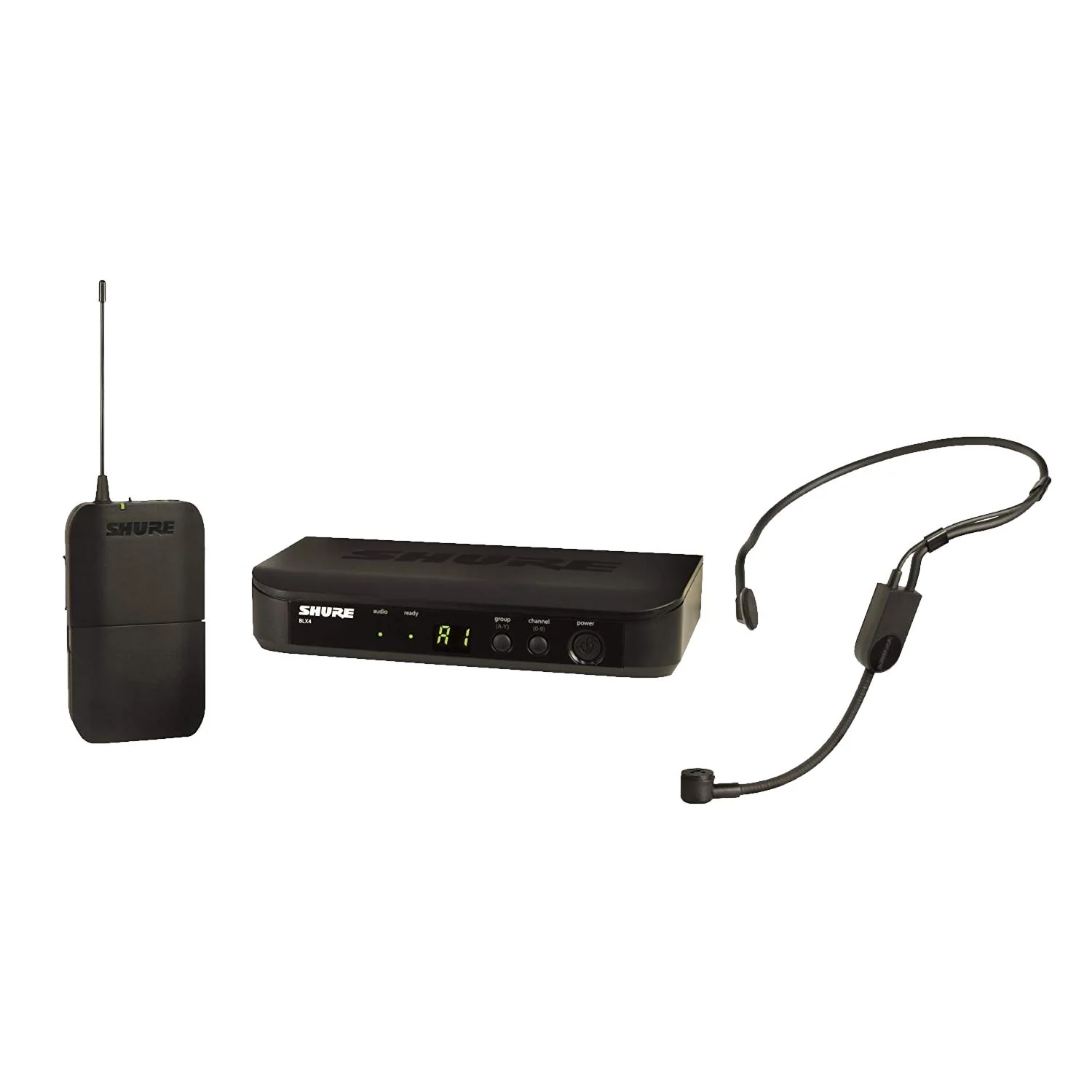

BLX14/PGA31 Specifications

• Set Type: Headset
• Amount of Bodypacks: 1
• Amount of Handhelds: 0
• Amount of TQG Mics: 1

BLX4 Specifications

• Weight: 241 g
• Height x Width x Depth: 40.0 × 188.0 × 103.0 mm
• Transmission: Analog
• Type of Power Supply: External
• Receiver Housings: Molded ABS
• Active Antenna Possible: No
• Bias via BNC: No
• Encryption: No
• High Density Mode: No
• Interference Detection: No
• Remote Control: No
• Number of compatible systems per frequency band: Up to 12
• DANTE-Enabled Products: No
• Scan Features: Quick Scan
• Sync Features: None
• Detachable Antennas: No
• Network ability: No
• Software control: No
• Logic: No
• Cascade: No
• Rack Hardware: Optional: Urt2
• Receiver Displays: LEDs
• Receiver type: Single
• Included antenna: Internal
• Line Mic Switch: No
• Image Rejection: 50 dB, typical
• RF Sensitivity: -105 dBm, for 12dB SINAD, typical
• Phantom Power Protection: Yes

BLX1 Specifications

• Weight:75 g
• Height x Width x Depth: 110.0 × 64.0 × 21.0 mm
• Battery life lithium: 0 h
• Battery life alkaline: 14 h
• Form Factor: Bodypack
• Transmitter housings: Molded ABS
• Audio Mute: No
• Detachable Antennas: No
• Switchable RF power: No
• Batteries: AA
• Battery Status: Multi-Color LED
• Connectors: TQG
• Frequency Diversity: No
• Functionality: Transmitter
• Gain adjustment range: 26 dB
• High Density Mode: No
• Included antenna: 1/4 wave
• Input impedance: 1000 kΩ
• Transmission: Analog

PGA31 Specifications

• Weight: 45 g
• Frequency Response: 60 Hz – 20 kHz
• Frequency Response: Tailored
• Sensitivity: -50.00 dBV/Pa – 3.16 mV/Pa
• Self-Noise: 28 dB(A)
• Max. Sound Pressure Level: 145 dB
• Transducer Type: Condenser
• Polar Pattern: Cardioid
• Switchable low cut: No
• Connectors: TQG (T4AF, 4-Pin Mini)
• Attenuator: No
• Interchangeable Capsule: No
• Main Functionality: Performance
• Headphone Output: No
• Requires Phantom Power: 5v DC (bias) VDC
• Cartridge: Fixed
