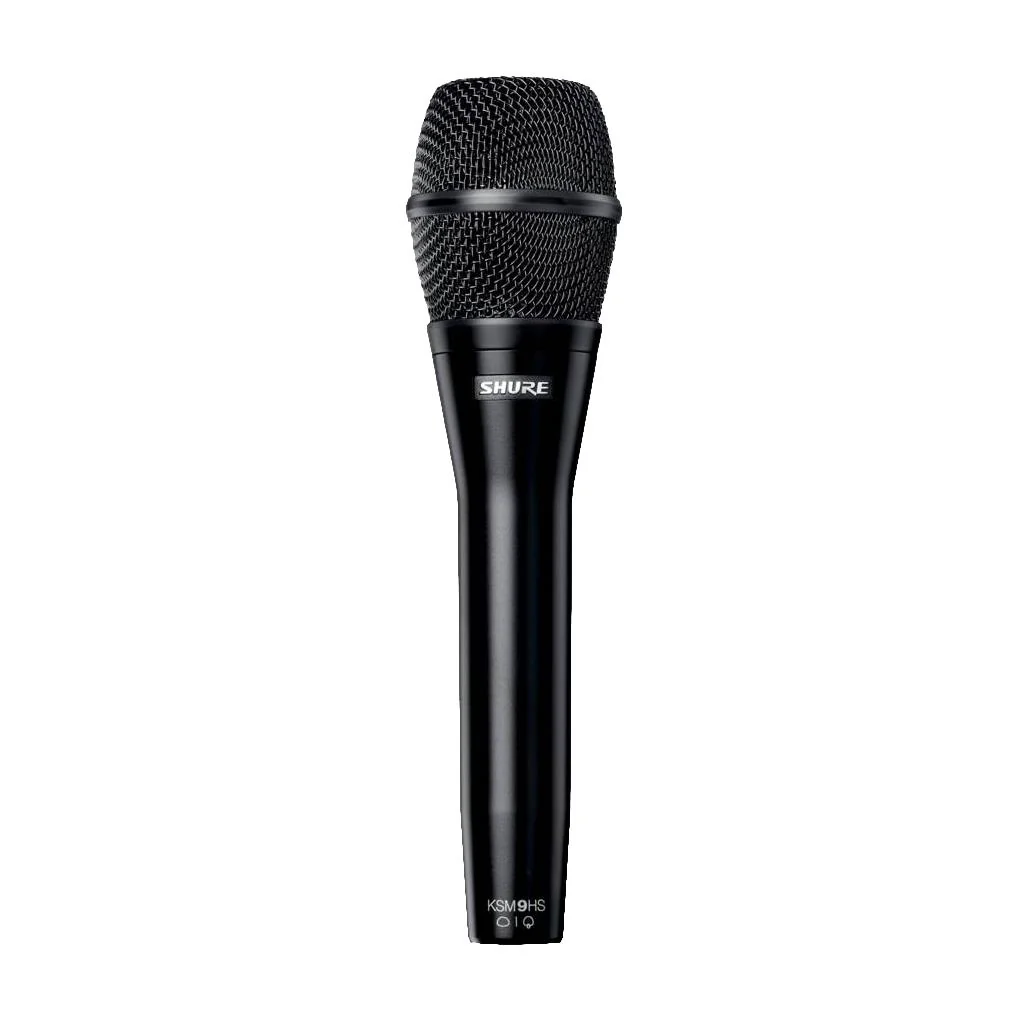

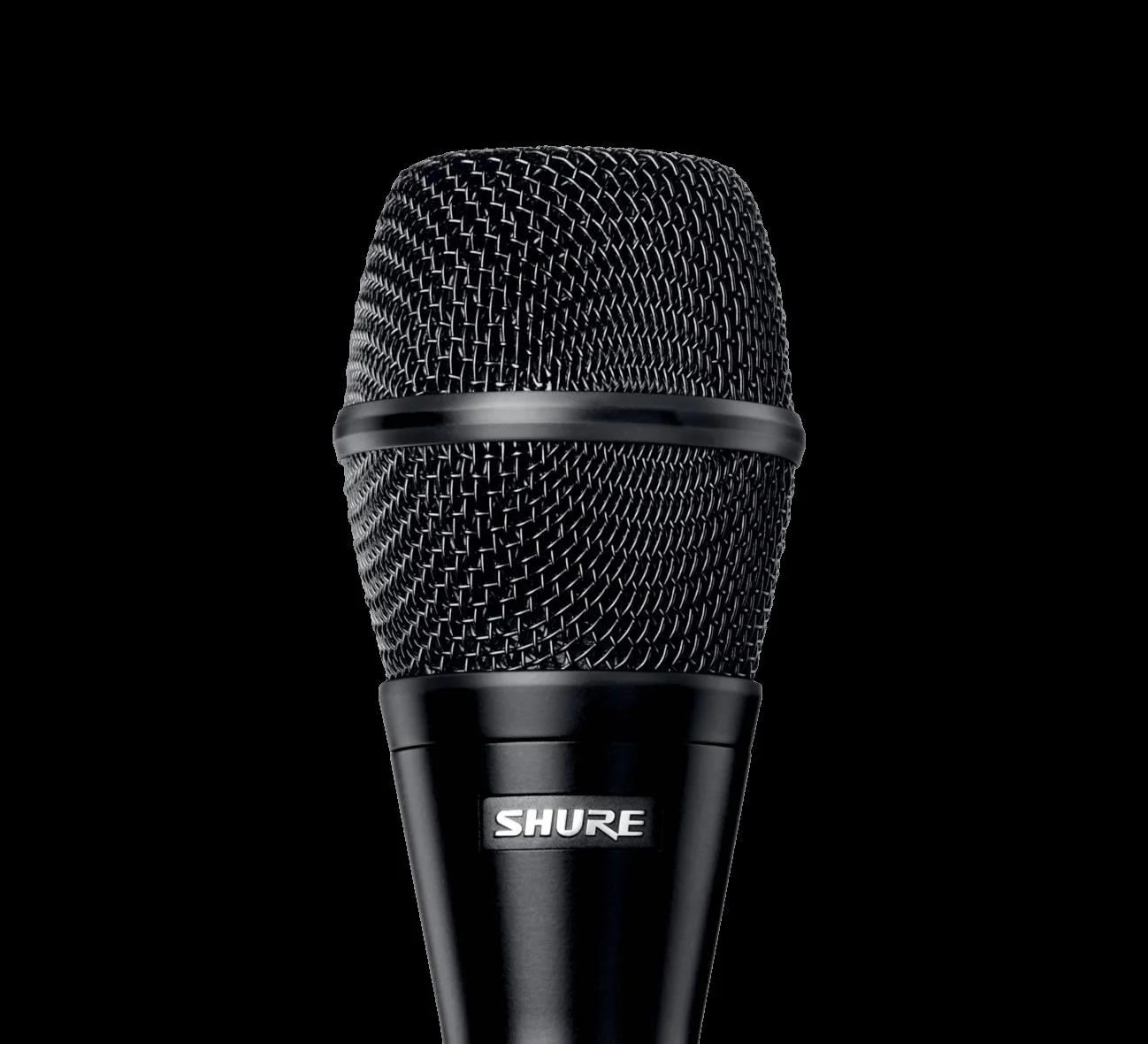

Shure KSM9 Hypercardioid/Subcardioid Condenser Microphone in Black
Features
- Dual 3/4" gold layered, low mass Mylar® diaphragms provide superior frequency response.
- Dual polar patterns (Hypercardioid and subcardioid) for even greater flexibility in demanding performance applications.
- Class A, discrete, transformerless preamplifier provides transparent, extremely fast transient response with no crossover distortion and minimal harmonic and intermodulation distortion.
- Advanced suspension shock mount system that isolates cartridge from handling and stand noise.
- Premium electronic components, including gold-plated internal and external connectors.
- Three-stage grille reduces “pop” and breath noise.
- Also available as ULX-D® and QLX-D™ digital wireless handheld transmitters and Axient® and UHF-R® wireless handheld transmitter SKUs
Specifications
- Cartridge Type: Condenser (Electret Biased)
- Frequency Response: 50 to 20,000 Hz
- Output Impedance: 145 ohms (actual)
- Phantom Power: 48 Vdc ± 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
- Current Drain: 5.2 mA typical at 48 Vdc
- Common Mode Rejection: >60 dB, 50 Hz to 20 kHz
- Polarity: Positive pressure on front diaphragm produces positive voltage on output pin 2 relative to pin 3
- Polar Patterns: Hypercardioid, Subcardioid
- Sensitivity (typical; at 1000 Hz;1 Pa = 94 dB SPL): Hypercardioid: -50.5 dBV/Pa / Subcardioid: -53.0 dBV/Pa
- Self-noise (typical, equivalent SPL; A-weighted, IEC 651): Hypercardioid: 20.7 dB / Subcardioid: 22.7 dB
-
Maximum SPL @ 1000 Hz
- 2500 ohms load: Hypercardioid: 150.8 dB / Subcardioid: 153.0 dB
- 1000 ohms load: Hypercardioid: 150.9 dB / Subcardioid: 153.1 dB
-
Output Clipping Level*
- 2500 ohms load: 7.0 dBV
- 1000 ohms load: 6.4 dBV
-
Dynamic Range (@ 1 kHz)
- 2500 ohms load: Hypercardioid: 130.8 dB / Subcardioid: 130.1 dB
- 1000 ohms load: Hypercardioid: 130.1 dB / Subcardioid: 130.6 dB
- Signal to Noise ratio: Hypercardioid: 73.3 dB / Subcardioid: 71.3 dB
- Dimensions and Weight: 49 mm (1 15/16 in.) maximum body diameter, 191 mm (7.5 in.) long 300 grams (10.6 oz.)
$304.11
Original: $868.90
-65%Shure KSM9 Hypercardioid/Subcardioid Condenser Microphone in Black—
$868.90
$304.11Product Information
