Features

• For pick-up of audience response, talk shows, live concerts
• Narrow pickup angle
• Unmatched quality off-axis rejection for very low ambience
• Modular design with reduced visual appearance and easy handling (camera- or boom-mounted)
• Premium preamplifier design with RF immunity
• Internal low-frequency roll-off
• Recessed low-cut filter switch for additional control
• Superior Shure design and rugged, roadworthy construction

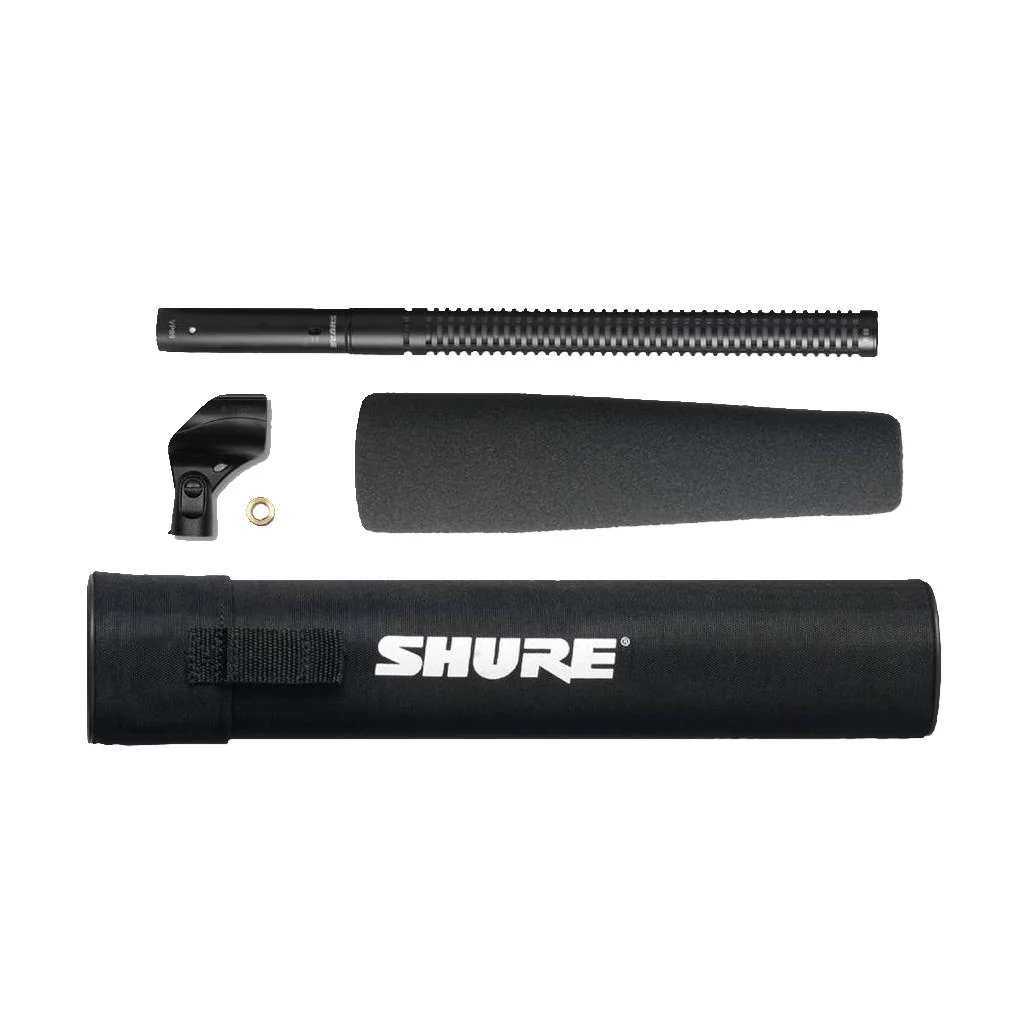

• Carrying case and foam windscreen included
• Full range of complementary accessories

---

Specifications

• Weight: 174 g
• Height x Width x Depth: 386.0 × 21.0 × 21.0 mm
• Frequency Response: 40 Hz – 20 kHz
• Frequency Response: Tailored
• Sensitivity: -33.50 dBV/Pa – 21.10 mV/Pa
• Self-Noise: 79.0 dB(A)
• Max. Sound Pressure Level: 132 dB
• Transducer Type: Condenser
• Polar Pattern: Hypercardioid, Lobar
• Switchable low cut: No
• Connectors: 3 Pin XLR
• Attenuator: No
• Interchangeable Capsule: Yes
• Main Functionality: Broadcasting
• Headphone Output: No
• Requires Phantom Power: 11-52 v DC VDC
• Cartridge: Fixed
• Frequency Response Curve Image:

---
